Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

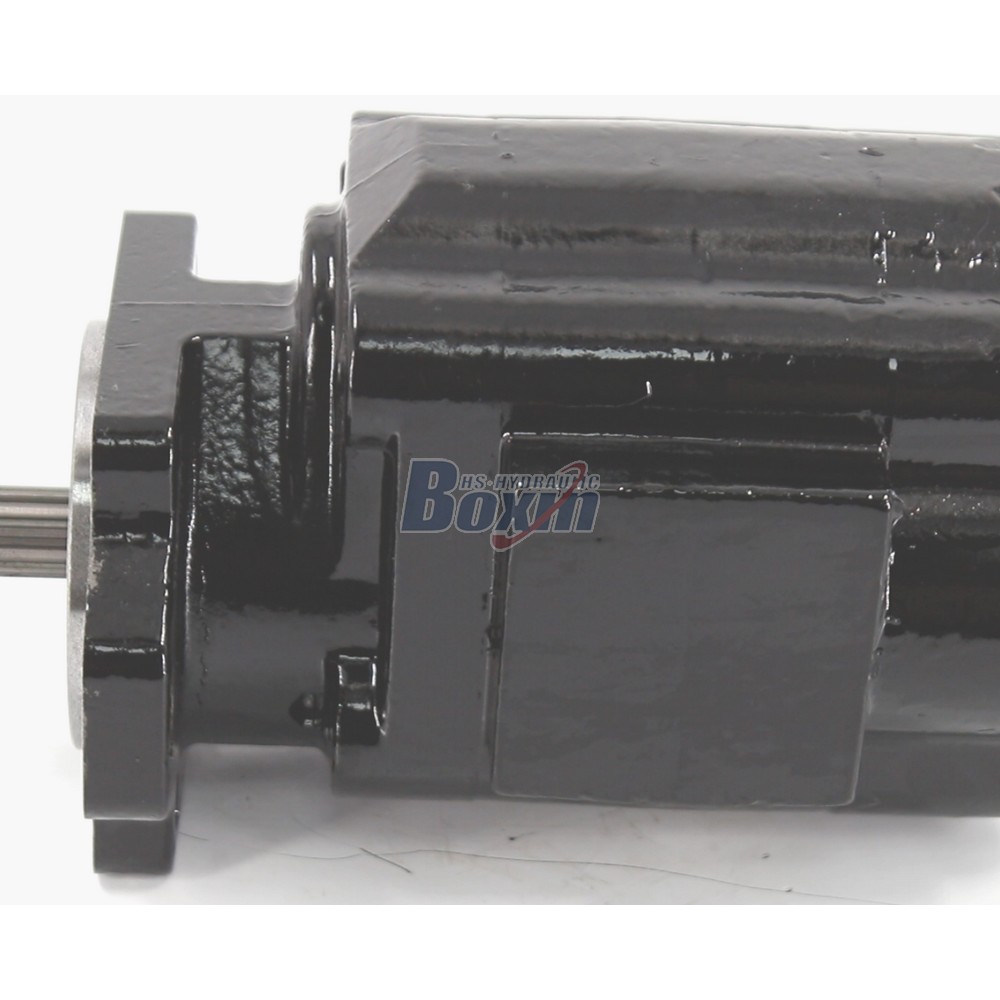

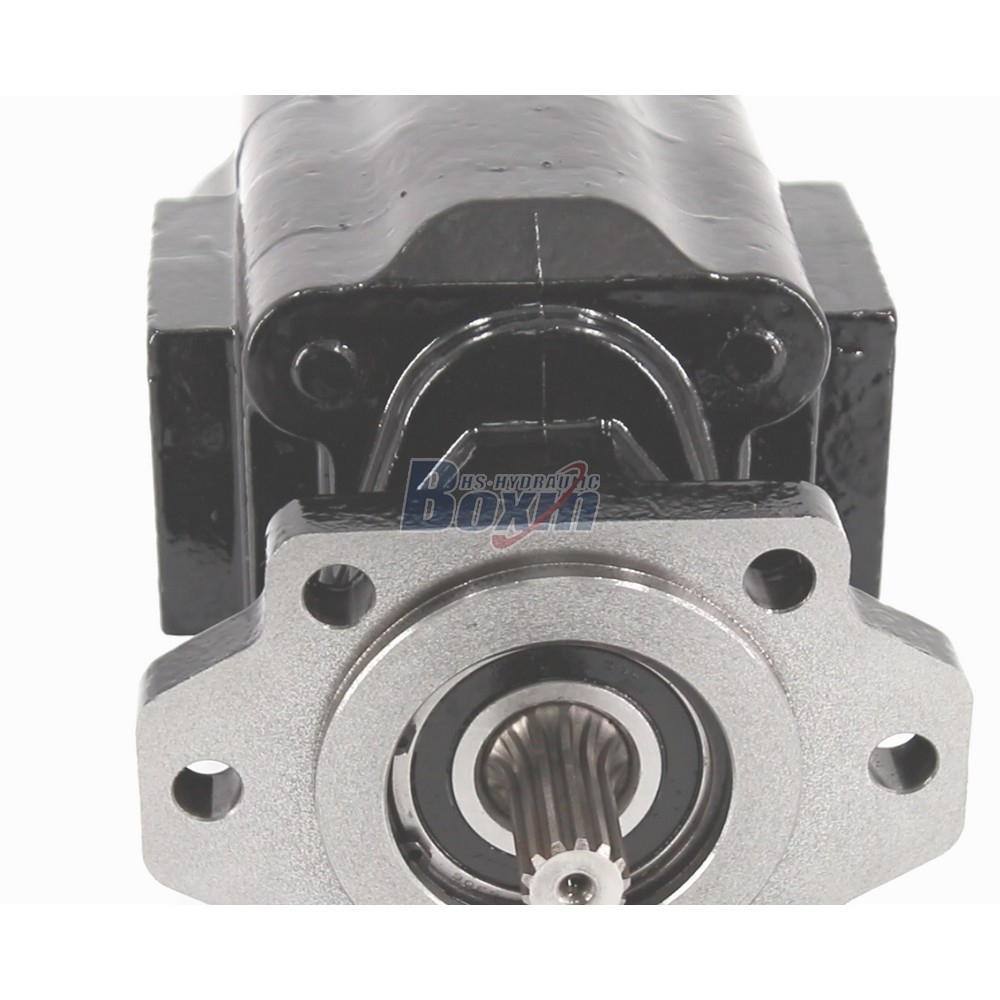

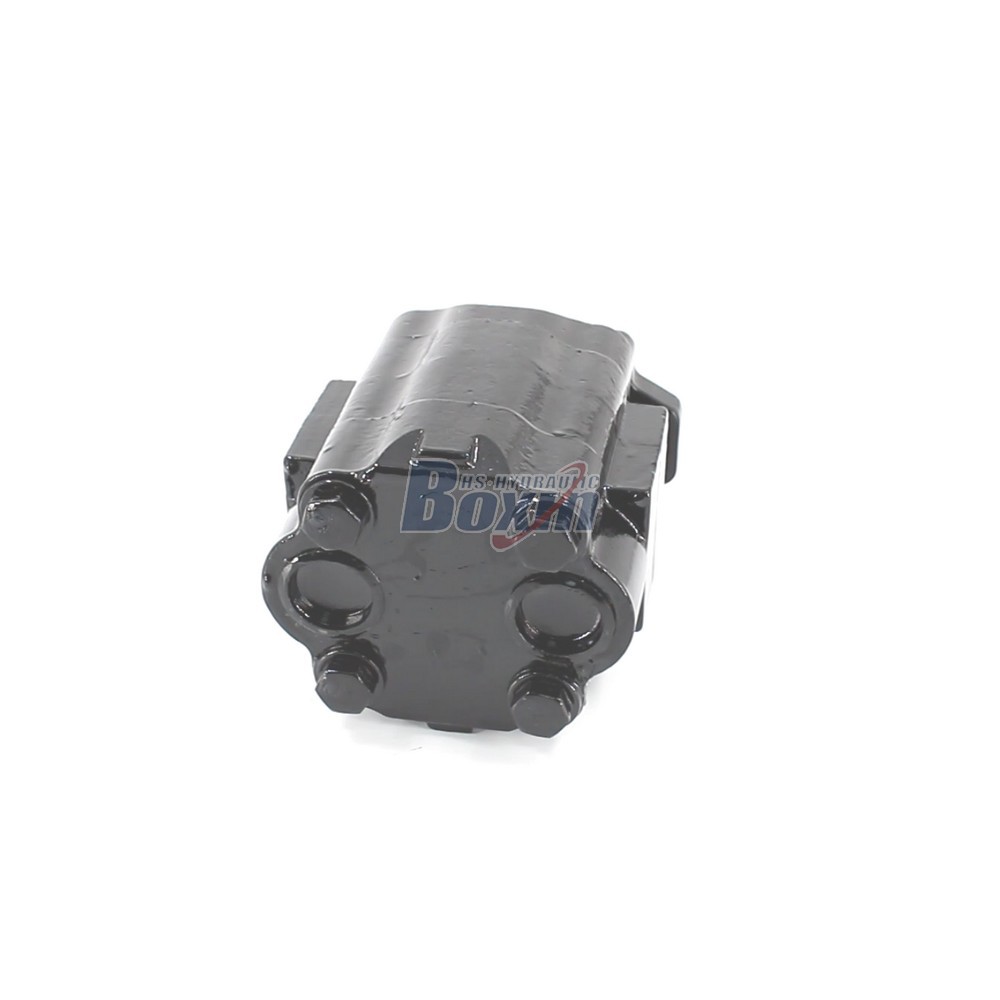

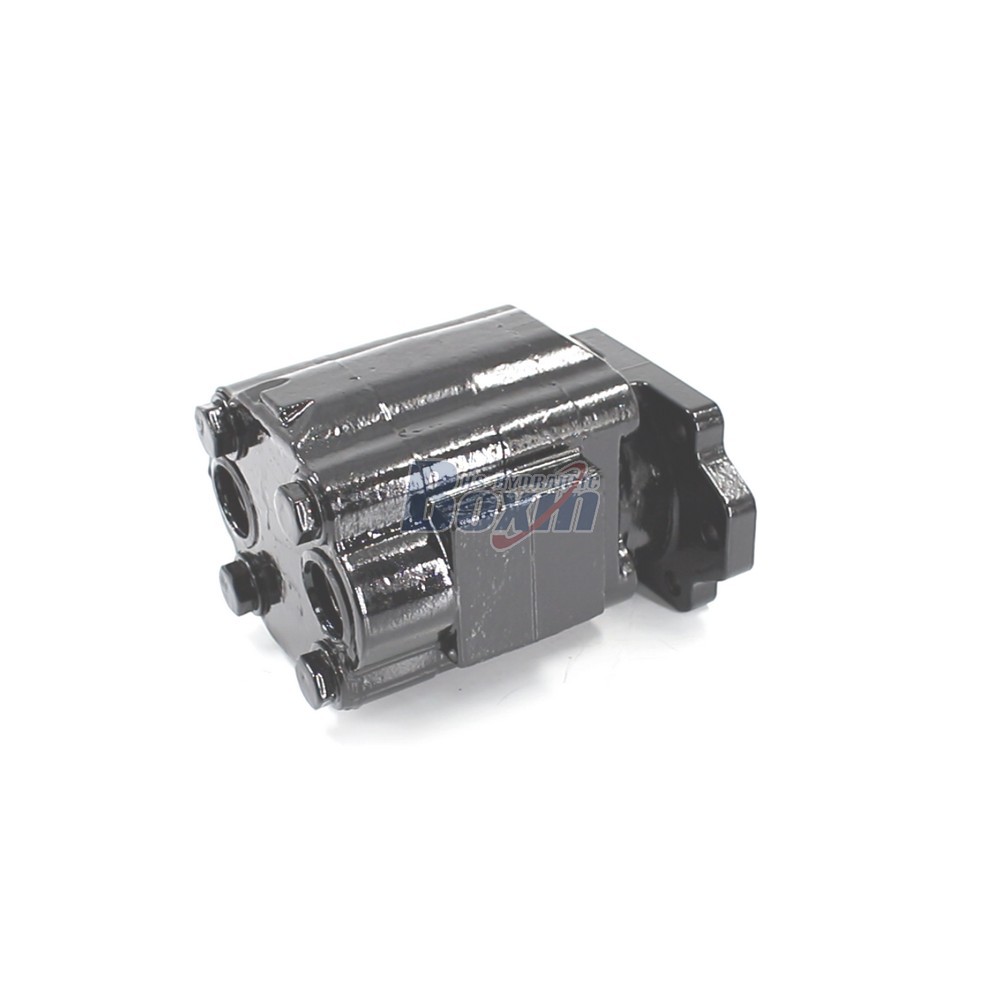

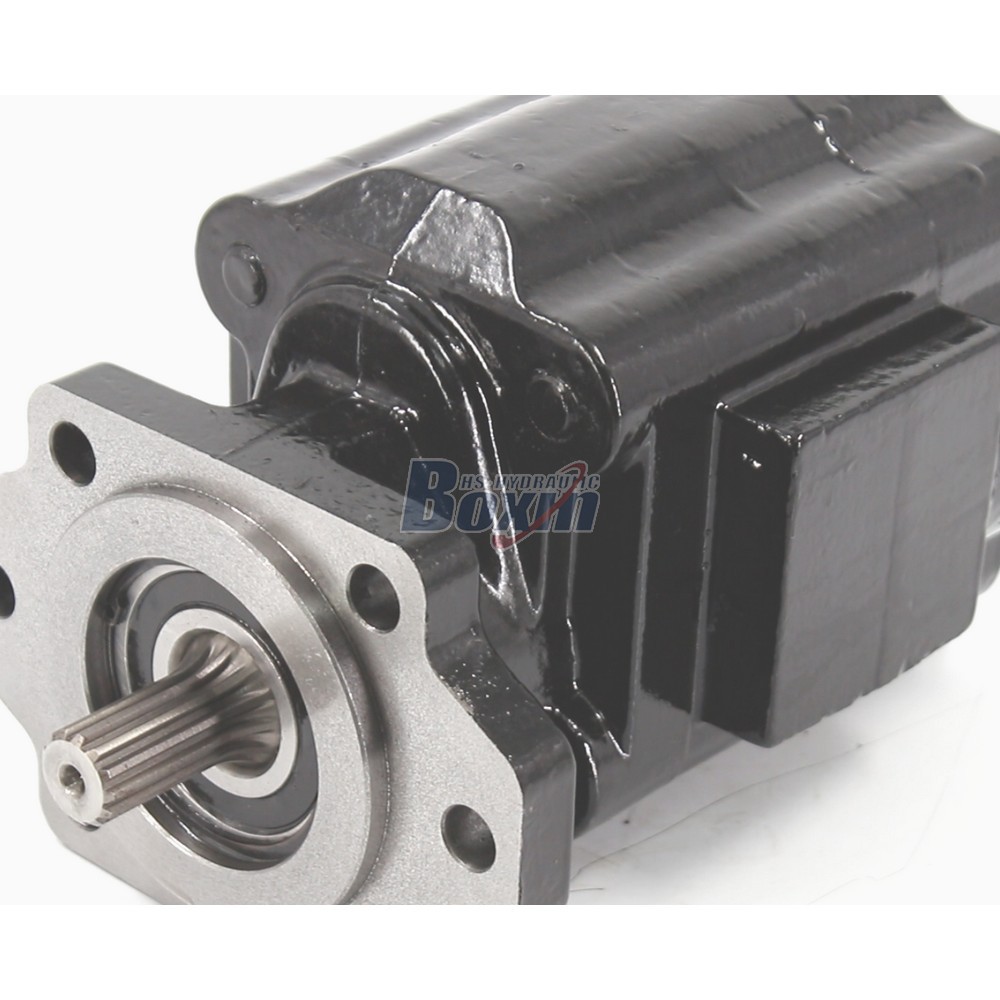

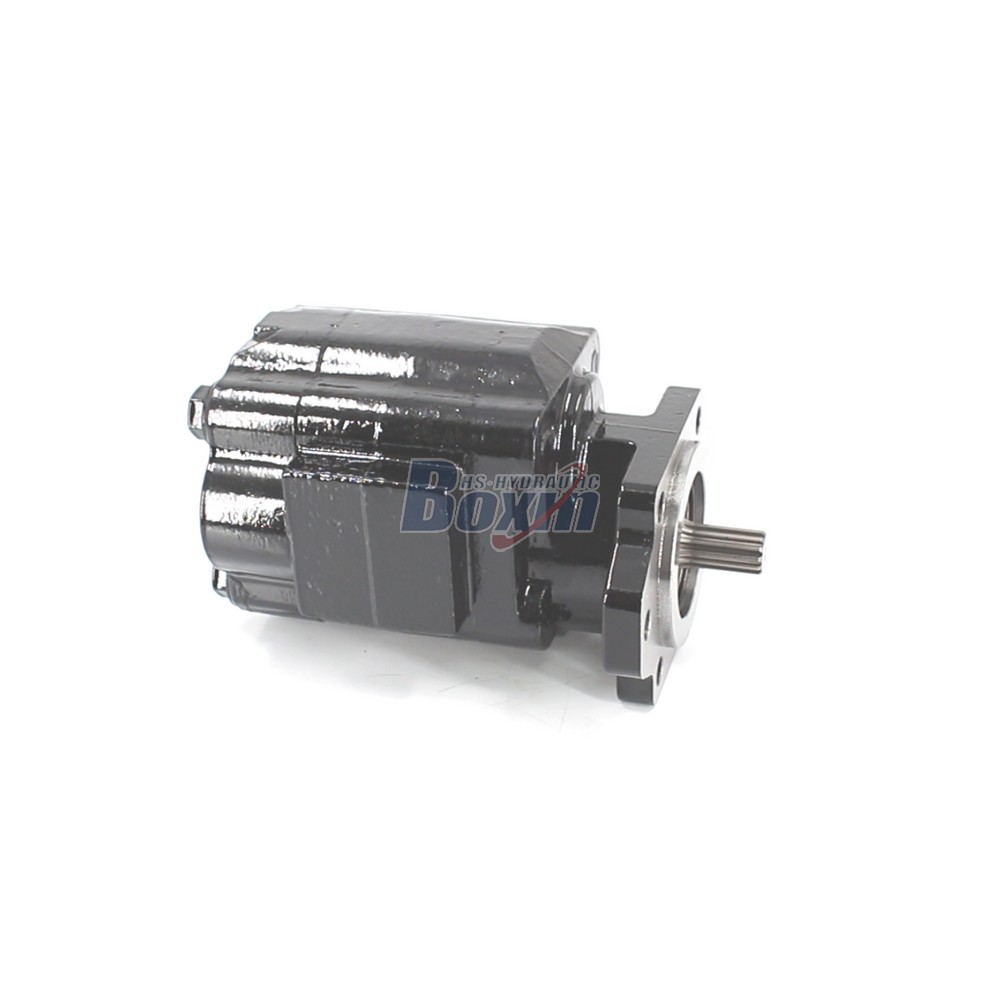

As a leading manufacturer of large-scale hydraulic solutions, we offer the high-performance P51A646TEYR25-25 Hydraulic External Gear Pump. This heavy-duty series features a 104.5 cc/rev displacement and bidirectional rotation, designed for stable power transmission in demanding industrial and mobile applications.
| Seria P51 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 104,5 cm³/obr., 21 cm³/obr., 41,8 cm³/obr., 52,3 cm³/obr., 62,7 cm³/obr., 64,6 cm³/obr. |
| Ciśnienie znamionowe | 16 MPa (2320 psi) |
| Maksymalne ciśnienie | 17 MPa (2465 psi) |
| Prędkość znamionowa | 2200 obr./min |
| Maksymalna prędkość | 2400 obr./min |
| Kierunek obrotu | Dwukierunkowy |
| Materiał | Żeliwo |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Flange owalny A, Otwory montażowe ISO-4, Kołnierz SAE |
| Typ wału | Nacięcie ewolwentowe X |
Our factory specializes in the mass production of the P51A646TEYR25-25 Heavy Duty Hydraulic External Gear Pump, delivering 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi). Engineered for versatility, this bidirectional model supports speeds ranging from 600 to 2400 r/min, making it suitable for a wide variety of construction, agricultural, and industrial machinery. As a global manufacturing partner, we provide comprehensive services including OEM, private labeling, and custom engineering to meet specific technical requirements. We are currently expanding our international network and actively seeking long-term cooperation with distributors, wholesalers, agents, and professional traders. By sourcing directly from our facility, partners benefit from reliable factory supply, competitive wholesale pricing, and rigorous quality control. Whether you need bulk orders for retail or specialized units for large-scale equipment, our manufacturing expertise ensures performance and durability in every pump.
