Metoda sterowania:Elektromagnes

Szpula:5-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:200 bar (2900 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:33*44*11

Waga brutto:19.50 kg

Dostępność: W magazynie

1164 Osoby oglądają ten produkt

Fluid Power

Fluid Power

Fluid Power drawing image

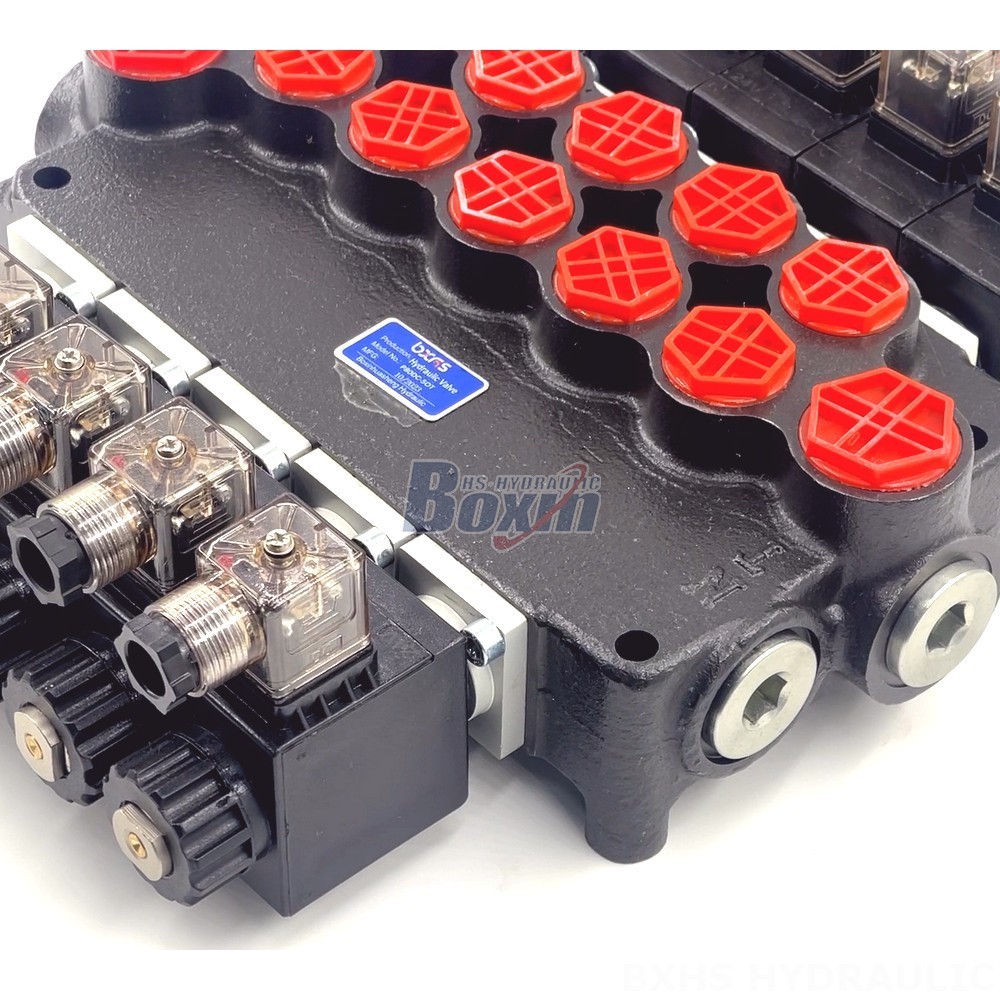

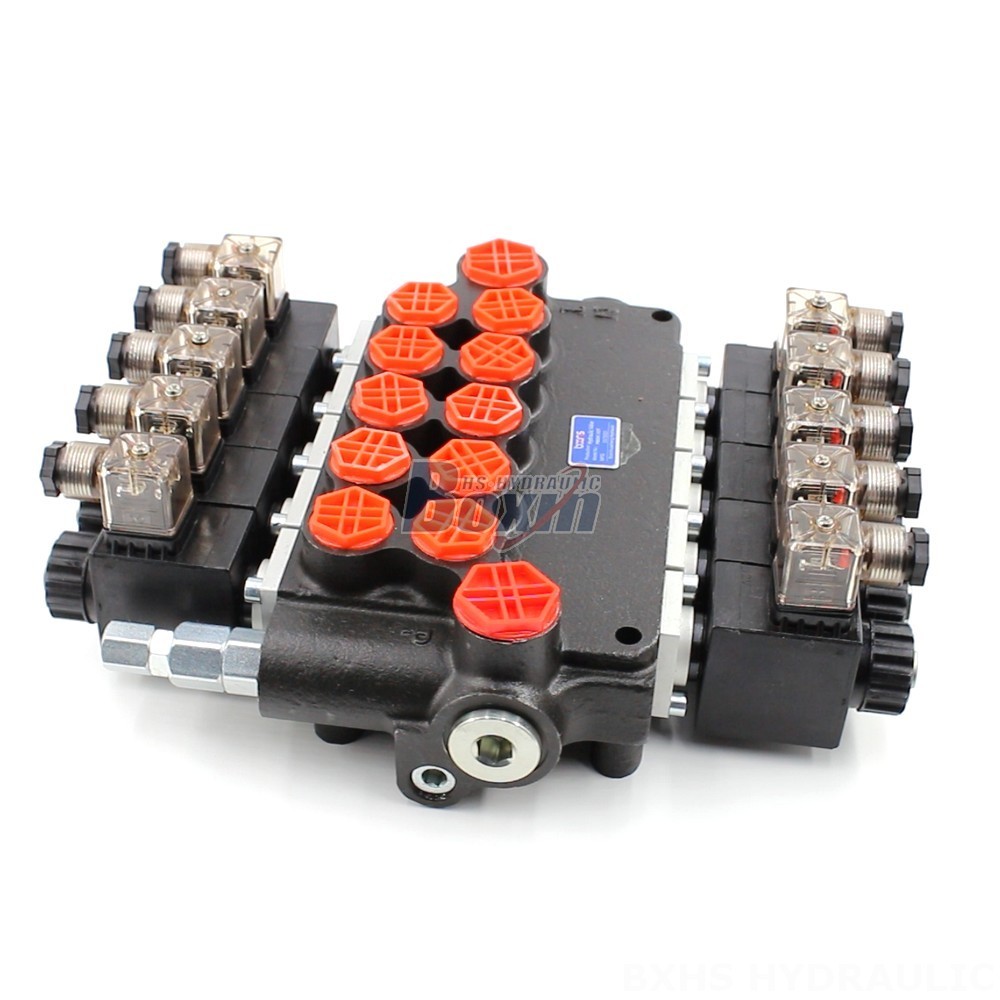

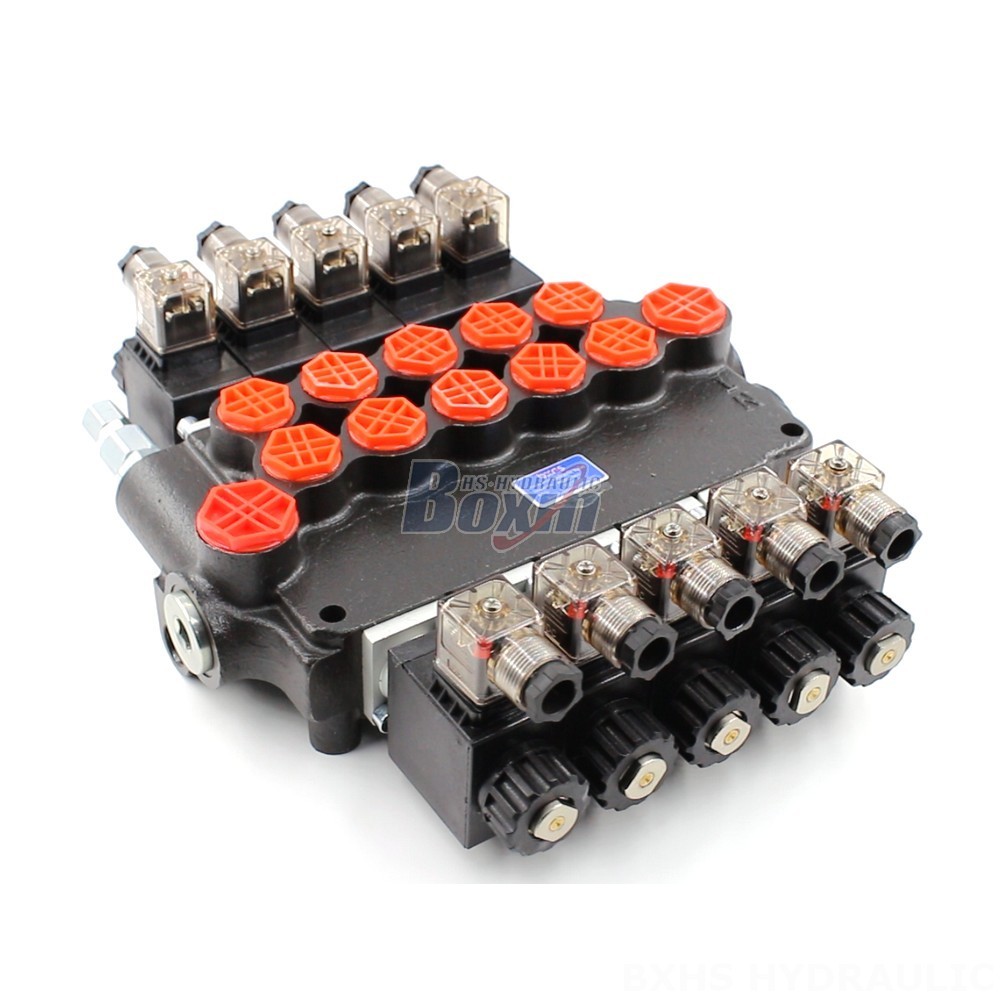

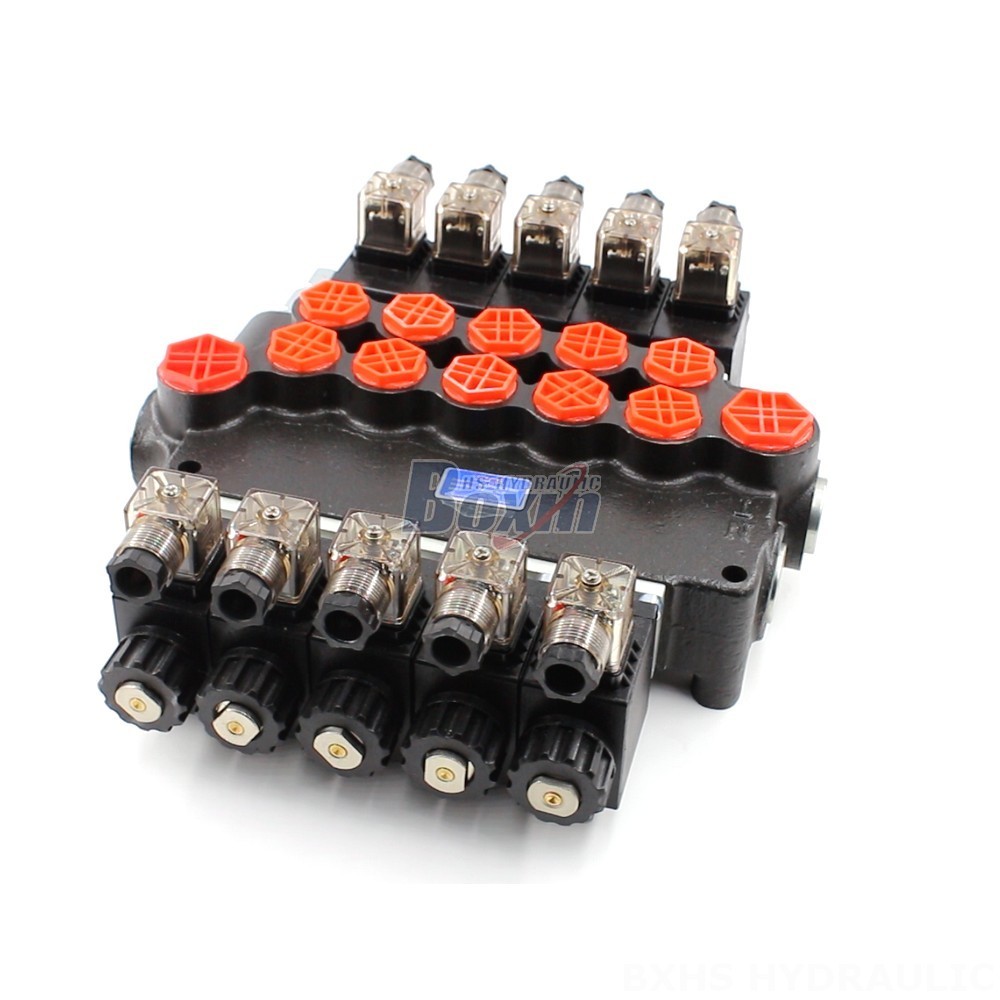

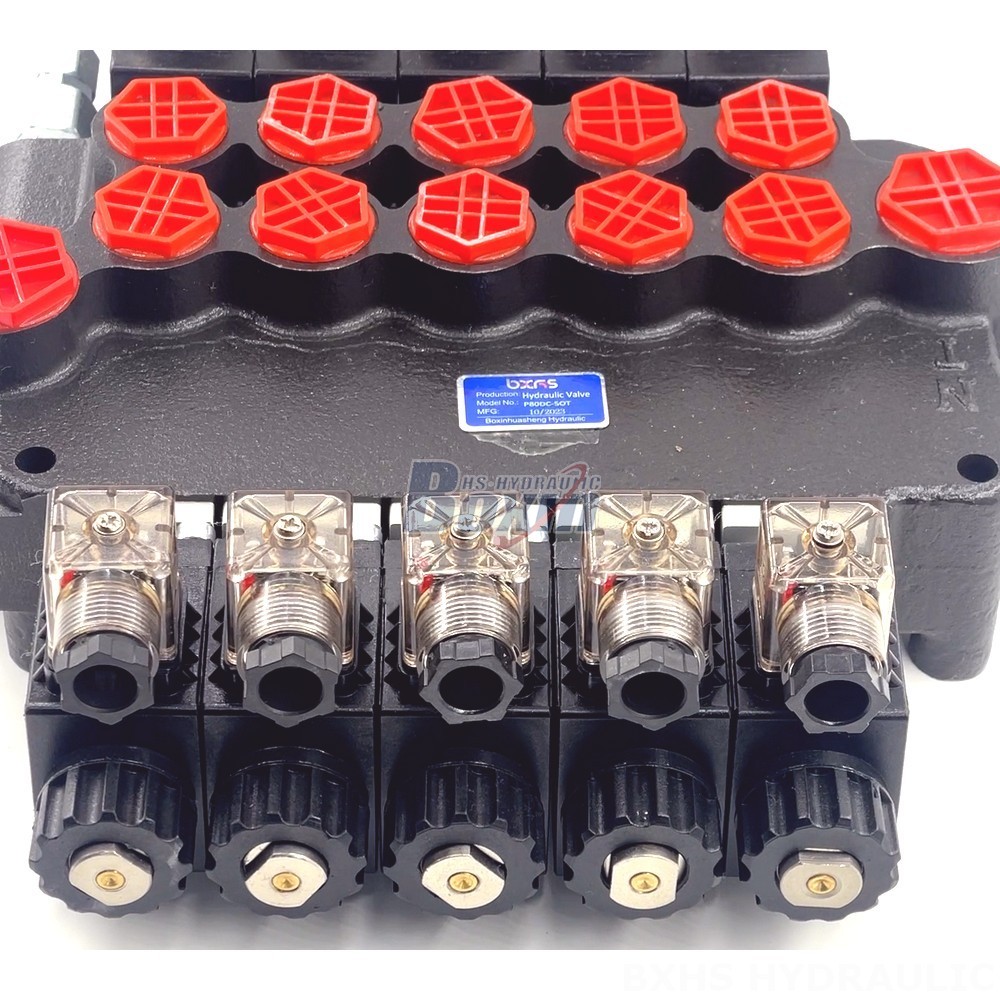

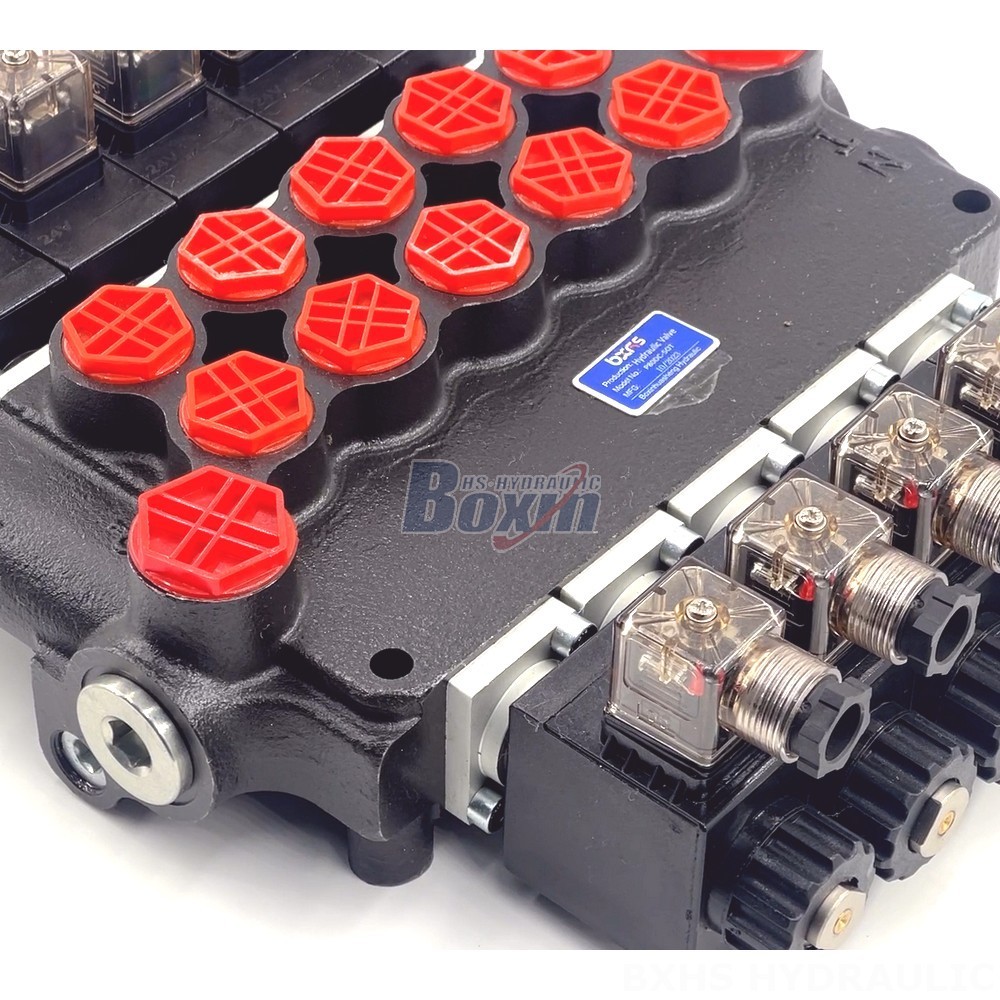

This hydraulic spool control valve is designed for electric remote control of fluid power systems in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock structure, 5 sections, and a rated flow of 80 L/min, it operates at pressures up to 250 bar.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic spool valve is engineered for demanding applications in material handling, construction, and industrial vehicles. It features an electric remote control method with a solenoid for precise actuation. The monoblock structure provides durability and reliability, while the 5-section design allows for versatile control configurations. The valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its wide operating viscosity range (15 - 75 mm²/s) ensures consistent performance across various operating conditions. The valve is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it suitable for diverse environments. This valve is ideal for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
