Floating Cable Valve

Metoda sterowania:Kabel

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:19*31*12

Waga brutto:5.32 kg

Dostępność: W magazynie

1172 Osoby oglądają ten produkt

Floating Cable Valve

Floating Cable Valve

Floating Cable Valve drawing image

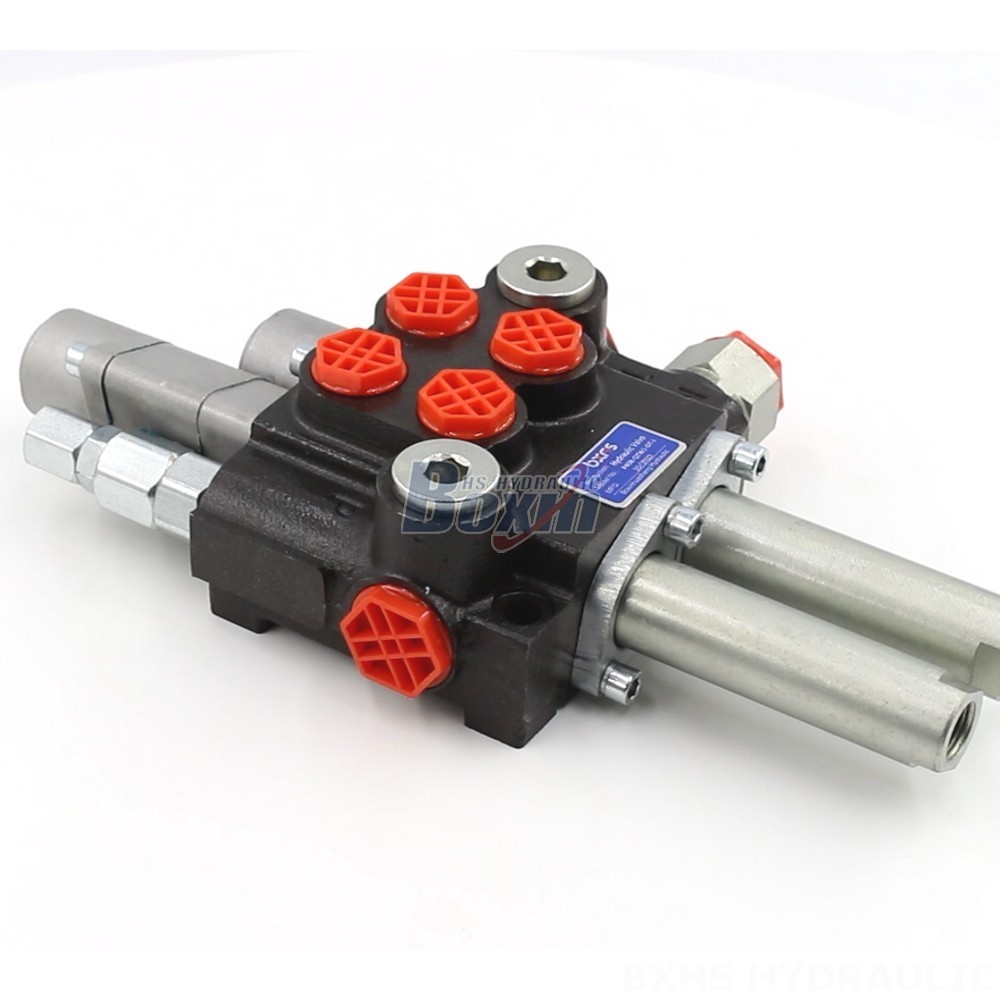

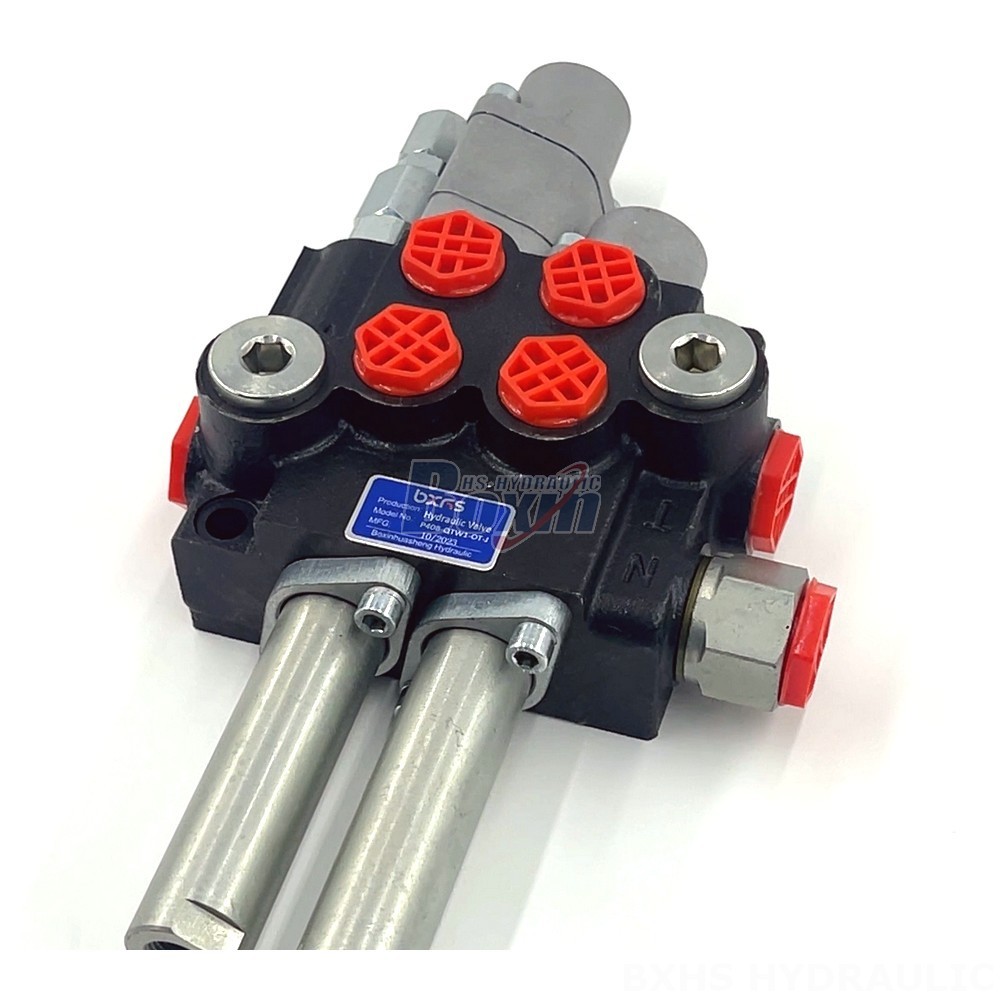

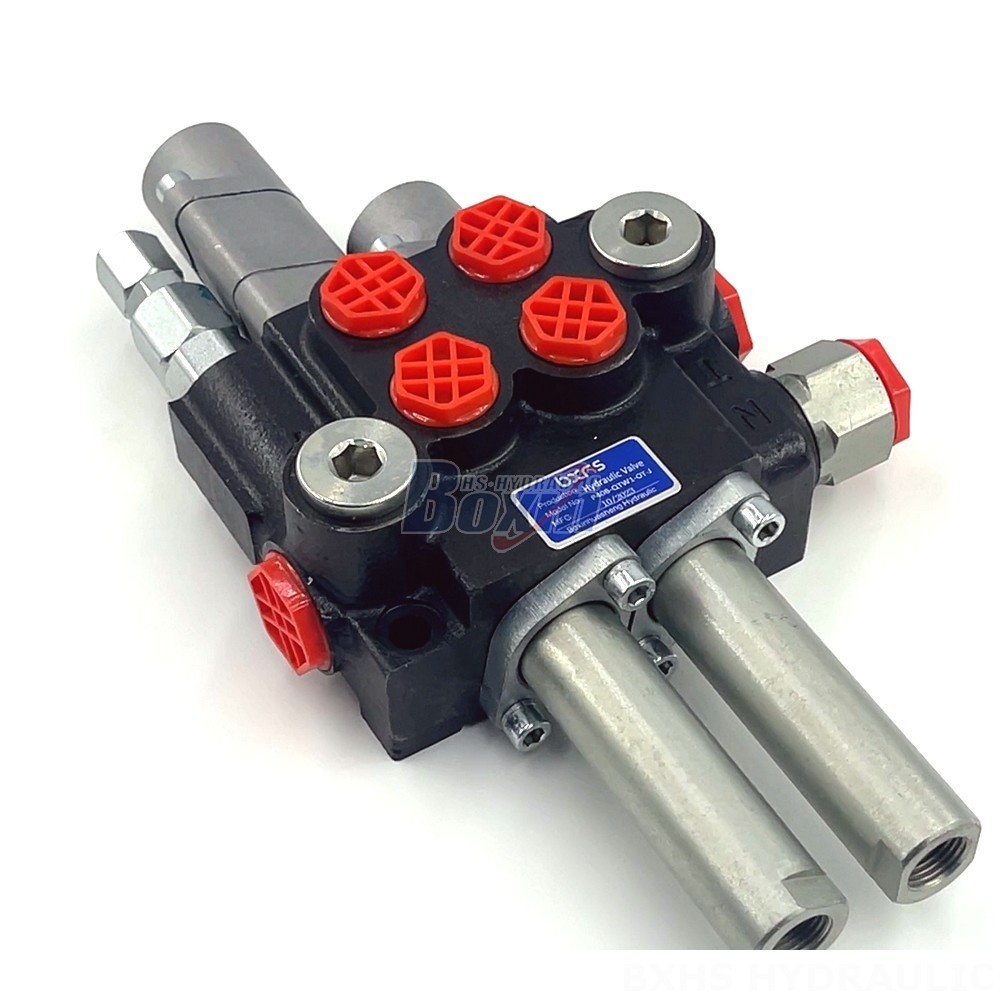

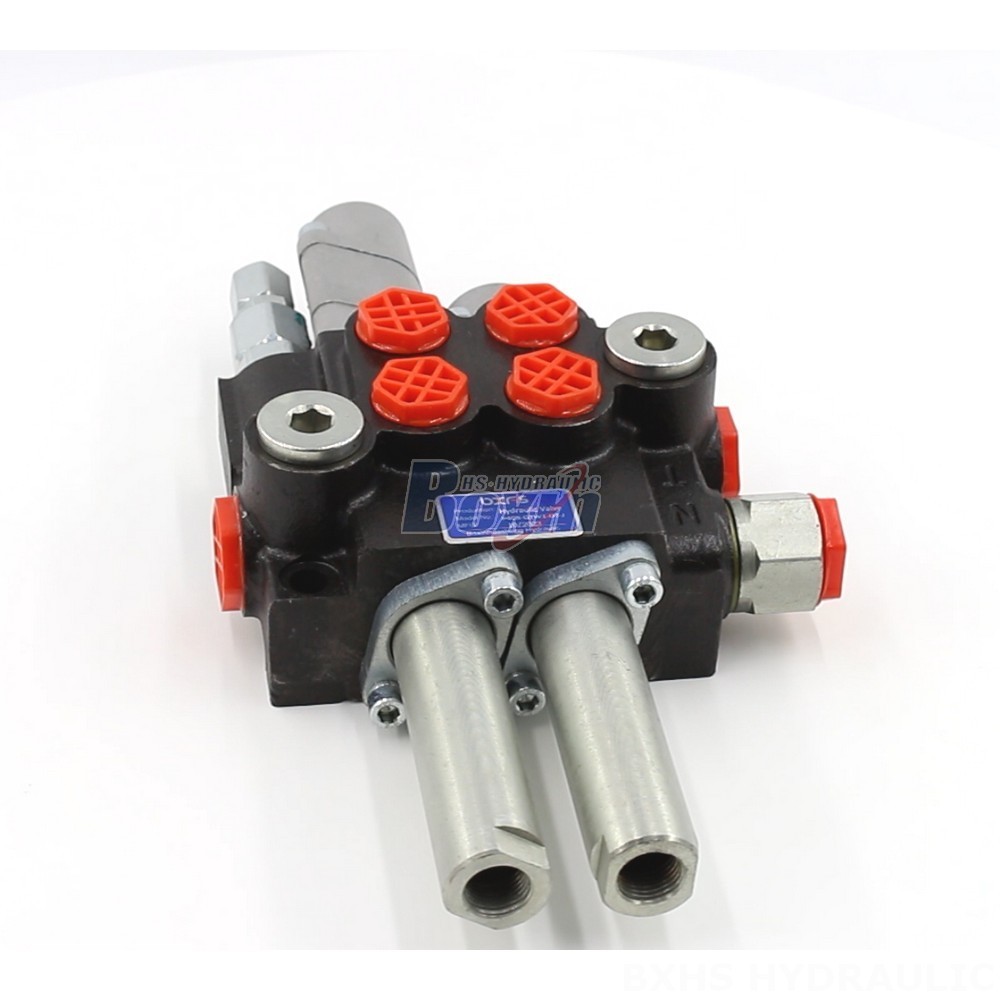

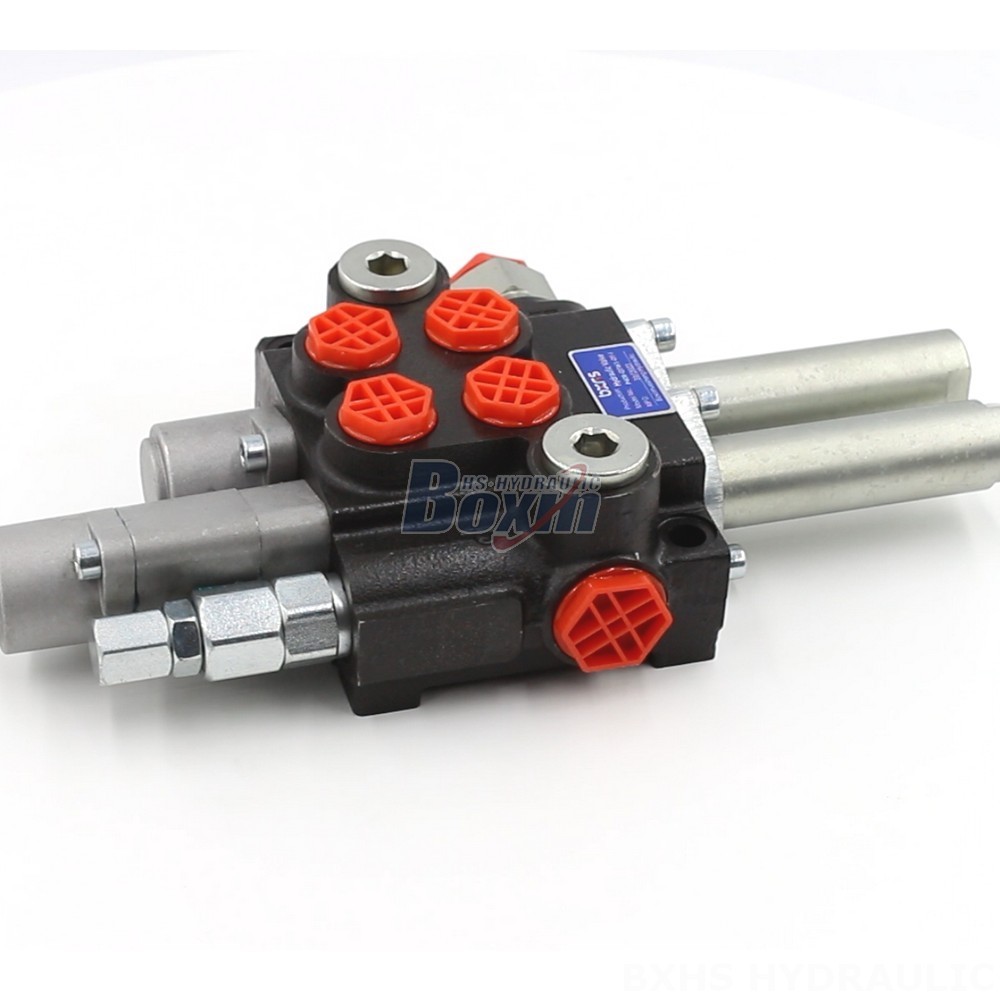

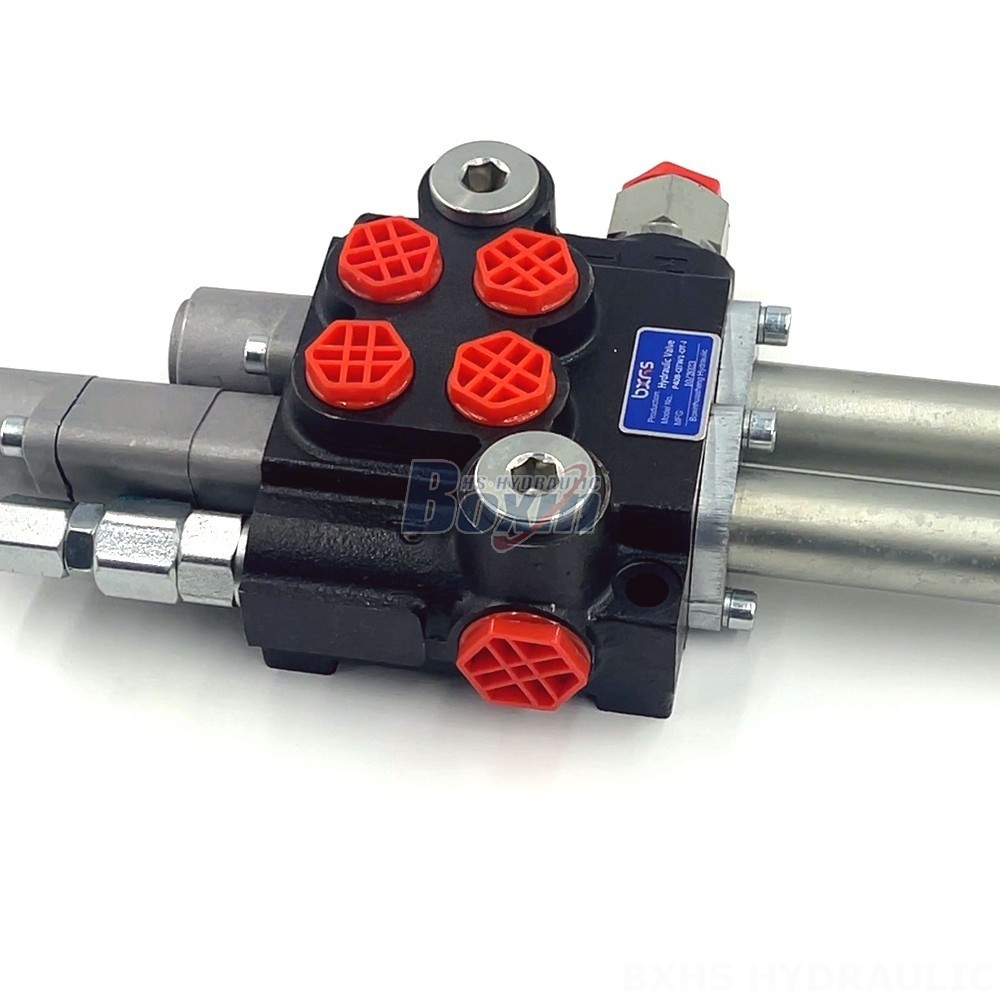

The P40 Series Floating Cable Valve is a hydraulic directional control valve designed for construction and material handling applications. It features a monoblock structure with 2 sections and 2 spools, offering a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40 Series Floating Cable Valve is a high-performance hydraulic directional control valve designed for demanding applications in construction and material handling. It features a robust monoblock structure with 2 sections and 2 spools, providing reliable operation and long service life. This valve is specifically designed for cable control, offering smooth and precise control of hydraulic functions. The P40 Series valve has a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for various types of equipment. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures optimal performance across a wide range of temperatures. The valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it ideal for use in various climates. The P40 Series Floating Cable Valve is specifically designed for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its compact size and lightweight design make it easy to install and maintain, while its rugged construction ensures long-lasting performance.
