Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution

Metoda sterowania:Elektromagnes i joystick

Szpula:8-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:200 bar (2900 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:45*45*17

Waga brutto:36.00 kg

Dostępność: W magazynie

1081 Osoby oglądają ten produkt

Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution

Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution

Factory Wholesale Supply: Manual 8 Spool Sectional Directional Valves | Global Distribution drawing image

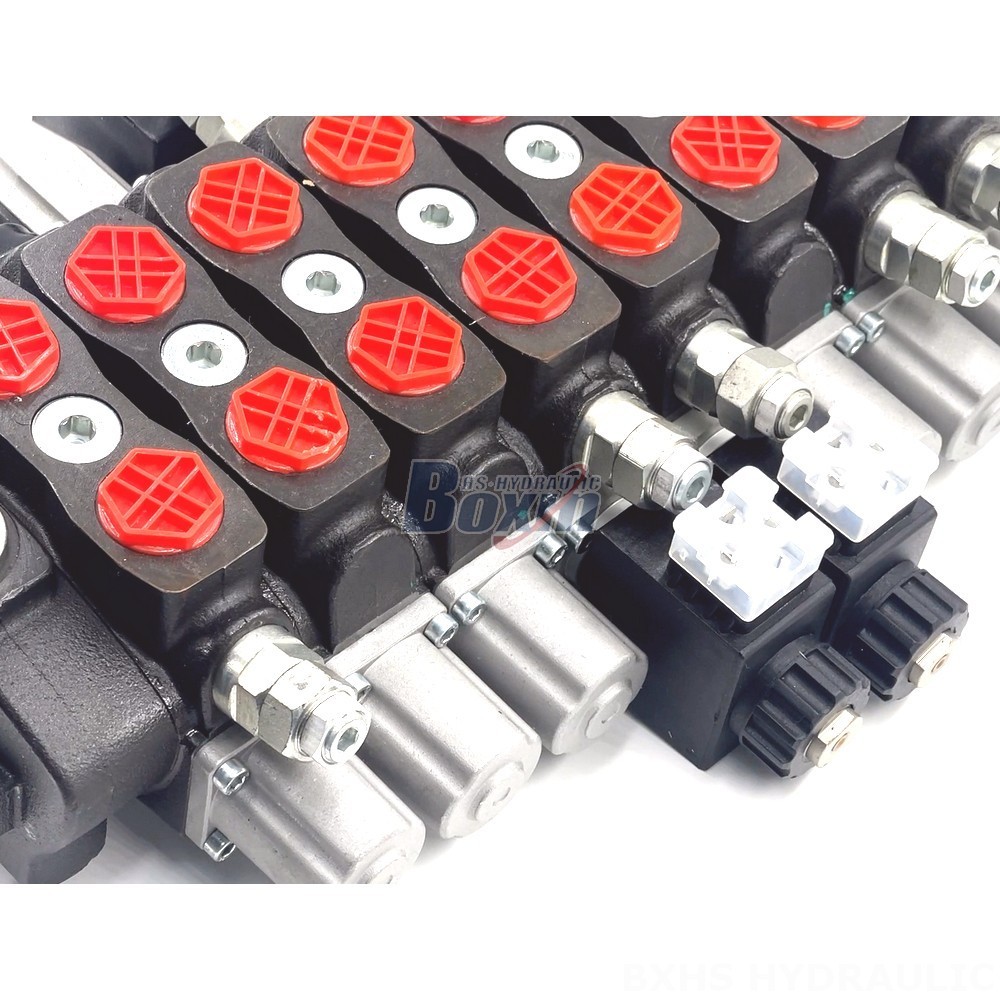

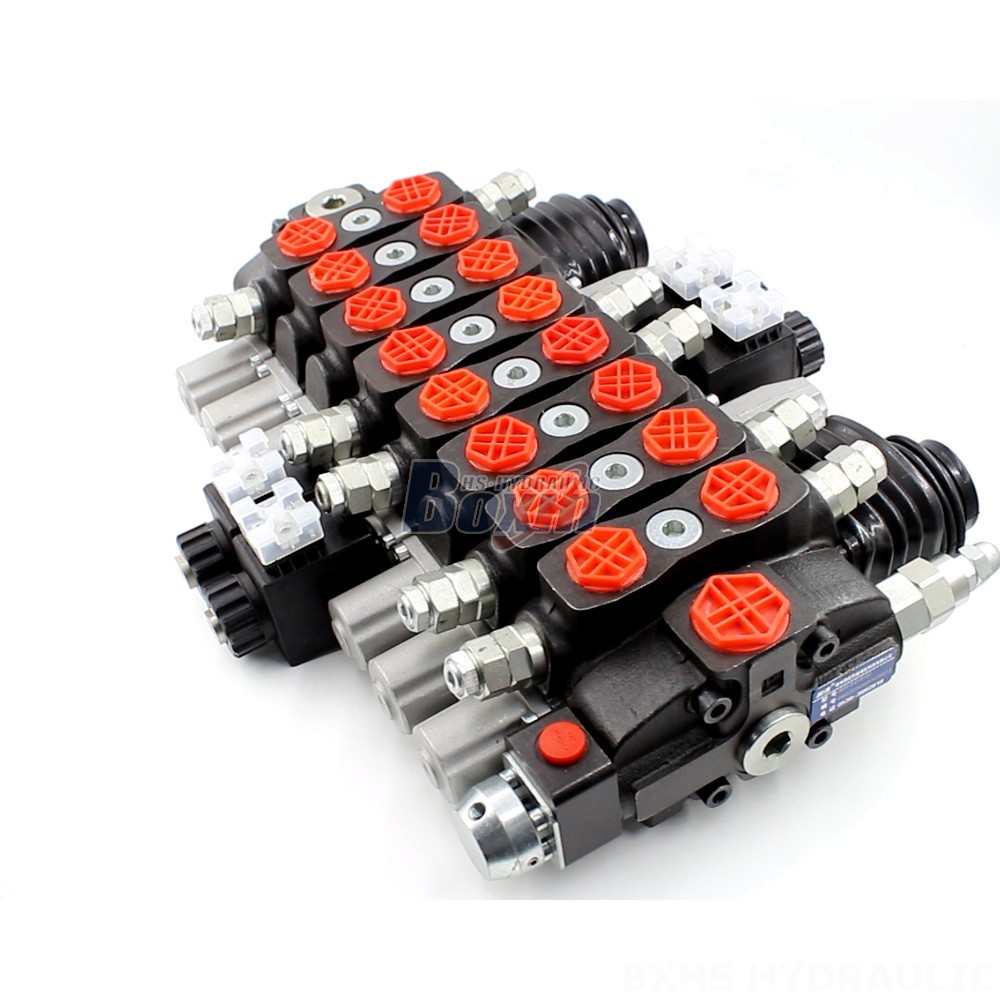

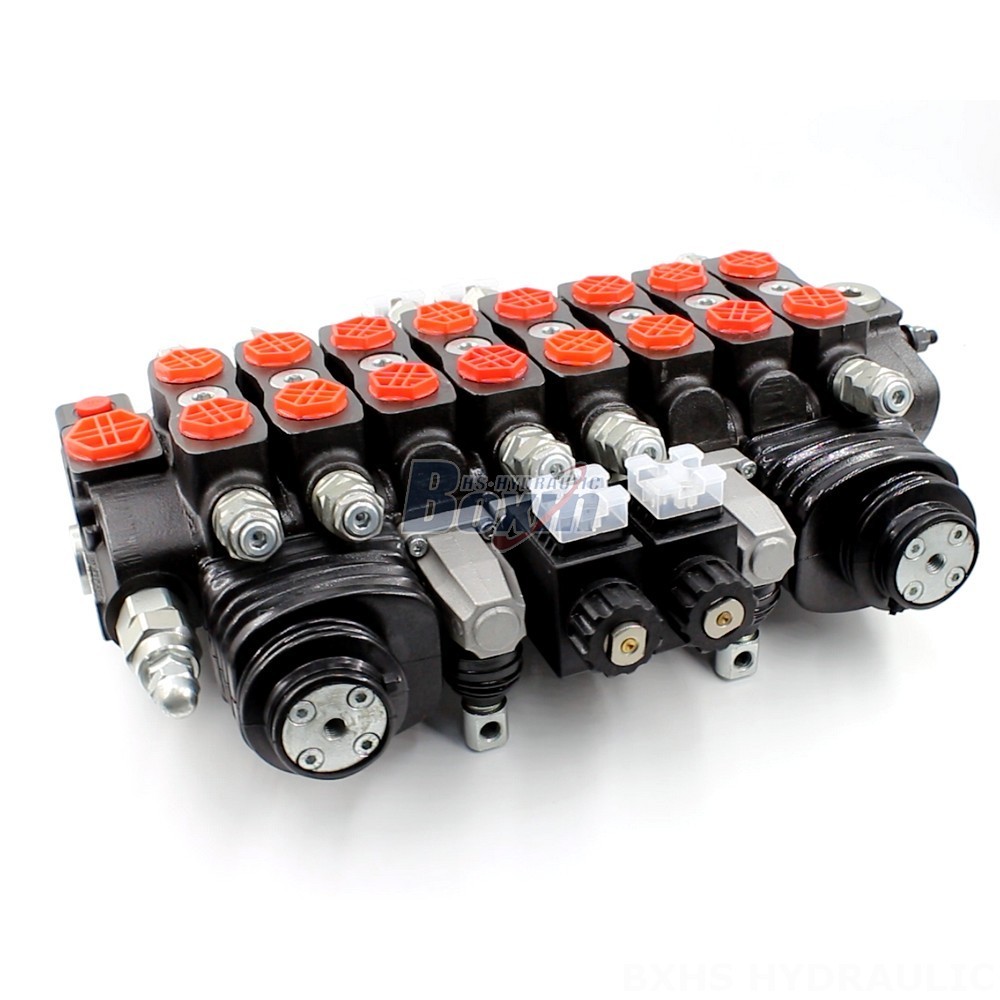

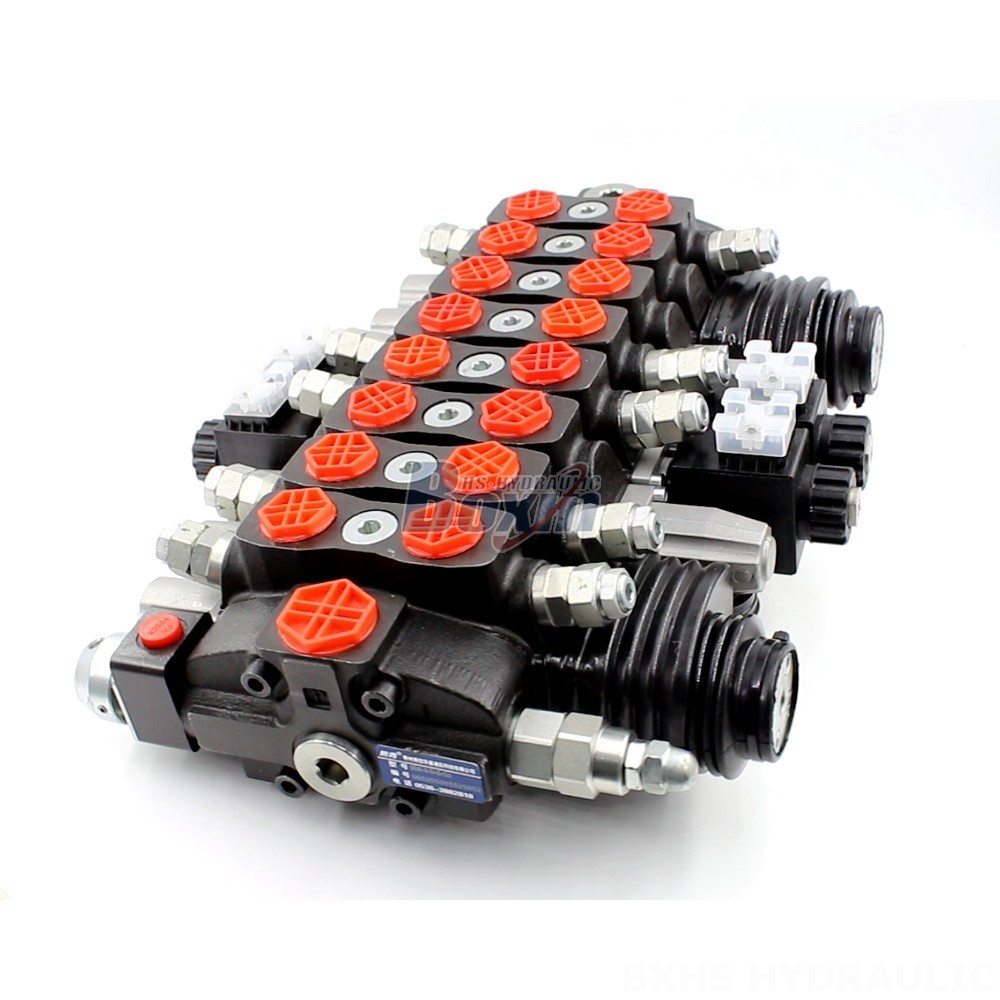

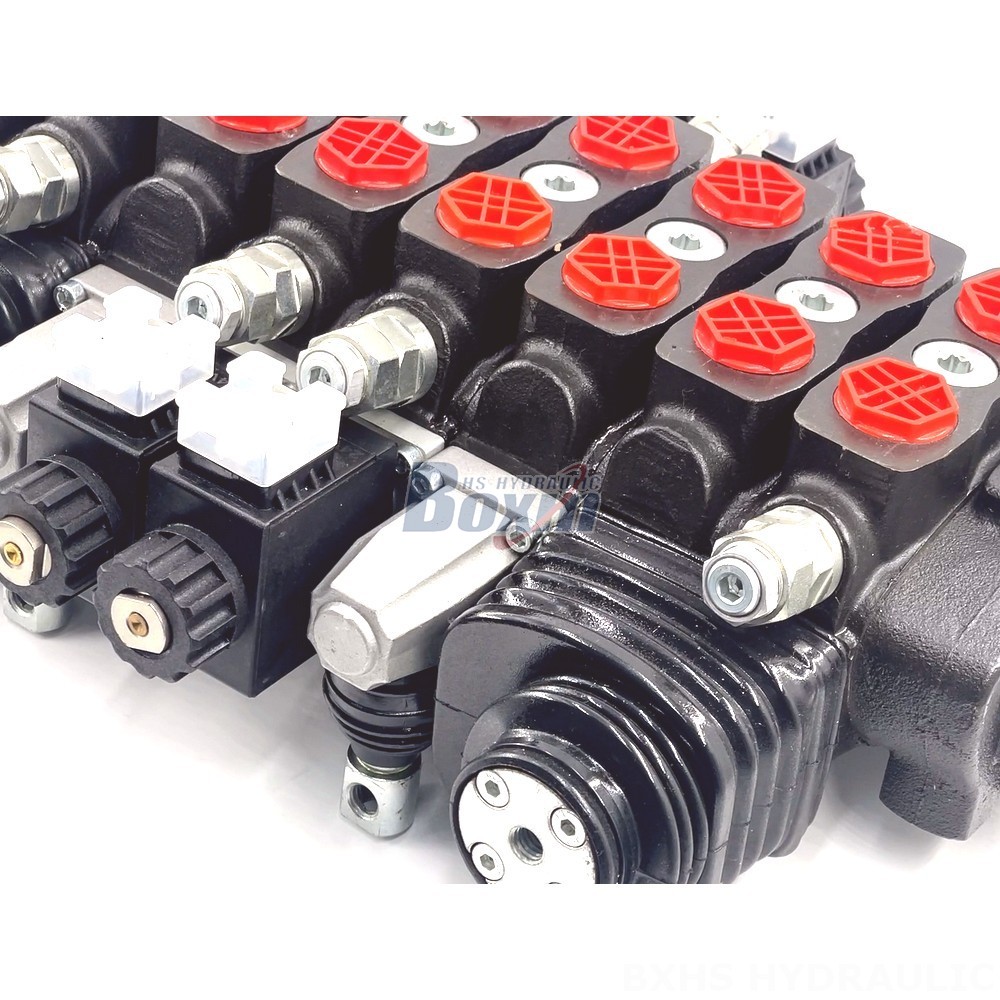

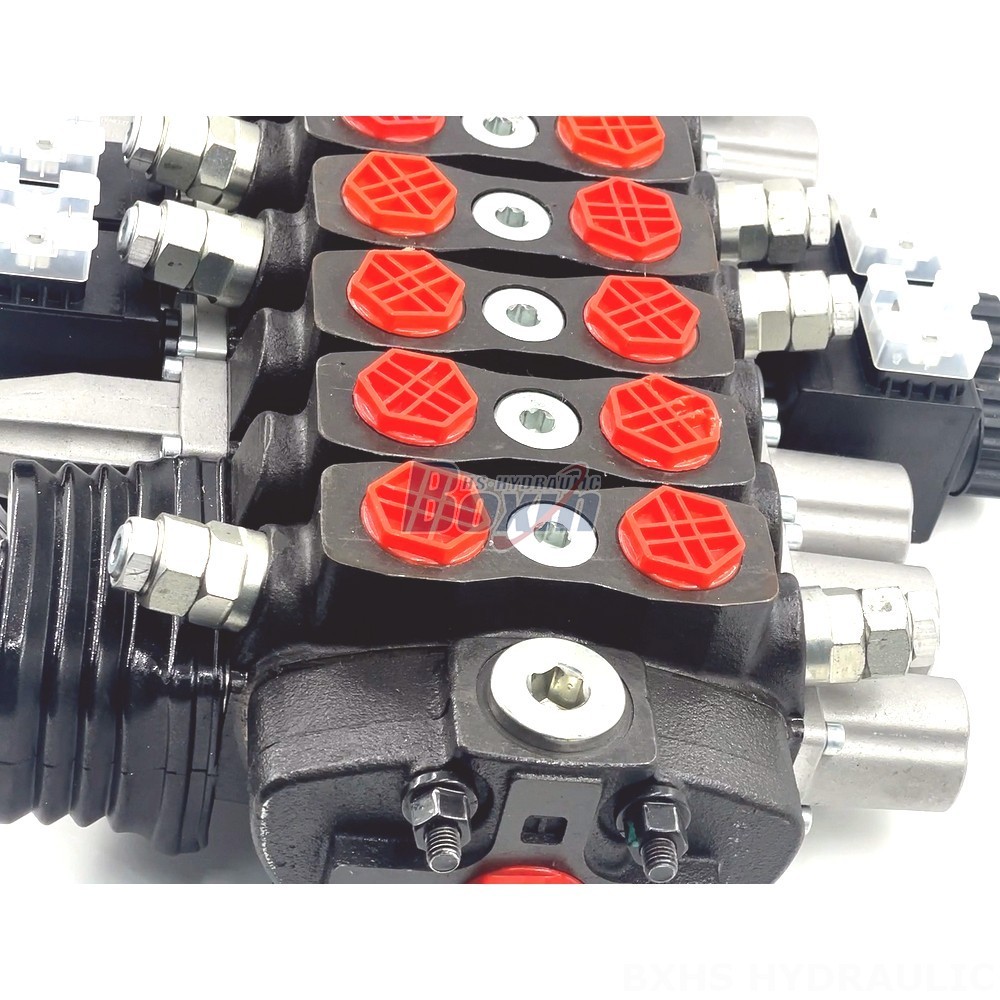

This is a high-performance, manual 8 spool sectional directional valve designed for heavy-duty applications in industries such as construction, agriculture, and material handling. It offers a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of machines and equipment. This valve is available for global distribution through factory wholesale and offers OEM, ODM, private label, and customization options.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

This durable and reliable manual 8 spool sectional directional valve is manufactured to the highest standards and designed for demanding applications. It features a robust construction and a wide operating temperature range, ensuring optimal performance even in extreme conditions. The valve is available in the SD8 series and boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), making it ideal for various equipment like telehandlers, forklifts, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, balers, and sprayers. As a factory supplier, we offer competitive wholesale prices and global distribution. We also provide OEM, ODM, private label, and customization services to meet specific customer requirements.
