Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

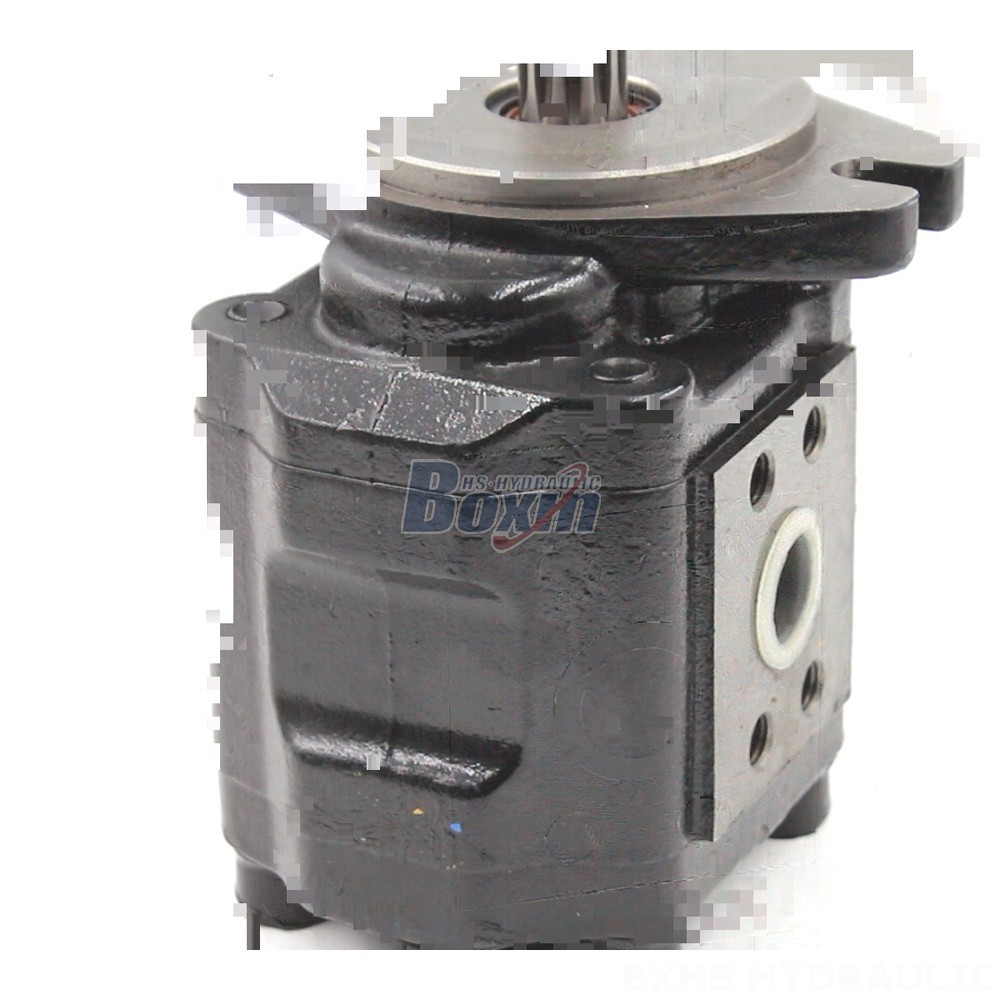

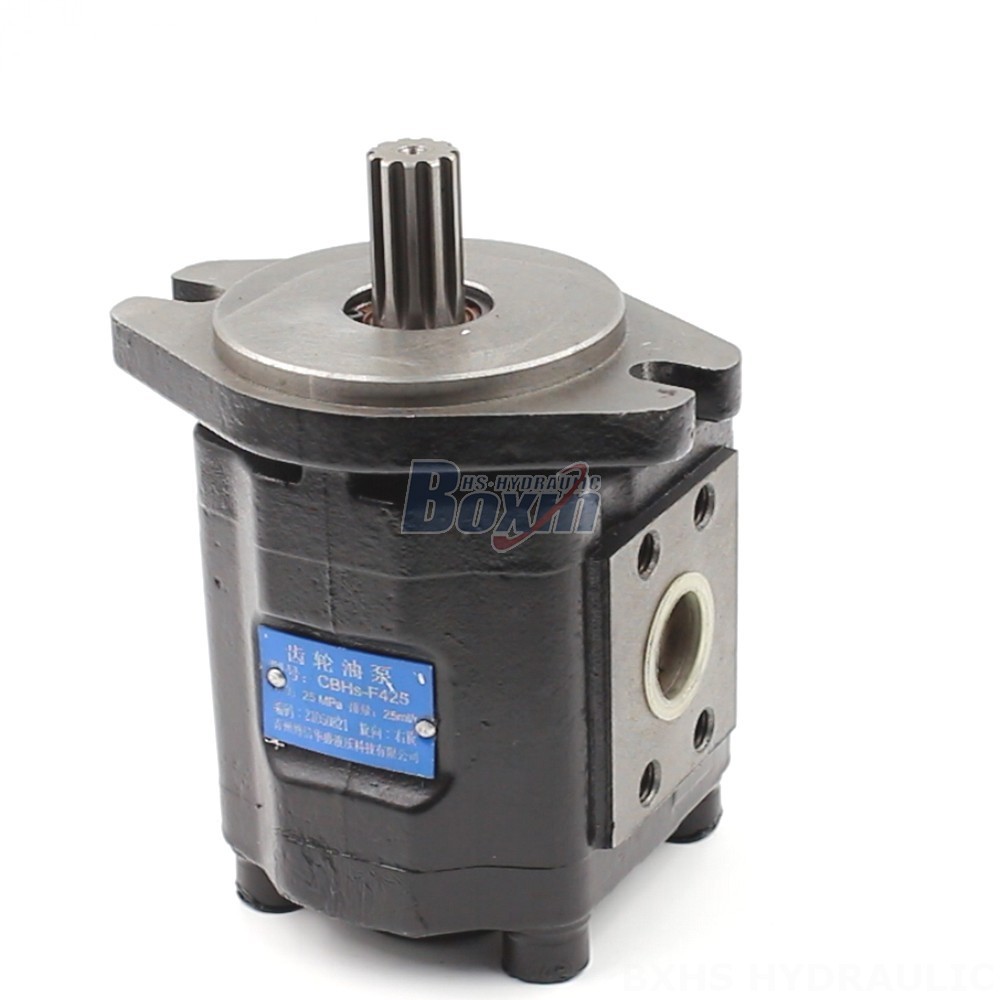

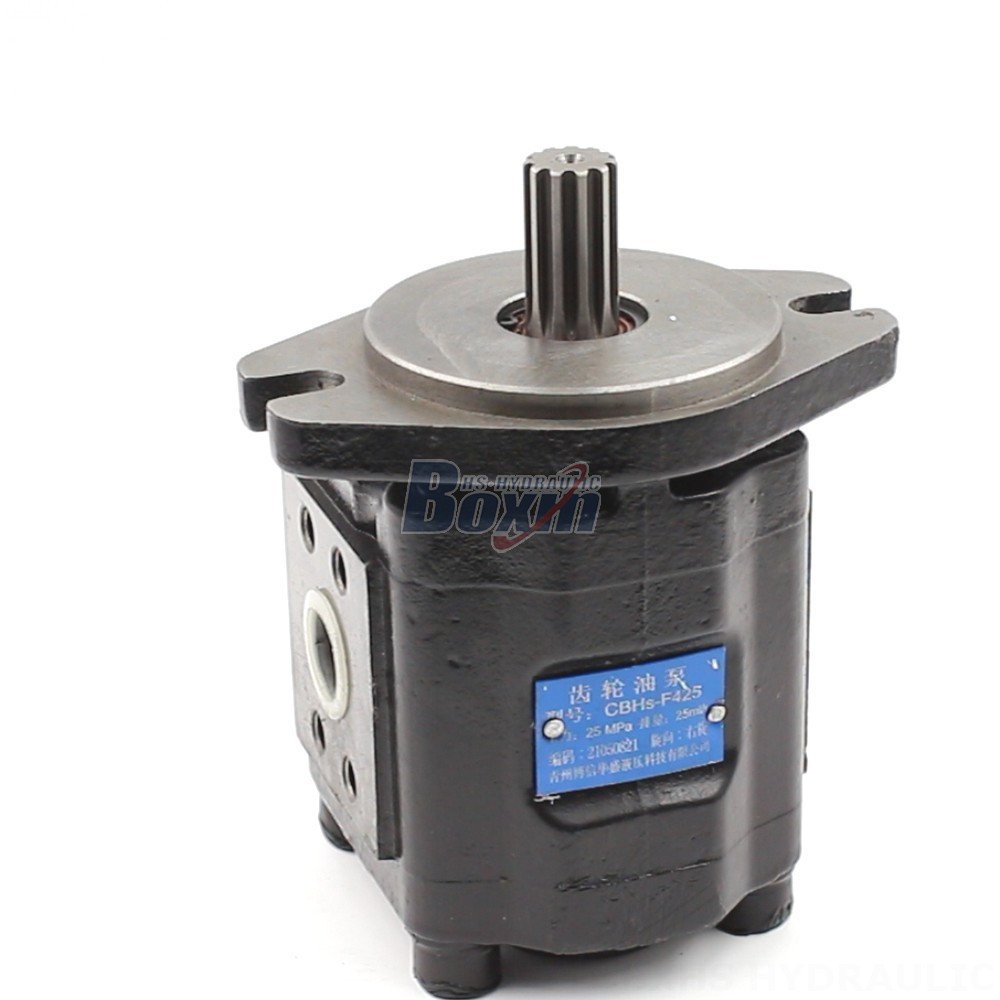

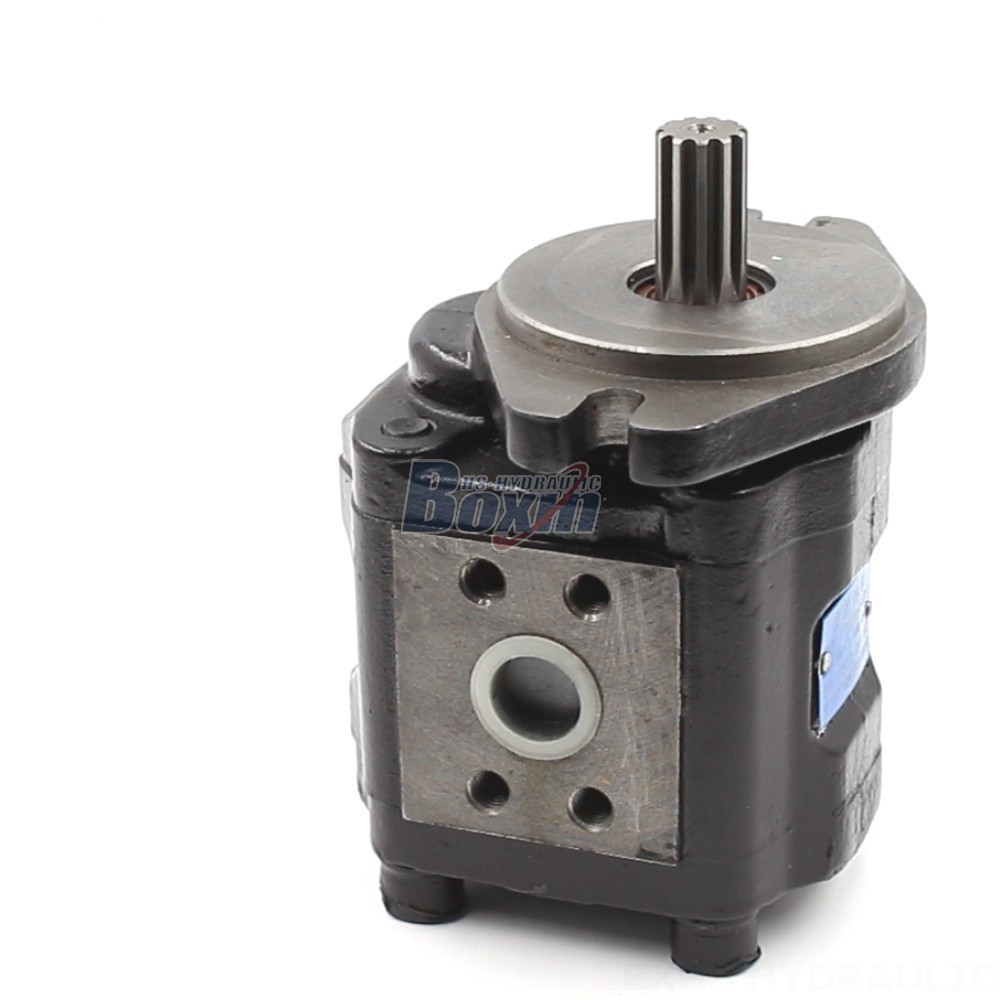

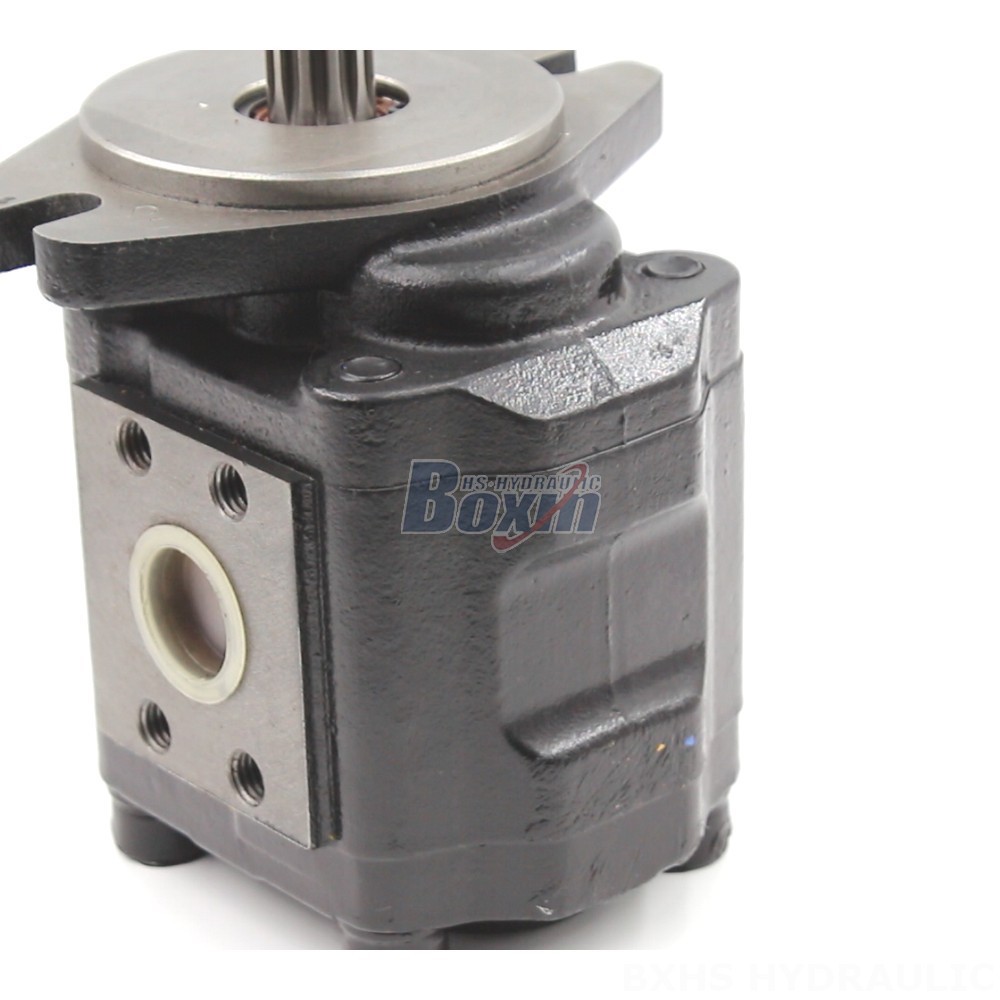

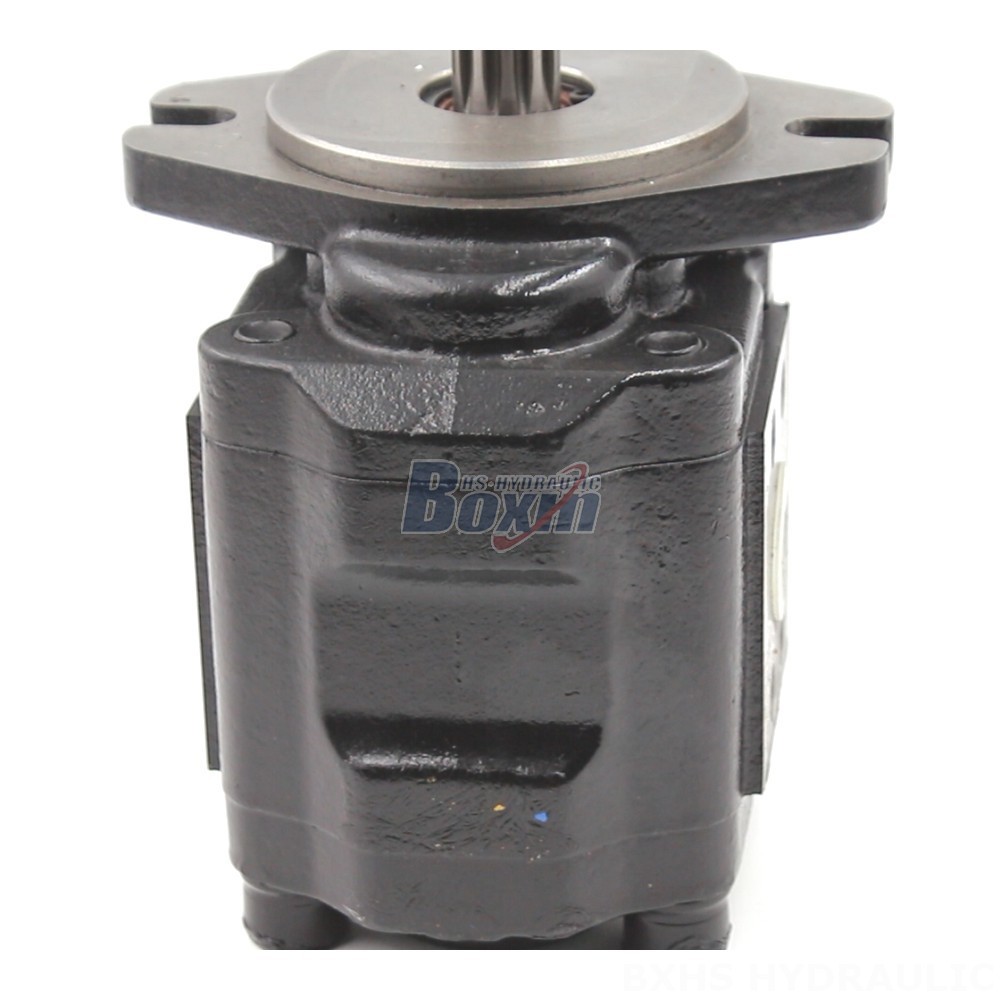

We are a hydraulic product manufacturer offering factory wholesale supply of 40 cc/rev hydraulic gear pumps directly from the manufacturer. Our pumps are available in a range of displacements, pressures, and speeds to suit various applications in material handling, construction, agriculture, and industrial vehicles.
| Seria CBHS-F4 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 40 cm³/obr, 25 cm³/obr, 20 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 2500 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Żeliwo, Żeliwo aluminiowe, Aluminium |
| Struktura | Typ krzywkowy talerza |
| Wersja kołnierza | Flange owalny A, Flange kwadratowy B, Otwory montażowe ISO-4, Otwory montażowe UNI-3, Kołnierz SAE |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
Our factory wholesale supply of 40 cc/rev hydraulic gear pumps offers a cost-effective solution for various applications. We manufacture a range of displacements including 63 cc/rev, 80 cc/rev, 45 cc/rev, and 32 cc/rev. Our pumps are designed for high performance with rated pressures of 17 MPa (2465 psi), 23 MPa (3335 psi), and 25 MPa (3625 psi). They operate at rated speeds of 2200 r/min and 2400 r/min. We offer both right (clockwise) and left (counter-clockwise) rotations, external gear pump structures, and cam plate types. Choose from A-Oval or B-Square flanges and rectangle spline shaft options. Our CBHS-F4 Series pumps are ideal for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers. Benefit from direct factory supply and factory wholesale pricing.
