Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

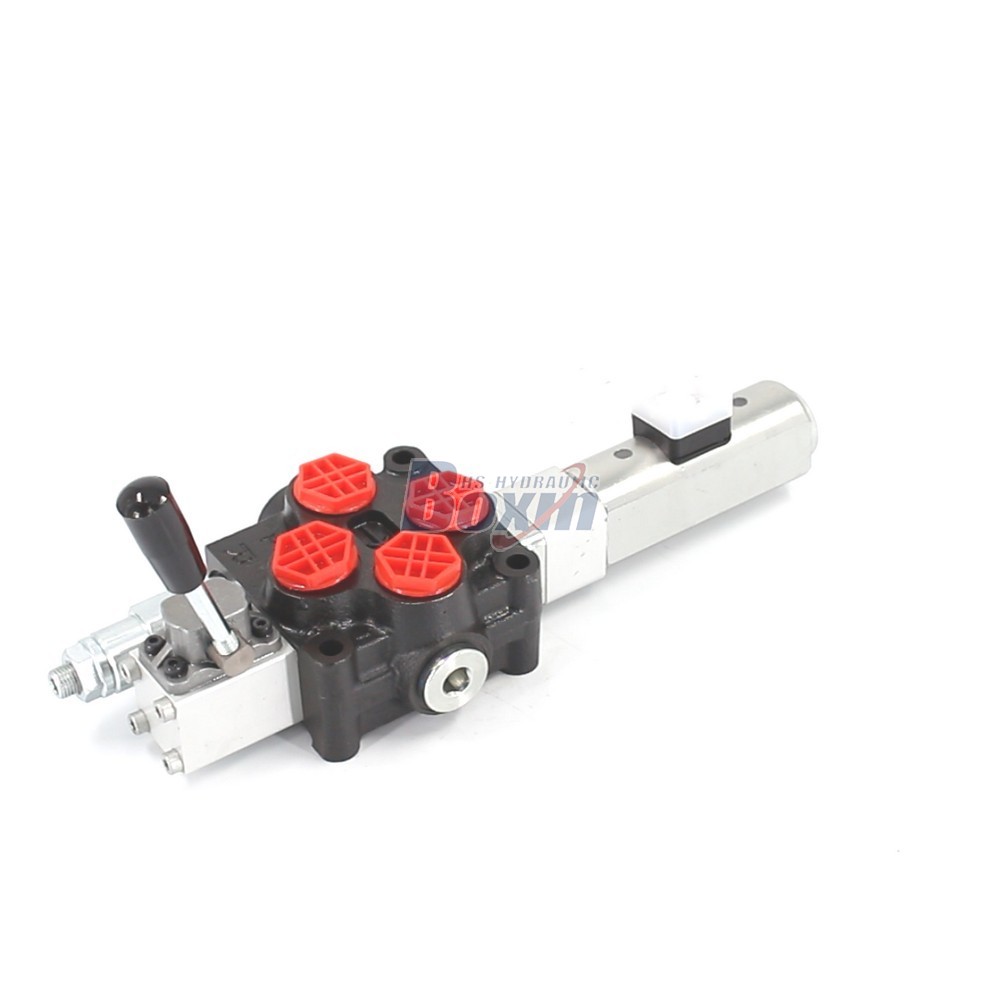

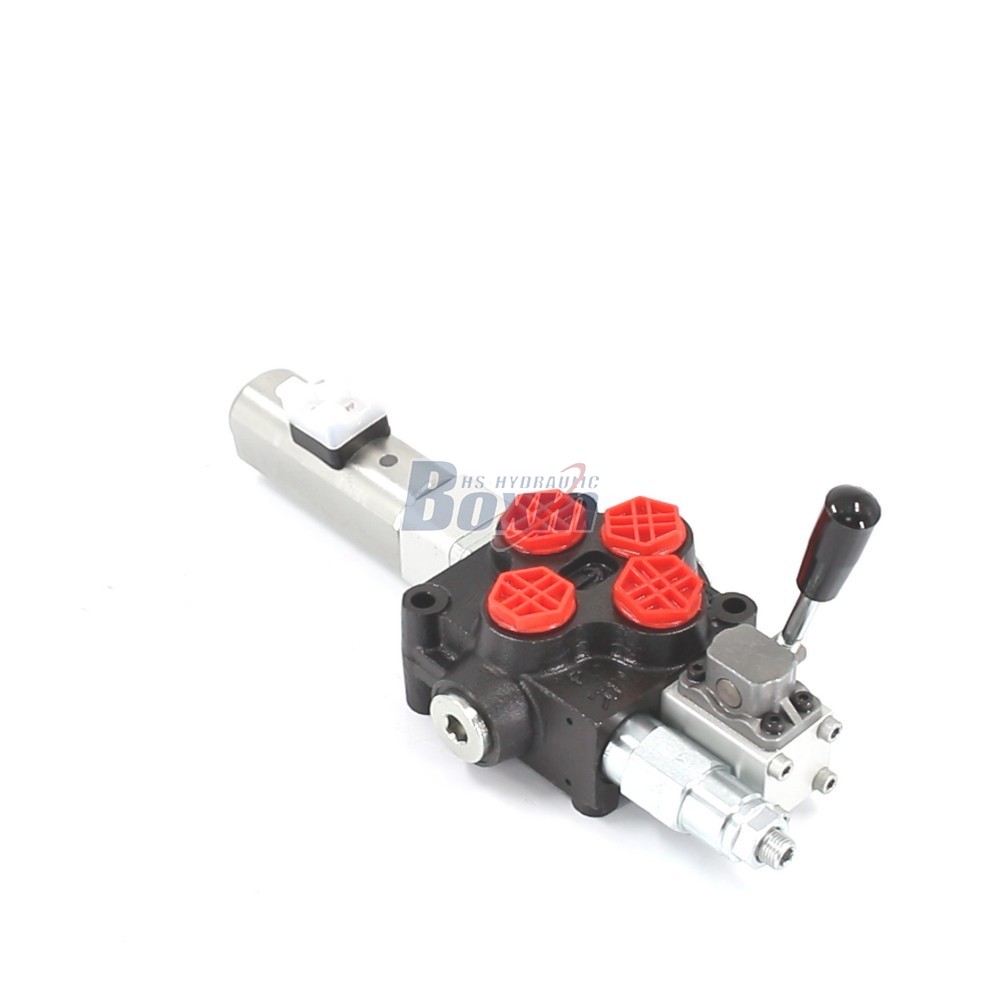

The Q45 Series is a versatile 1-spool monoblock directional control valve designed for both solenoid and manual operation. Featuring a rated flow of 45 L/min and high-pressure resistance up to 315 bar, it provides reliable fluid power management for various mobile and industrial machinery.
| Seria Q45 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Dźwignia sterownicza, Elektromagnetyczne i ręczne, Ręczny i elektromagnes dwukierunkowy (push-pull), Elektromagnes dwukierunkowy (push-pull) |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -20°C do +80°C (-4°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 45 l/min (11,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2 |
| Port wylotowy | G1/2 |
| Rozmiar portu | G1/2 |
As a leading manufacturer of hydraulic solutions, we offer the Q45 Series 1 Spool Monoblock Valve designed for high-performance applications. This valve integrates both solenoid and manual control methods, allowing for versatile operation in Material Handling, Construction, and Agriculture. With a compact design, it manages a rated flow of 45 L/min (11.8 US gpm) and supports maximum pressures up to 315 bar (4600 psi), making it suitable for Forklifts, Tractors, Mini-excavators, and Wood Splitters. Our factory provides comprehensive manufacturing capabilities, including OEM, ODM, and private label (white label) services to meet your specific technical requirements. We specialize in wholesale distribution and are actively seeking global partners, including distributors, wholesalers, agents, and trading companies to expand our international reach. By choosing our factory-direct supply, you benefit from reliable quality control and competitive bulk pricing. Whether you need customized port sizes or specific spool configurations for telehandlers or skid steer loaders, our technical team is ready to support your business. Explore partnership opportunities with a professional manufacturer dedicated to hydraulic excellence.
