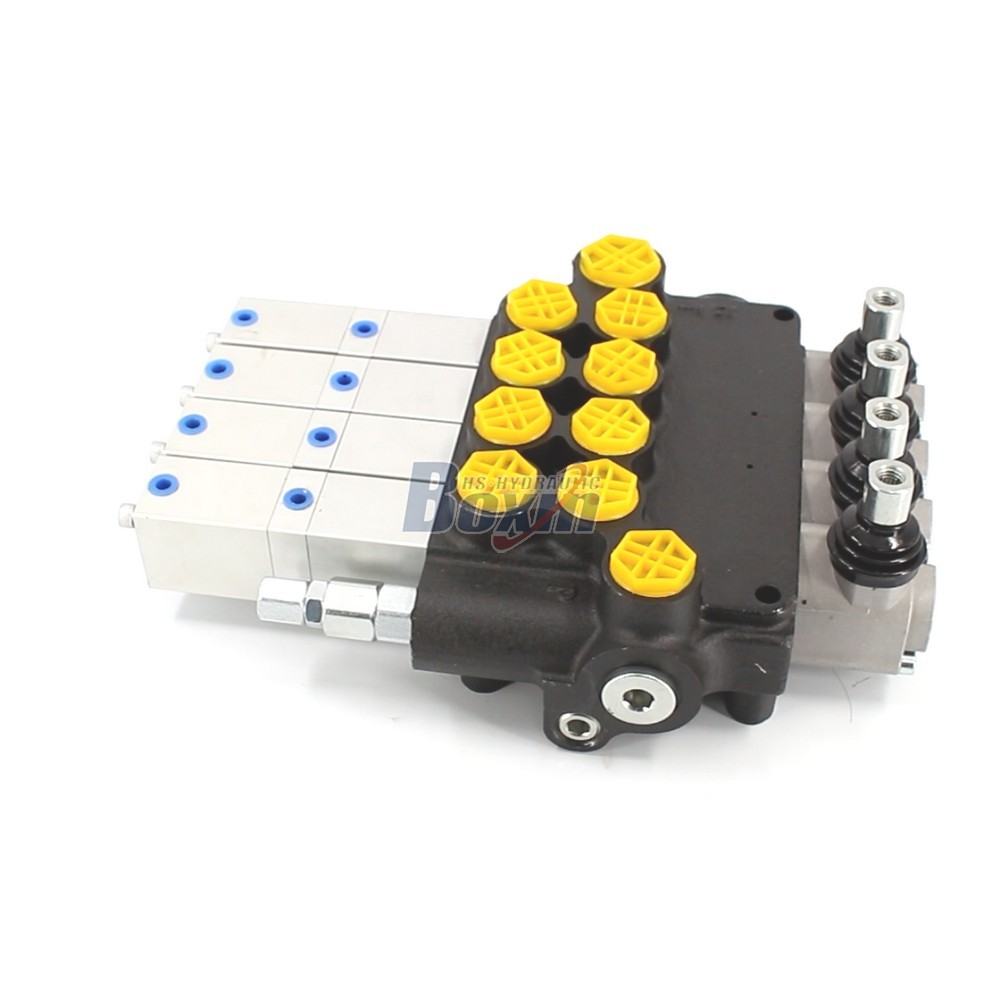

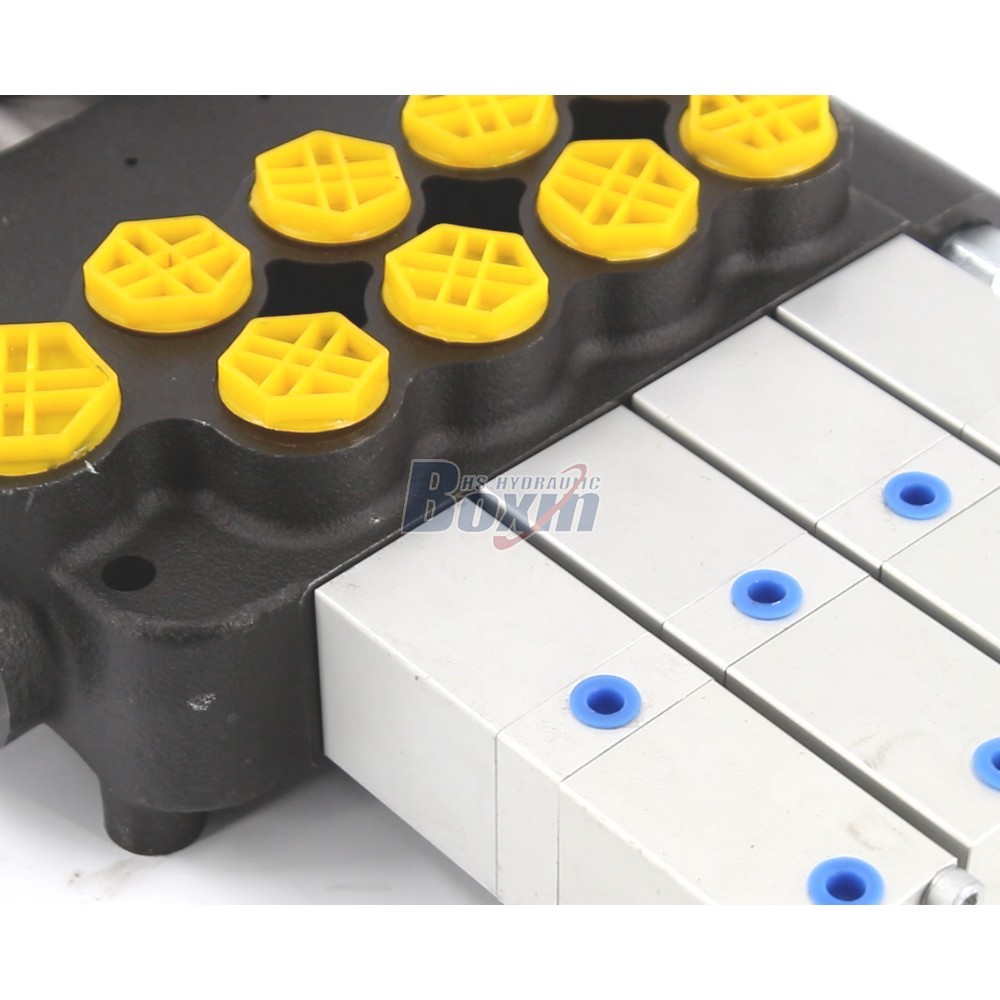

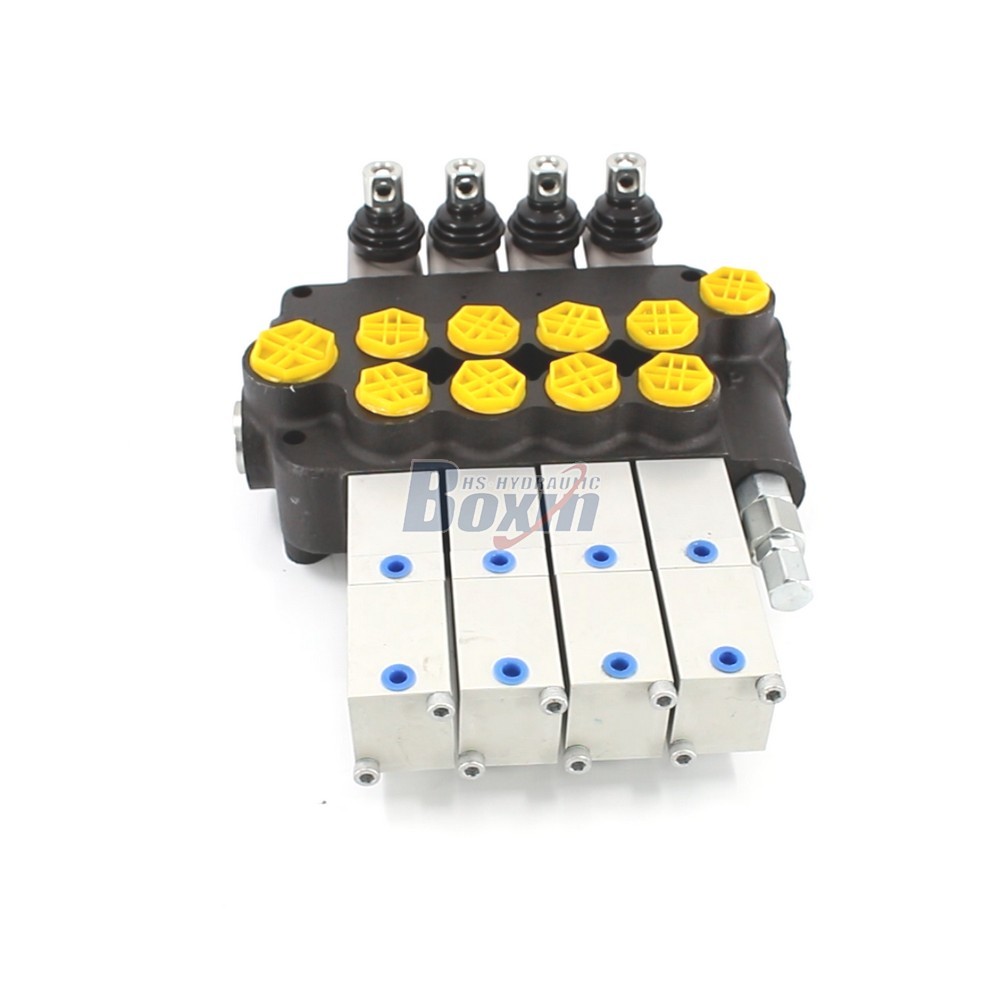

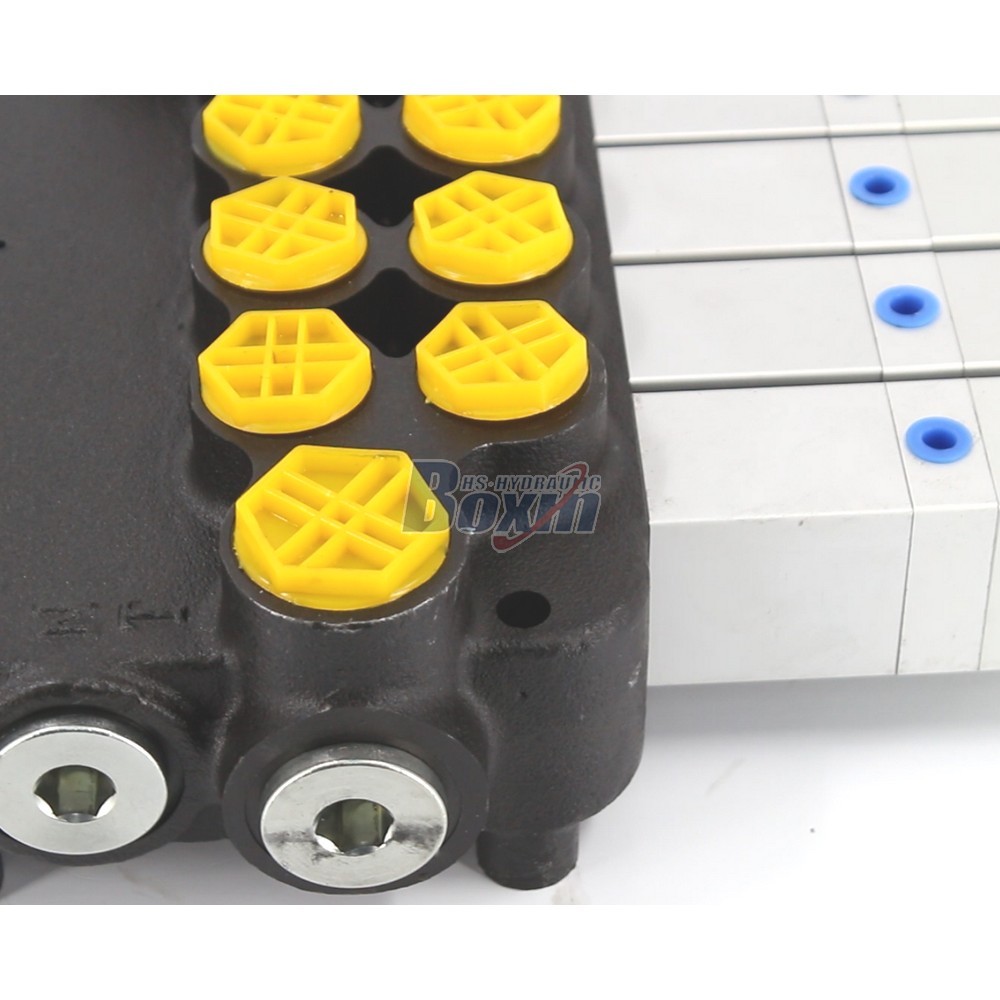

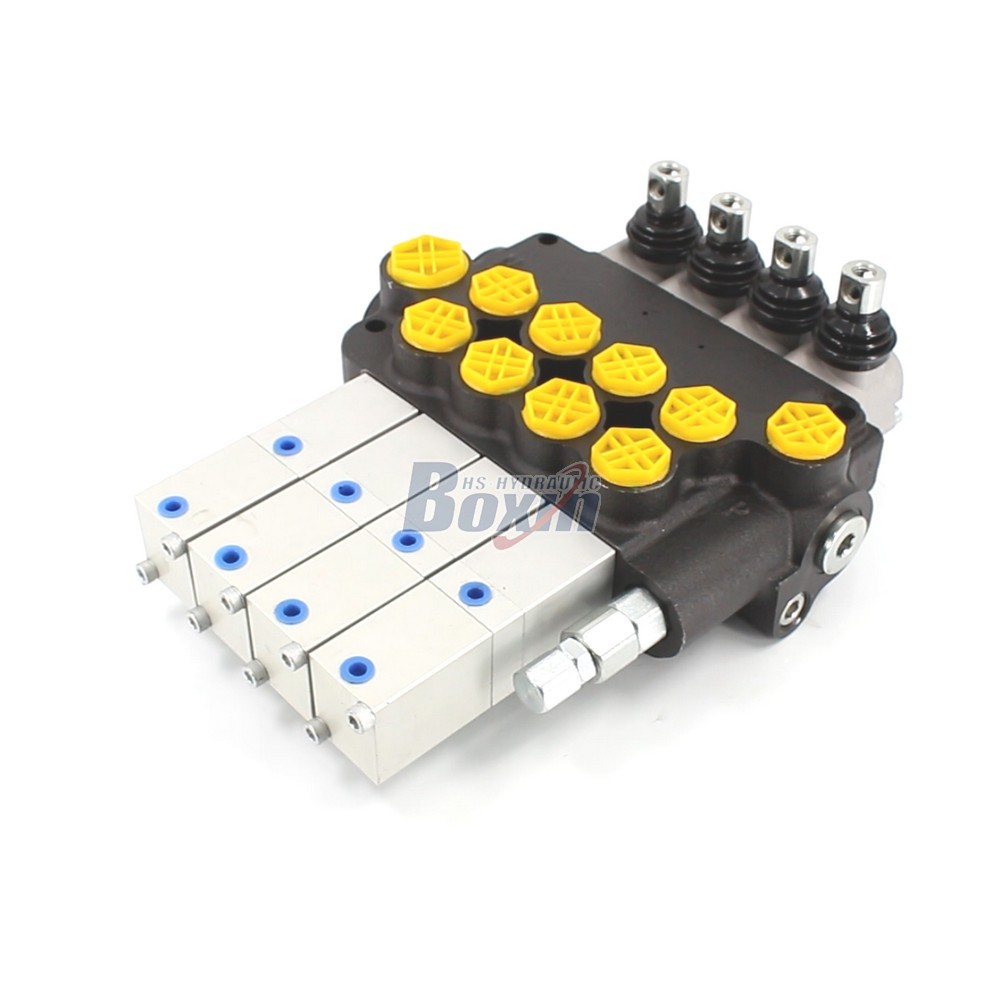

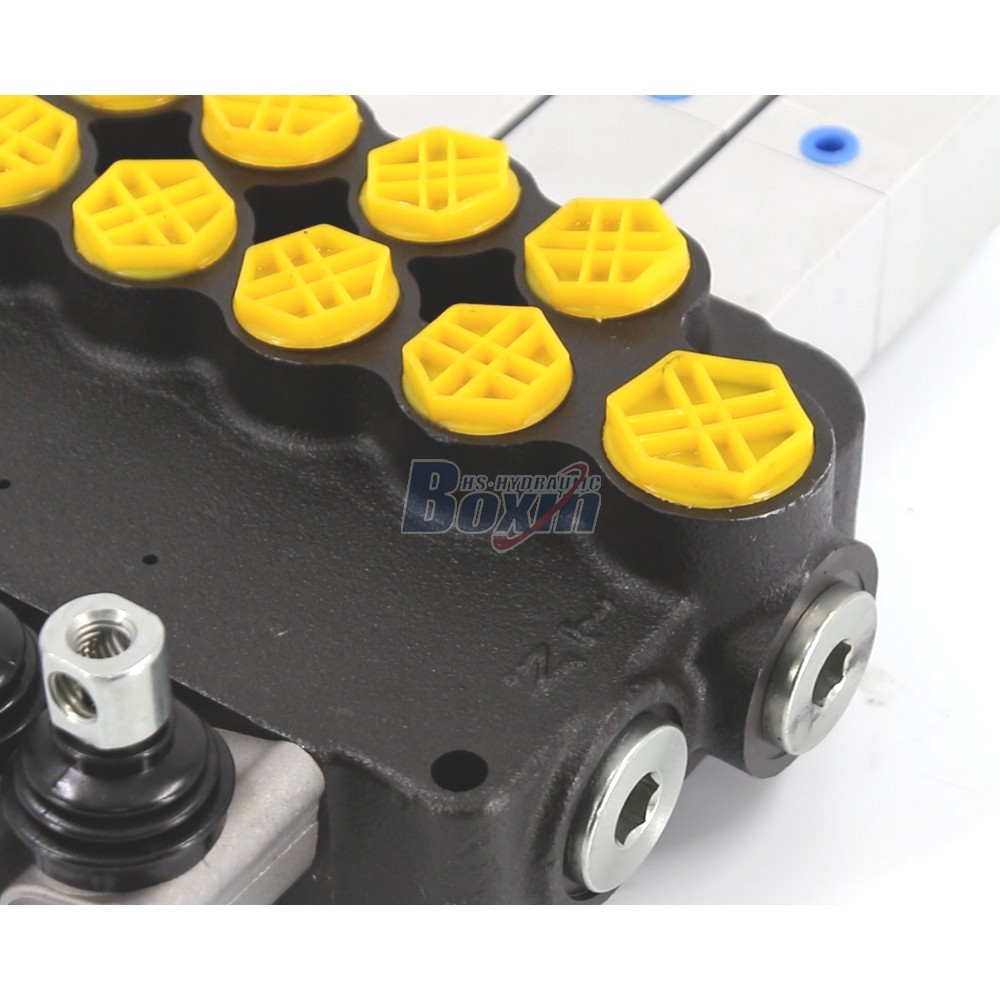

Factory Wholesale P80Q-G-4OT 4 Spool Pneumatic Directional Valve

Metoda sterowania:Pneumatyczna

Szpula:4-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:34*25*13

Waga brutto:15.00 kg

Dostępność: W magazynie

61 Osoby oglądają ten produkt

Factory Wholesale P80Q-G-4OT 4 Spool Pneumatic Directional Valve

Factory Wholesale P80Q-G-4OT 4 Spool Pneumatic Directional Valve

Factory Wholesale P80Q-G-4OT 4 Spool Pneumatic Directional Valve drawing image

High-performance P80Q-G-4OT 4-spool pneumatic directional control valve, featuring an 80 L/min flow rate and 250 bar pressure capacity for demanding mobile and industrial hydraulic systems.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

As a prominent hydraulic product manufacturer, we offer the P80Q-G-4OT 4-spool pneumatic directional valve designed for precision control in heavy-duty machinery. This P80 series valve supports a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar, making it ideal for construction, agriculture, and material handling equipment such as skid steer loaders, forklifts, and tractors. We provide comprehensive manufacturing services, including OEM and ODM solutions, private labeling, and custom engineering to meet specific technical requirements. Our factory-direct supply model ensures competitive wholesale pricing for large-scale orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need reliable factory wholesale components or tailored manufacturing for industrial vehicles and wood splitters, our facility delivers consistent quality and robust hydraulic solutions worldwide.
