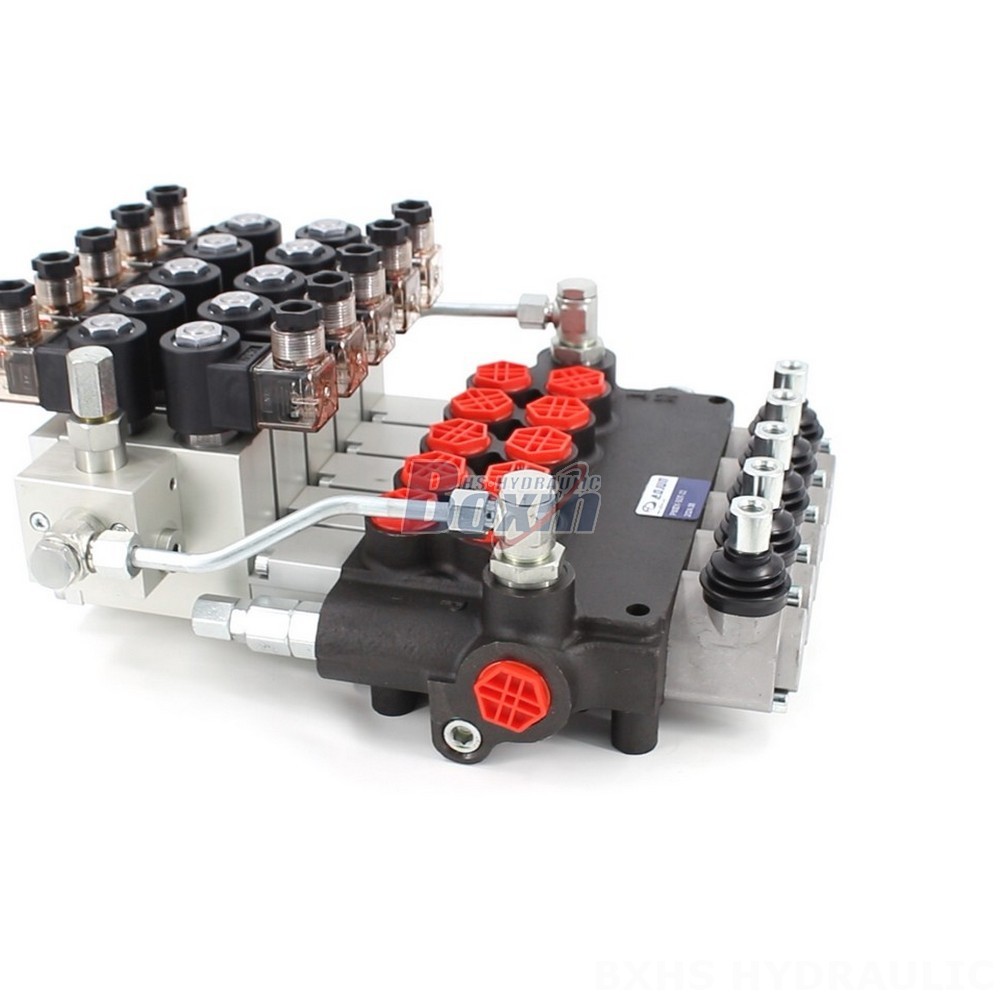

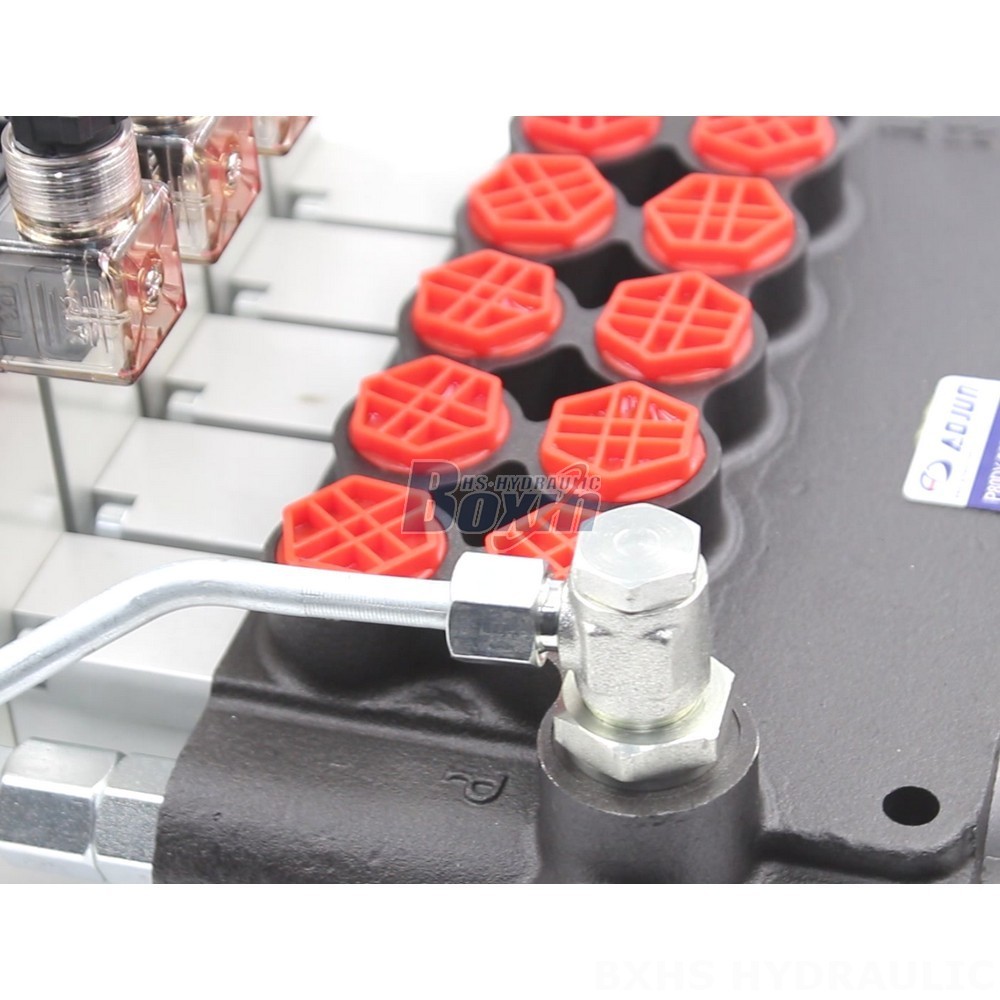

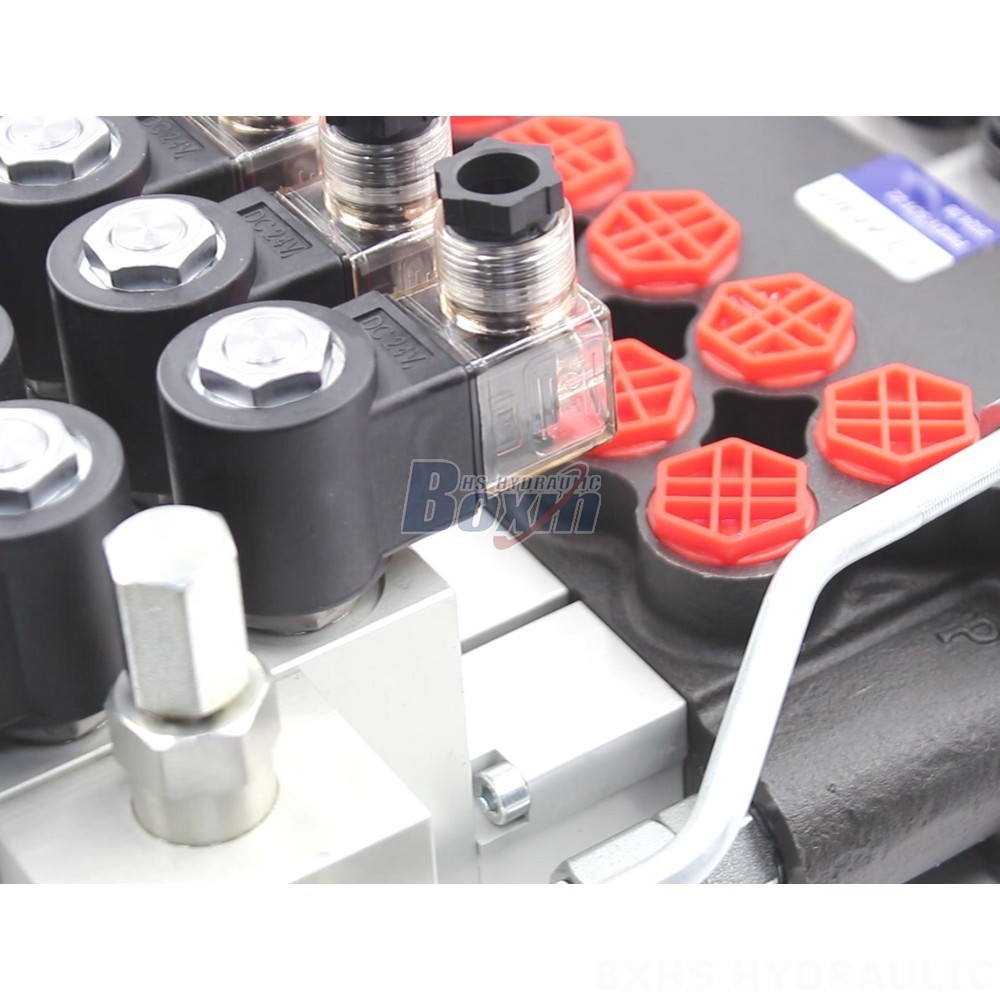

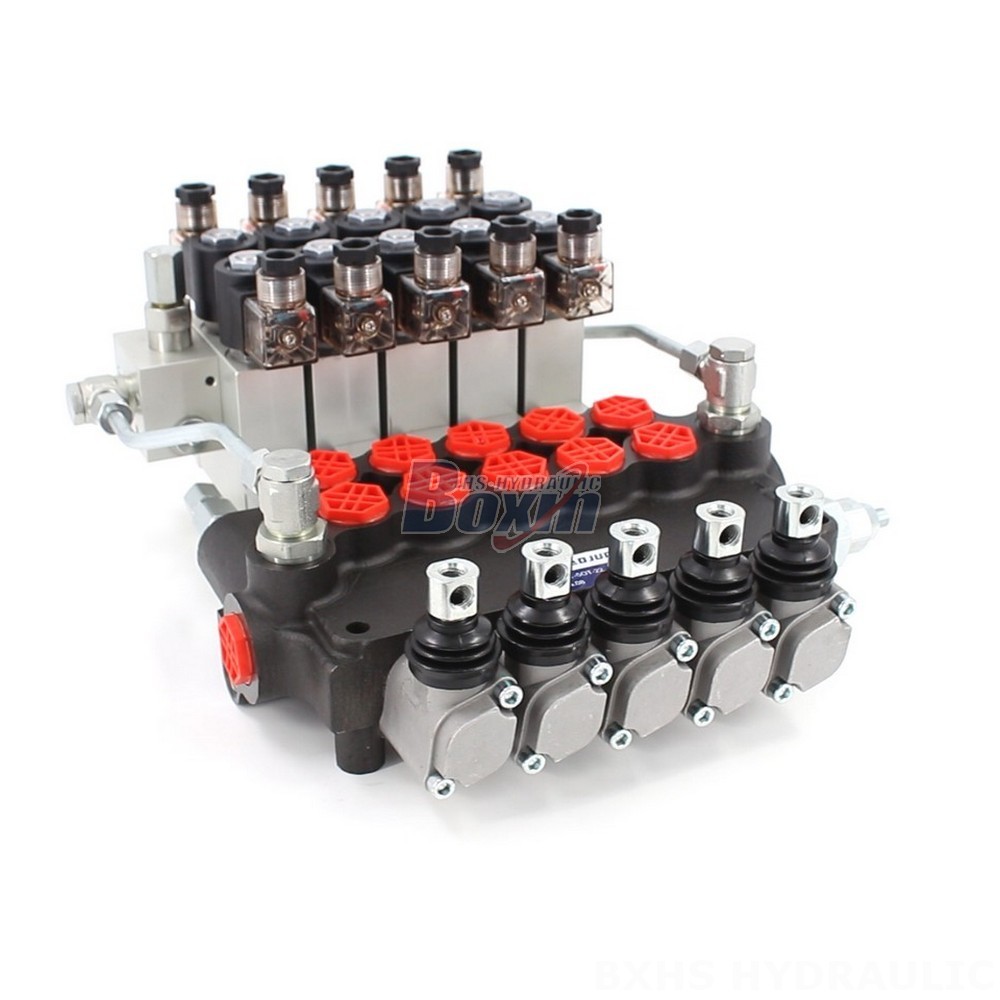

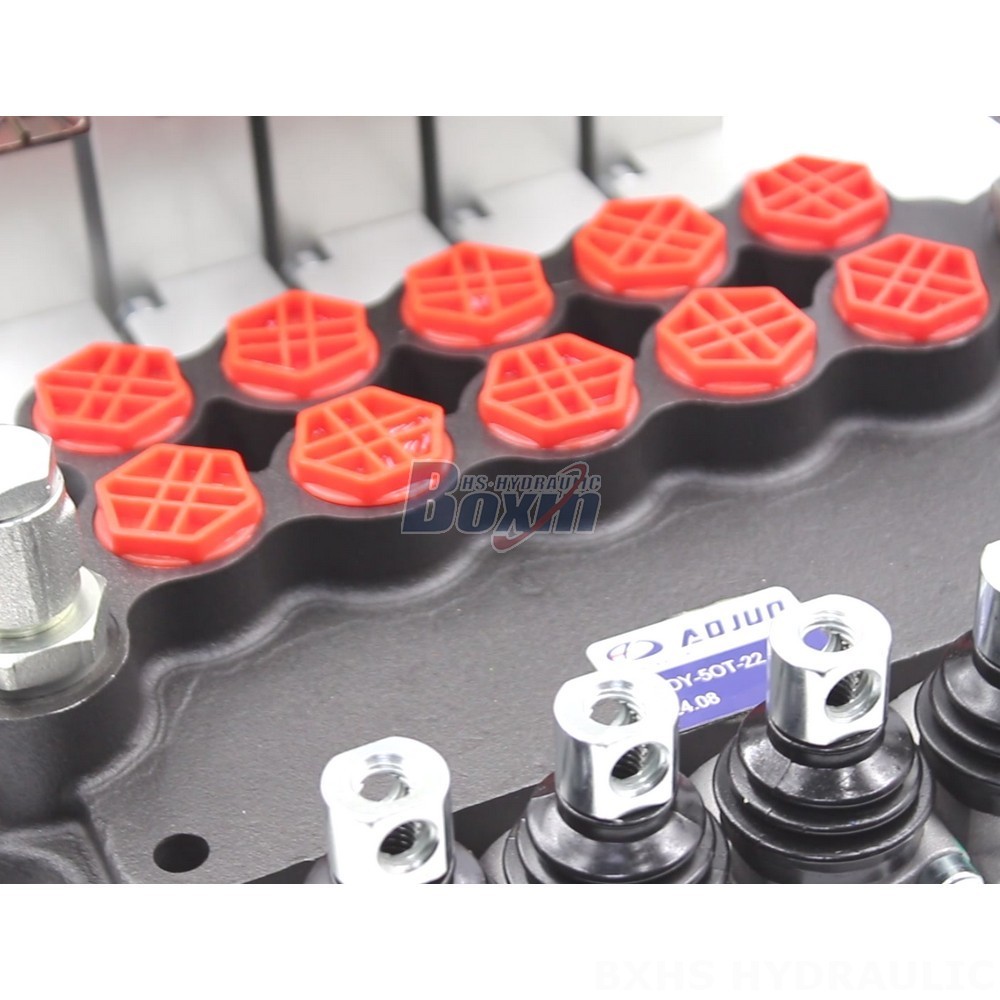

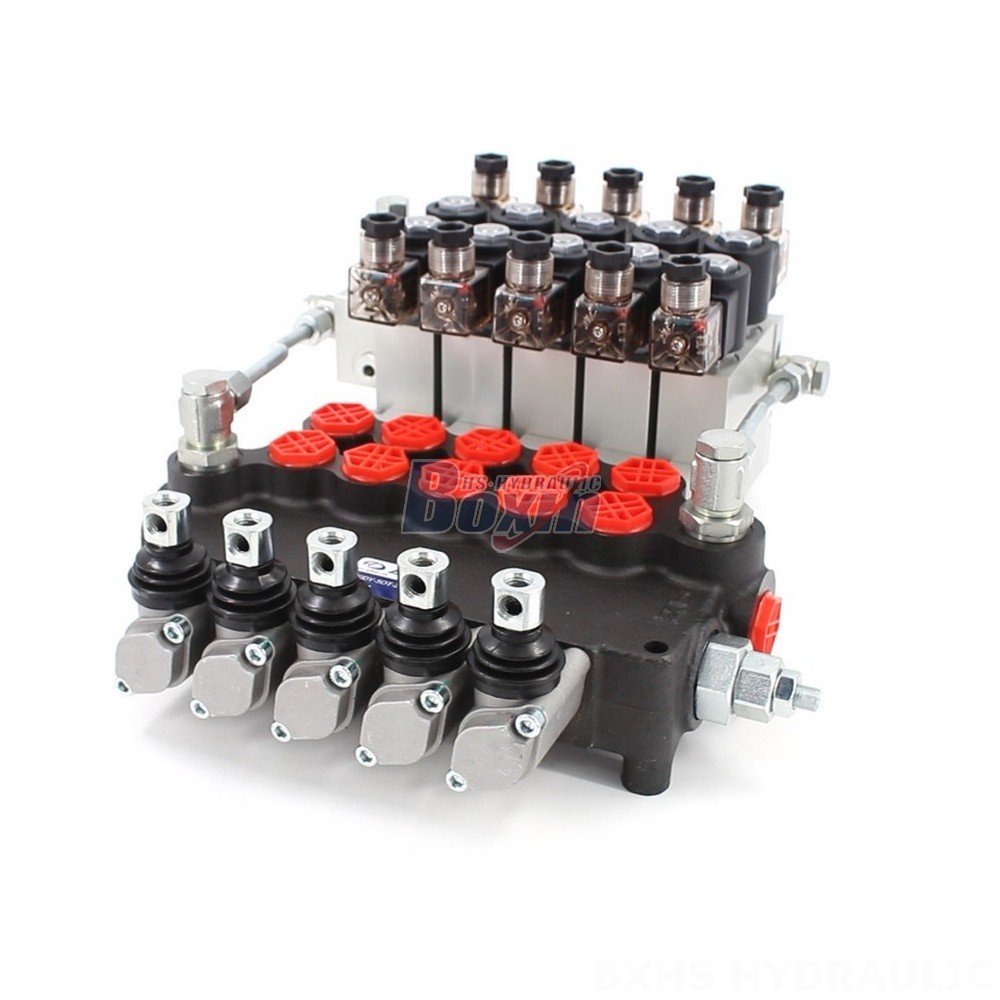

Factory Wholesale: P80 Electro-hydraulic 5 Spool Directional Valves

Metoda sterowania:Elektrohydrauliczna

Szpula:5-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:52*42*20

Waga brutto:30.00 kg

Dostępność: W magazynie

496 Osoby oglądają ten produkt

Factory Wholesale: P80 Electro-hydraulic 5 Spool Directional Valves

Factory Wholesale: P80 Electro-hydraulic 5 Spool Directional Valves

Factory Wholesale: P80 Electro-hydraulic 5 Spool Directional Valves drawing image

High-performance P80 Series electro-hydraulic 5-spool directional valves, offering 80 L/min flow rate and 315 bar max pressure. Ideal for construction, material handling, and industrial applications. Factory direct wholesale, OEM/ODM services available.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our flagship product, the P80 Series electro-hydraulic 5-spool directional valve, is a robust and reliable solution for a wide range of applications, including construction and earthmoving, material handling, industrial vehicles, and agriculture. This monoblock valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi), with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It's designed to withstand extreme temperatures ranging from -40°C to +80°C (-40°F to +176°F). Suitable for various equipment, including forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and wheel loaders.

We offer a comprehensive range of services, including manufacturing, OEM (Original Equipment Manufacturing), ODM (Original Design Manufacturing), customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies to partner with us and expand our global reach. As a factory-direct supplier, we offer competitive pricing and reliable delivery. Benefit from our factory wholesale pricing and experience the quality and performance of our P80 Series electro-hydraulic valves. Contact us today to discuss your needs and explore mutually beneficial cooperation opportunities. We are committed to providing superior products and outstanding service to our valued partners. Choose a reliable hydraulic valve manufacturer; choose us.
