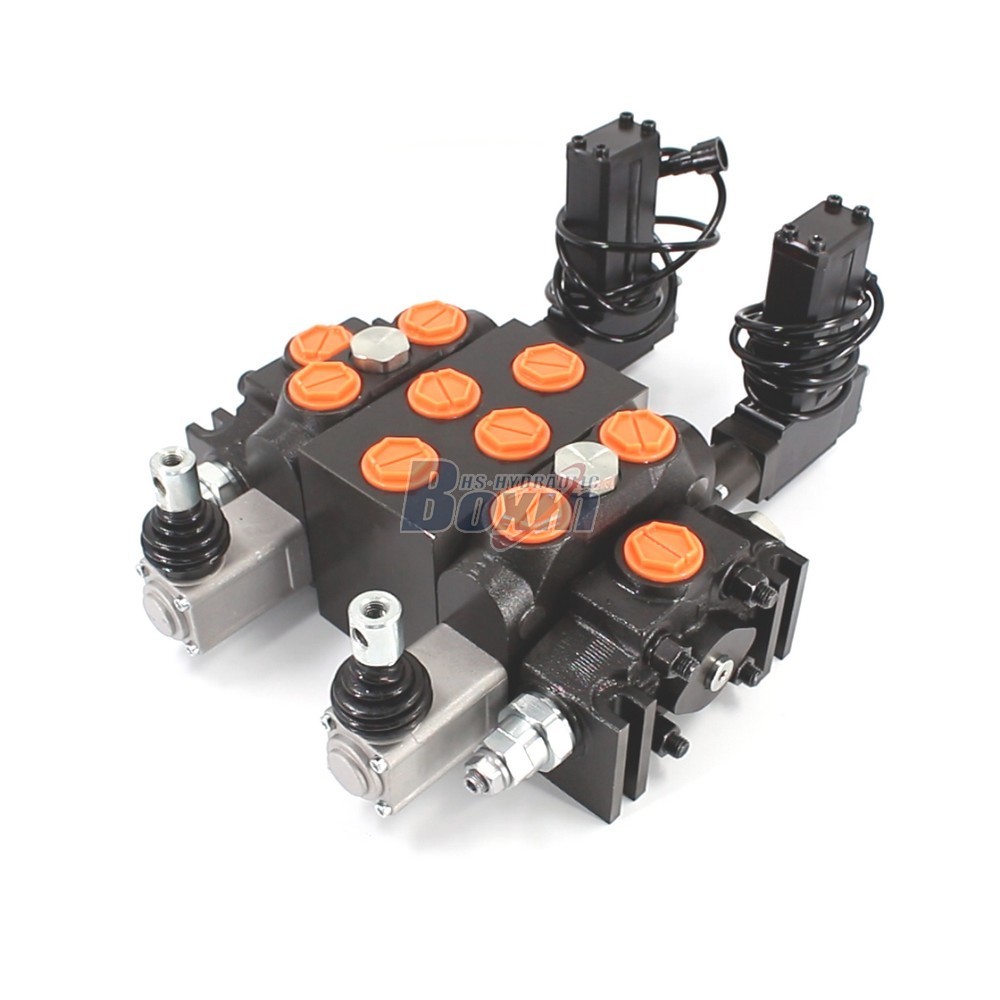

The DCV200 series is a robust 2-spool sectional directional control valve featuring electric motor operation, engineered for high-performance hydraulic systems with a capacity of 200 L/min and pressure handling up to 315 bar, ideal for heavy-duty mobile and industrial machinery.
| Seria DCV200 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick, Ręczne i elektrohydrauliczne, Silnik elektryczny |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny, 11-sekcyjny, 12-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji, 11 Sekcji, 12 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 200 l/min (52 galonów amerykańskich na min) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Port wylotowy | G1, M33×2.0, SAE 16, 1 NPT |
| Rozmiar portu | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
As a professional hydraulic manufacturer and factory supplier, we offer the DCV200 2 Spool Electric Motor Sectional Directional Valve designed for demanding applications including wheel loaders, excavators, forklifts, and agricultural machinery. With a rated flow of 200 L/min and a maximum pressure of 315 bar, our valves ensure precise control and reliability in construction, material handling, and industrial operations. We provide comprehensive manufacturing, OEM, and private label services to fulfill specific technical requirements and branding needs. Whether you require customized hydraulic solutions, bulk wholesale orders, or reliable manufacturing support, our factory is equipped to scale production for your specific project. We are actively seeking global partnerships and inviting distributors, wholesalers, agents, and international traders to collaborate with us. Benefit from our integrated manufacturing capabilities, competitive factory-direct pricing, and commitment to delivering high-quality hydraulic components for your distribution network.
