Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

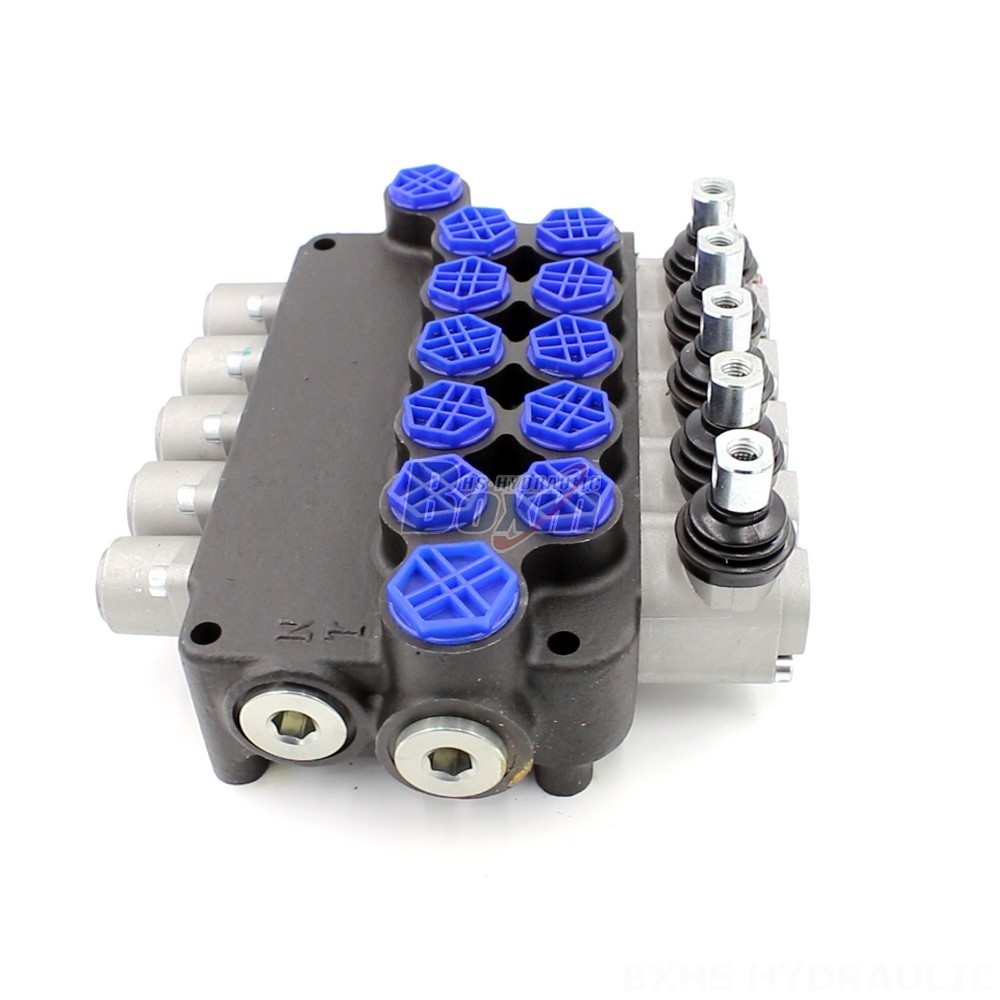

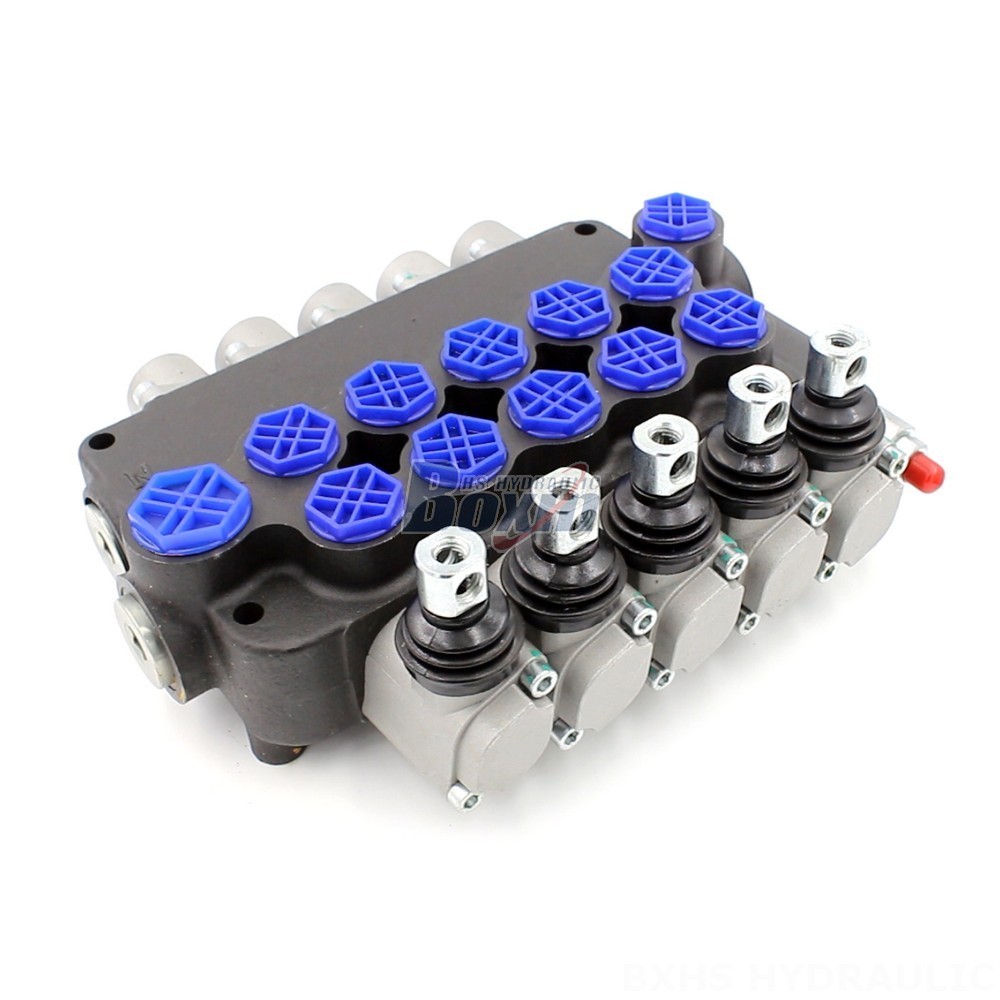

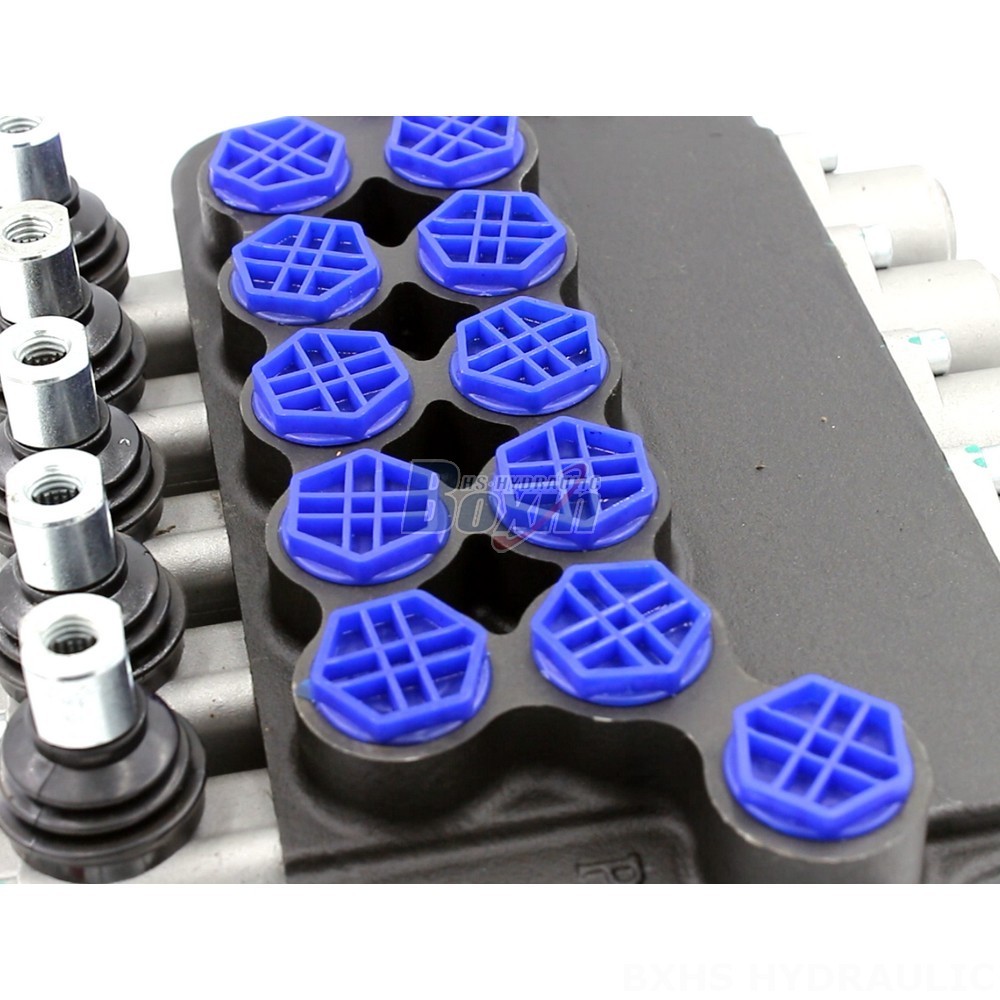

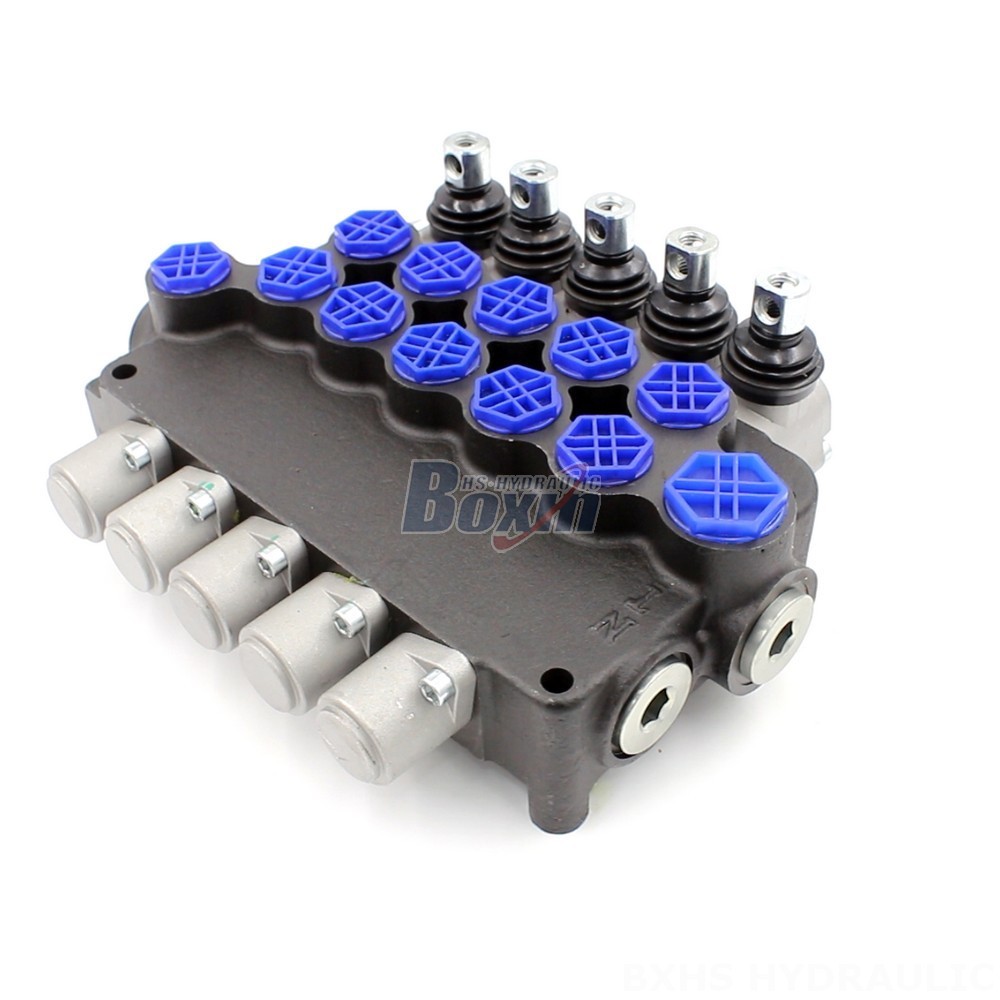

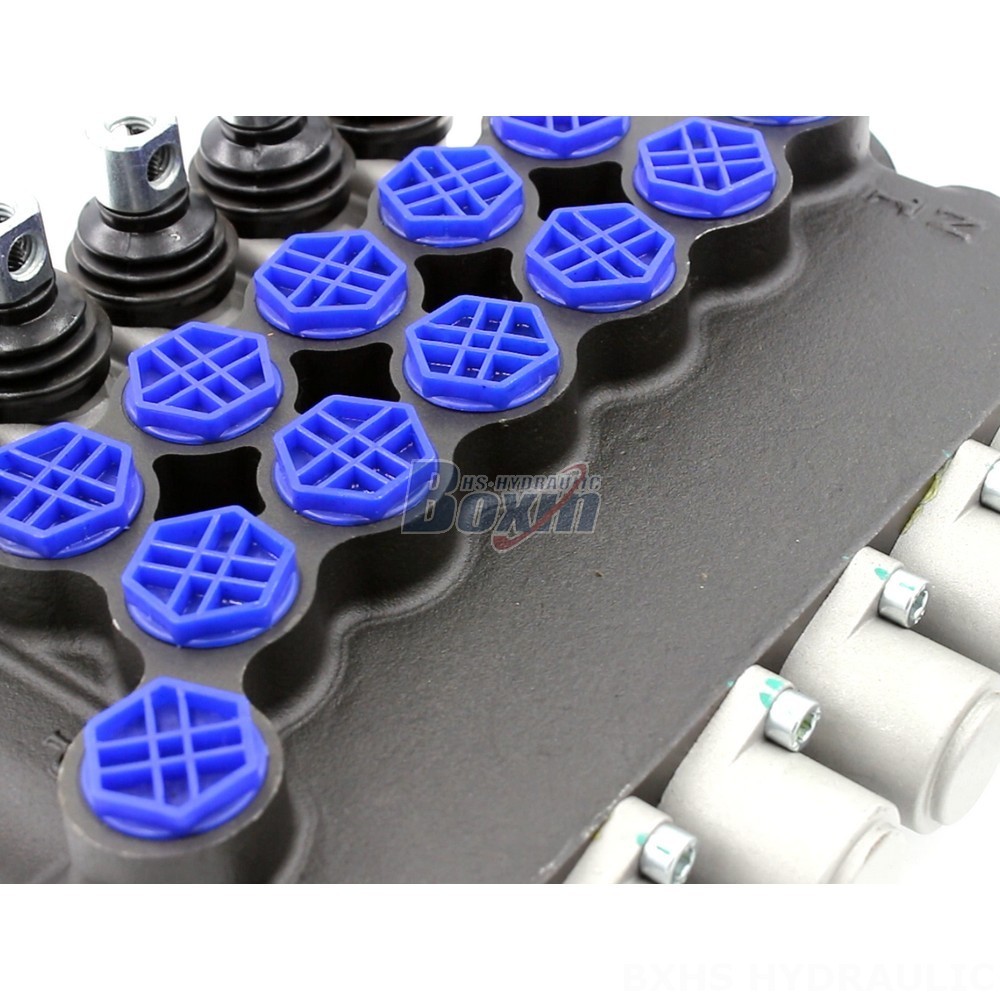

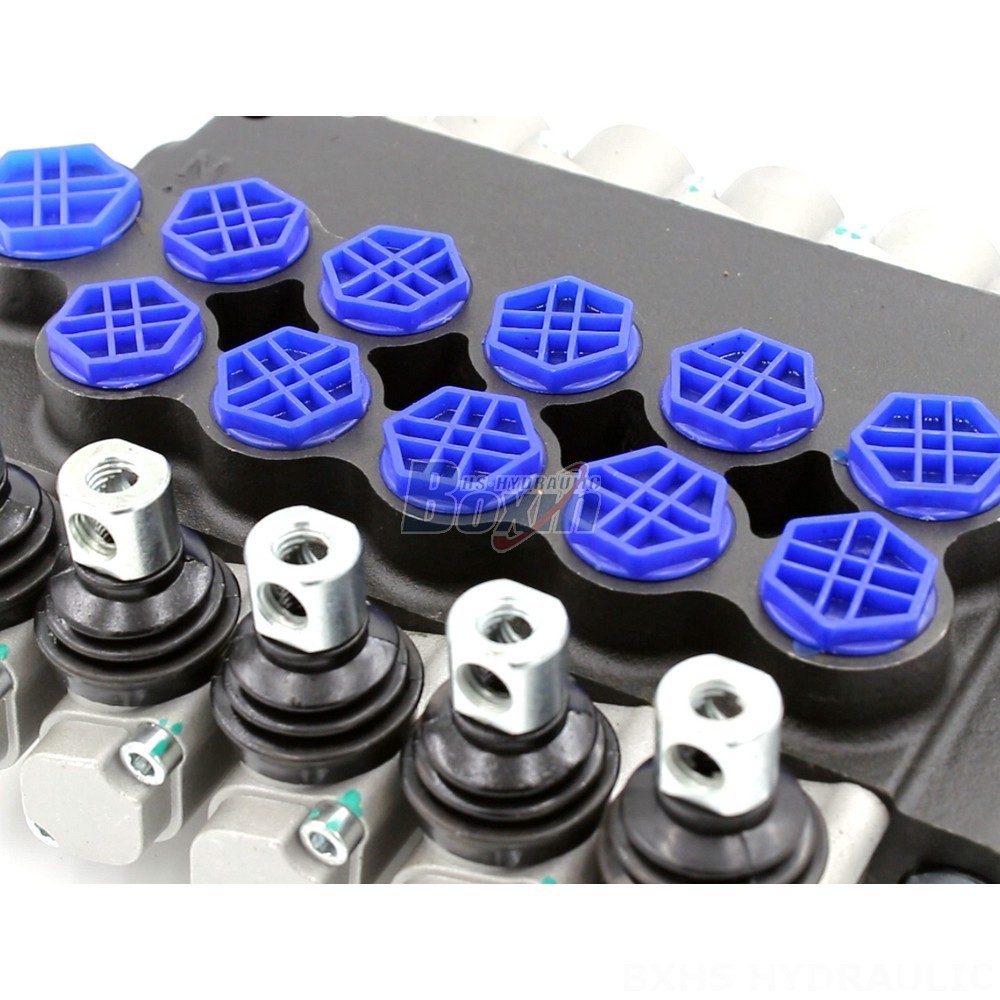

Our factory manufactures high-quality 4 Way Valve P80F-G34-OT hydraulic directional control valves. These manual control, 5 section, monoblock valves are designed for heavy-duty applications and offer a rated flow of 80 L/min and a maximum pressure of 250 bar. We offer competitive factory prices and direct supply options for bulk orders.
| Seria P80F Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza |
| Rozmiar portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Port wylotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM) |
| Typ konstrukcji | Zawór blokowy |
| Port wlotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This P80F-G34-OT 4 Way Valve is a high-performance hydraulic directional control valve manufactured in our factory. It features manual control, a 5 section design, and a monoblock structure. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is ideal for heavy-duty applications in various industries. The valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). It is equipped with a 5 spool design and falls under the P80F series. This valve is specifically suitable for material handling, construction and earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. As a manufacturer, we offer competitive factory prices and direct supply options for bulk orders. We welcome inquiries from distributors, wholesalers, agents, and traders worldwide.
