Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump

Pojemność skokowa:63 cm³/obr

Ciśnienie znamionowe:20 MPa (2900 psi)

Maksymalne ciśnienie:25 MPa (3625 psi)

Maksymalna prędkość:2500 obr./min

Kierunek obrotu:Dwukierunkowy

Marka:BXHS

Typ produktu:Pompa hydrauliczna zębata

Seria produktów:Seria CBHC Pompa hydrauliczna zębata

Rozmiar opakowania:34*18*18

Waga brutto:15.00 kg

Dostępność: W magazynie

197 Osoby oglądają ten produkt

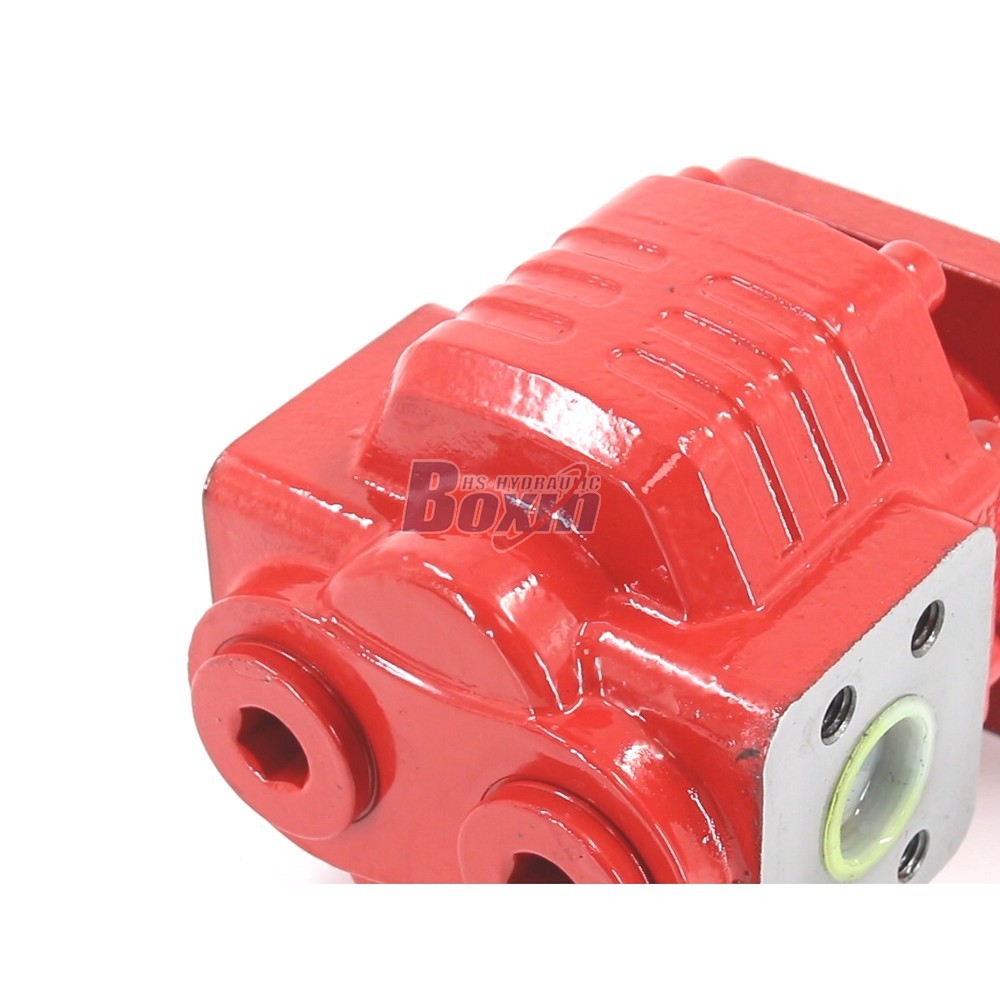

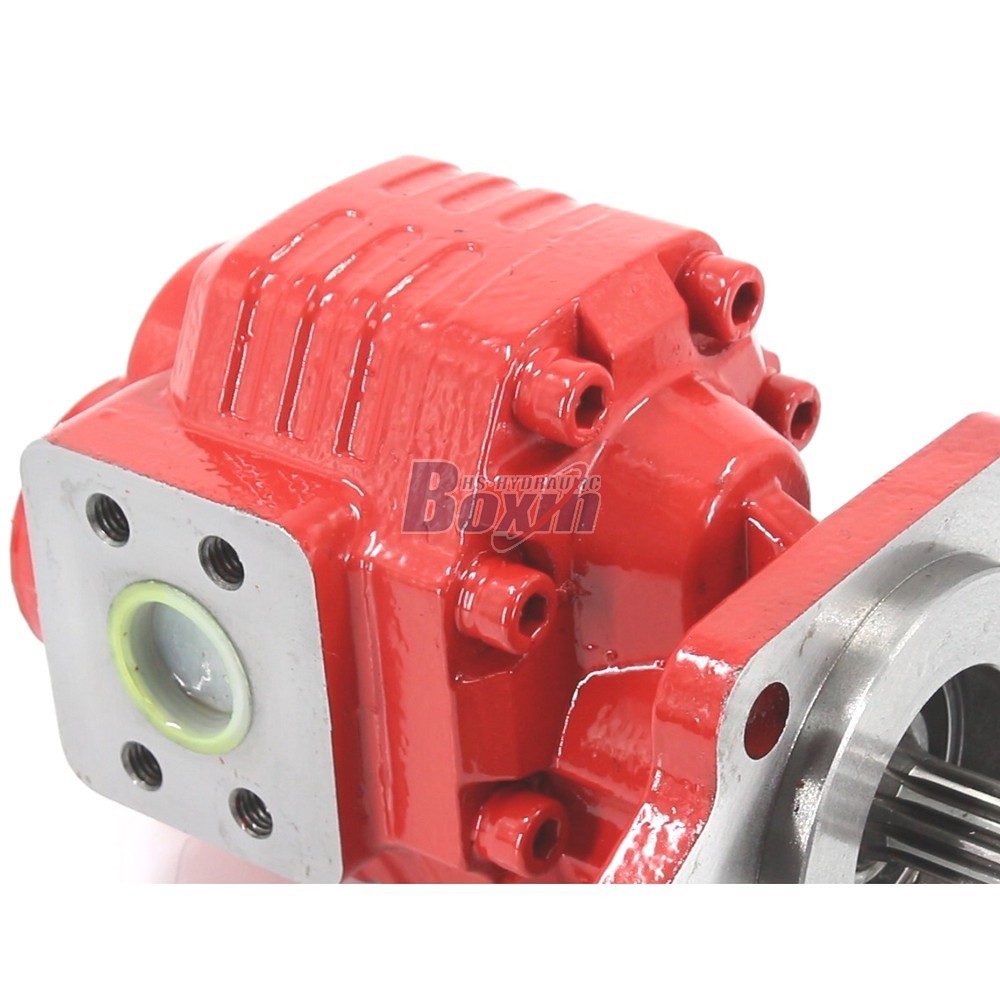

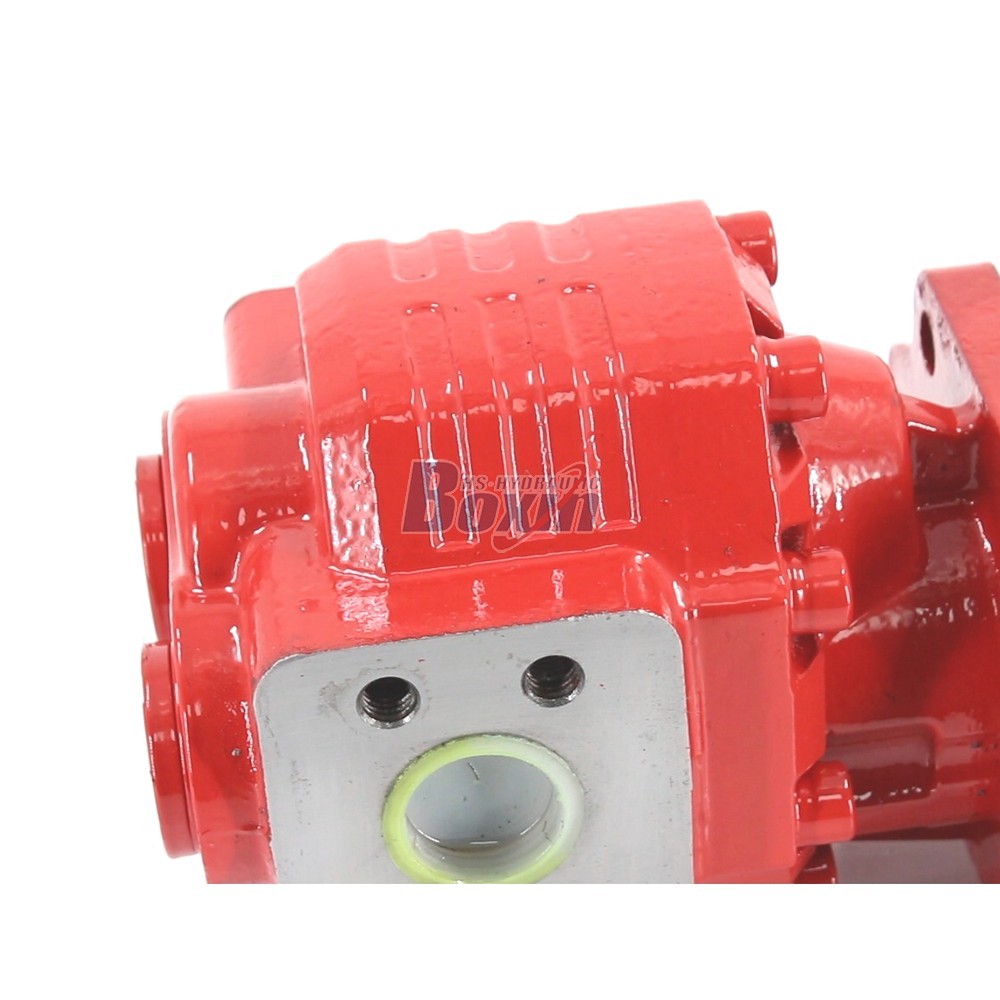

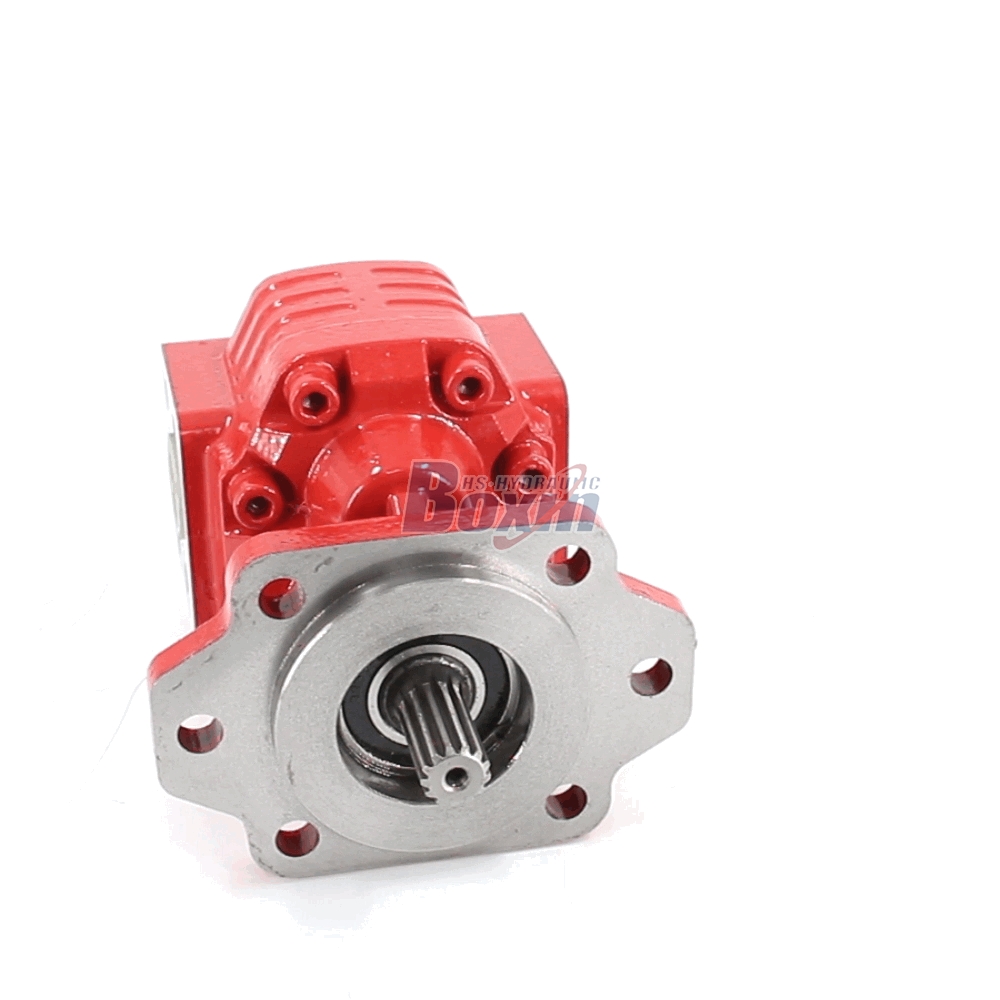

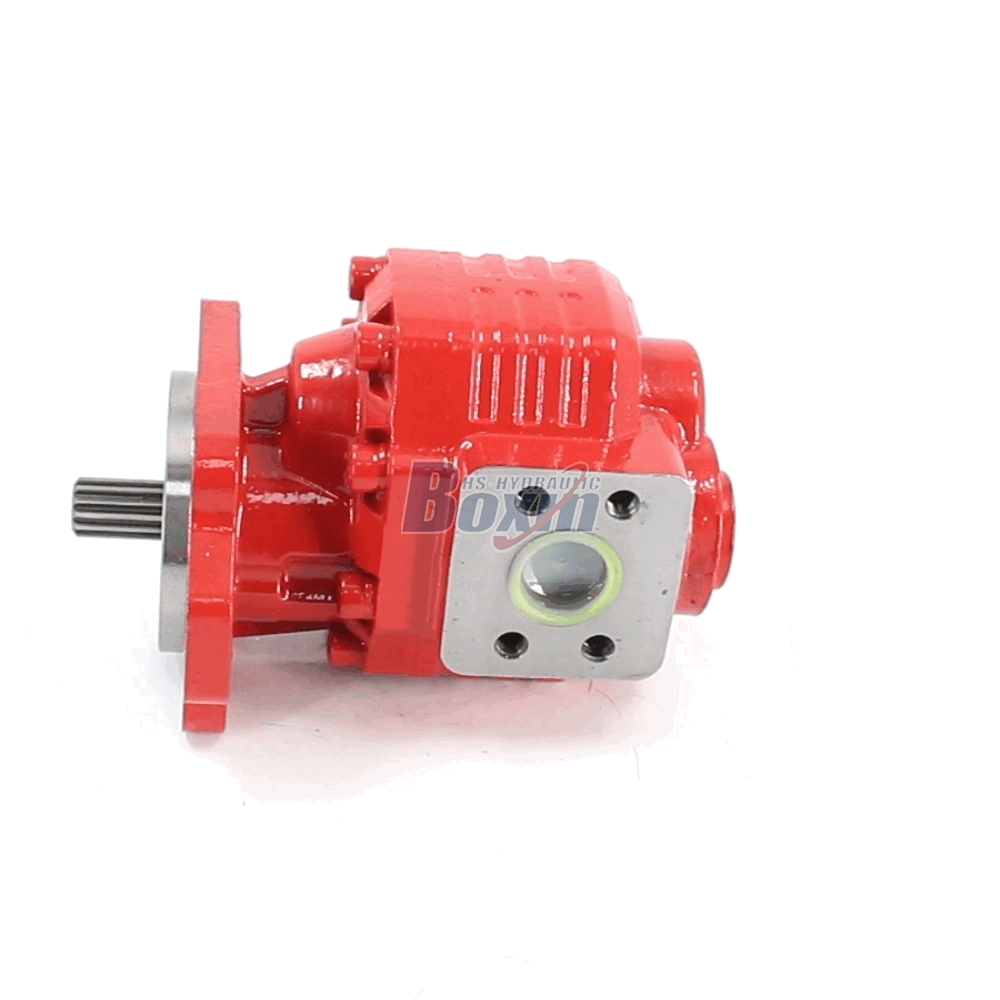

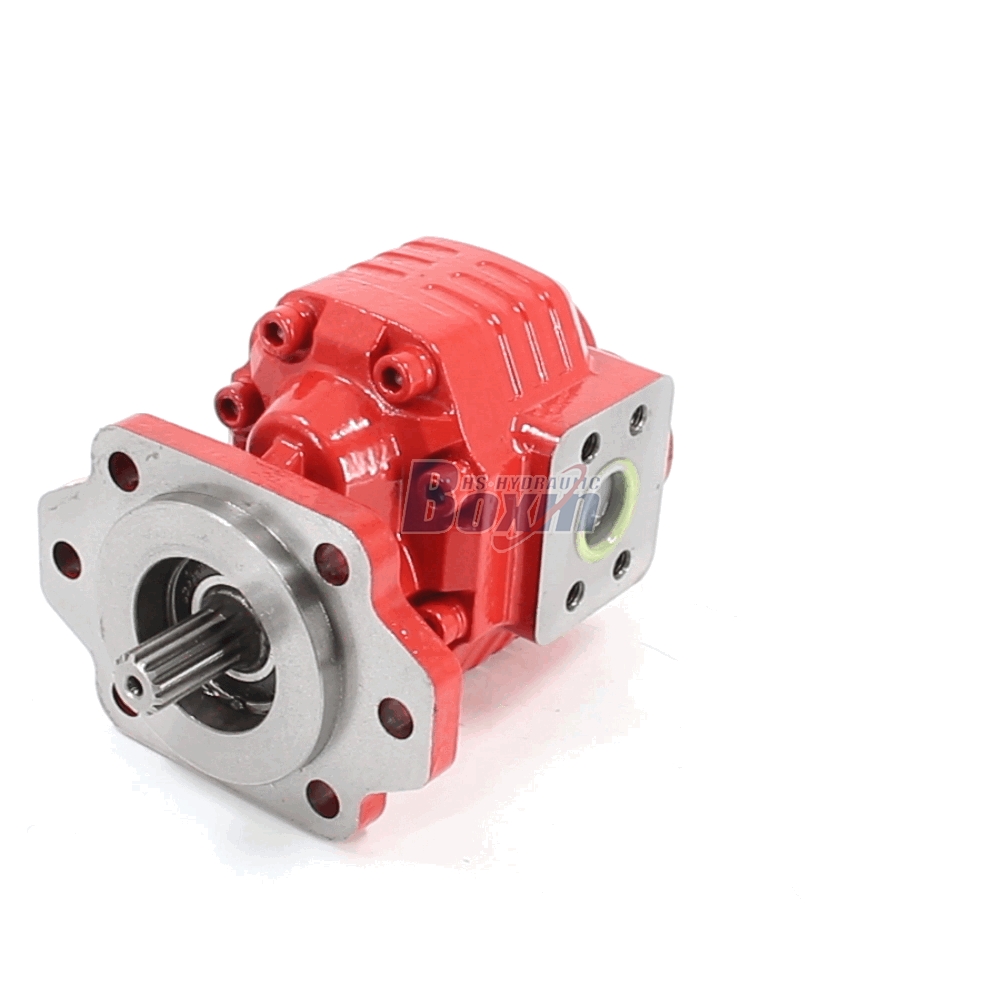

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump drawing image

Source the CBHC-2063 63 cc/rev Hydraulic Gear Pump directly from a Professional Manufacturer with 25+ years of expertise. Rated at 20 MPa (2900 psi) and 2200 r/min, this bidirectional pump is ideal for forklifts, loaders, and agricultural machinery. Backed by IATF 16949 certification and 100% factory testing, we offer reliable OEM/ODM solutions for global distributors.

Seria CBHC Pompa hydrauliczna zębata Parametry
Pojemność skokowa 32 cm³/obr, 40 cm³/obr, 50 cm³/obr, 63 cm³/obr, 80 cm³/obr, 100 cm³/obr, 25 cm³/obr, 110 cm³/obr
Ciśnienie znamionowe 20 MPa (2900 psi), 22 MPa (3190 psi)
Maksymalne ciśnienie 25 MPa (3625 psi), 28 MPa (4061 psi)
Prędkość znamionowa 2200 obr./min
Maksymalna prędkość 2500 obr./min
Kierunek obrotu L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara), Dwukierunkowy
Materiał Żeliwo
Struktura Zewnętrzna pompa zębata
Wersja kołnierza Kołnierz SAE
Typ wału Nacięcie prostokątne H

**1. Factory Direct Supply of Hydraulic Gear Pump**
- Sourced directly from our 68,000㎡ manufacturing base with an annual capacity of 1,500,000 units, ensuring stable supply for Wholesale Direct Sales.
- Enjoy competitive pricing without middlemen, as we are a verified China Wholesale Factory committed to cost-effective B2B partnerships.

**2. Robust CBHC Series Gear Pump Specifications**
- Delivers a displacement of 63 cc/rev with a rated pressure of 20 MPa (2900 psi) and max pressure of 25 MPa (3625 psi) for heavy-duty tasks.
- Operates efficiently at a rated speed of 2200 r/min (max 2500 r/min) with bidirectional rotation, suitable for diverse hydraulic systems.

**3. Versatile 63cc Hydraulic Pump Applications**
- Engineered for material handling and construction equipment, including forklifts, telehandlers, skid steer loaders, and mini-excavators.
- Perfectly compatible with international major brands, serving as a reliable replacement part for industrial vehicles and agricultural tractors.

**4. Precision Quality Control & Certification**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, supported by 260+ vertical machining centers and CMM inspection.
- Certified under IATF 16949 and CE standards, with SGS verification and 25+ patents, guaranteeing Exported Worldwide quality consistency.

**5. Custom OEM/ODM Available Services**
- Supported by 35+ senior engineers with 10+ years of experience, we provide tailored solutions including logo laser marking and private label packaging.
- Offers secure anti-rust treatment and heavy-duty wooden crate packaging, making us a preferred partner for Wholesale Hot Sale distributors.
