Factory Direct P40 Electro-pneumatic Monoblock Directional Valves: Unbeatable Prices

Metoda sterowania:Elektropneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:13*30*12

Waga brutto:3.80 kg

Dostępność: W magazynie

1334 Osoby oglądają ten produkt

Factory Direct P40 Electro-pneumatic Monoblock Directional Valves: Unbeatable Prices

Factory Direct P40 Electro-pneumatic Monoblock Directional Valves: Unbeatable Prices

Factory Direct P40 Electro-pneumatic Monoblock Directional Valves: Unbeatable Prices drawing image

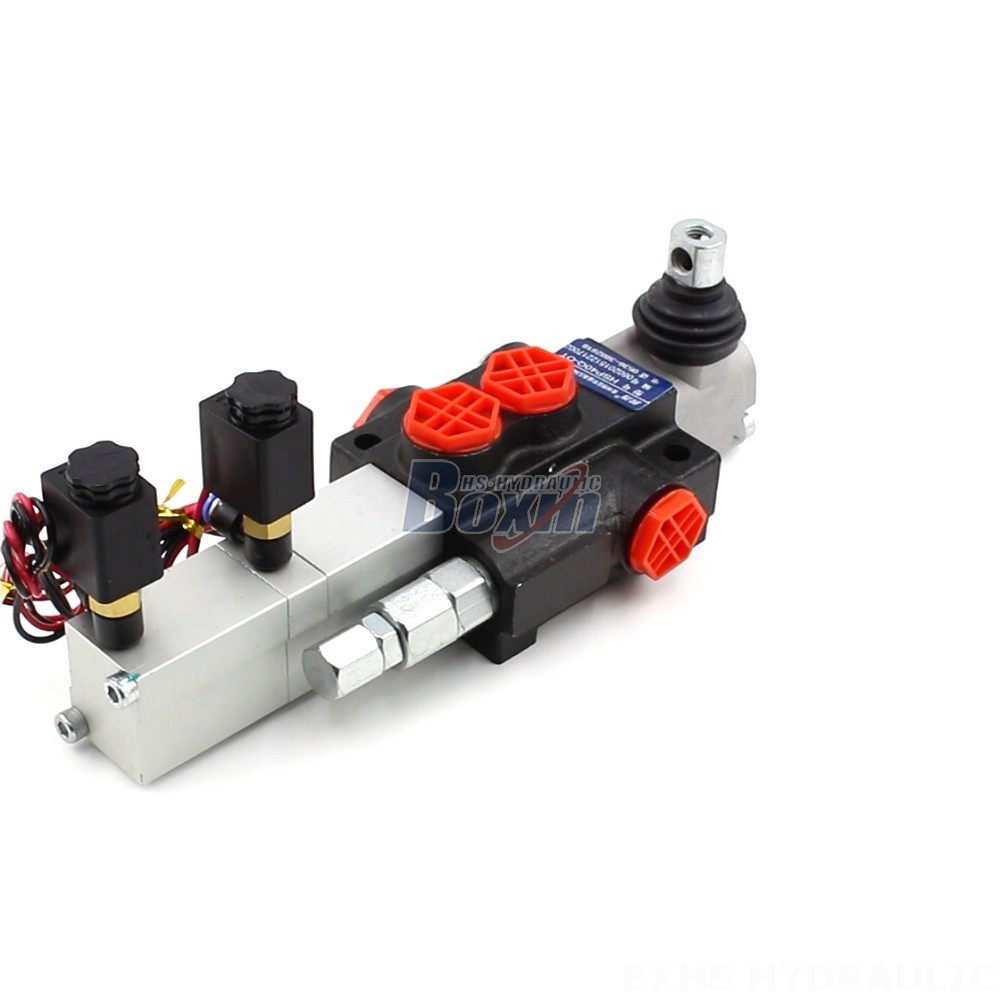

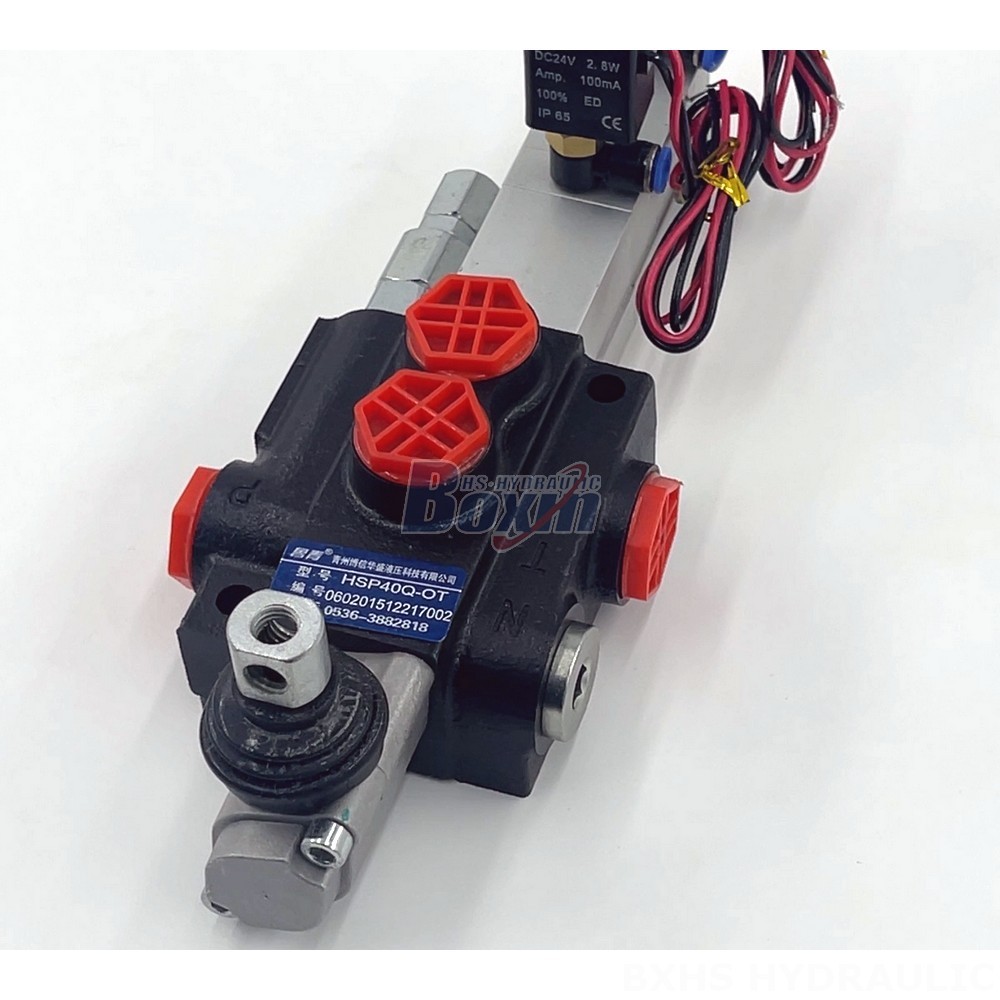

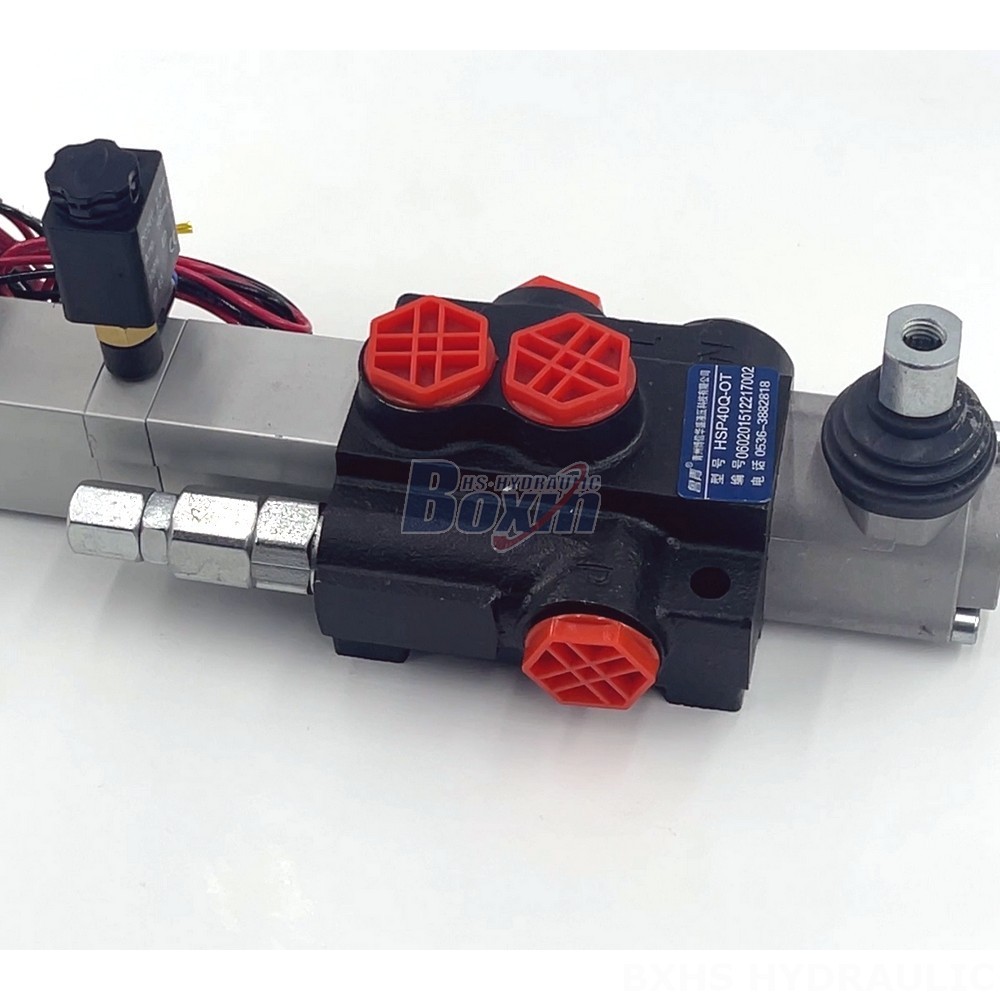

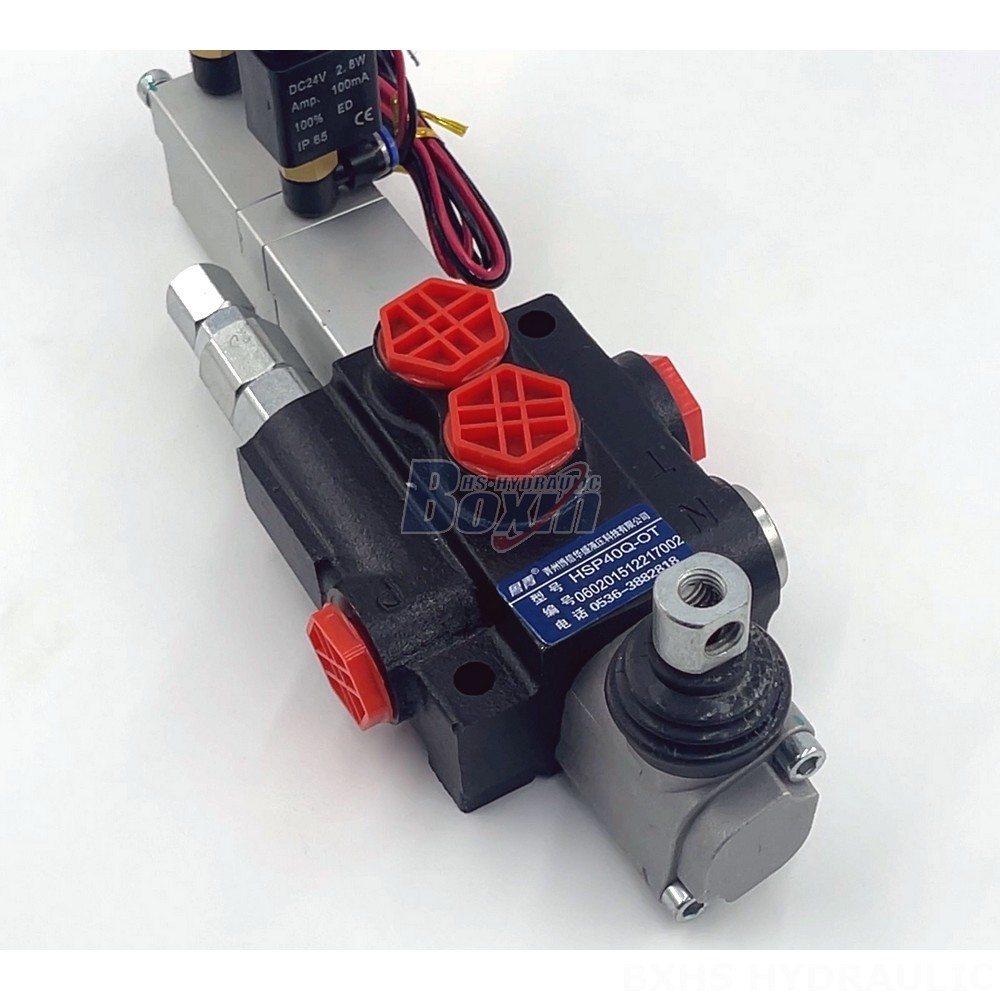

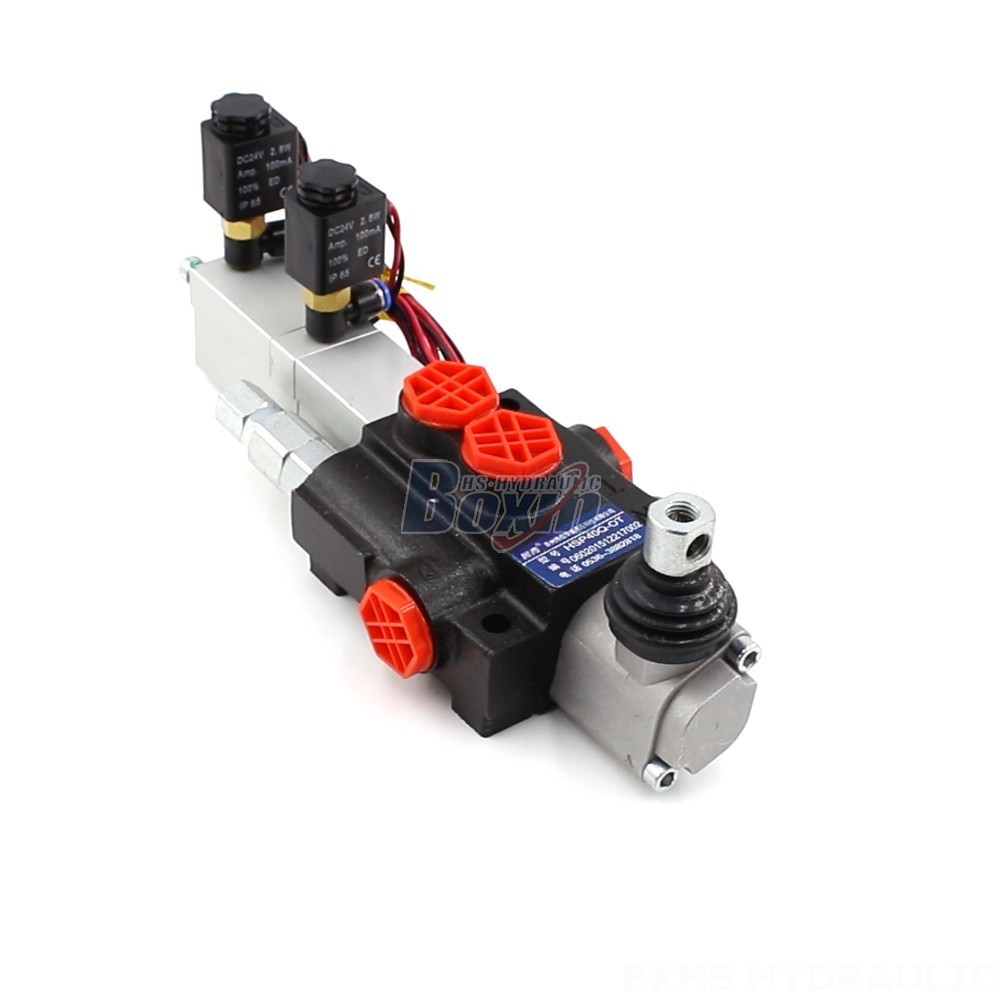

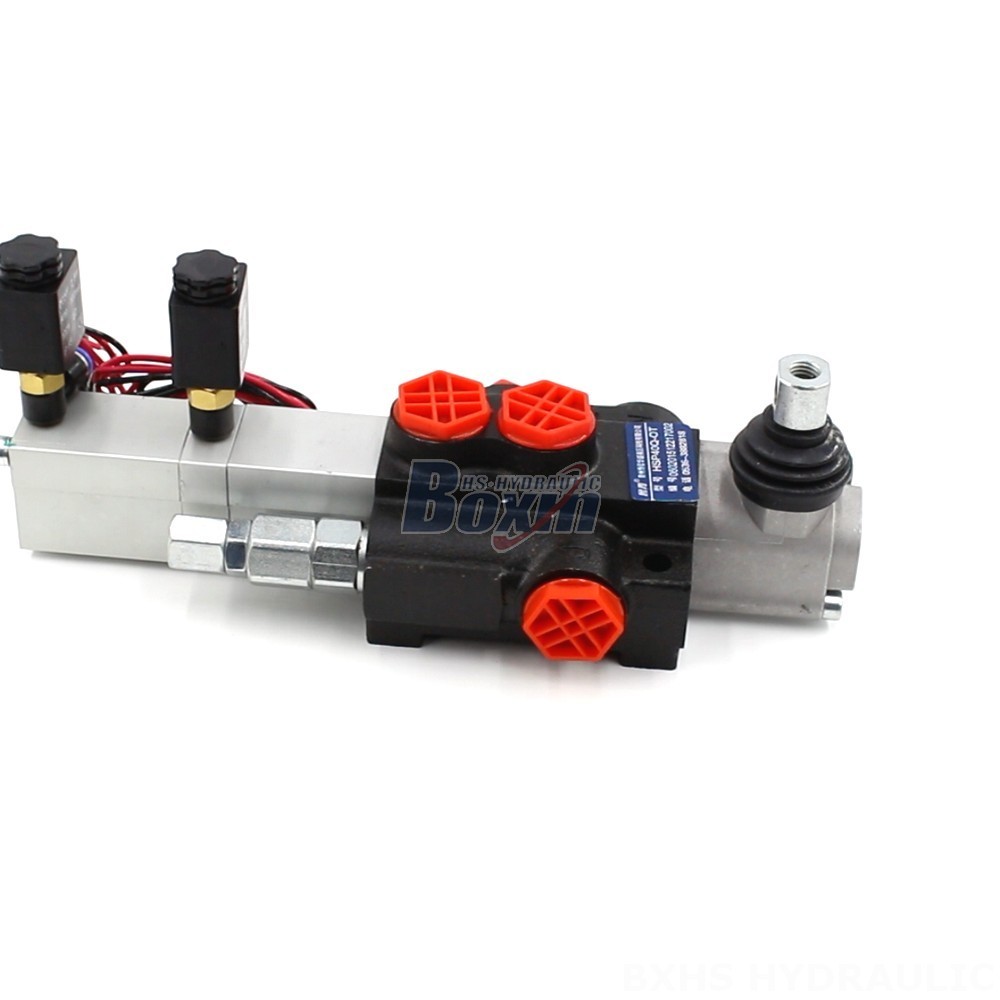

Introducing our Factory Direct P40 Electro-pneumatic Monoblock Directional Valves, engineered to deliver unbeatable performance and value. These valves boast a compact monoblock design, ensuring reliability and durability in demanding applications.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40 Series valves are meticulously crafted with precision components, guaranteeing exceptional flow rates of up to 40 L/min and withstanding pressures as high as 250 bar. They operate seamlessly within a wide viscosity range of 15 - 75 mm²/s and can endure temperatures from -40°C to +80°C.

These valves find widespread application in industries like material handling, construction, earth moving, agriculture, and industrial vehicles. They are ideally suited for equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini and midi excavators, skid steer loaders, and compact wheel loaders.

As a factory-direct supplier, we offer competitive pricing and ensure prompt delivery. Our commitment to quality and customer satisfaction sets us apart in the industry. Choose our P40 Electro-pneumatic Monoblock Directional Valves for your demanding hydraulic applications and experience the difference that factory-direct manufacturing makes.
