Electric Monoblock Directional Valve SD18: Factory Direct Wholesale

Metoda sterowania:Elektrohydrauliczna

Szpula:2-sekcyjny

Przepływ znamionowy:160 l/min (42,2 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1

Port wylotowy:G1

Rozmiar portu:G1

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD18 Zawór sterujący jednoczęściowy

Rozmiar opakowania:21*47*32

Waga brutto:22.50 kg

Dostępność: W magazynie

567 Osoby oglądają ten produkt

Electric Monoblock Directional Valve SD18: Factory Direct Wholesale

Electric Monoblock Directional Valve SD18: Factory Direct Wholesale

Electric Monoblock Directional Valve SD18: Factory Direct Wholesale drawing image

High-performance SD18 Series electric monoblock directional valves, offering 160 L/min flow rate and 315 bar max pressure. Ideal for construction, industrial, and agricultural applications. Factory direct wholesale available.

Seria SD18 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny
Przepływ znamionowy 160 l/min (42,2 USGPM)
Maksymalne ciśnienie 305 bar (4400 psi)
Port wlotowy G1/2, G1, SAE 16
Port wylotowy G1, SAE 16
Rozmiar portu G1, SAE 16
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)

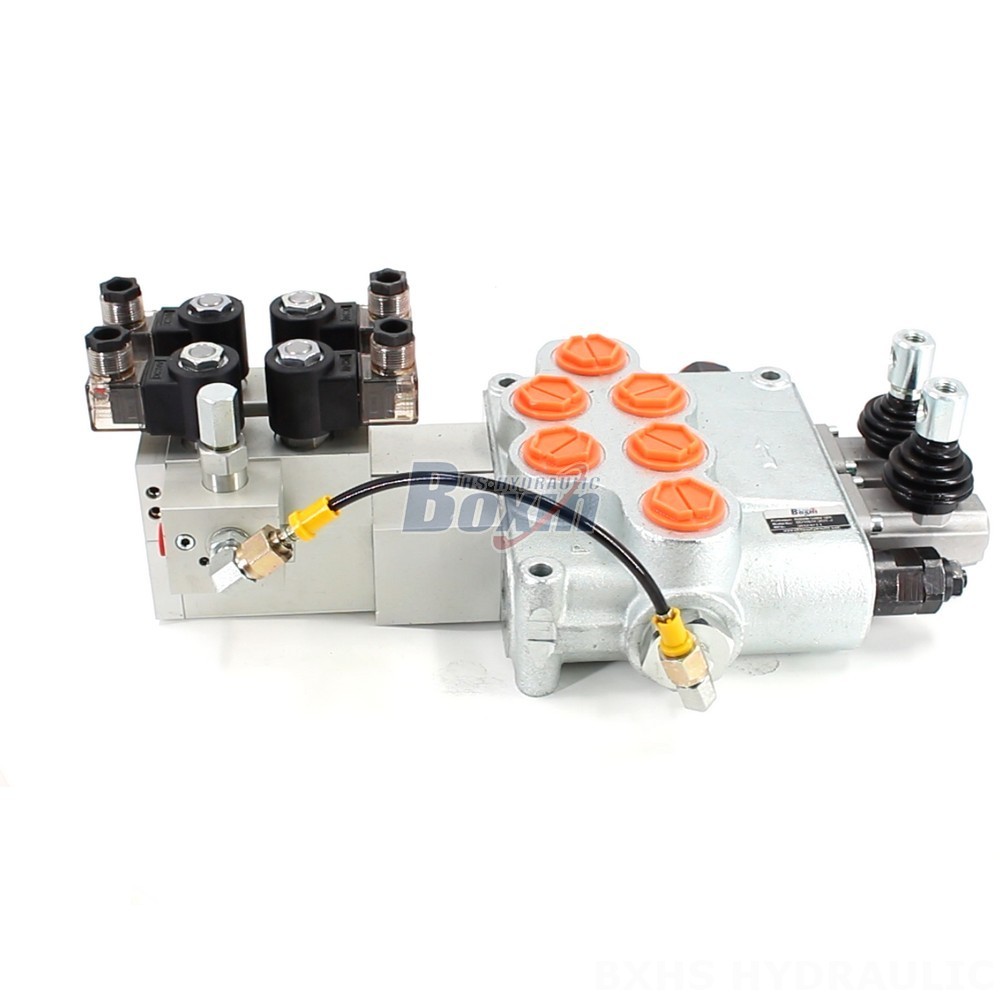

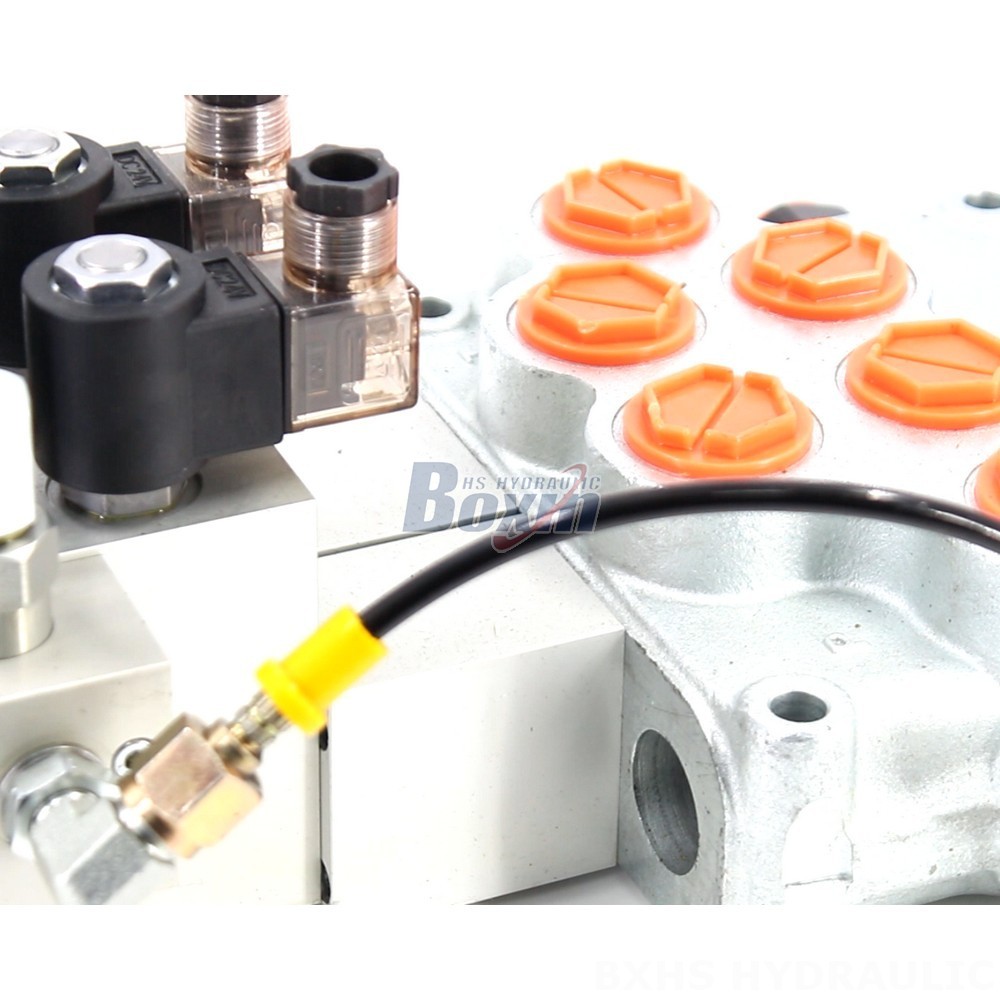

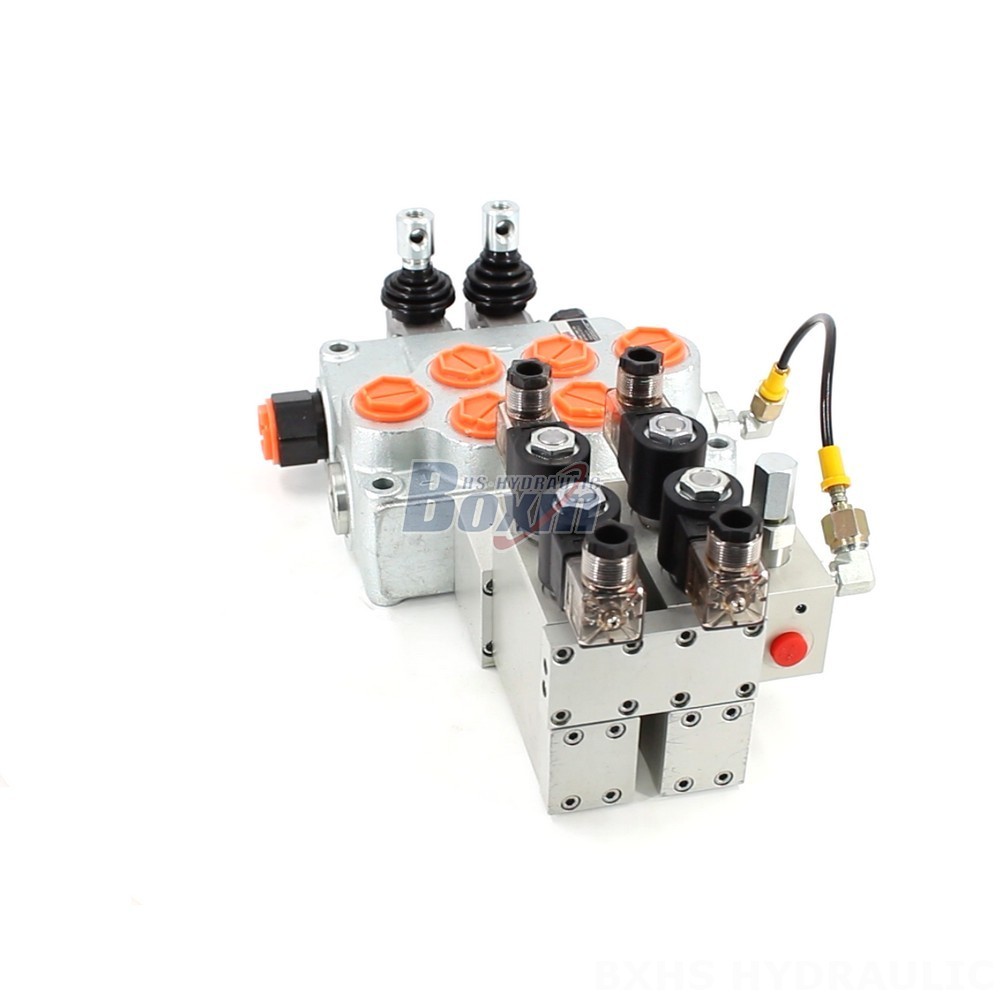

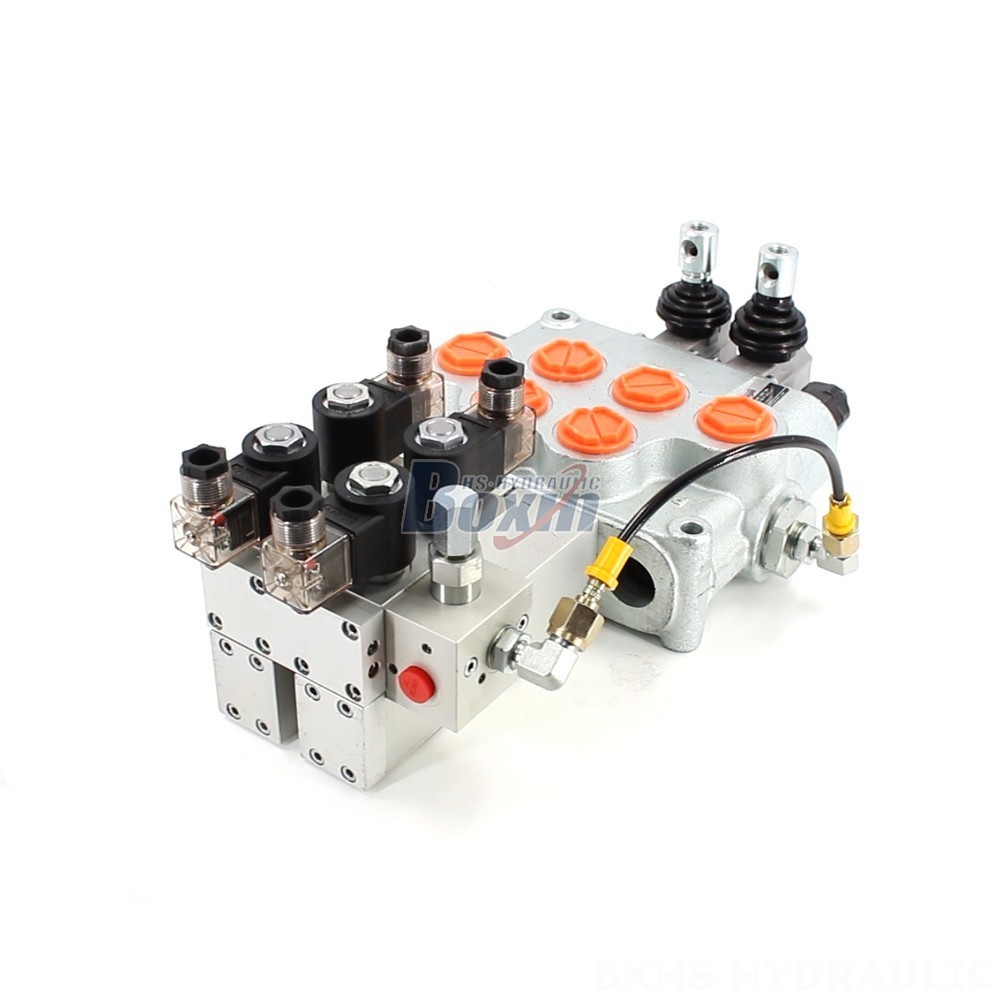

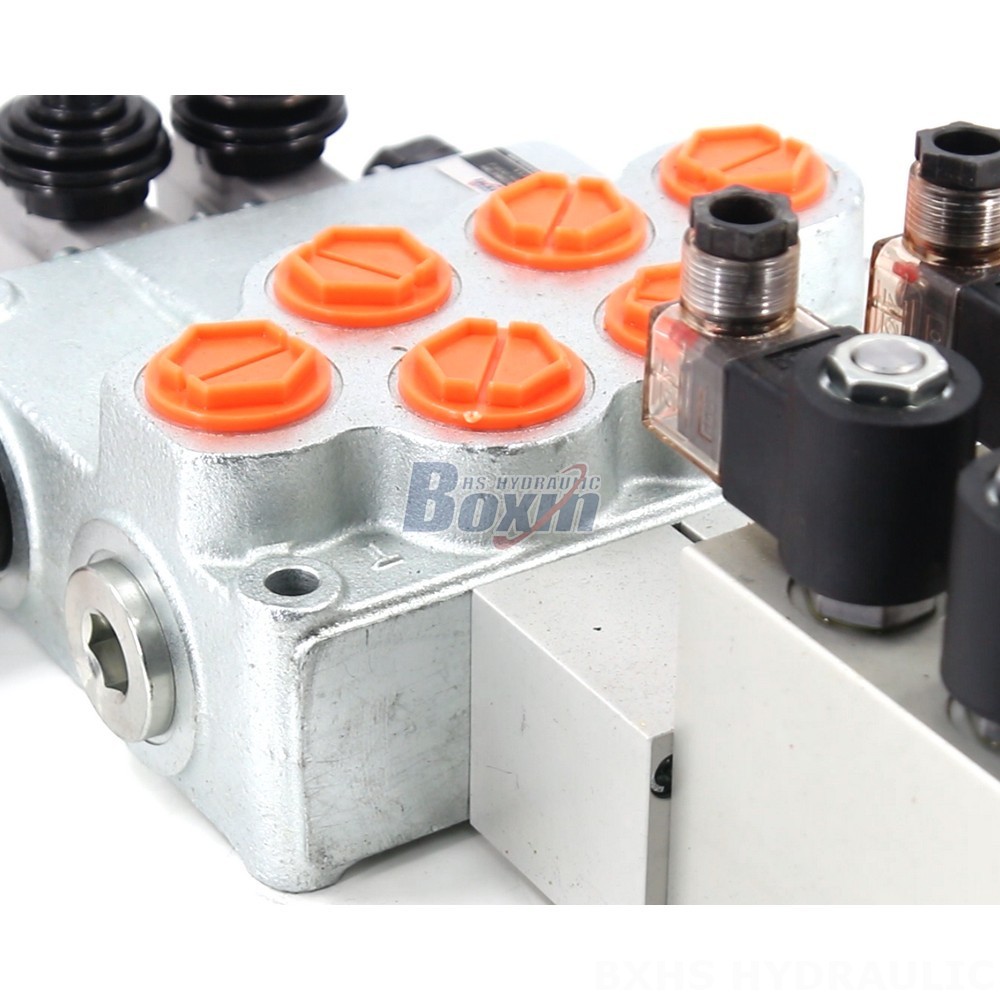

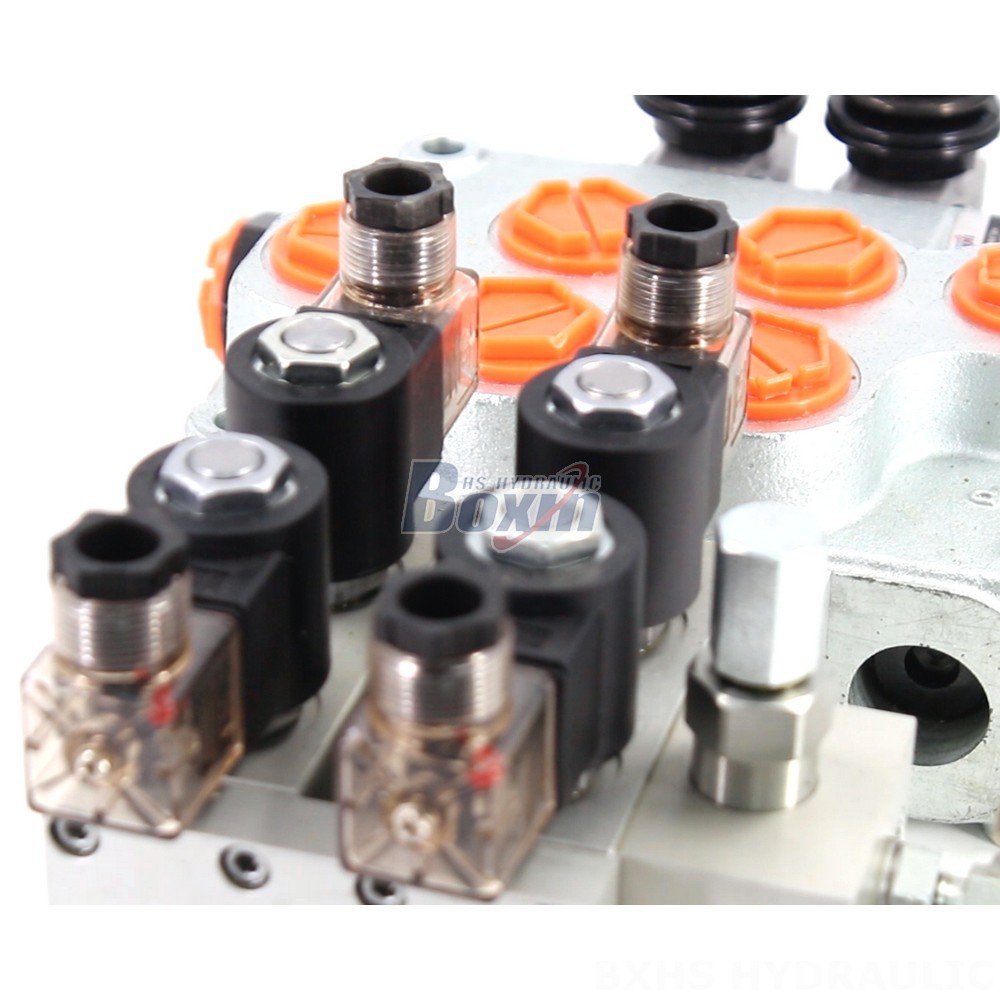

The SD18 Series electric monoblock directional valve is a high-quality, durable hydraulic valve designed for demanding applications in construction, industrial vehicles, and agriculture. With a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), this 2-section valve provides reliable performance. The monoblock structure ensures compact design and easy installation. Its versatile design is suitable for various equipment including mini excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and telehandlers.

**Key Features:**
* Electric Control
* Monoblock Structure
* 2 Sections, 2 Spools
* Rated Flow: 160 L/min
* Max Pressure: 315 bar
* Operating Viscosity: 12-400 mm²/s
* Temperature Range: -40°C to +80°C

**We are a factory direct manufacturer, offering:**
* **Manufacturing:** High-quality production of SD18 valves.
* **OEM/ODM:** We provide original equipment manufacturing (OEM) and original design manufacturing (ODM) services to meet your specific needs.
* **Private Labeling:** Offer your own brand on our high-quality hydraulic valves.
* **Customization:** We can customize valves to your exact specifications.
* **Wholesale:** Competitive pricing on bulk orders.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access high-quality, factory-direct, wholesale hydraulic valves. Contact us today to discuss your requirements and explore potential collaboration opportunities. We offer competitive pricing and reliable delivery from our factory. Contact us for a quote on your next **electric monoblock directional valve** project. We are a leading **hydraulic valve manufacturer** offering **factory wholesale** prices.
