The DM45 Cable Hydraulic Directional Control Valve is a high-performance valve designed for demanding hydraulic applications. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it provides precise and reliable control of hydraulic systems. Its monoblock construction ensures durability and compactness, while the cable control method offers ease of operation. Suitable for various applications including material handling, construction, agriculture, and industrial vehicles, this valve delivers exceptional performance and reliability.
| Seria DM45 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Kabel, Dźwignia sterownicza |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 45 l/min (11,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2 |
| Port wylotowy | G1/2 |
| Rozmiar portu | G3/8, G1/2 |

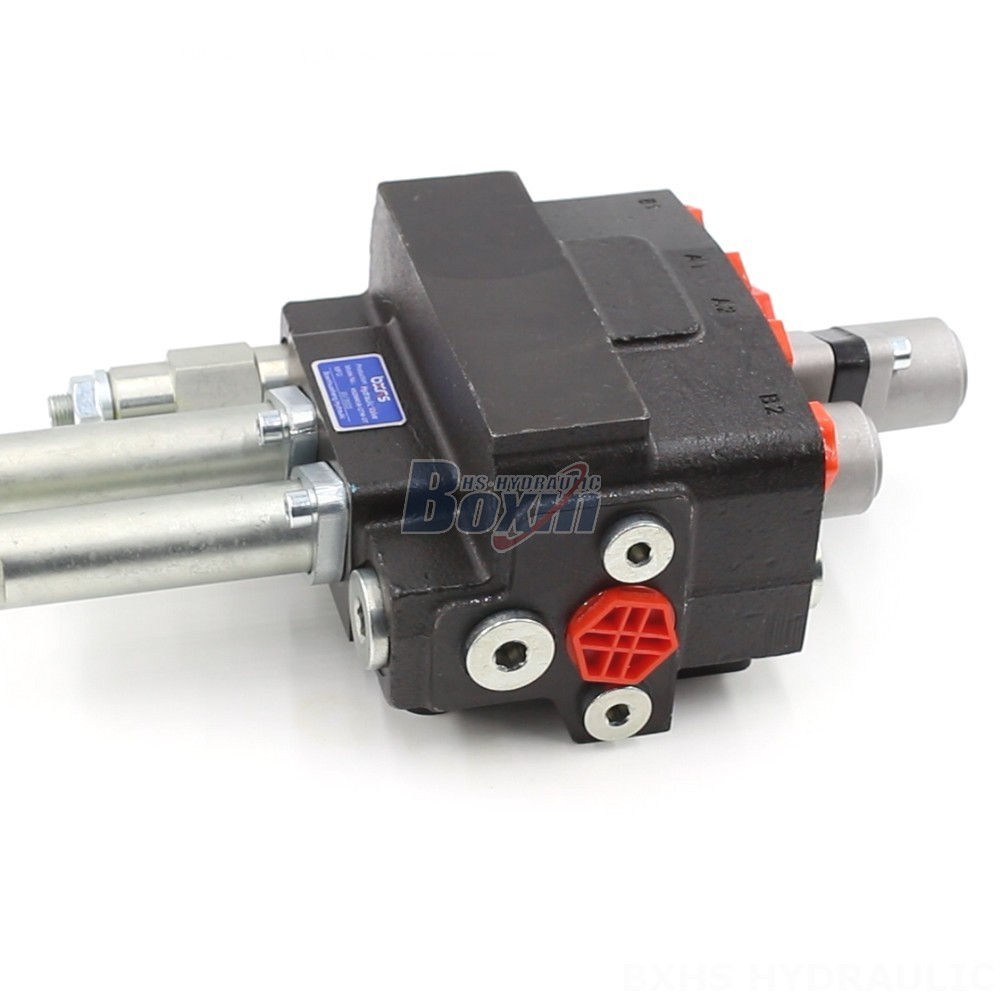

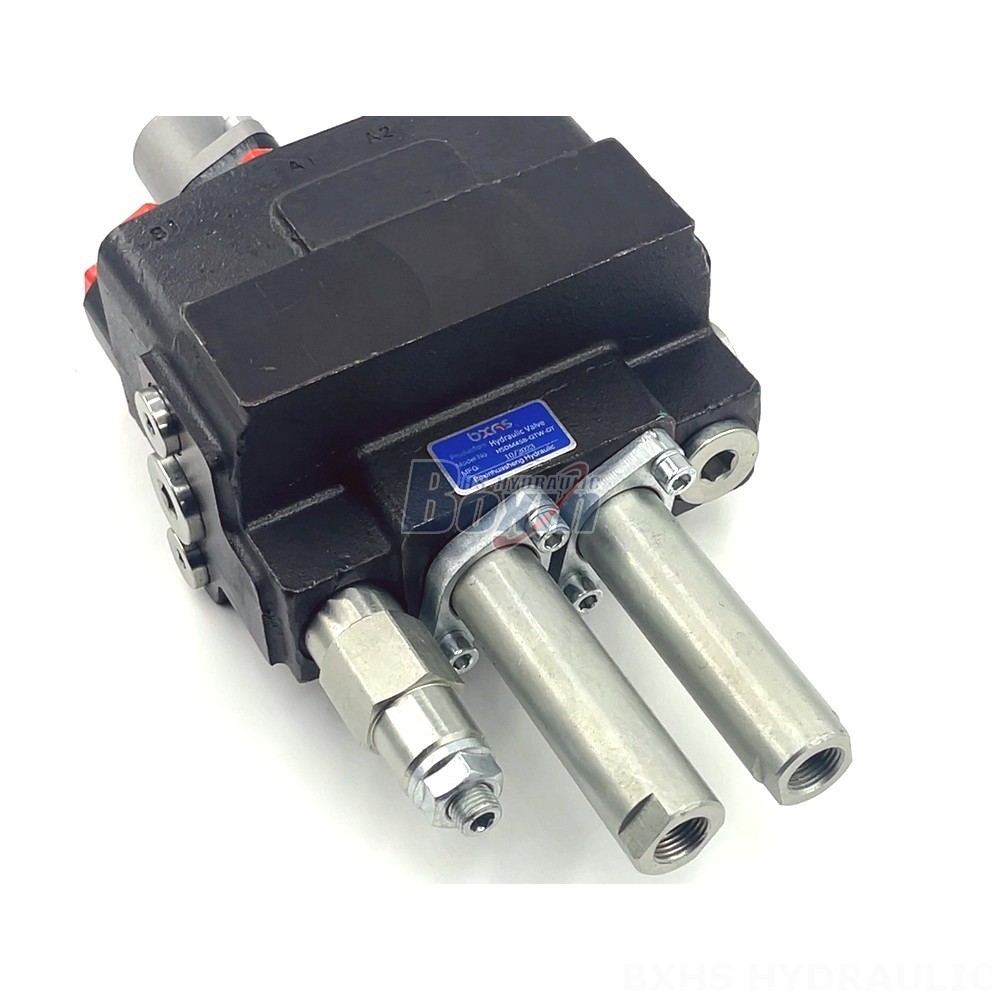

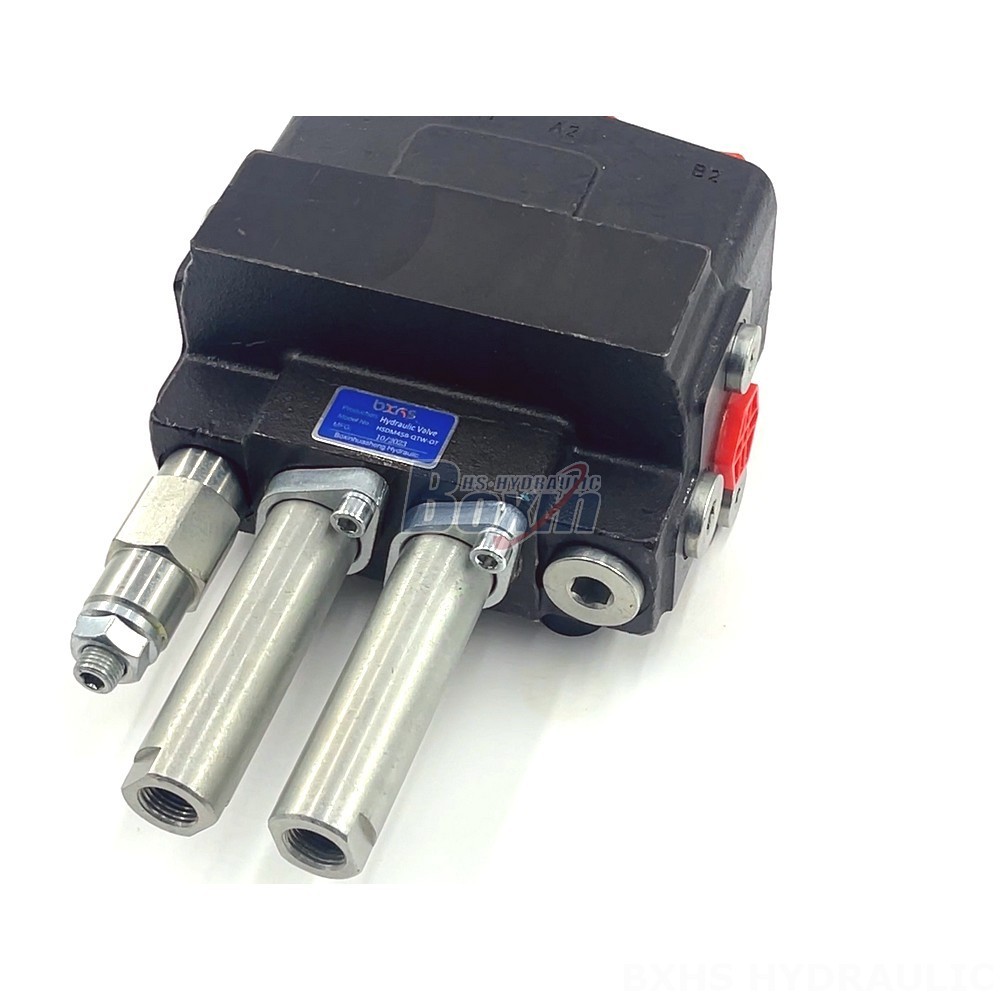

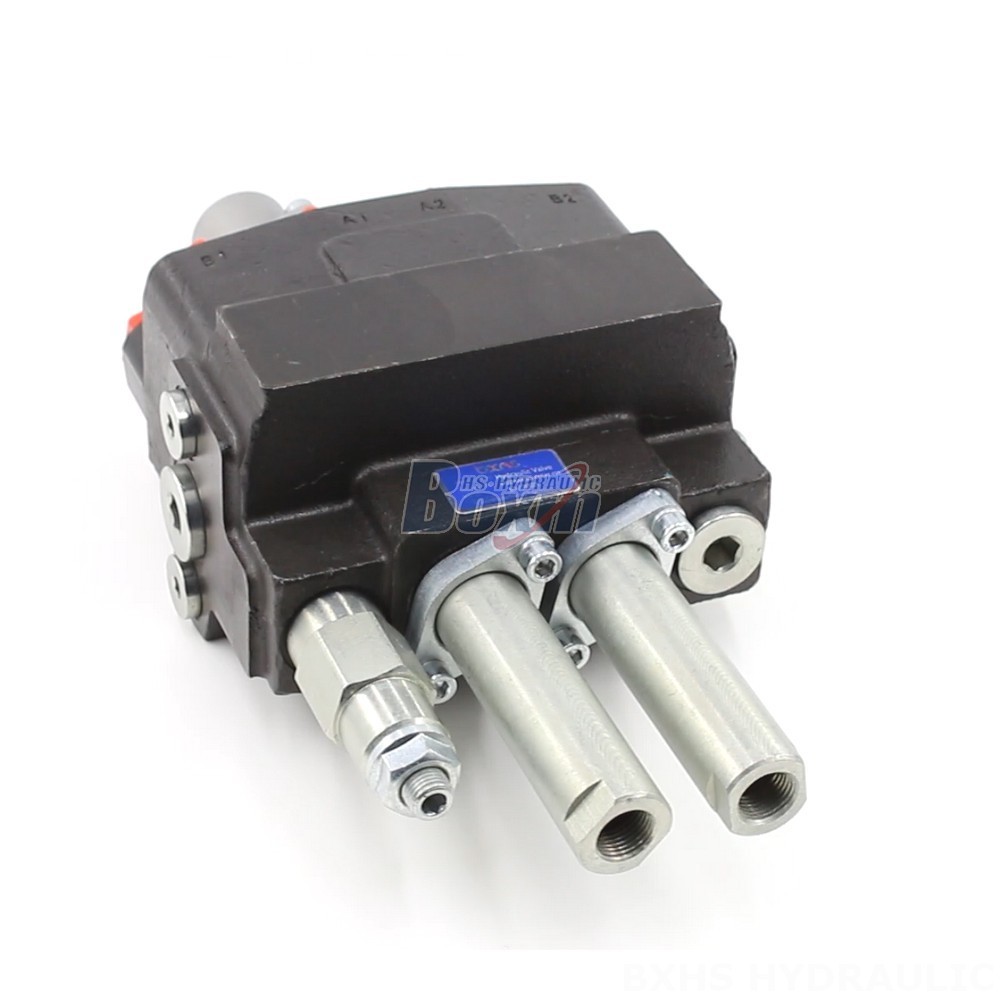

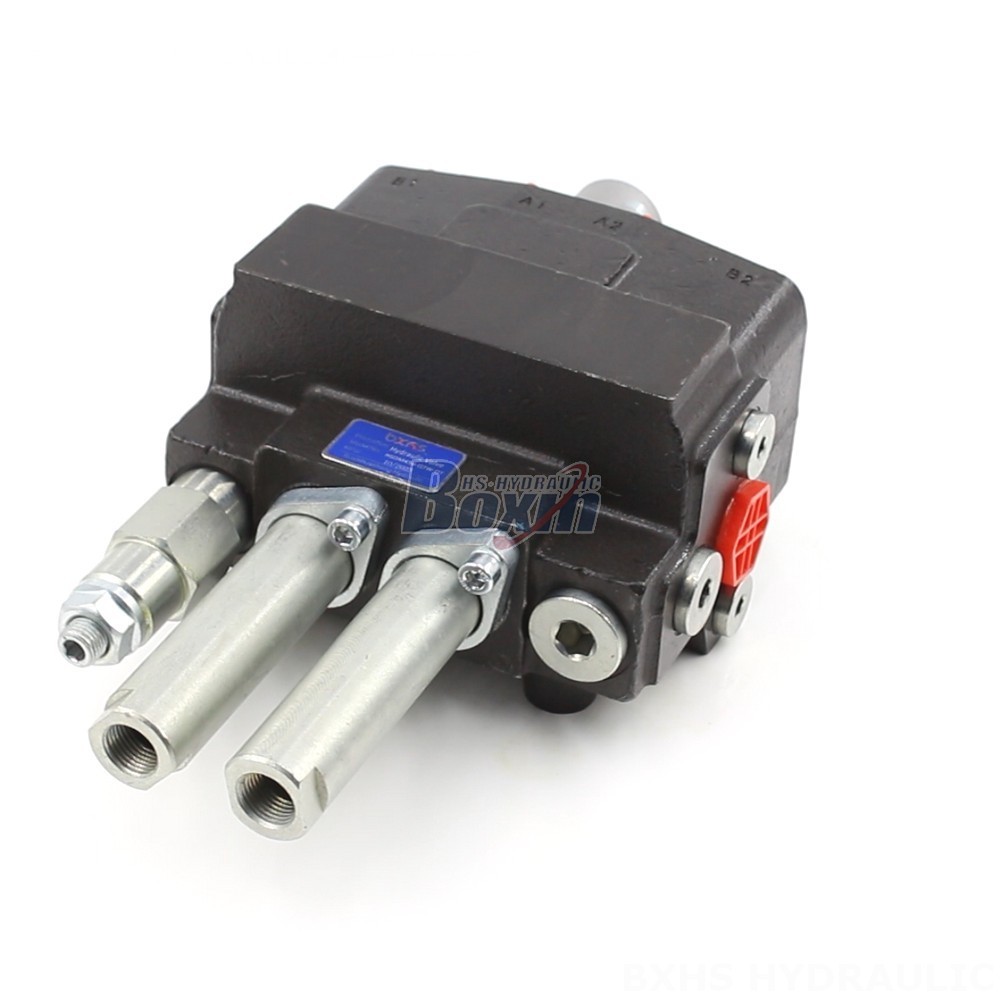

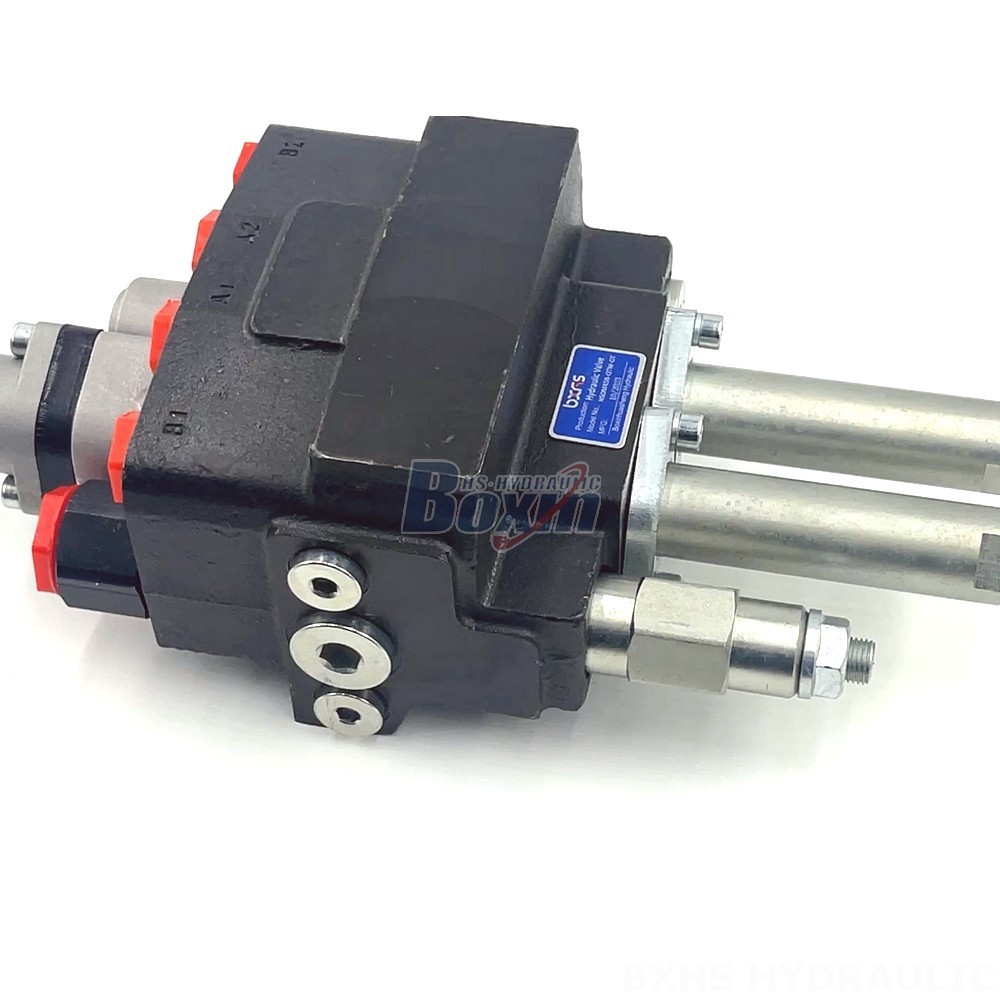

**DM45 Cable Hydraulic Directional Control Valve**
The DM45 Cable Hydraulic Directional Control Valve is a 2-section, 2-spool monoblock valve designed for precise and efficient control of hydraulic systems. Its key features include:
* **Control Method:** Cable control for ease of operation
* **Rated Flow:** 45 L/min (11.8 US gpm) for high flow capacity
* **Max Pressure:** 315 bar (4600 psi) for demanding applications
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F) for wide-temperature operation
* **Spool:** 2 spool design for versatile control options
* **Series:** DM45 Series
* **Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
* **Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Midi-excavator, Mini-excavator, Skid Steer Loader, Compact Wheel Loader, Tractor and Front-end Loader, Harvester
The DM45 Cable Hydraulic Directional Control Valve is an ideal choice for applications requiring precise control, high flow capacity, and durability. Its compact design, ease of operation, and wide range of applications make it a versatile and reliable solution for hydraulic systems.
