DLS180 Micro Switch Hydraulic Directional Valve: Factory Direct Supply

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:160 l/min (42,2 USGPM)

Maksymalne ciśnienie:200 bar (2900 psi)

Port wlotowy:G3/4

Port wylotowy:G1

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SDS180 Zawór kierunkowy sekcyjny

Rozmiar opakowania:40*40*17

Waga brutto:32.00 kg

Dostępność: W magazynie

1165 Osoby oglądają ten produkt

DLS180 Micro Switch Hydraulic Directional Valve: Factory Direct Supply

DLS180 Micro Switch Hydraulic Directional Valve: Factory Direct Supply

DLS180 Micro Switch Hydraulic Directional Valve: Factory Direct Supply drawing image

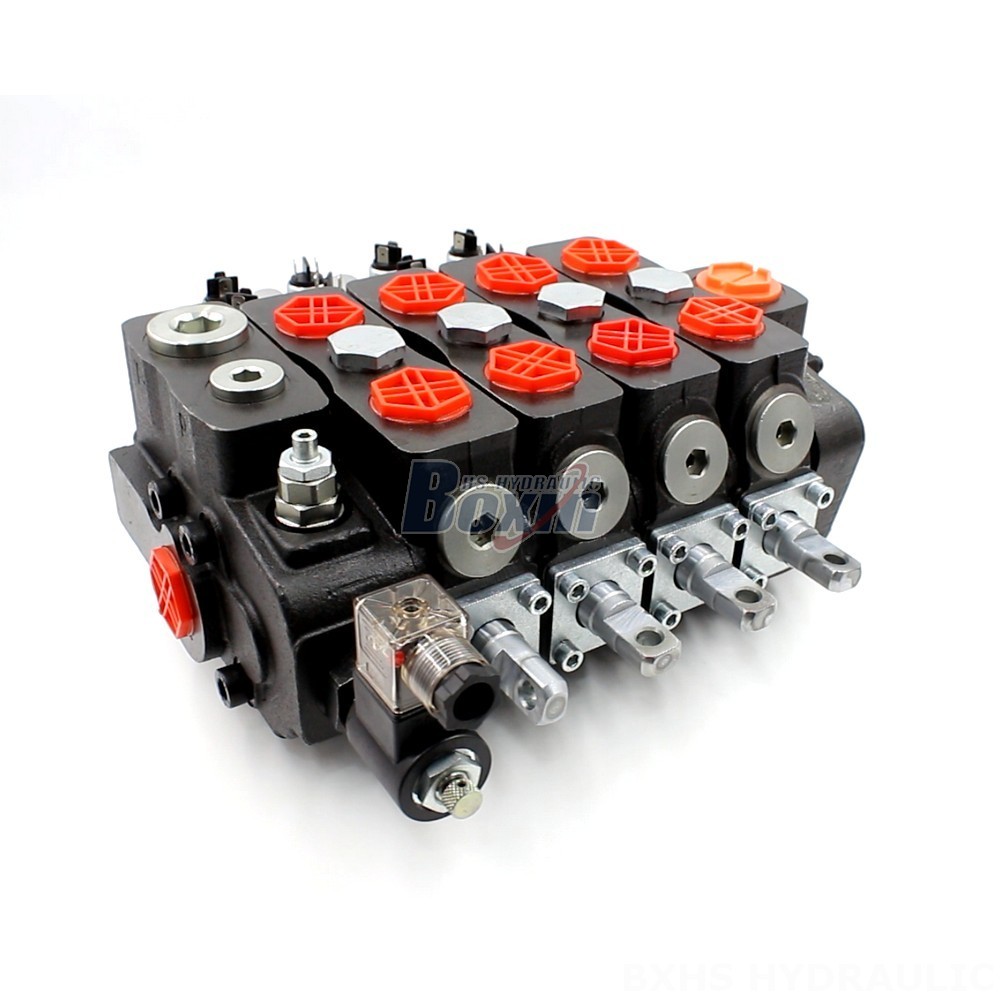

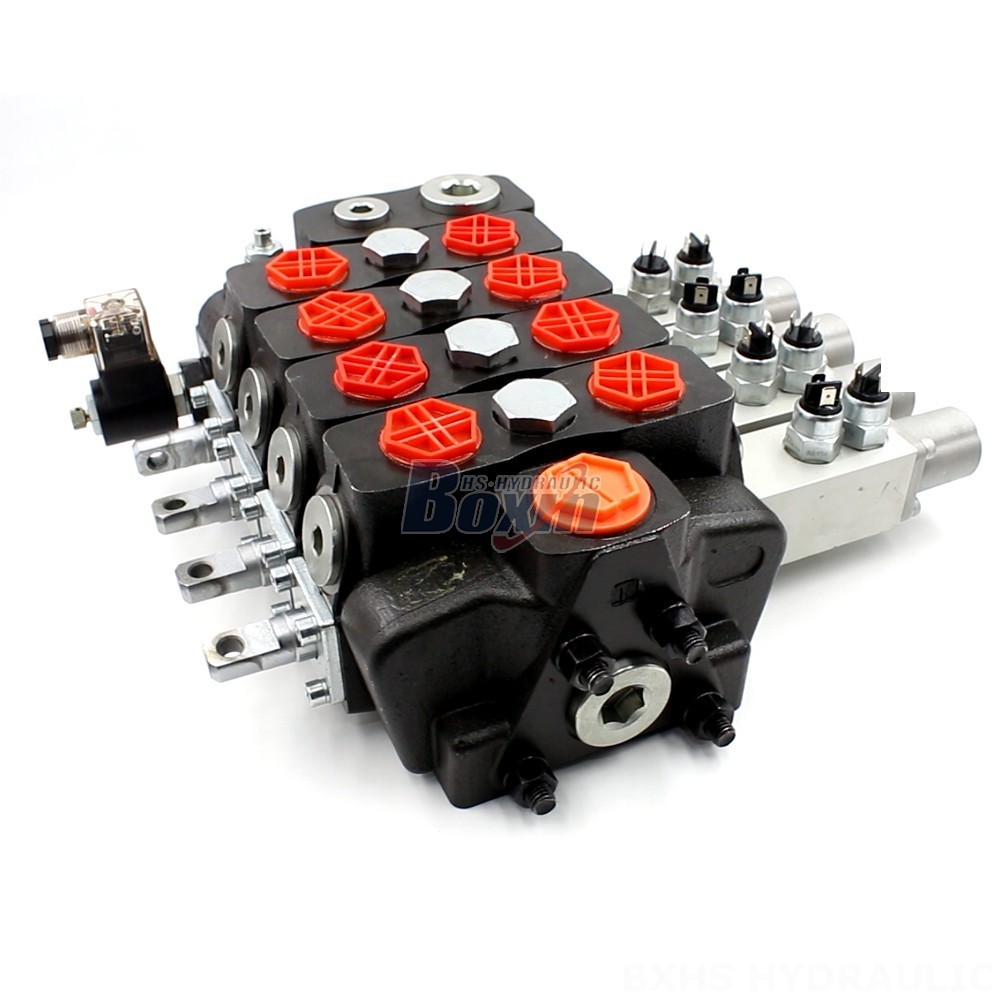

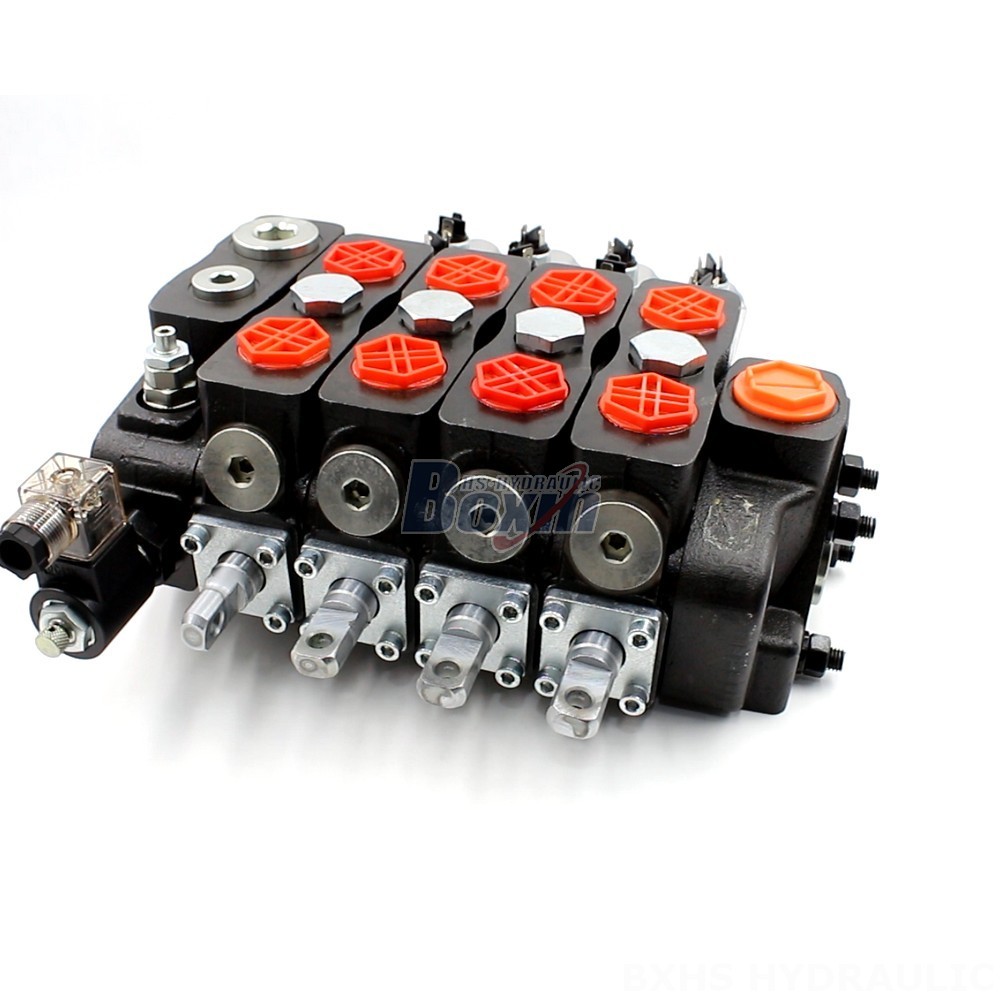

The SDS180 Series Hydraulic Valve Bank is a high-flow, heavy-duty directional valve designed for a wide range of construction, earthmoving, agricultural and industrial applications. Featuring a robust design with a manual control system, this 4-section valve bank is ideal for powering hydraulic systems in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.

Seria SDS180 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Hydrauliczna
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 160 l/min (42,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi), 350 bar (5100 psi)
Port wlotowy G3/4, G1, SAE 12
Port wylotowy G1, SAE 16
Rozmiar portu G3/4, G1, SAE 12

The SDS180 Series Hydraulic Valve Bank is a reliable and powerful solution for hydraulic systems in various heavy-duty equipment. Its manual control method offers intuitive operation, while the 4-section design provides flexibility for multiple hydraulic functions. With a high flow rate of 160 L/min and a maximum pressure rating of 350 bar, this valve bank delivers exceptional performance. The SDS180 series is designed for use in a wide range of applications, including construction equipment, earthmoving machinery, agricultural equipment, and industrial vehicles. The valve is compatible with a variety of models, such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. This valve bank is constructed with durable materials and is designed to withstand demanding operating conditions. The SDS180 series provides a reliable and efficient solution for your hydraulic system needs.
