Produkcja i dostawa
Czas realizacji produkcji 15-30 dni
Innowacja napędza rozwój. Technologia tworzy przyszłość.
994 Osoby oglądają ten produkt
The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-performance valve designed for mobile hydraulic applications. It is a 3-section, 3-spool, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Seria P80 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port wylotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Rozmiar portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

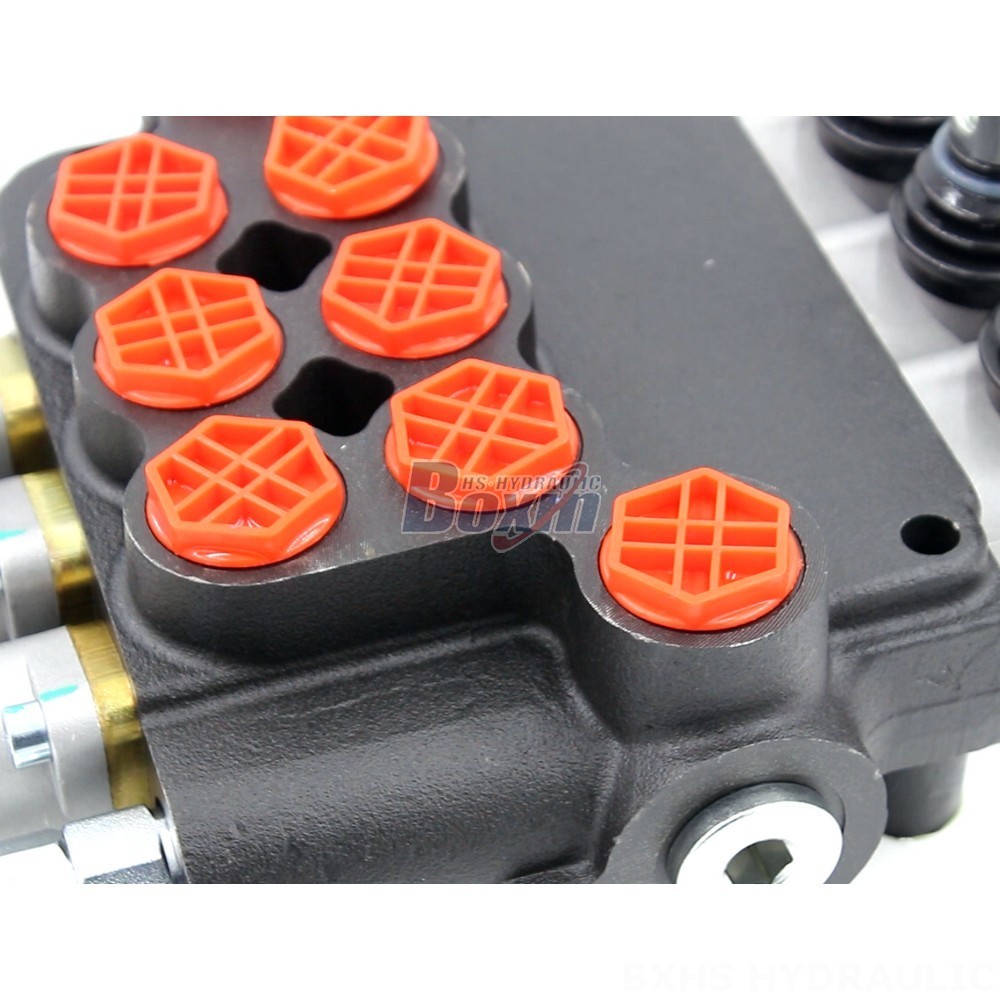

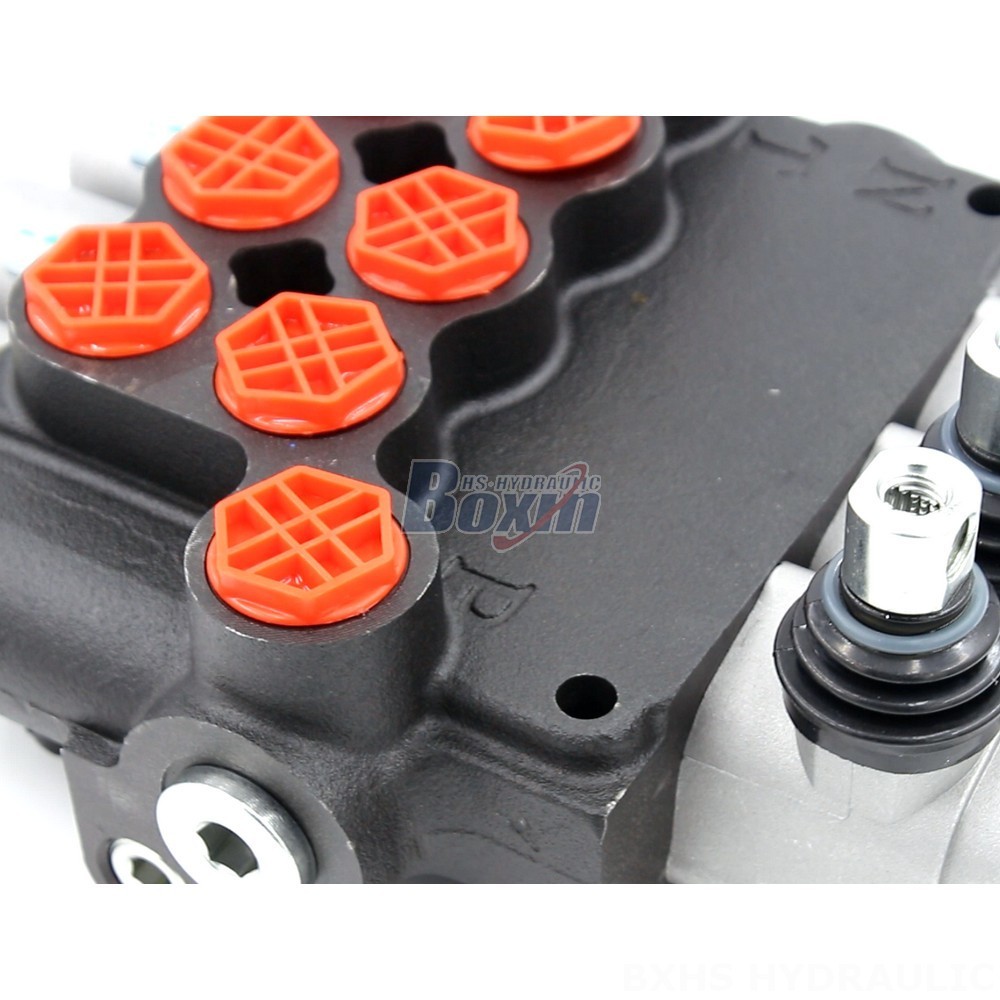

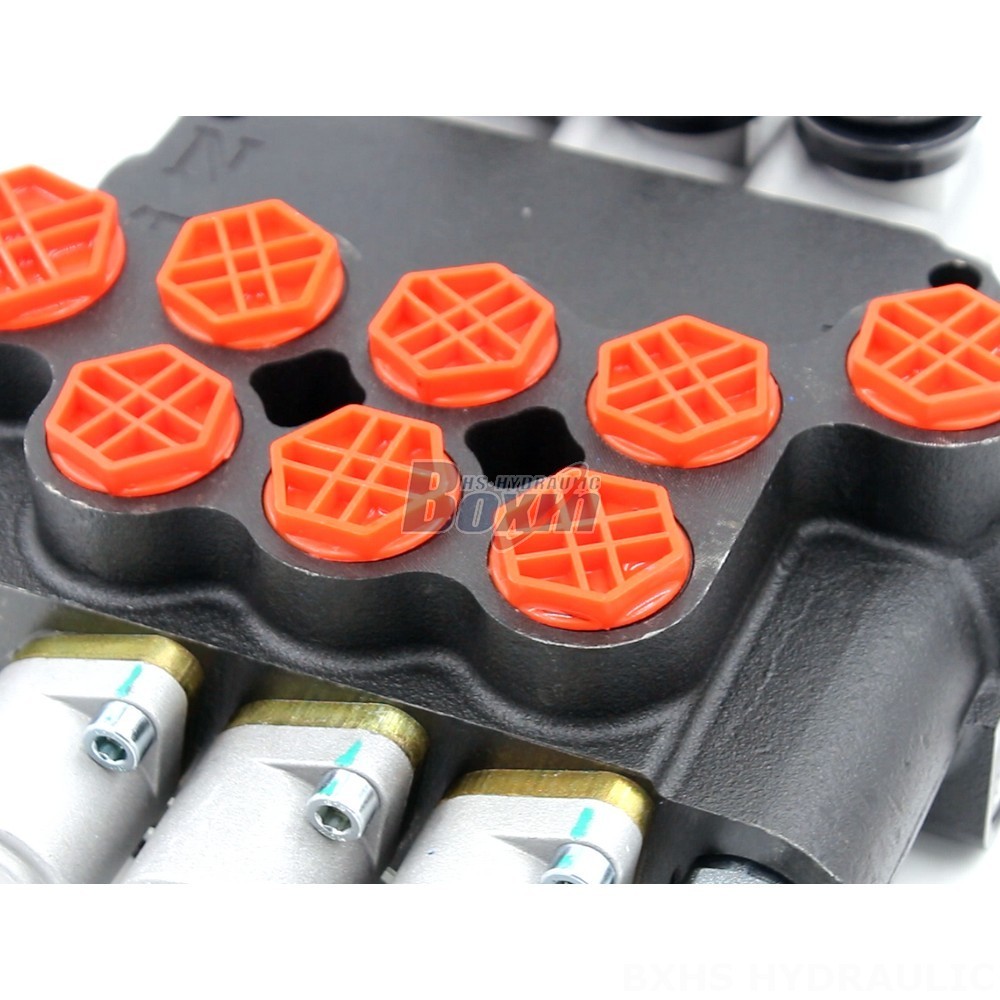

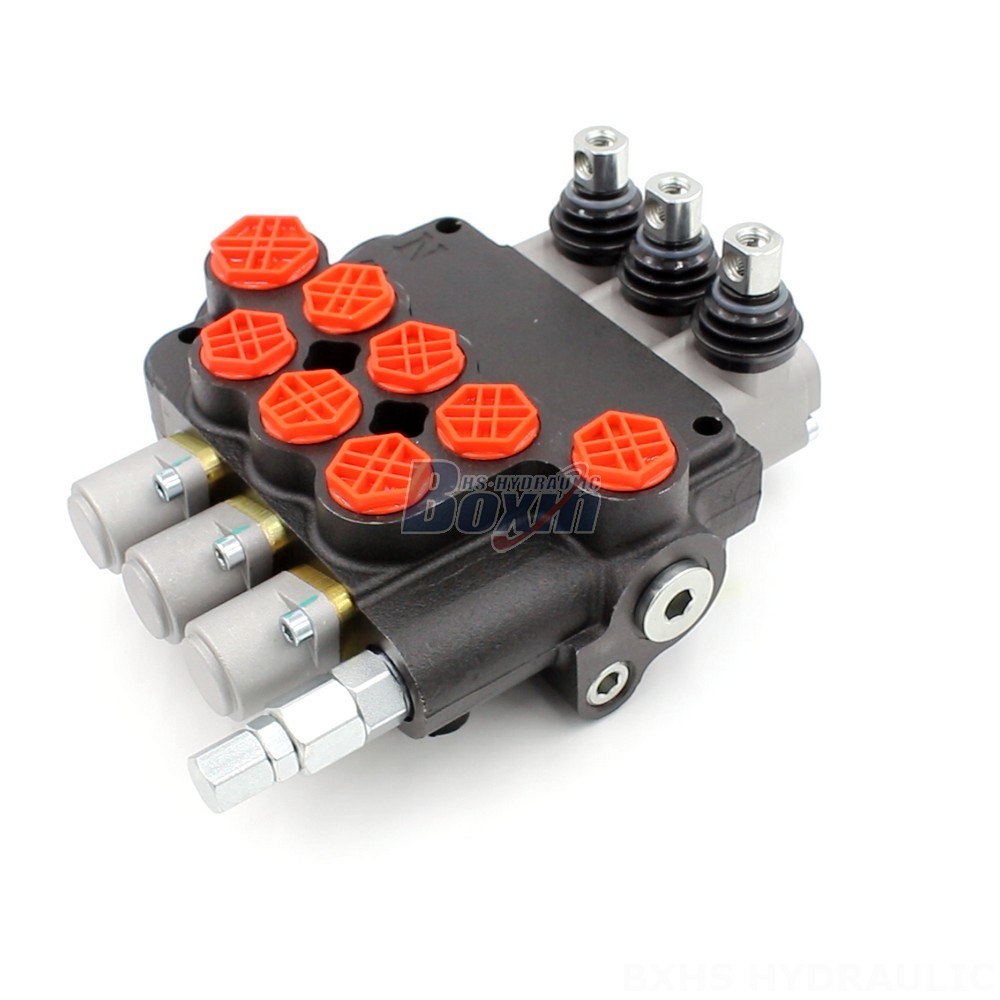

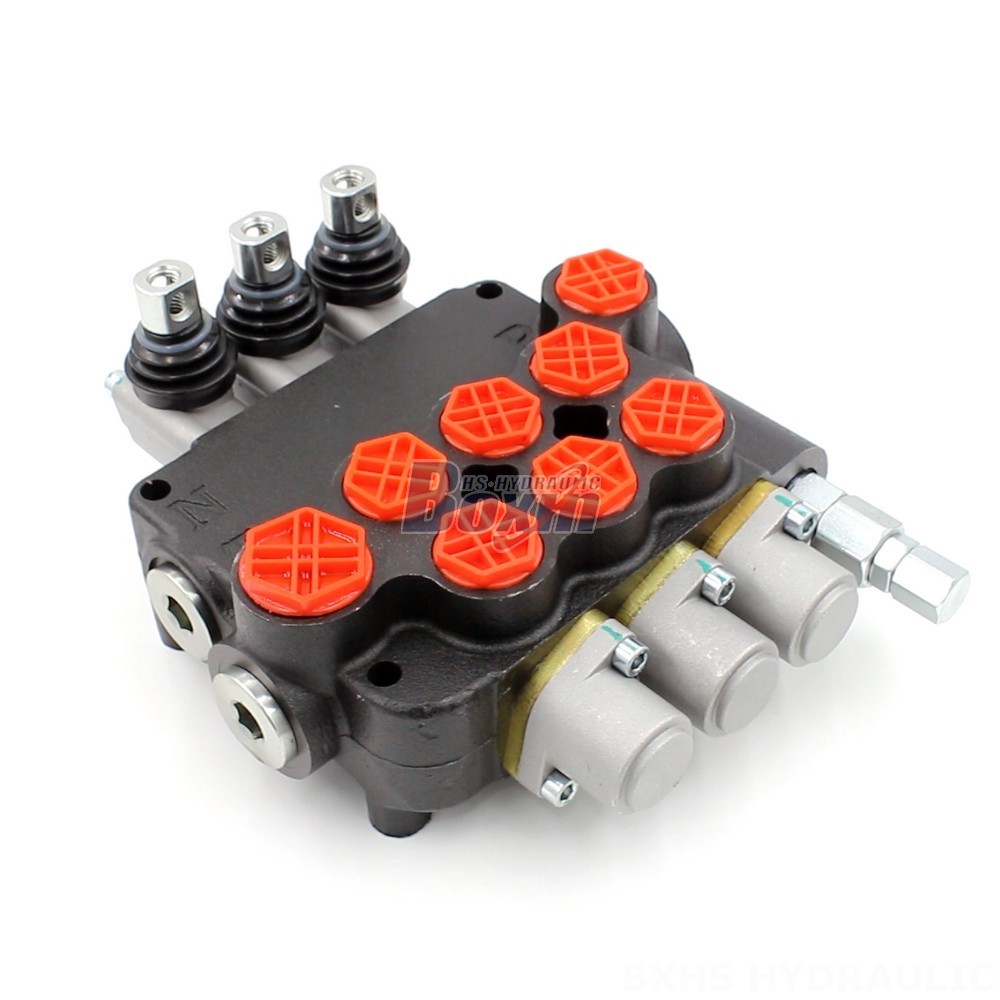

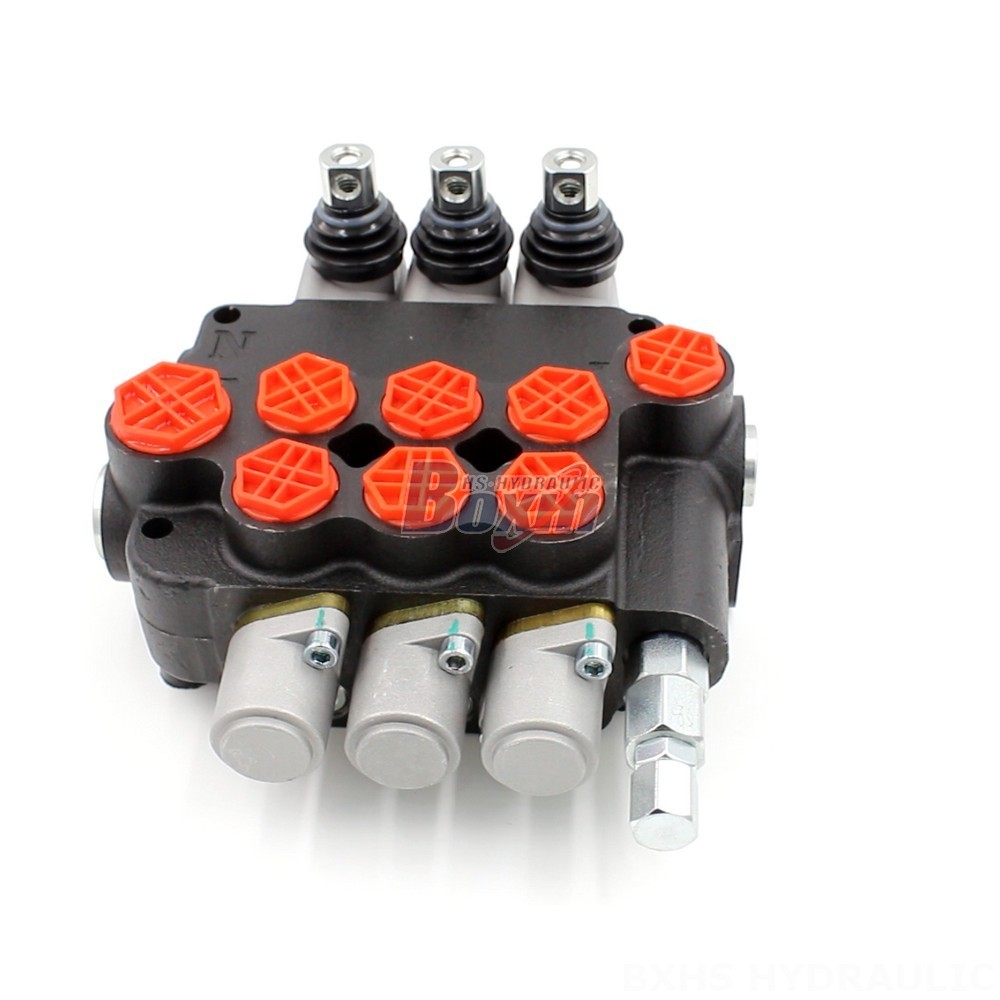

**P80-G12-G34-OT Hydraulic Directional Control Valve**
The P80-G12-G34-OT Hydraulic Directional Control Valve is a high-quality valve manufactured by our company. We are a leading manufacturer of hydraulic products and have been in the industry for many years. Our valves are known for their quality, durability, and performance.
The P80-G12-G34-OT Hydraulic Directional Control Valve is a 3-section, 3-spool, monoblock valve. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve has an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
The P80-G12-G34-OT Hydraulic Directional Control Valve is suitable for use in a variety of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
We offer a variety of customization options for the P80-G12-G34-OT Hydraulic Directional Control Valve, including:
* Porting
* Mounting
* Spools
* Seals
We also offer a variety of testing and inspection services to ensure that our valves meet your specifications.
If you are looking for a high-quality, durable, and reliable hydraulic directional control valve, the P80-G12-G34-OT is the perfect choice. Contact us today for more information.
