Direct from Manufacturer: P80 4-Spool Monoblock Hydraulic Valves

Metoda sterowania:Elektrohydrauliczna

Szpula:4-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:50*40*20

Waga brutto:23.00 kg

Dostępność: W magazynie

578 Osoby oglądają ten produkt

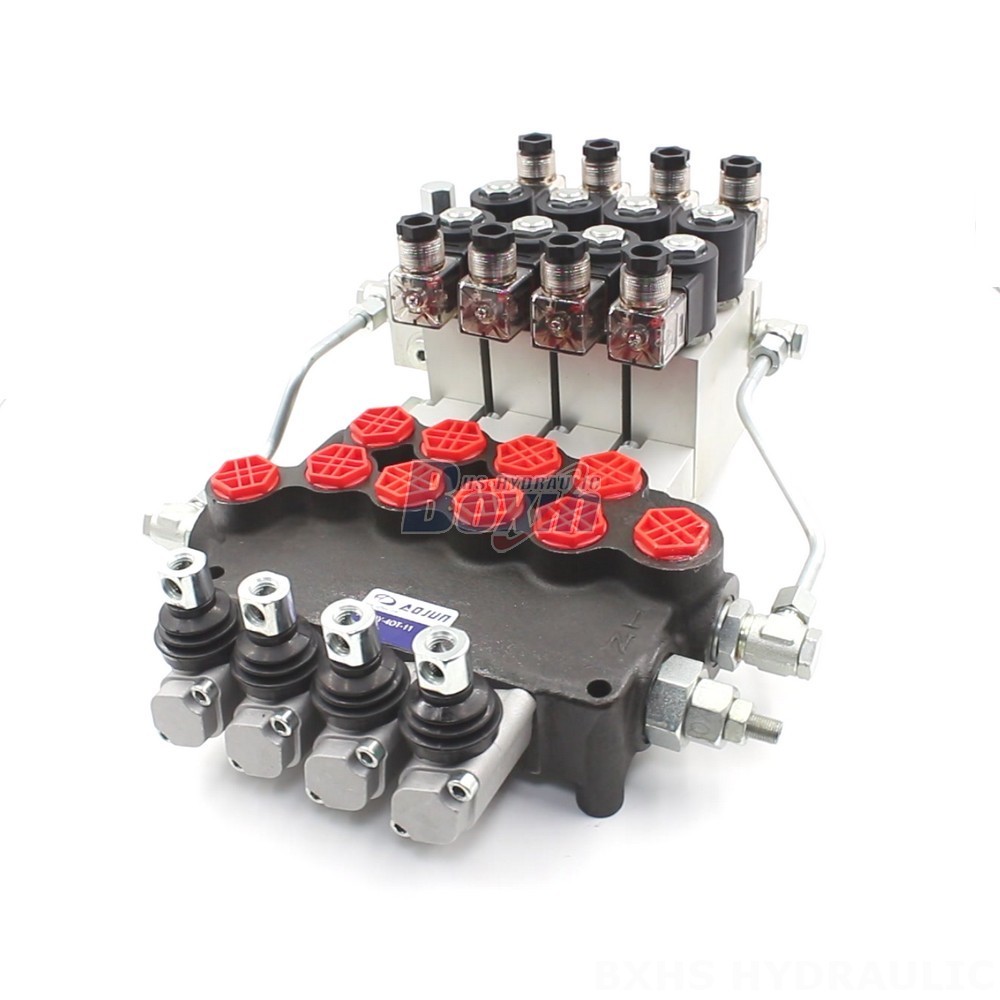

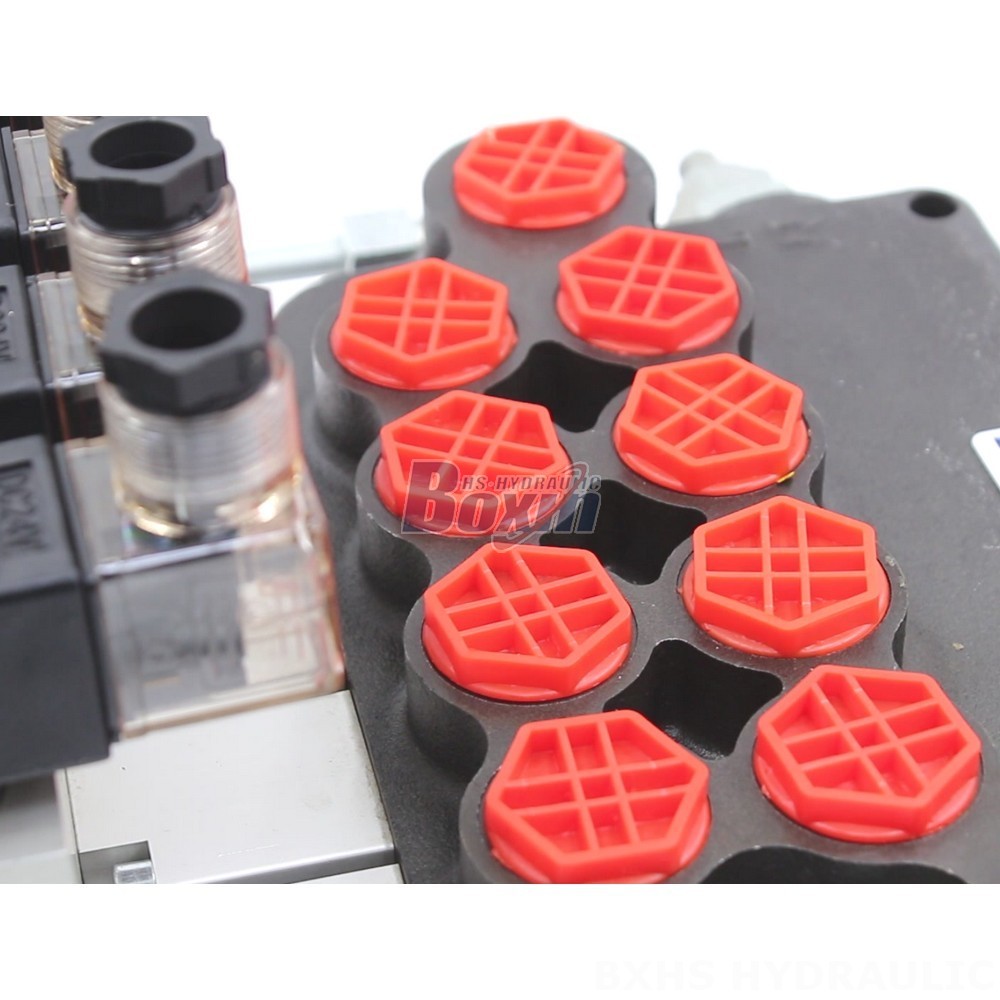

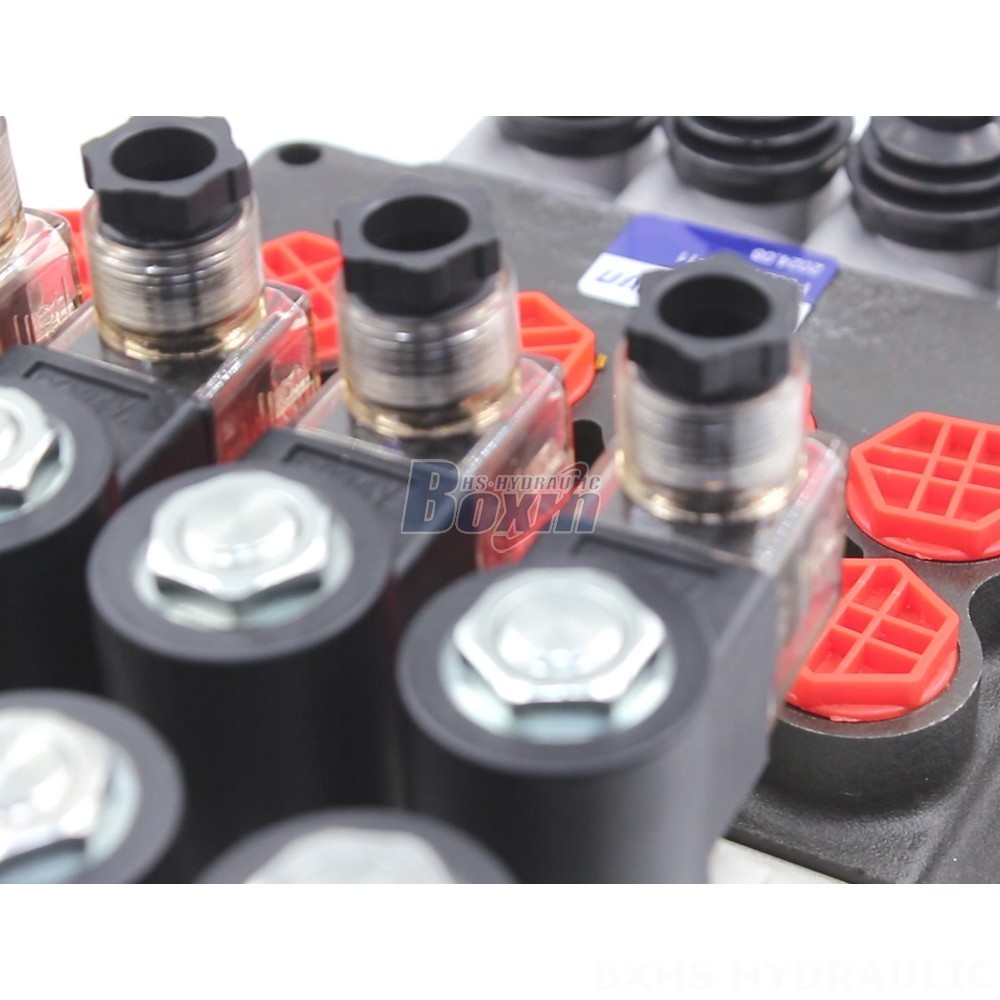

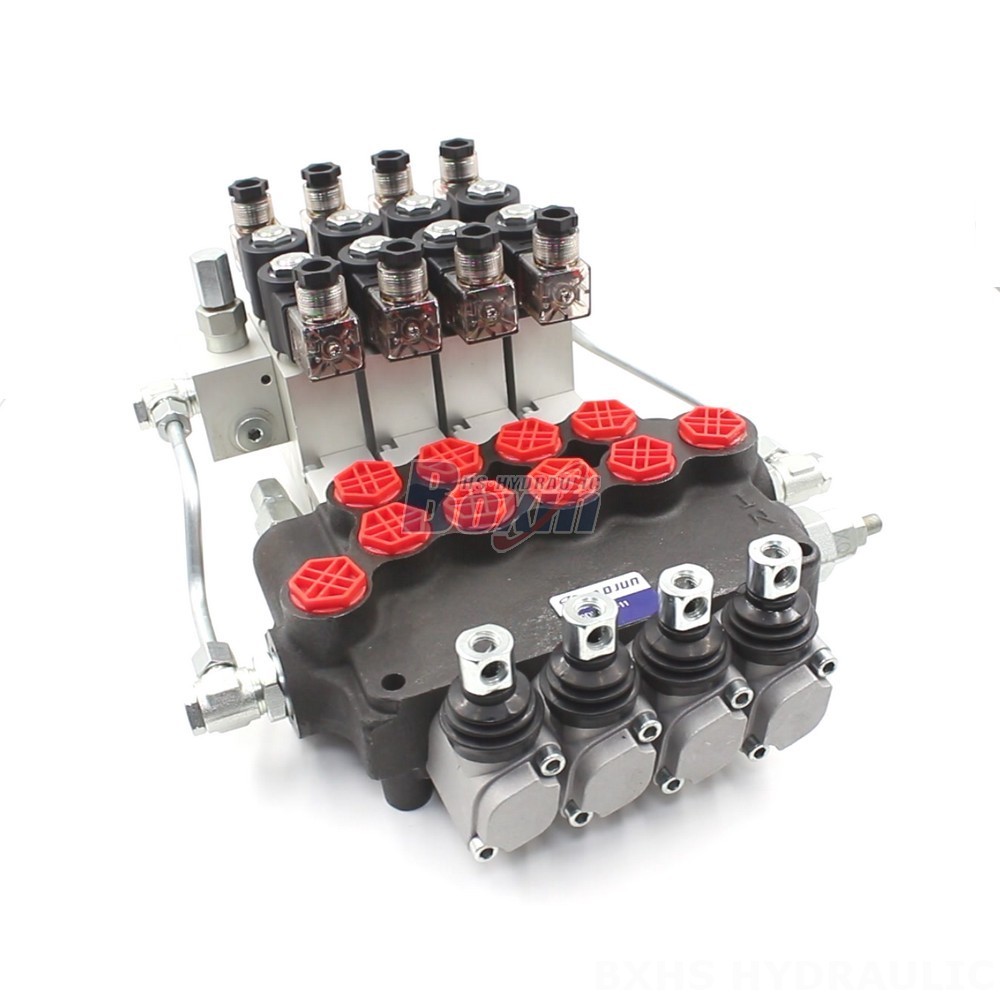

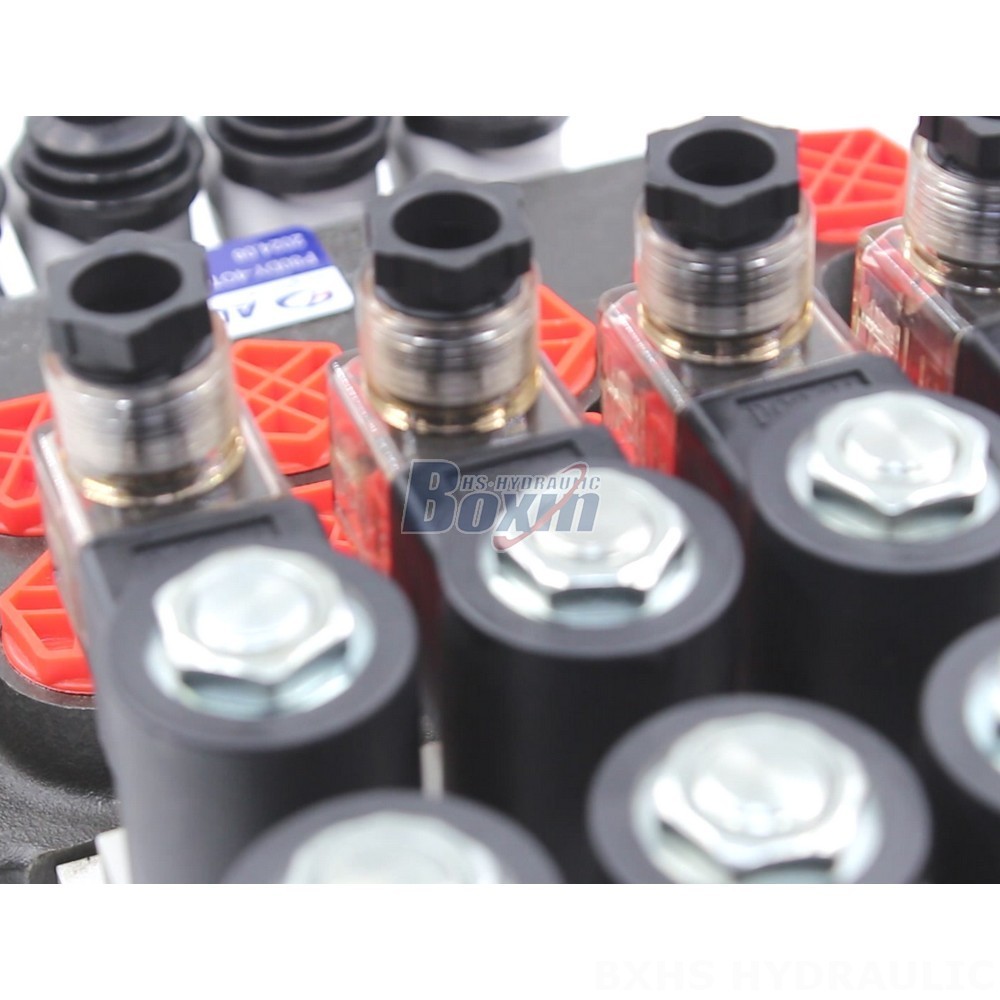

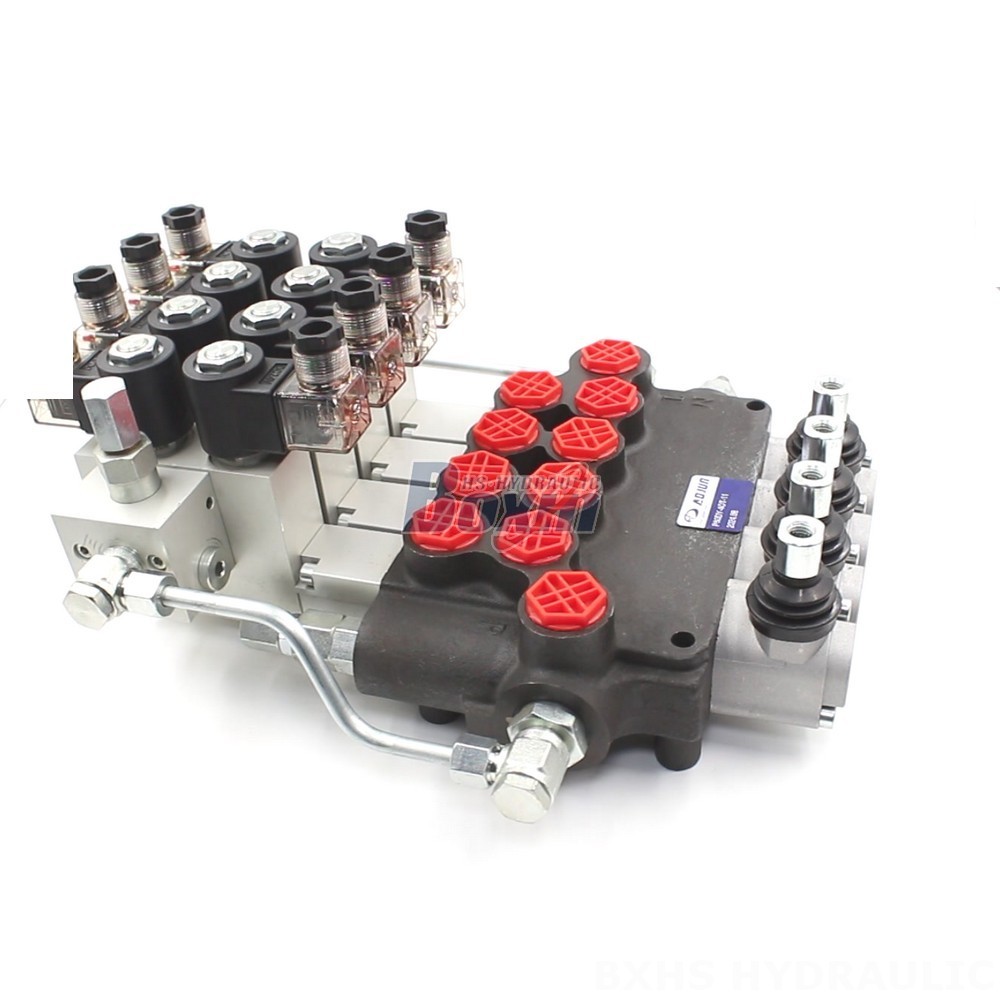

Direct from Manufacturer: P80 4-Spool Monoblock Hydraulic Valves

Direct from Manufacturer: P80 4-Spool Monoblock Hydraulic Valves

Direct from Manufacturer: P80 4-Spool Monoblock Hydraulic Valves drawing image

Direct from manufacturer, high-quality P80 series 4-spool monoblock electro-hydraulic valves with 80 L/min flow rate and 315 bar pressure. Ideal for construction, agriculture, and industrial applications. Available for OEM, private label, and custom orders. Global wholesale inquiries welcome.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

We are a leading hydraulic product manufacturer offering a comprehensive range of solutions to global markets. Our flagship product, the P80 4-Spool Monoblock Hydraulic Valve, is a high-performance electro-hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This robust valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi). Its monoblock structure ensures reliability and durability, while its electro-hydraulic control method offers precise and efficient operation. The P80 valve is suitable for a wide range of equipment, including forklifts, skid steer loaders, compact wheel loaders, tractors, telehandlers, mini and midi excavators, harvesters, balers, and backhoes.

We offer complete manufacturing, OEM, private label, custom design, and wholesale services. We are actively seeking distributors, wholesalers, agents, and trading partners to expand our global reach. As a direct manufacturer, we provide superior quality at competitive prices, ensuring high profit margins for our partners. Benefit from our factory direct pricing, superior manufacturing capabilities, and our commitment to providing exceptional customer service. Contact us today to explore exciting partnership opportunities and discuss your specific requirements. Leverage our expertise in **hydraulic valve manufacturing**, **factory supply**, and **factory wholesale** to take your business to the next level. We offer flexible solutions for your specific needs, including customized designs and volume discounts.
