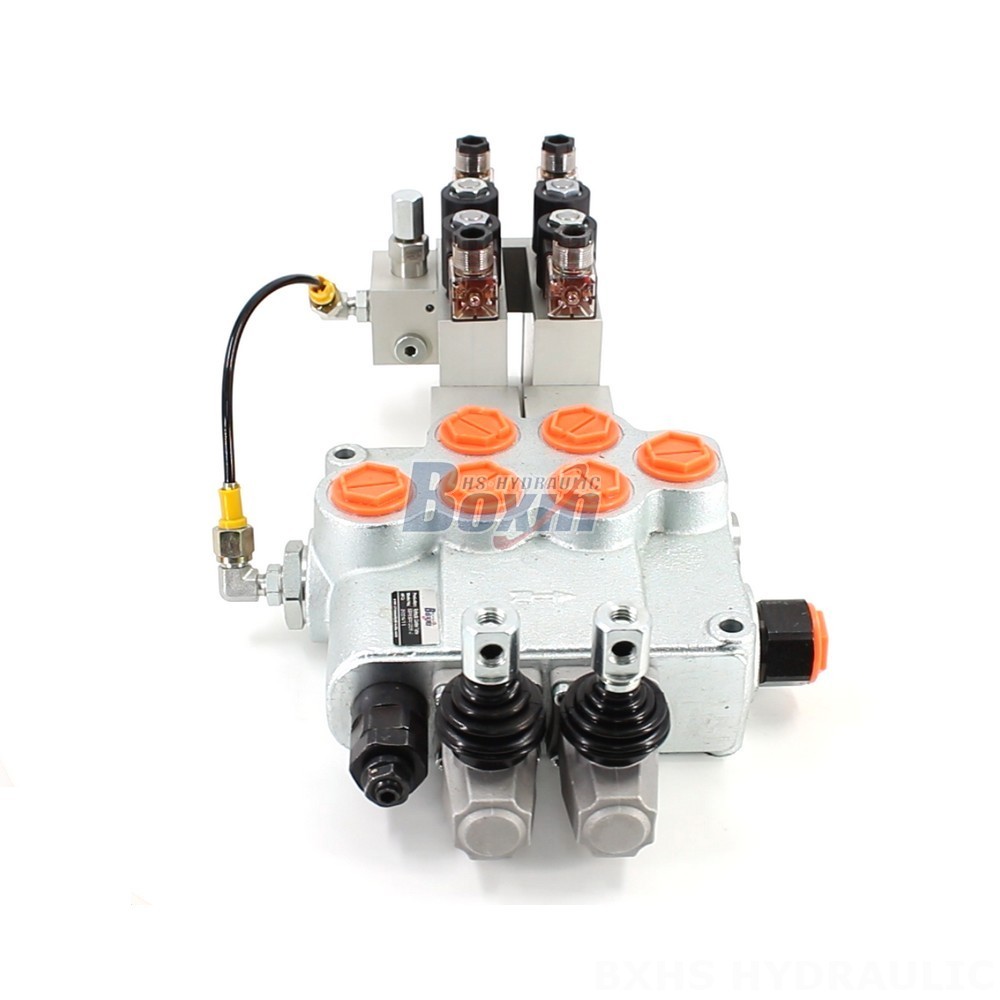

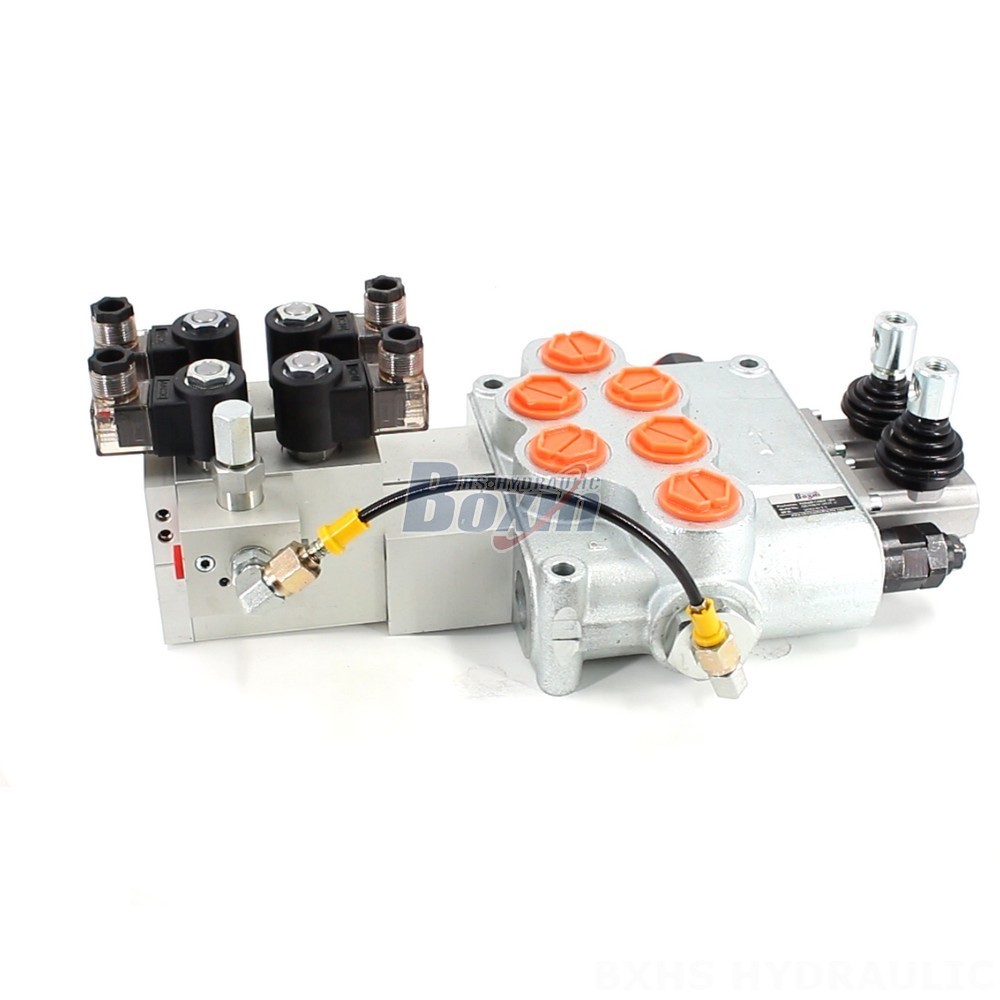

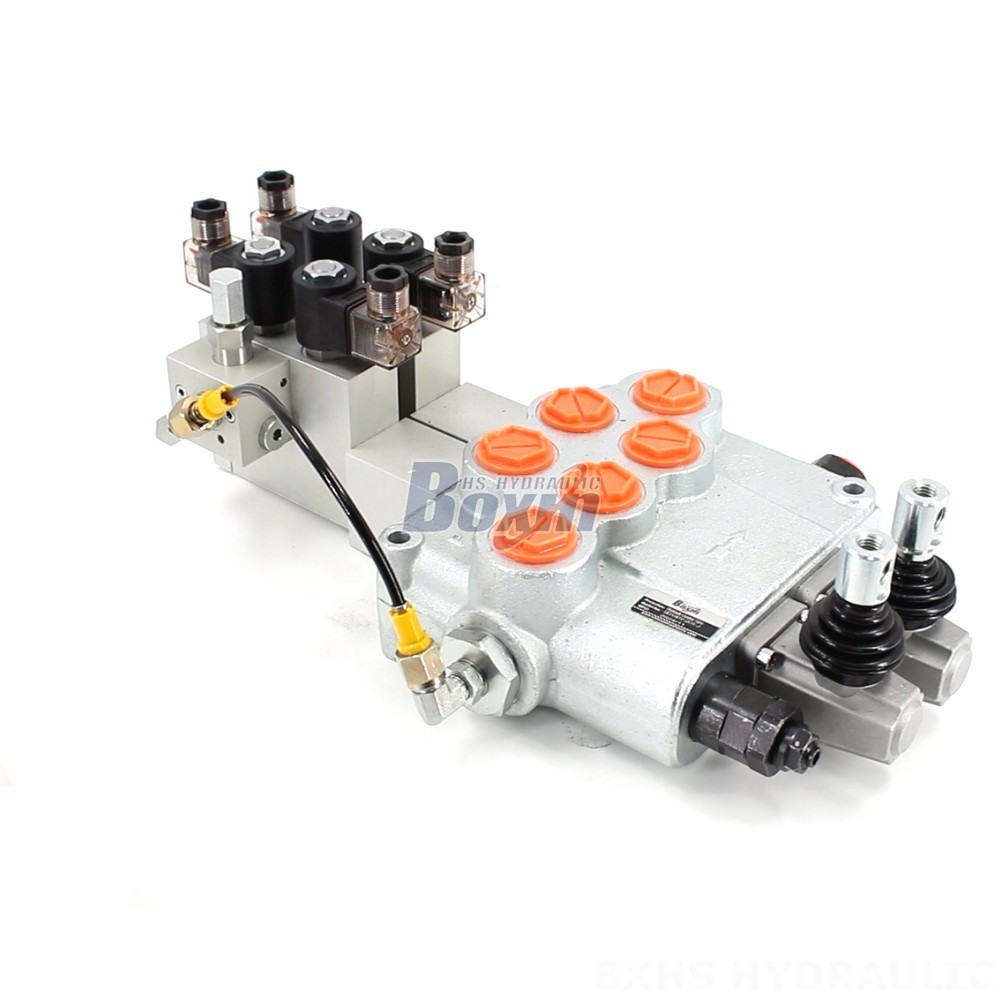

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Metoda sterowania:Elektrohydrauliczna

Szpula:2-sekcyjny

Przepływ znamionowy:160 l/min (42,2 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1

Port wylotowy:G1

Rozmiar portu:G1

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD18 Zawór sterujący jednoczęściowy

Rozmiar opakowania:21*47*32

Waga brutto:22.50 kg

Dostępność: W magazynie

500 Osoby oglądają ten produkt

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves drawing image

Direct from factory, the SD18 electric 2-spool monoblock directional valve offers high performance (160 L/min, 315 bar) and wide operating temperature range (-40°C to +80°C). Ideal for construction, industrial vehicles, and agriculture applications.

Seria SD18 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny
Przepływ znamionowy 160 l/min (42,2 USGPM)
Maksymalne ciśnienie 305 bar (4400 psi)
Port wlotowy G1/2, G1, SAE 16
Port wylotowy G1, SAE 16
Rozmiar portu G1, SAE 16
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)

We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our SD18 Series Electric 2-Spool Monoblock Directional Valves are designed for demanding applications in construction and earthmoving, industrial vehicles, and agriculture. These robust valves boast a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance even under extreme conditions.

**Key Features:**
* **Electric Control:** Precise and efficient operation.
* **Monoblock Structure:** Compact design and high durability.
* **High Flow Rate:** 160 L/min (42.2 US gpm).
* **High Pressure Capability:** 315 bar (4600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Suitable for:** Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Telehandlers.

**Our Services:**
We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a **manufacturer**, we provide **factory direct** pricing and superior quality. Benefit from our **factory wholesale** options and competitive pricing. Contact us today to explore collaboration opportunities and discuss your specific needs. Experience the advantage of working directly with the **factory supplier**.
