Direct from Factory: RD5200-OU2 Manual 2 Spool Hydraulic Control Valves

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:100 l/min (26,5 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:3/4 NPT

Port wylotowy:3/4 NPT

Rozmiar portu:3/4 NPT

Marka:BXHS

Typ produktu:Hydraulic Control Valve

Seria produktów:Seria RD Hydraulic Control Valve

Rozmiar opakowania:25*28*11

Waga brutto:11.00 kg

Dostępność: W magazynie

571 Osoby oglądają ten produkt

Direct from Factory: RD5200-OU2 Manual 2 Spool Hydraulic Control Valves

Direct from Factory: RD5200-OU2 Manual 2 Spool Hydraulic Control Valves

Direct from Factory: RD5200-OU2 Manual 2 Spool Hydraulic Control Valves drawing image

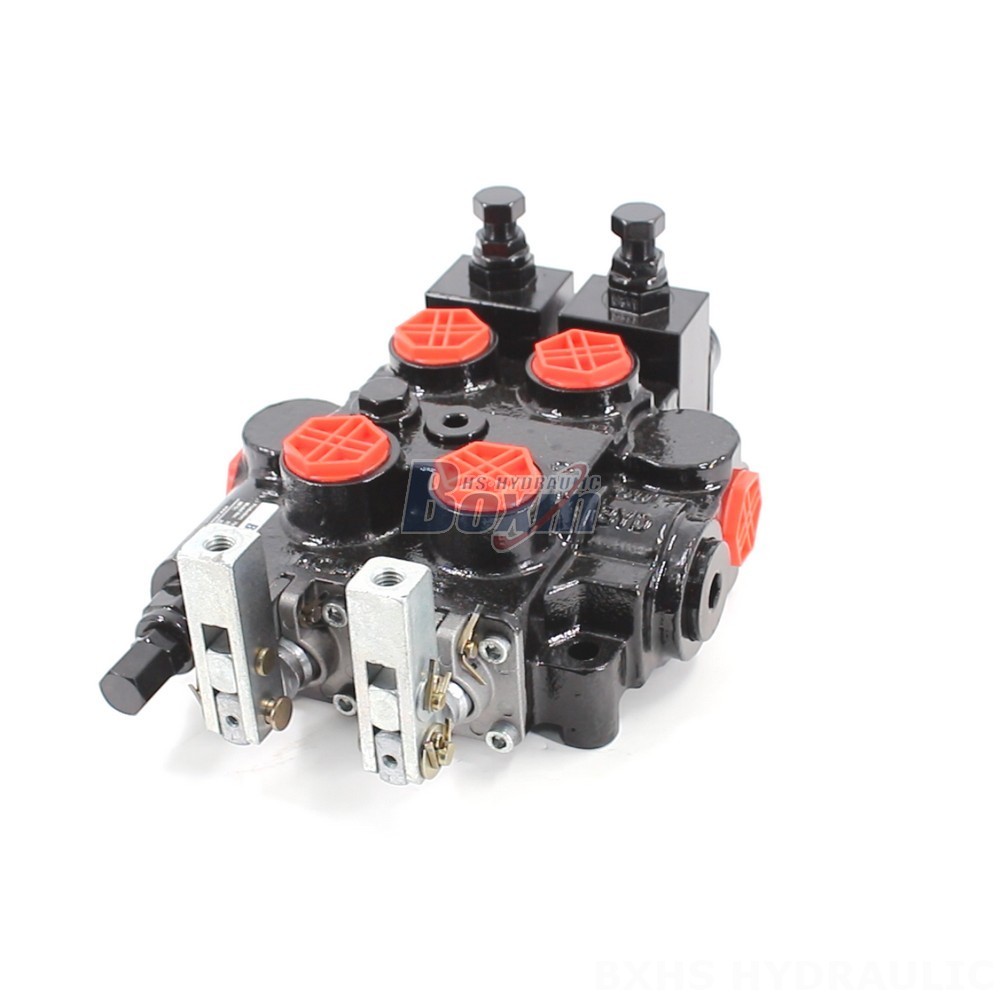

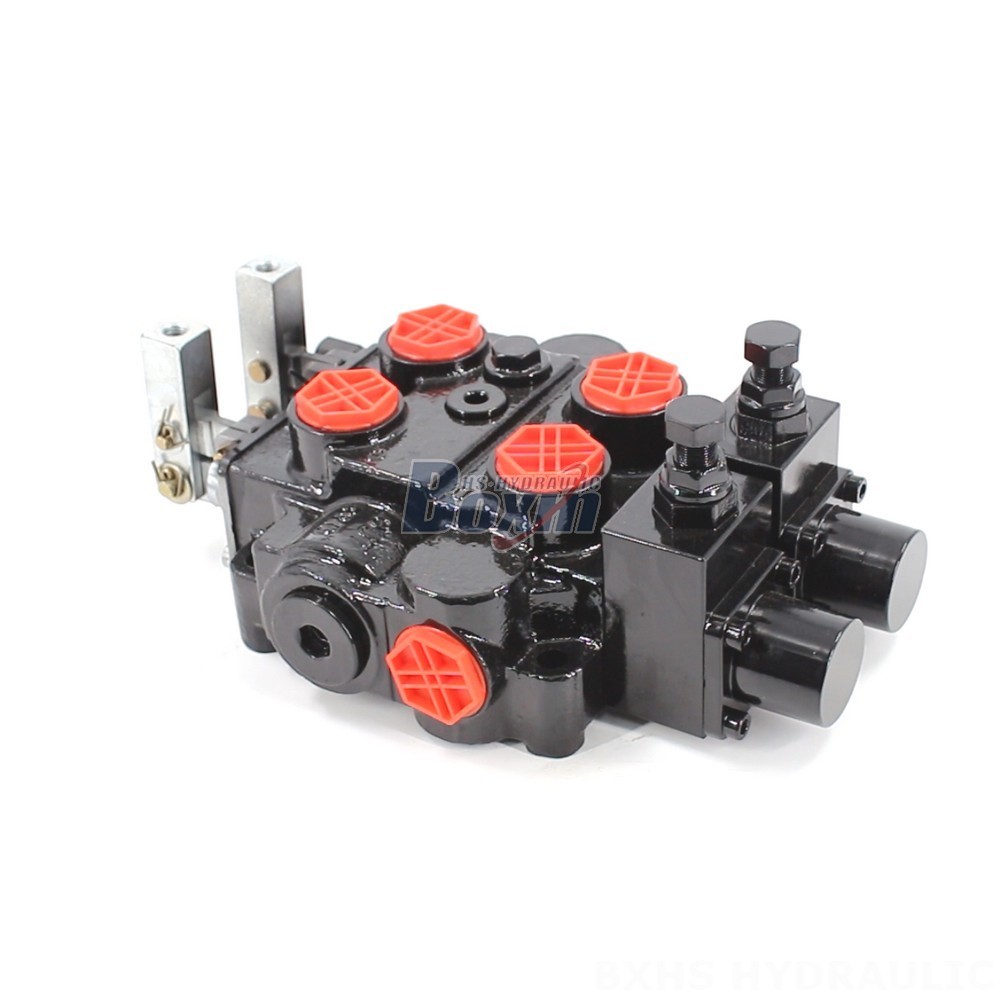

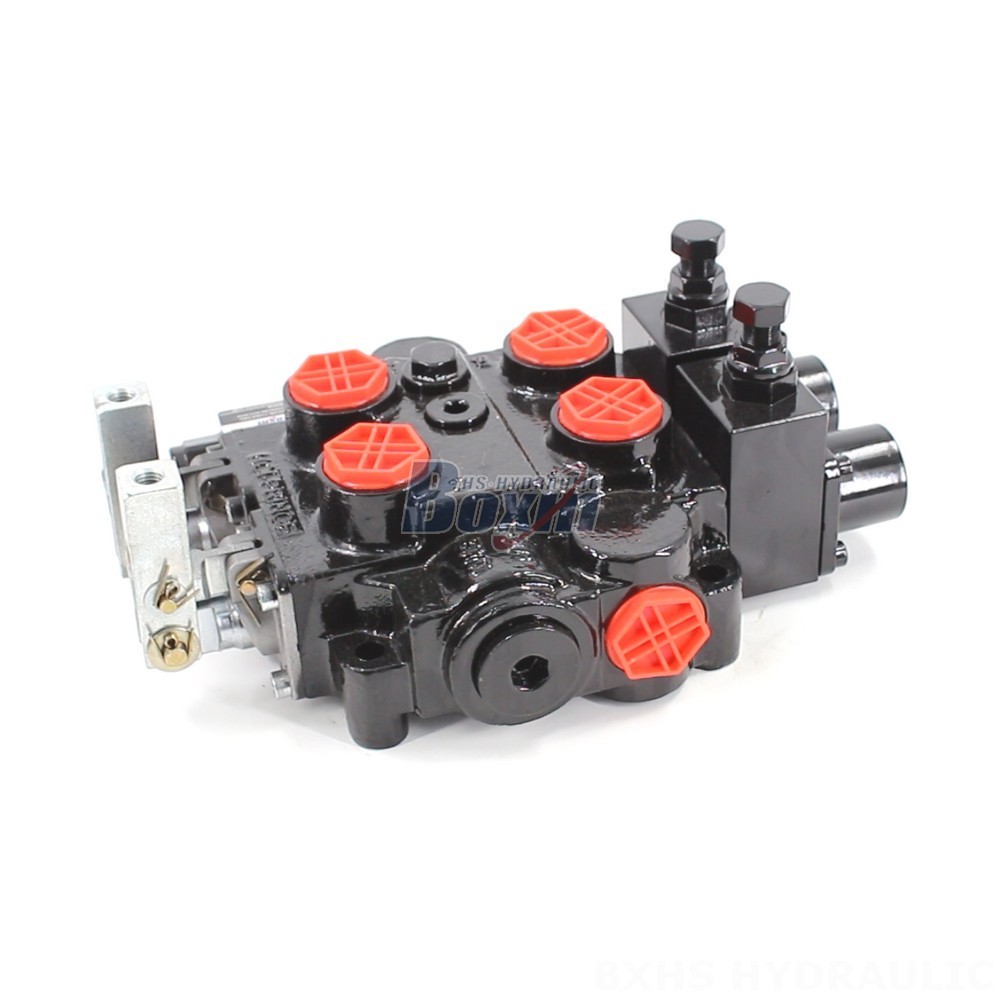

Direct from factory, the RD5200-OU2 is a high-performance manual 2-spool monoblock hydraulic valve, ideal for construction, industrial, and agricultural machinery. Rated for 100 L/min and 315 bar, it offers exceptional durability and reliability.

Seria RD Hydraulic Control Valve Parametry
Metoda sterowania Ręczna
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny
Przepływ znamionowy 100 l/min (26,5 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G1/2, G3/4
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)

We are a leading manufacturer of hydraulic products, supplying globally. Our RD5200-OU2 Manual 2 Spool Hydraulic Control Valve is a robust and efficient solution for various applications, including mini-excavators, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, telehandlers, and forklifts. This high-quality monoblock valve boasts a rated flow of 100 L/min (26.5 US gpm) and a maximum pressure of 315 bar (4600 psi). It's designed for operating viscosity ranges from 12-400 mm²/s (12 cSt to 400 cSt) and operates effectively in ambient temperatures from -40°C to +80°C (-40°F to +176°F).

**Key Features:**
* Manual Control
* 2-Spool Design
* Monoblock Construction
* High Flow Rate (100 L/min)
* High Pressure Rating (315 bar)
* Wide Viscosity Range
* Wide Operating Temperature Range
* Suitable for Construction, Industrial, and Agricultural Equipment

**Business Opportunities:** We offer complete manufacturing, OEM, ODM, customization, and wholesale services for the RD5200-OU2 and other hydraulic valves. We are actively seeking distributors, wholesalers, agents, and trading partners worldwide to expand our global reach. As a factory-direct supplier, we offer competitive pricing and reliable delivery. Partner with us to access high-quality hydraulic valves from a trusted manufacturer with a proven track record of success. Contact us today to discuss your needs and explore the possibilities of collaboration. Factory direct pricing and bulk discounts available. We offer factory wholesale pricing for large orders. Contact us to learn more.
