Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:24*21*13

Waga brutto:7.00 kg

Dostępność: W magazynie

947 Osoby oglądają ten produkt

Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale

Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale

Direct Factory Supply: P40-G12-G38 Directional Valve Wholesale drawing image

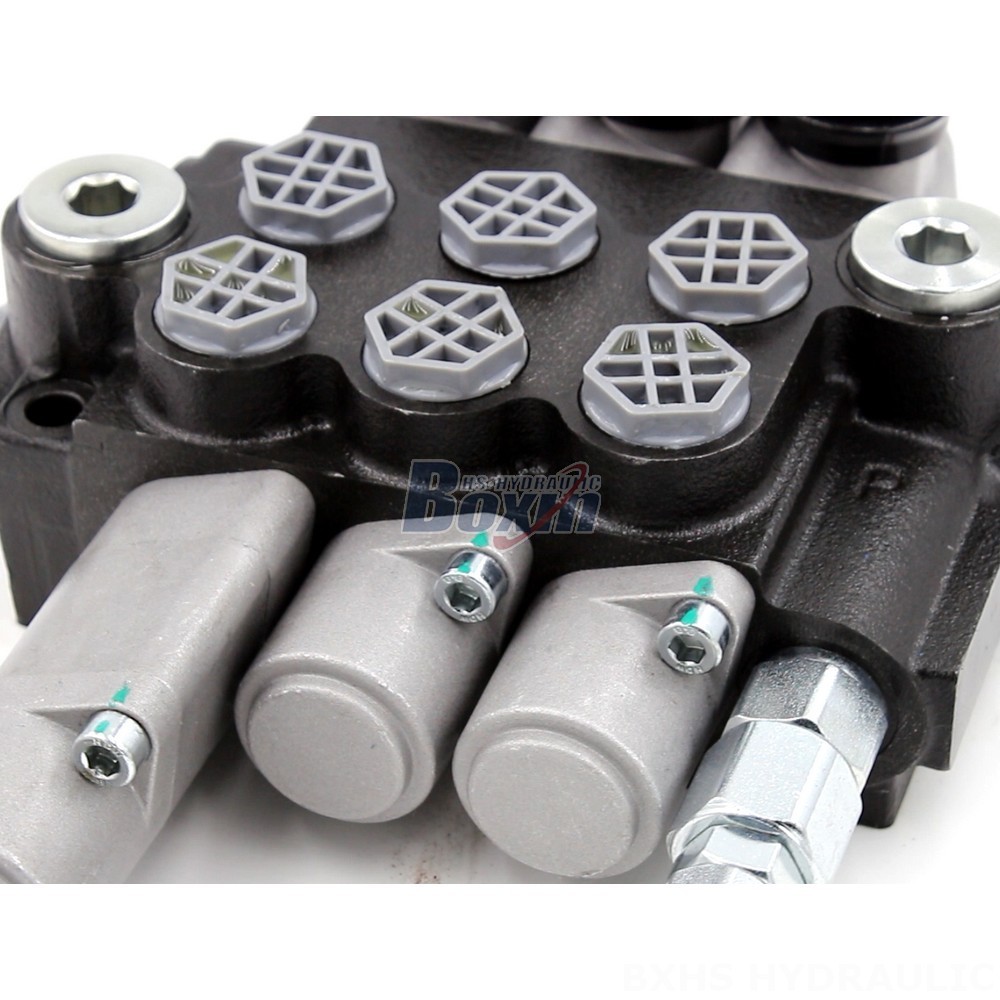

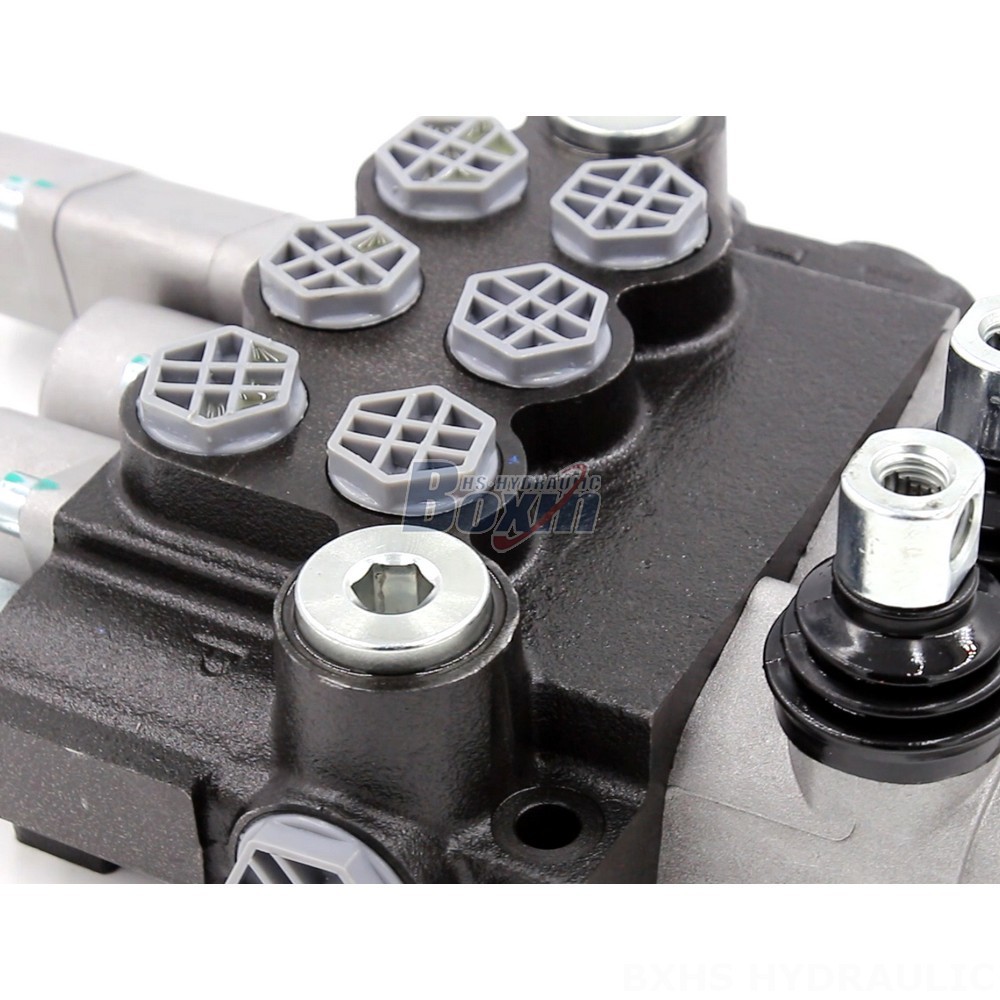

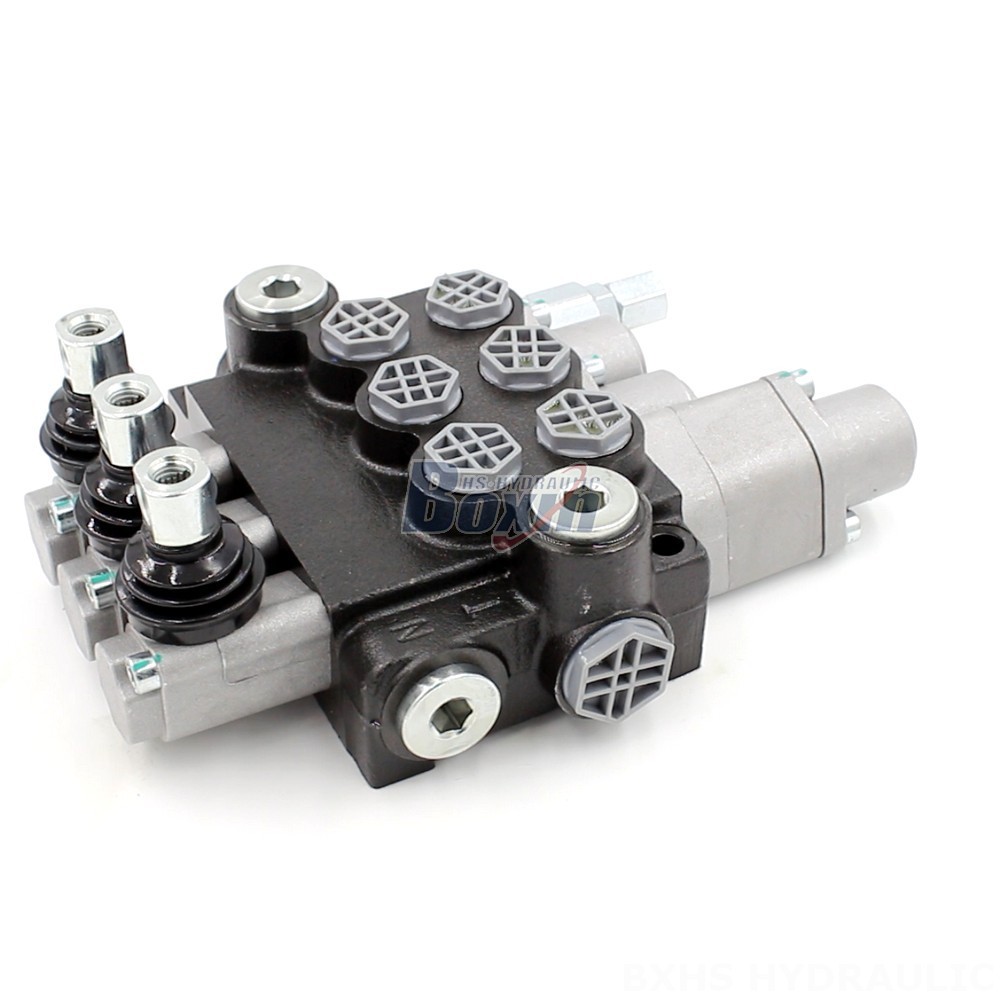

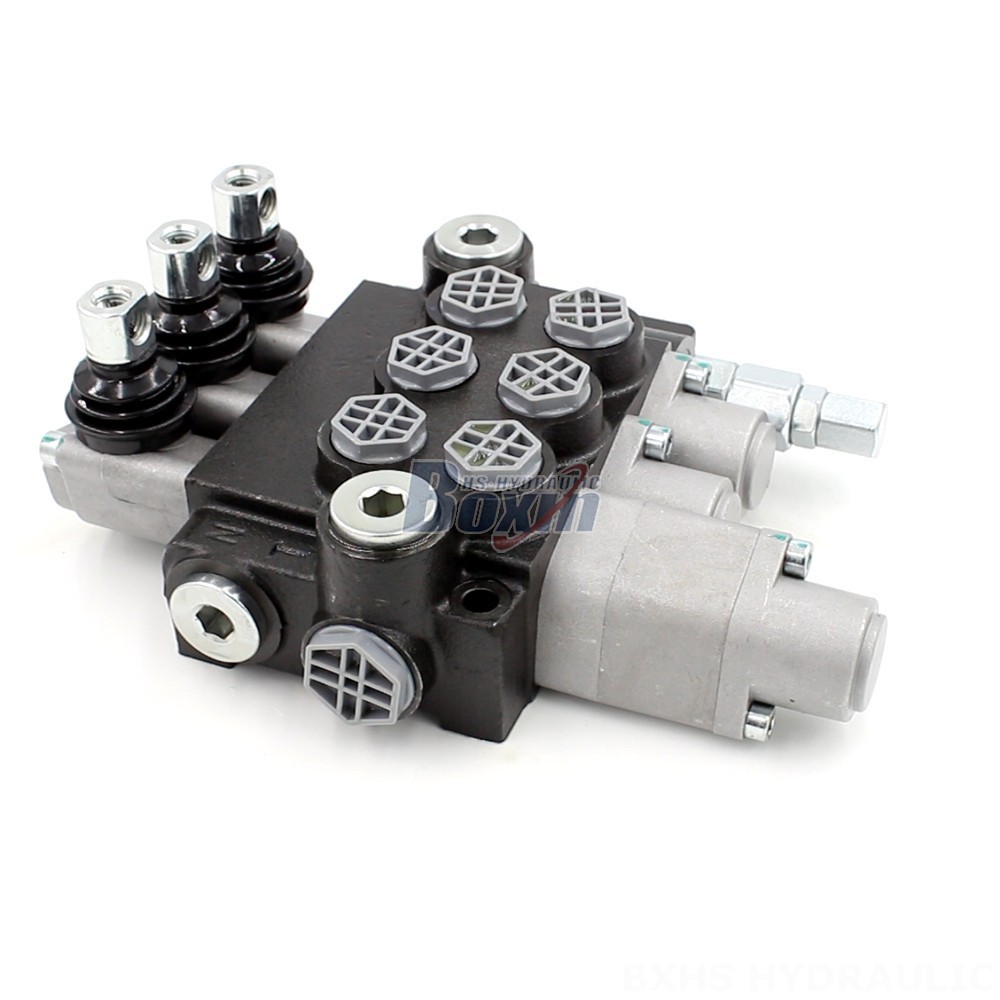

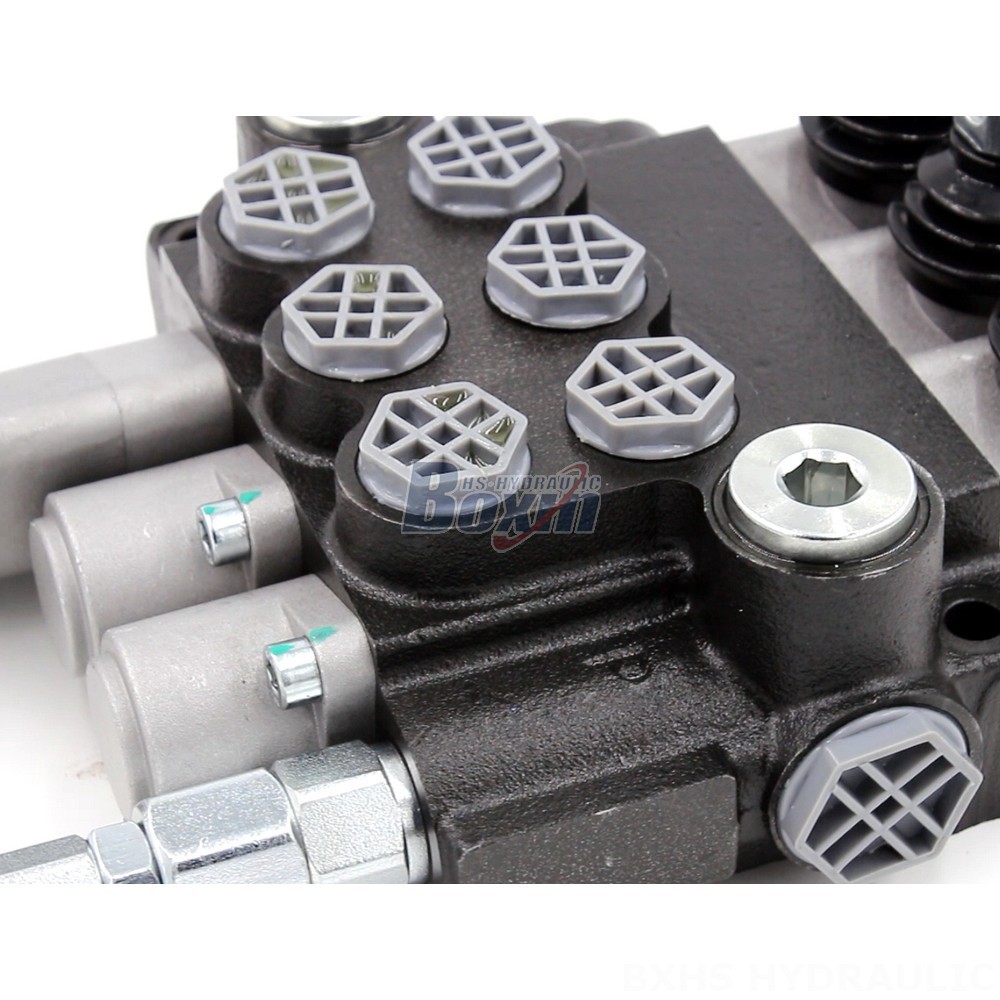

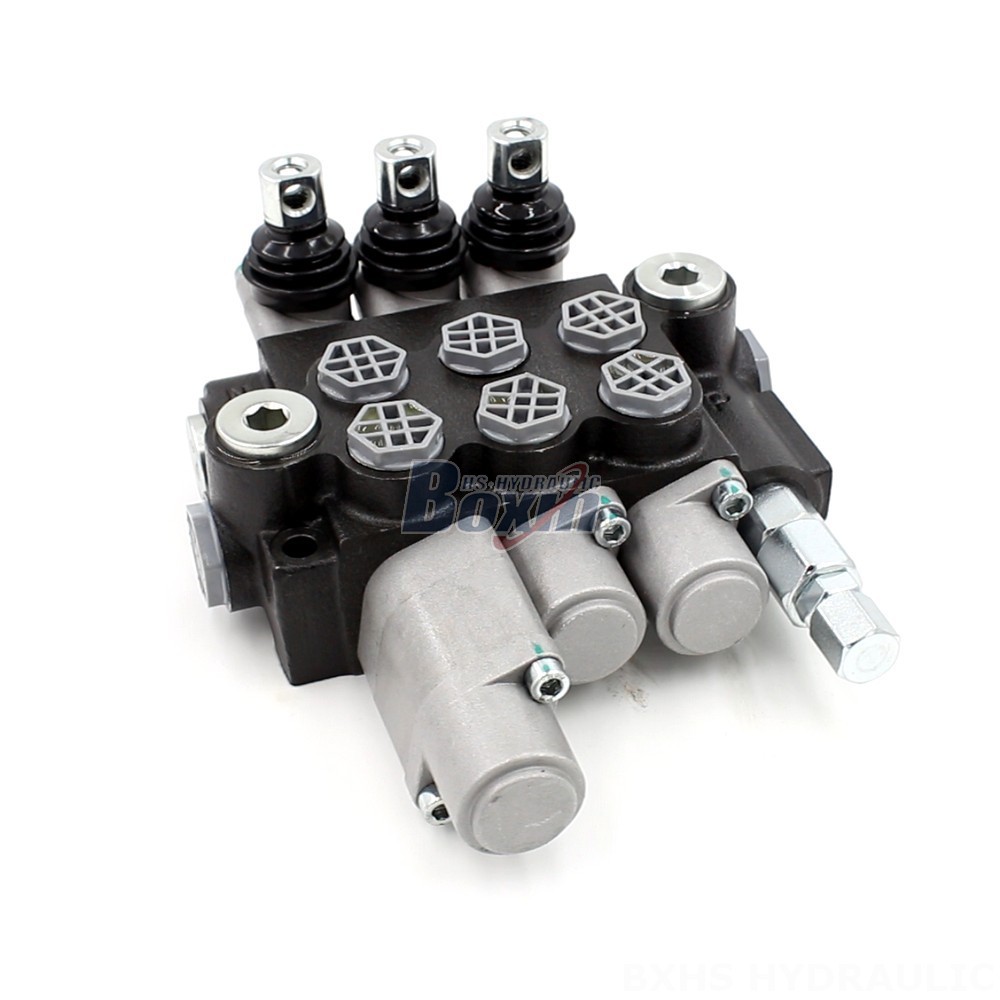

This high-performance 3-section monoblock directional valve is designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers reliable operation at pressures up to 2500psi (250 bar) and boasts a flow rate of 40 L/min (10.5 US gpm). Available for direct factory supply and wholesale.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40-G12-G38 directional valve is a robust hydraulic component built for durability and efficiency. It is a 3-section, monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi). The valve features a manual control method, and operates reliably within a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). It is suitable for temperatures ranging from -40°C to +80°C (-40°F to +176°F). With its 3 spools and P40 Series designation, this valve is ideal for various applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders. As a direct factory supplier, we offer this valve at competitive prices and in bulk quantities for wholesale purchases. Contact us to discuss your specific requirements and explore the possibilities of partnering with us as your trusted hydraulic valve manufacturer.
