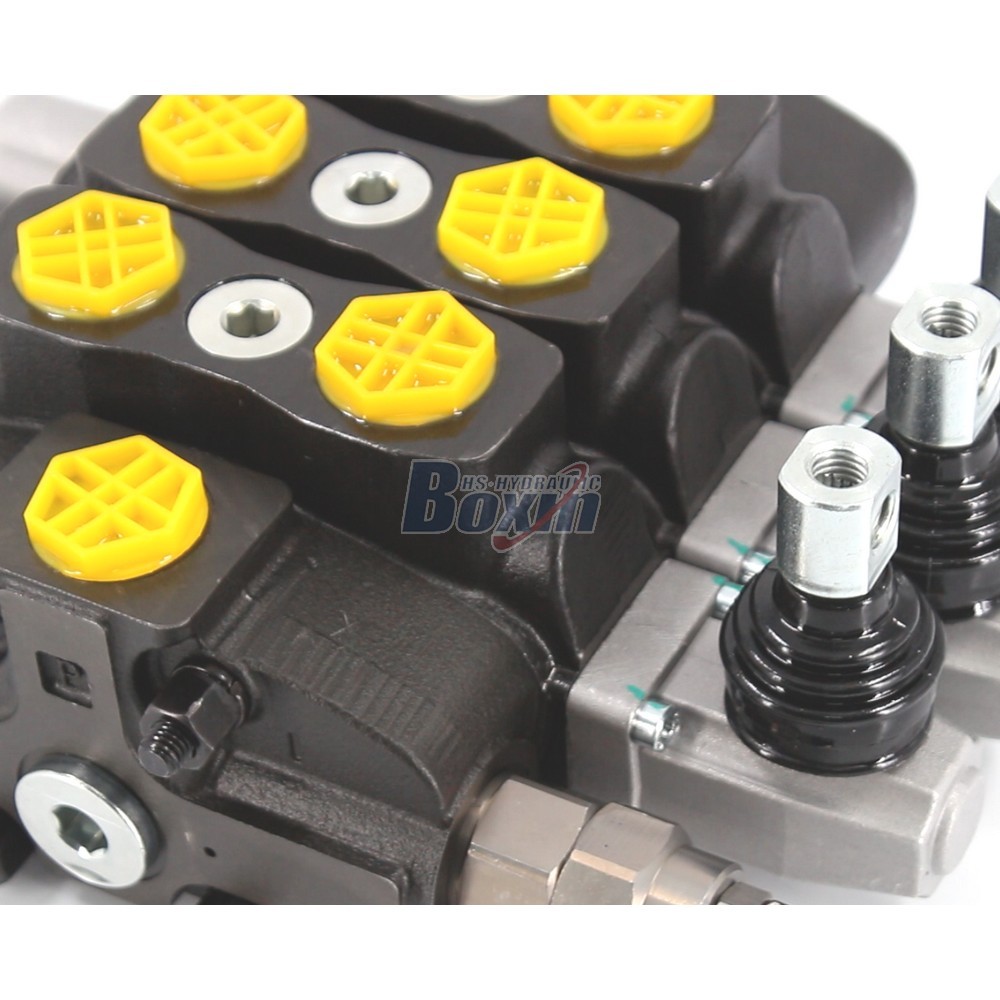

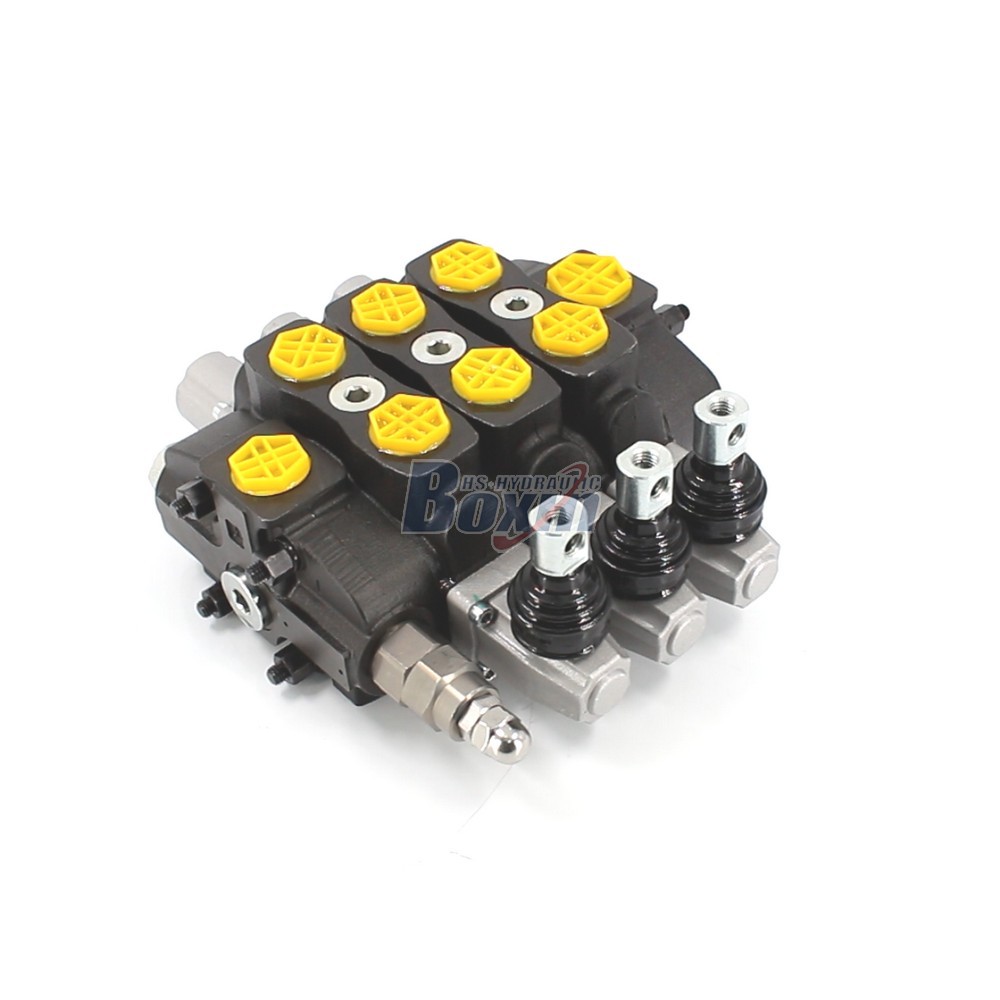

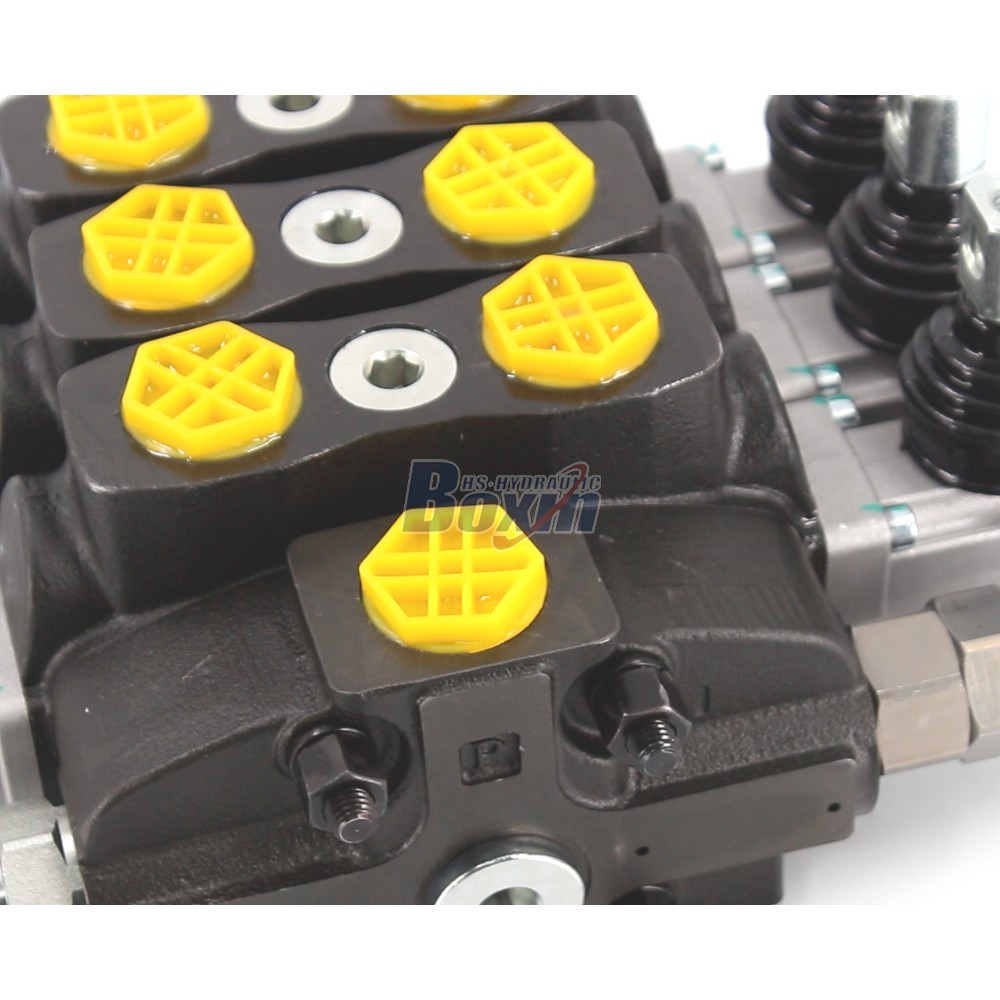

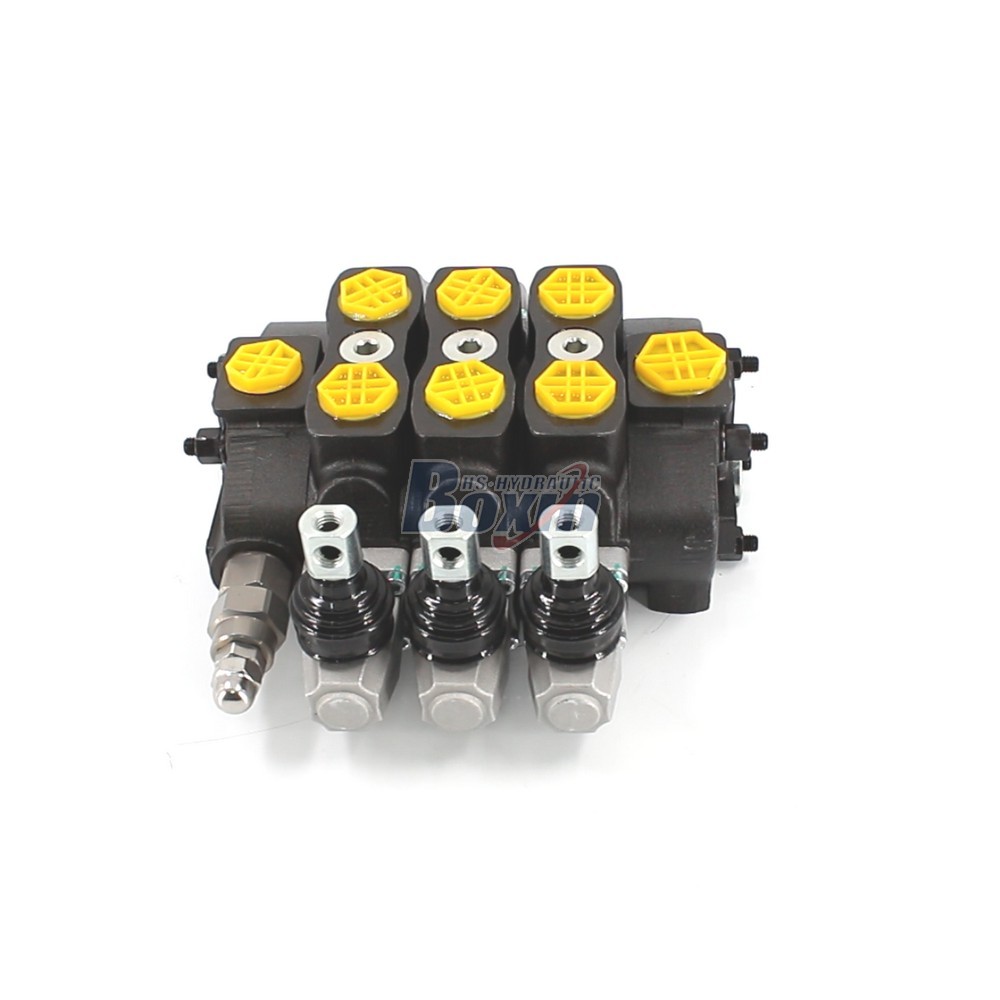

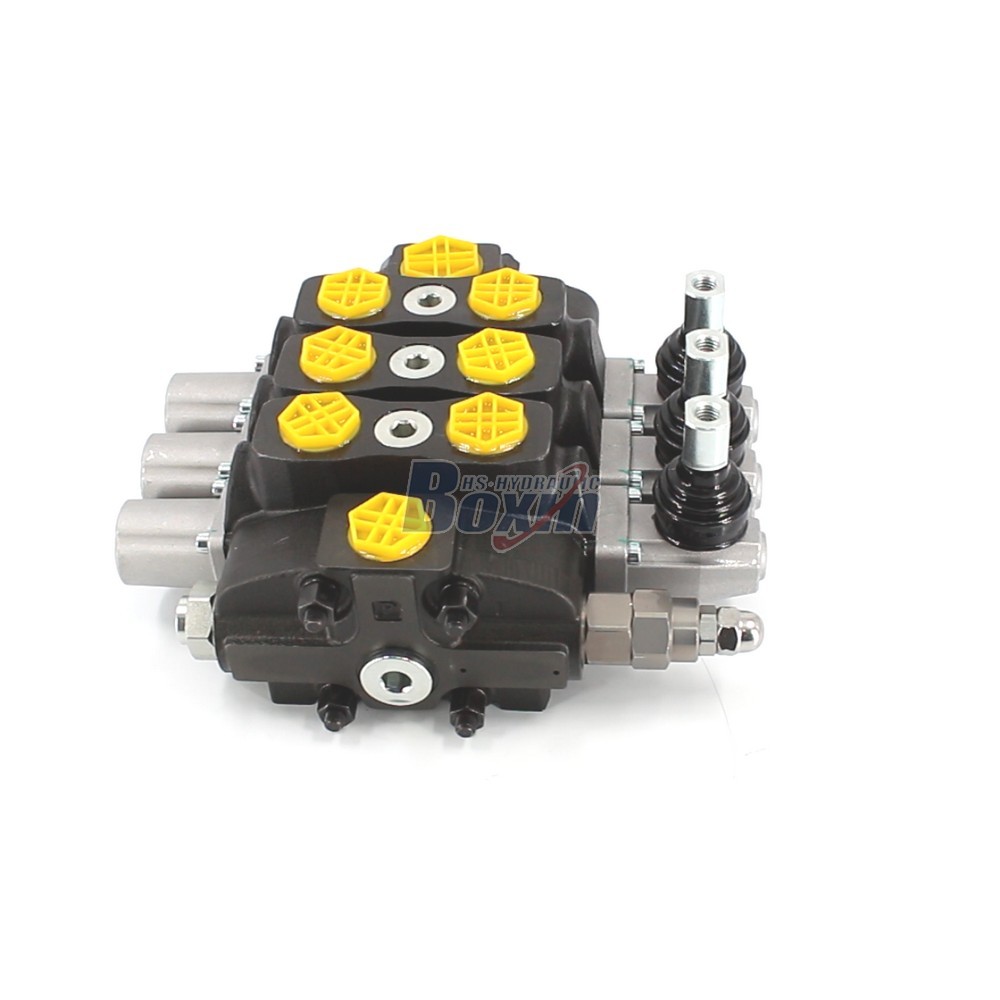

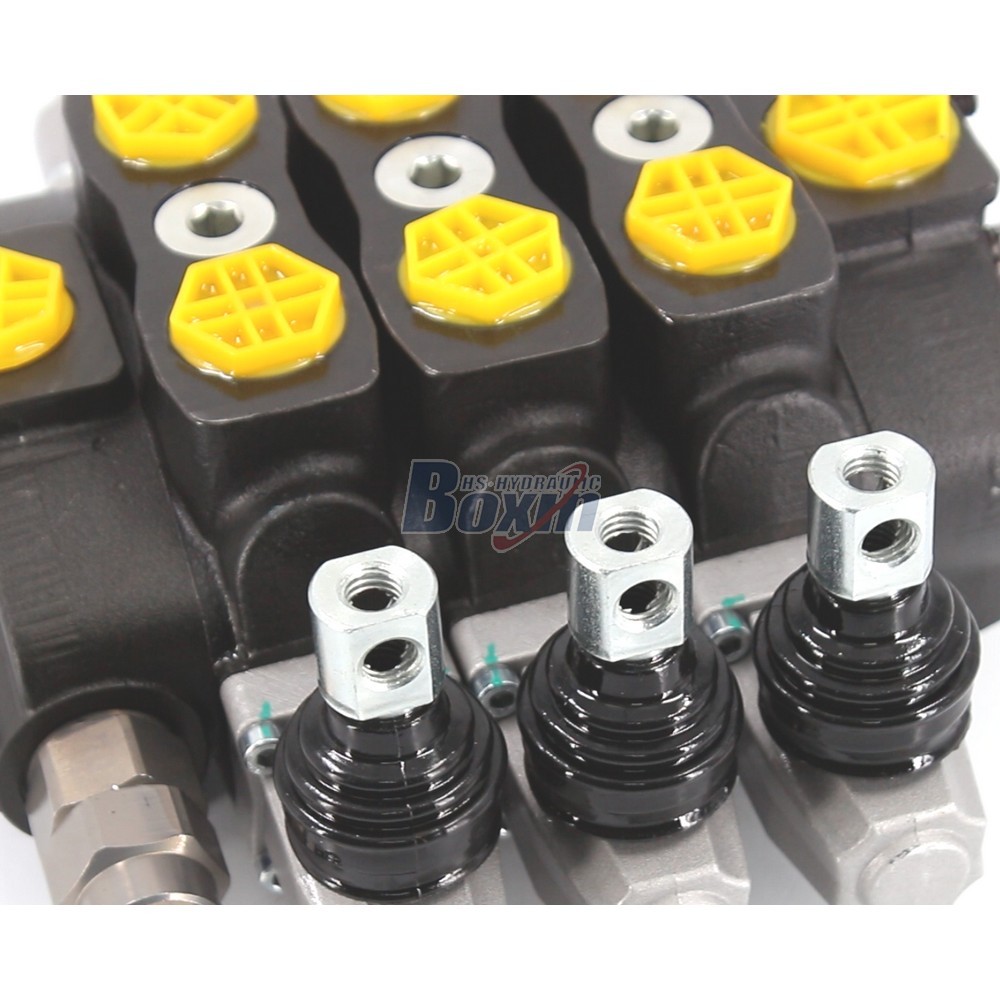

Direct Factory Sale SD8 Manual 3 Spool Directional Valve

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:26*36*16

Waga brutto:14.50 kg

Dostępność: W magazynie

74 Osoby oglądają ten produkt

Direct Factory Sale SD8 Manual 3 Spool Directional Valve

Direct Factory Sale SD8 Manual 3 Spool Directional Valve

Direct Factory Sale SD8 Manual 3 Spool Directional Valve drawing image

The SD8 Series 3-Spool Manual Directional Control Valve is a high-performance hydraulic solution designed for flow rates up to 80 L/min and pressures up to 250 bar. Engineered for versatility and durability, it serves as a critical component for material handling, construction, and agricultural machinery, offering precise manual control for multi-functional hydraulic circuits.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, SAE 10
Port wylotowy G1/2, G3/4, SAE 10, 3/4 NPT
Rozmiar portu G1/2, SAE 10

As a leading large-scale manufacturer of hydraulic solutions, we offer the SD8 Series 3-Spool Manual Directional Valve, engineered for demanding applications such as mini-excavators, tractors, forklifts, and wood splitters. This valve features a robust monoblock design with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capacity of 250 bar (3600 psi), ensuring reliable performance in diverse operating environments. With G1/2 inlet and G3/4 outlet ports, it provides excellent compatibility with international piping standards. We provide comprehensive manufacturing services including OEM, private labeling (ODM), and full customization to meet your specific technical requirements. We are actively seeking global partners to expand our distribution network. Whether you are a distributor, wholesaler, agent, or international trader, we offer factory-direct pricing, stable supply chains, and bulk wholesale opportunities. Our facility is equipped for high-volume production, ensuring that all hydraulic components meet rigorous quality standards for construction, agriculture, and industrial vehicle sectors.
