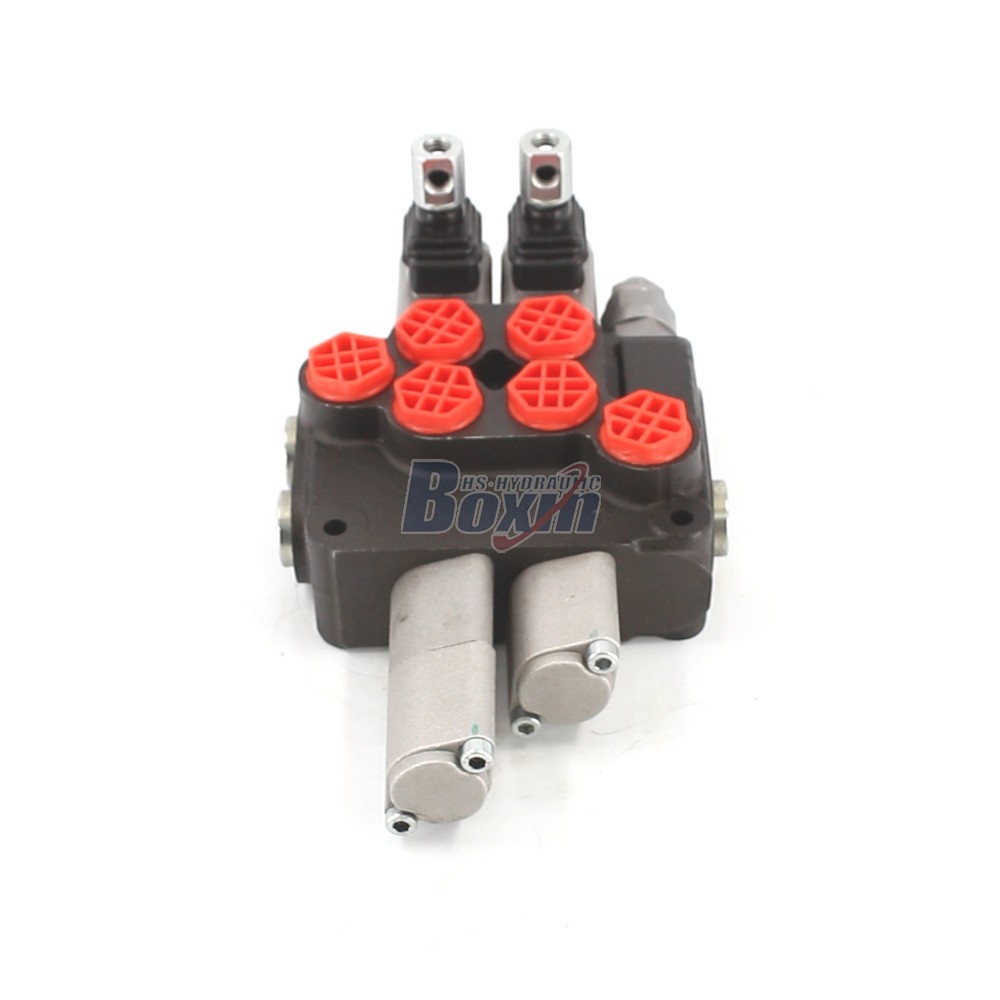

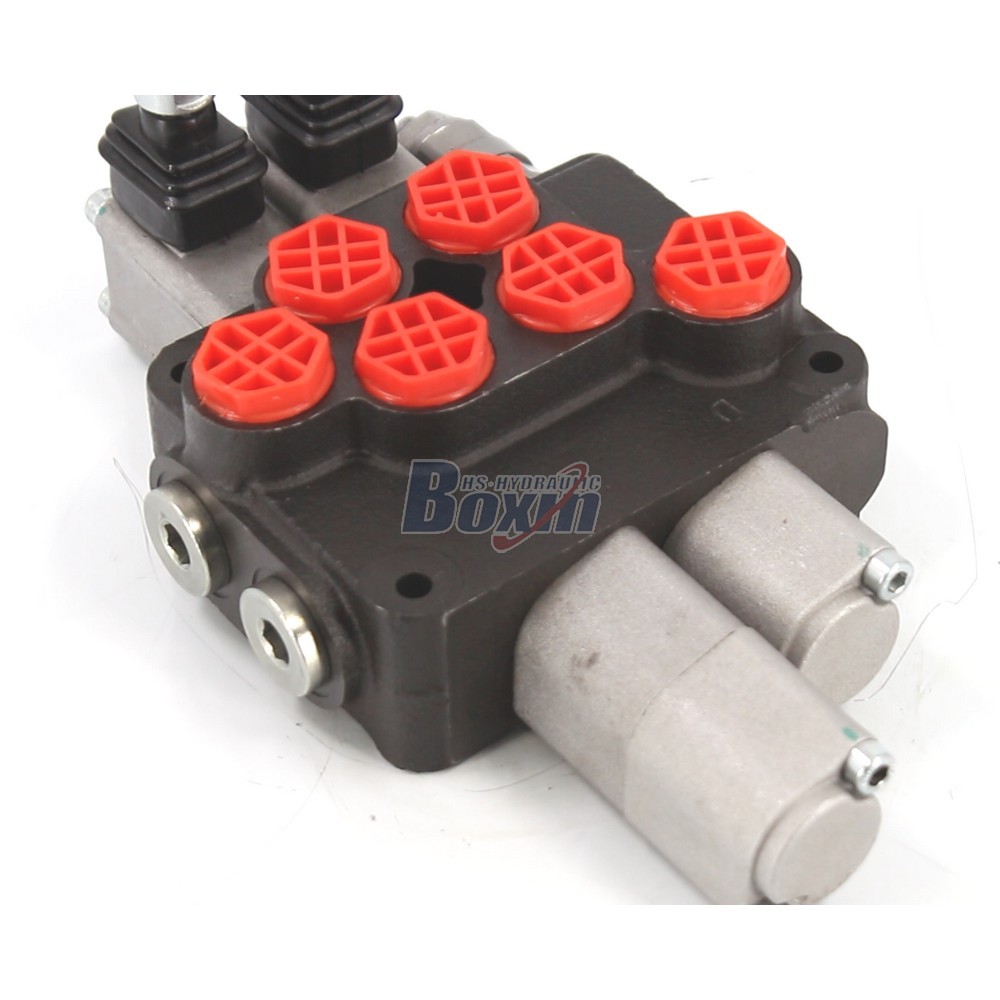

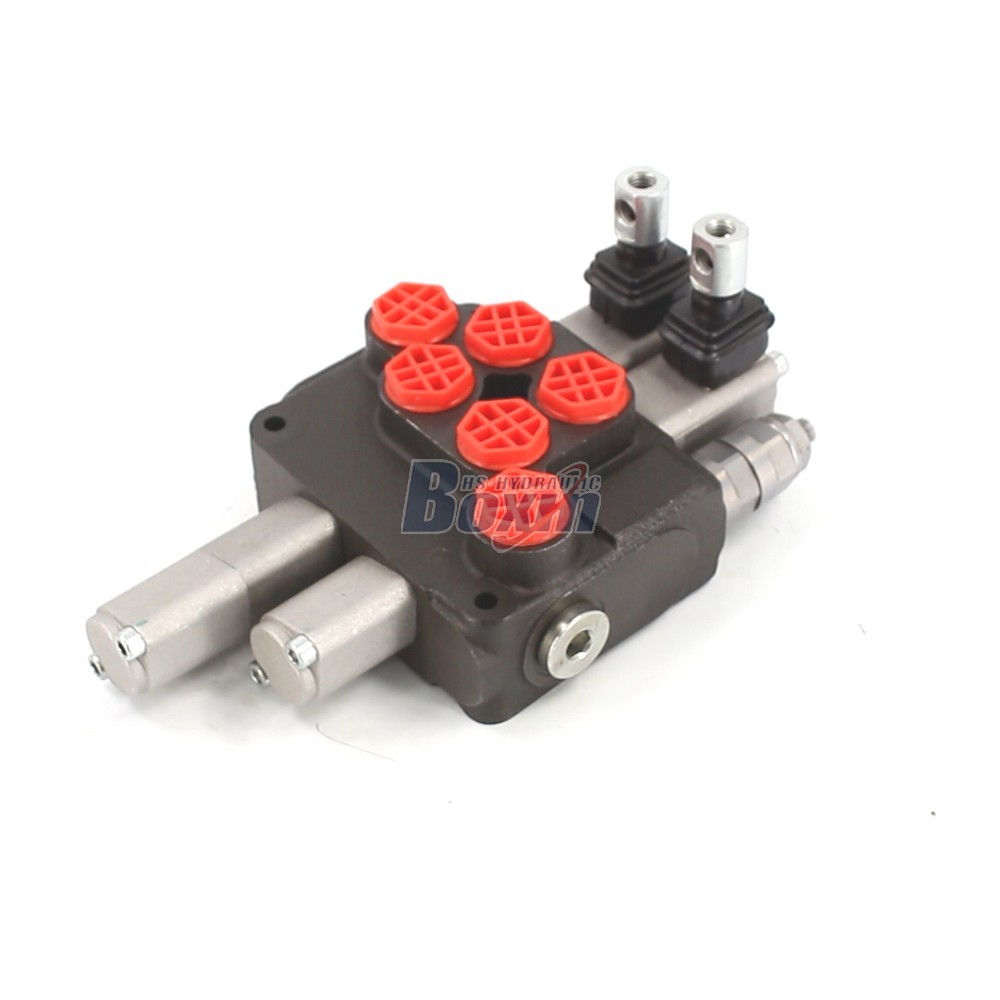

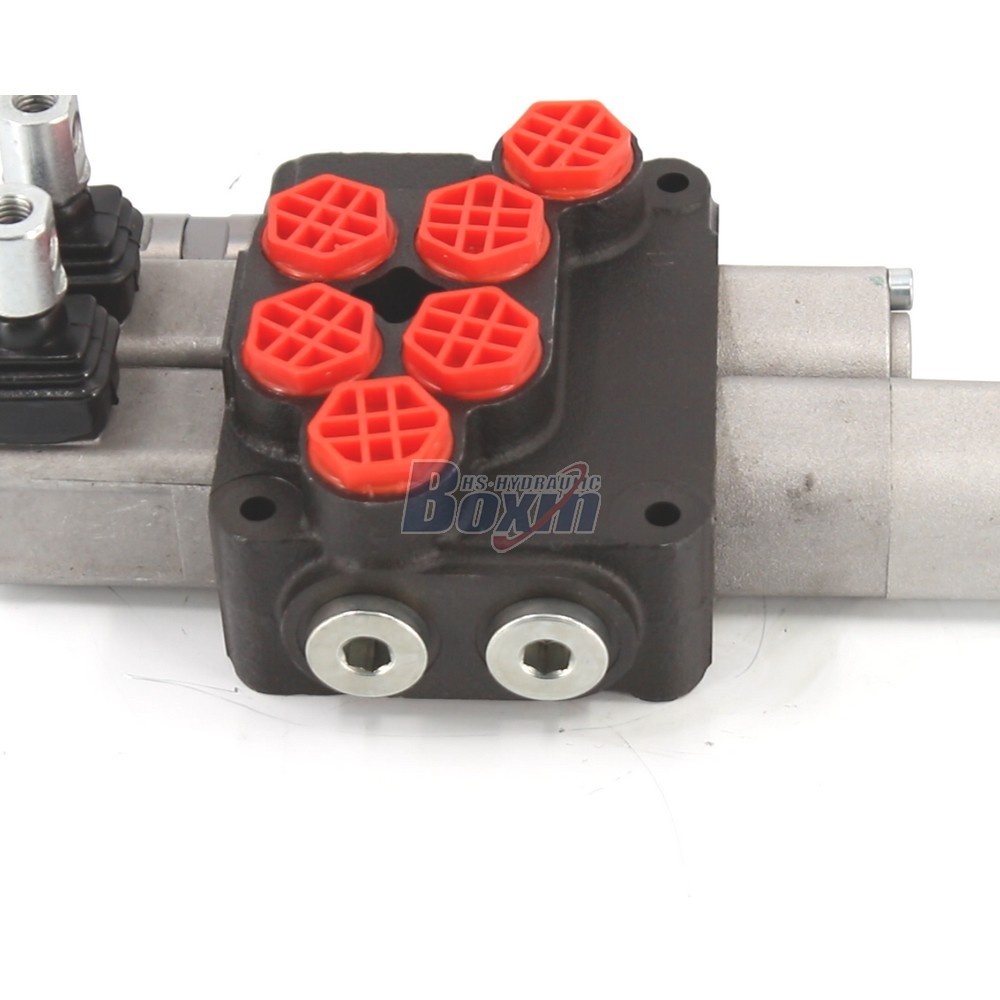

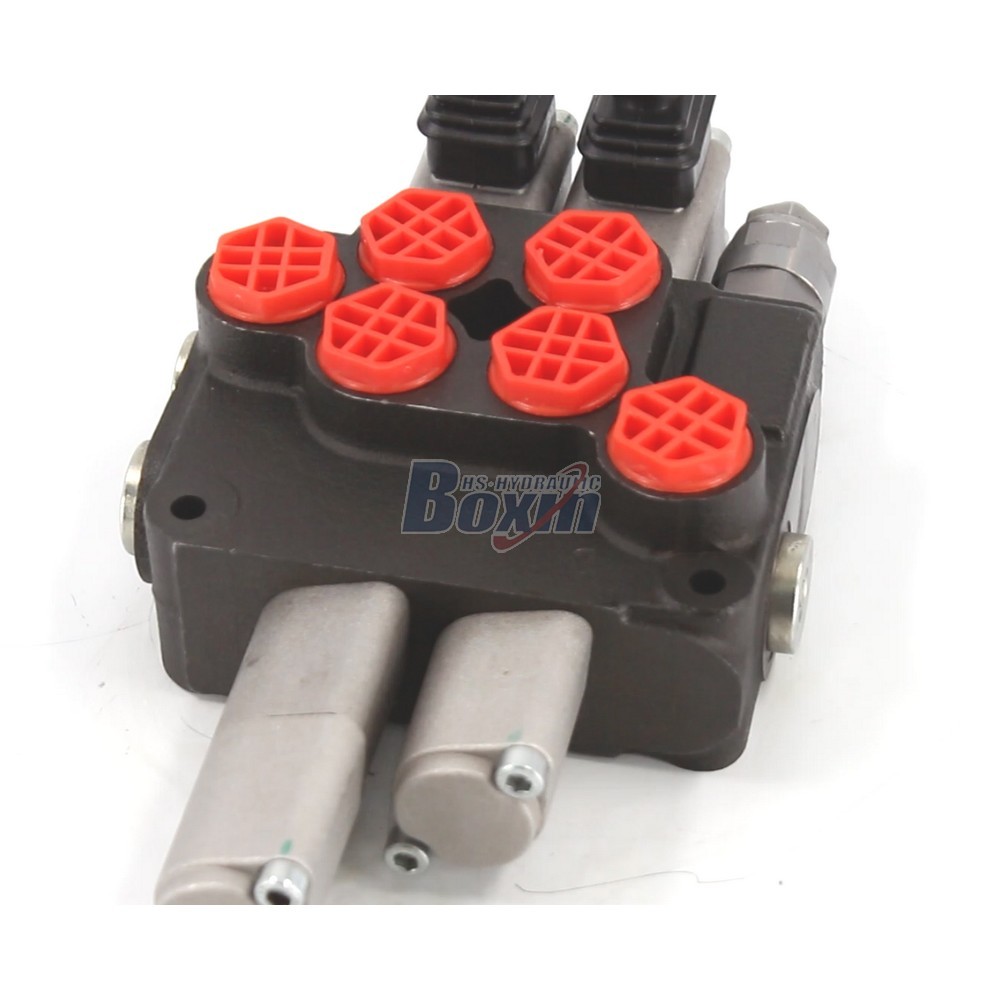

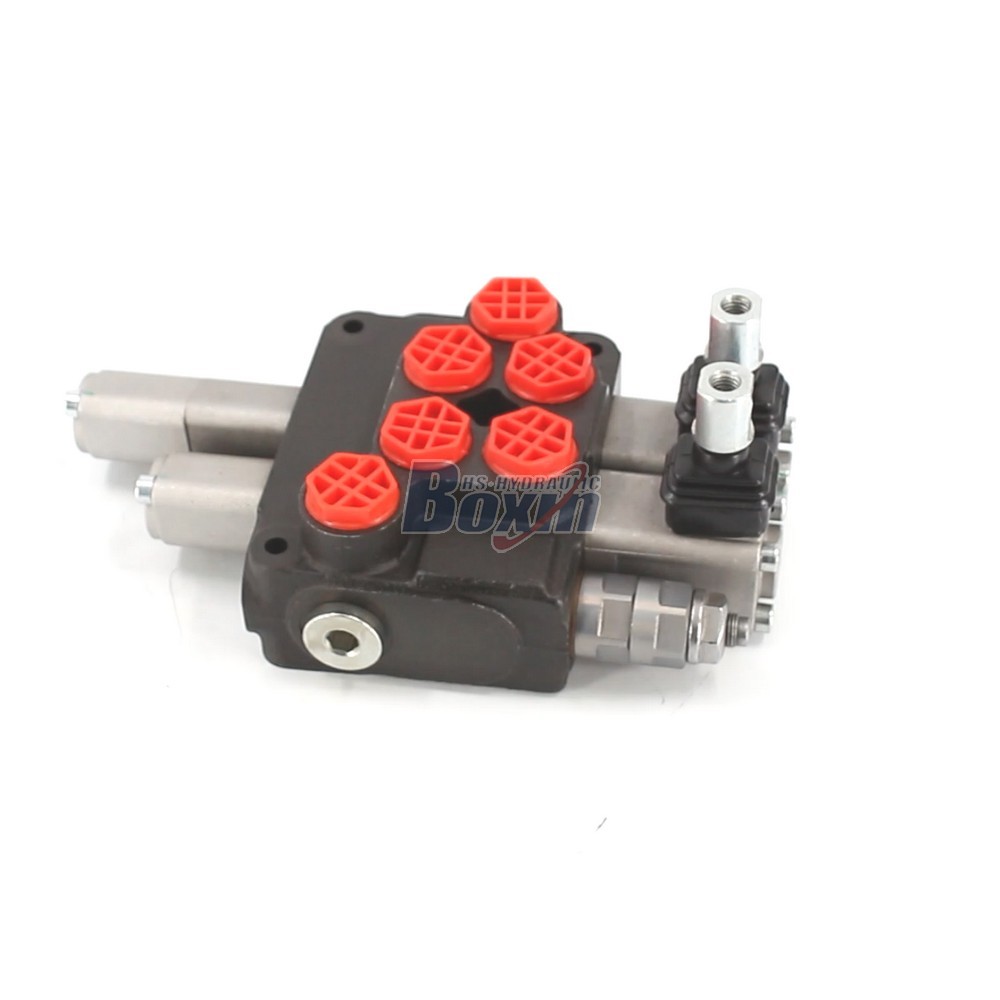

DCV20 Manual 2 Spool Monoblock Directional Valve for Hydraulic Systems

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:20 l/min (5,2 galonów amerykańskich na min)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria DCV20 Zawór sterujący jednoczęściowy

Rozmiar opakowania:14*21*11

Waga brutto:3.90 kg

Dostępność: W magazynie

85 Osoby oglądają ten produkt

DCV20 Manual 2 Spool Monoblock Directional Valve for Hydraulic Systems

DCV20 Manual 2 Spool Monoblock Directional Valve for Hydraulic Systems

DCV20 Manual 2 Spool Monoblock Directional Valve for Hydraulic Systems drawing image

The DCV20 Series is a high-performance 2-spool manual monoblock directional control valve designed for compact hydraulic systems. Featuring a rated flow of 20 L/min and capable of handling pressures up to 350 bar, this versatile valve is ideal for material handling, agriculture, and construction machinery, providing precise manual control for diverse industrial applications.

Seria DCV20 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Elektrohydrauliczna, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 20 l/min (5,2 galonów amerykańskich na min)
Maksymalne ciśnienie 350 bar (5100 psi)
Port wlotowy G3/8, M18×1.5, SAE 8, 3/8 NPT
Port wylotowy G3/8, M18×1.5, SAE 8, 3/8 NPT
Rozmiar portu G3/8, M18×1.5, SAE 8, 3/8 NPT

As a leading large-scale manufacturer of hydraulic solutions, we offer the DCV20 Series Manual 2 Spool Monoblock Directional Valve, engineered for efficiency and durability in demanding environments. This valve supports a rated flow of 20 L/min (5.2 US gpm) and a maximum pressure of 350 bar (5100 psi), ensuring reliable operation for forklifts, mini-excavators, tractors, and aerial platforms. Our factory provides comprehensive manufacturing, OEM, and ODM services, allowing for customized specifications and private labeling to meet specific brand requirements. We specialize in wholesale supply and are actively seeking to establish long-term partnerships with distributors, wholesalers, agents, and international traders across the global market. Whether you require standard configurations or tailored designs for wood splitters or skid steer loaders, our factory-direct wholesale model ensures competitive pricing and consistent quality. Join our global network to benefit from our extensive production capacity and technical expertise in hydraulic control systems.
