Customizable Solenoid Directional Valve | Made to Your Specifications

Metoda sterowania:Elektromagnes

Szpula:9-sekcyjny

Przepływ znamionowy:60 l/min (15,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria DCV58 Zawór kierunkowy sekcyjny

Rozmiar opakowania:55*28*17

Waga brutto:33.00 kg

Dostępność: W magazynie

1056 Osoby oglądają ten produkt

Customizable Solenoid Directional Valve | Made to Your Specifications

Customizable Solenoid Directional Valve | Made to Your Specifications

Customizable Solenoid Directional Valve | Made to Your Specifications drawing image

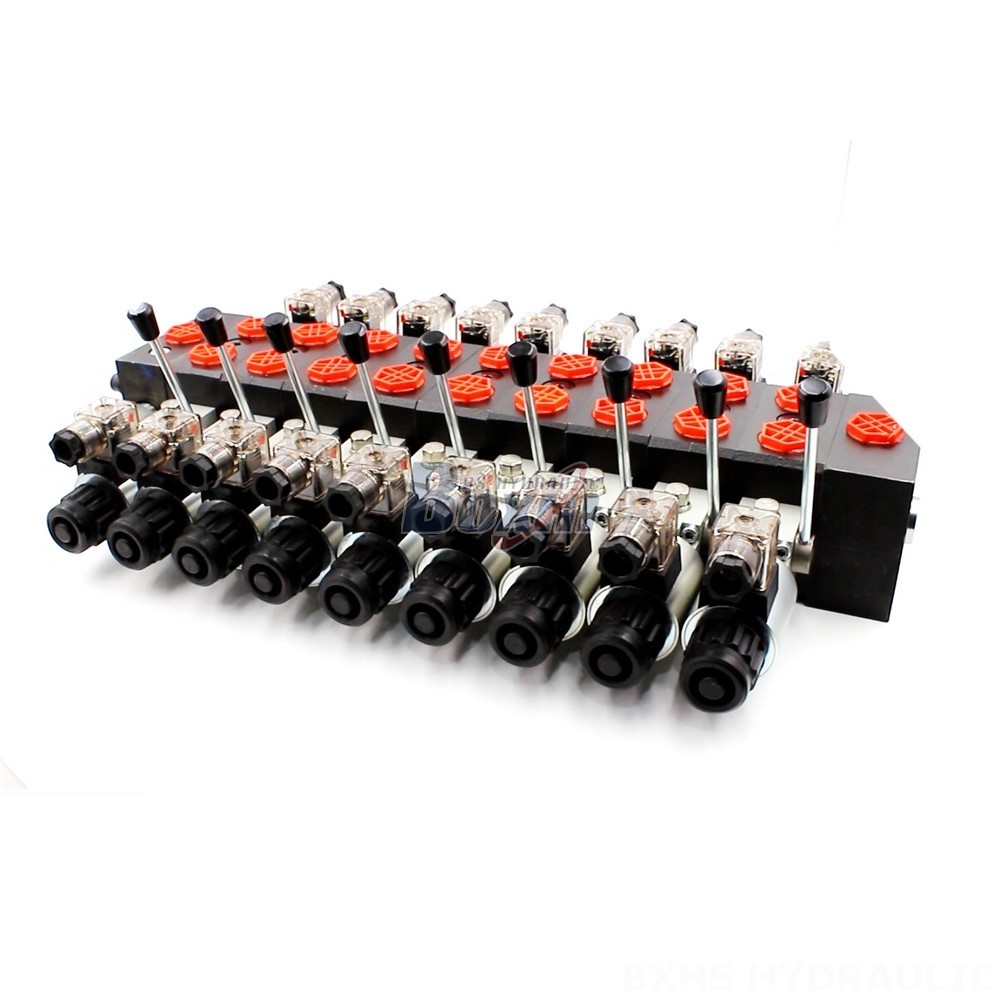

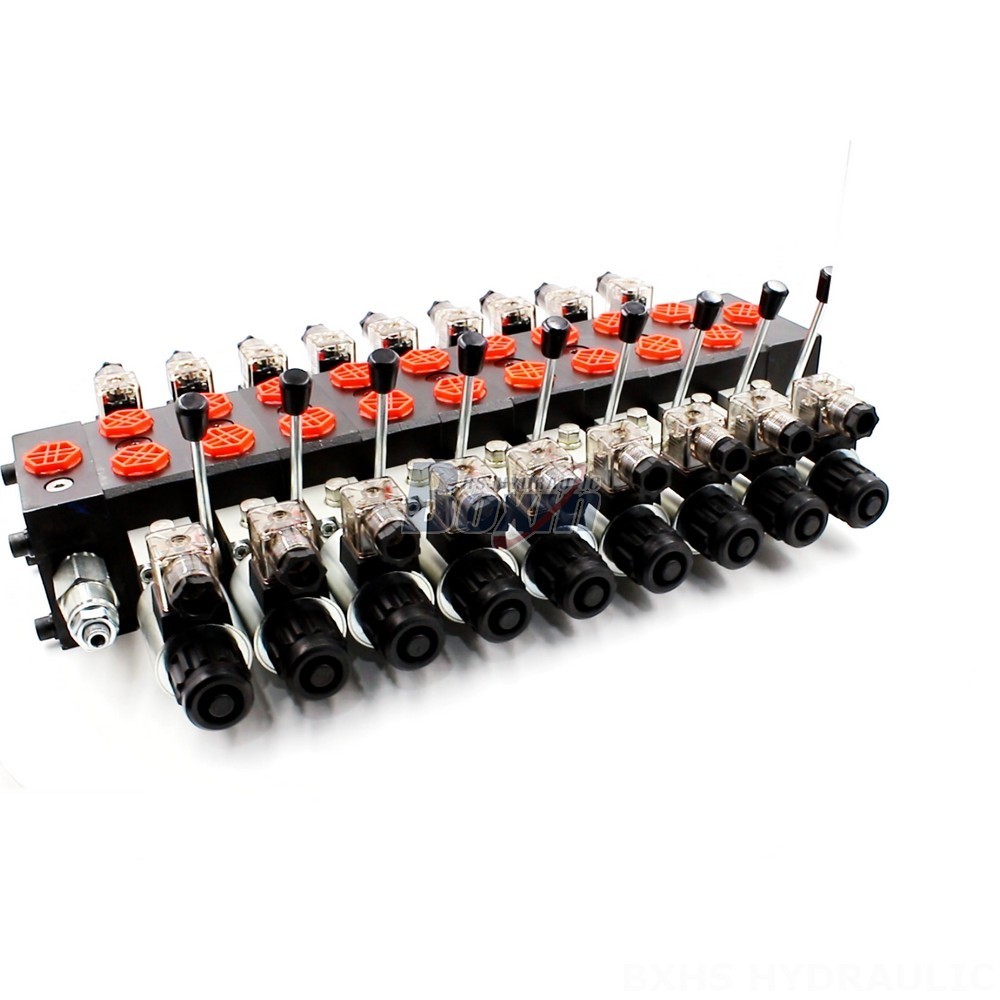

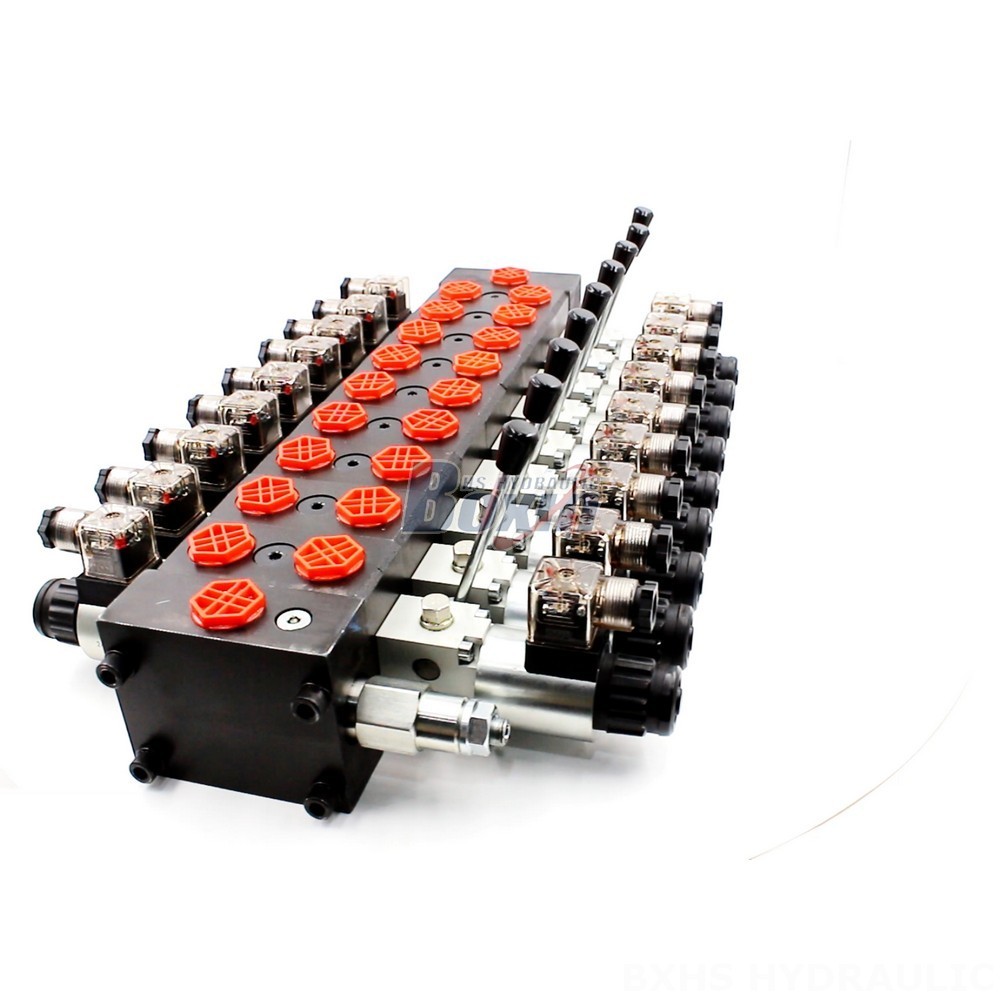

This is a high-performance, customizable hydraulic motor valve designed for demanding industrial applications. It features a 9-section, solenoid-controlled design, high flow rate (60 L/min), and high pressure rating (350 bar). Ideal for material handling, construction, agriculture, and industrial vehicles.

Seria DCV58 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Elektromagnes, Elektromagnetyczne i ręczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny, 11-sekcyjny, 12-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji, 11 Sekcji, 12 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 350 bar (5100 psi)
Port wlotowy G1/2, M22×1.5, SAE 10, 1/2 NPT
Port wylotowy G1/2, M22×1.5, SAE 10, 1/2 NPT
Rozmiar portu G1/2, M22×1.5, SAE 10, 1/2 NPT

This versatile **hydraulic motor valve** is a **customizable, high-performance** solution for your industrial needs. The **9-section, solenoid-controlled** design provides precise and reliable operation in a wide range of applications. With a **rated flow of 60 L/min** and a **maximum pressure of 350 bar**, this valve is capable of handling demanding workloads. The **sectional valve** construction allows for easy maintenance and repair. Designed for **heavy-duty operation**, it operates within a broad temperature range (-40°C to +80°C). Suitable for use in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles** such as **telehandlers**, **forklifts**, **all terrain cranes**, **stackers**, **aerial platforms**, **motor graders**, **midi-excavators**, **mini-excavators**, **skid steer loaders**, and **compact wheel loaders**. Part of the **DCV58 Series**, this valve is built to meet the highest industry standards.
