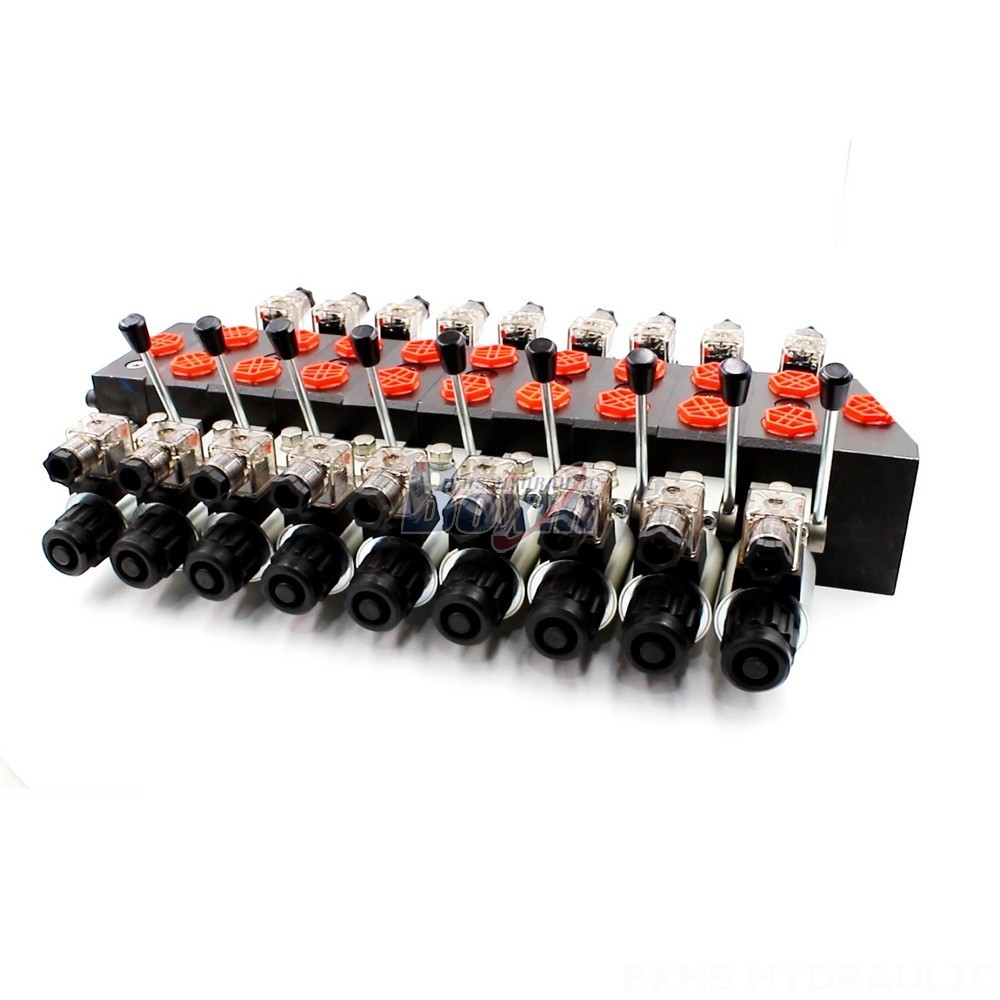

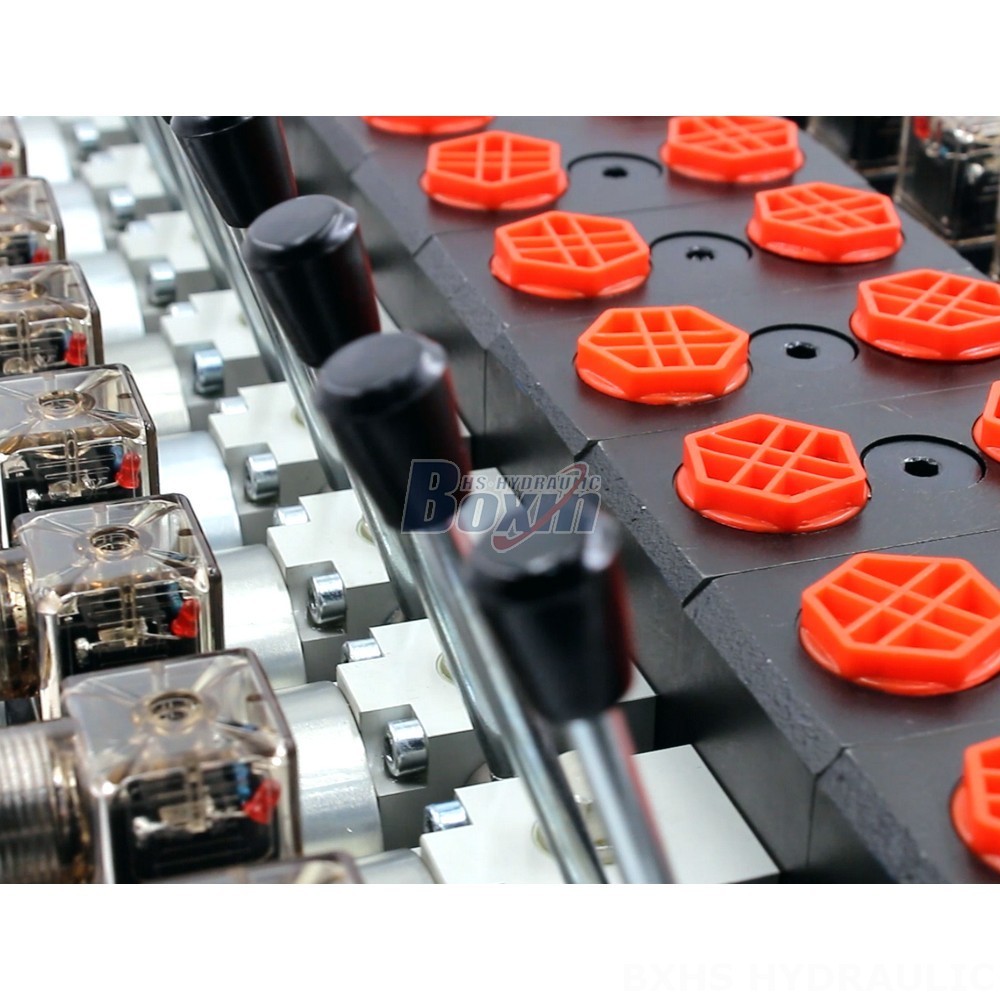

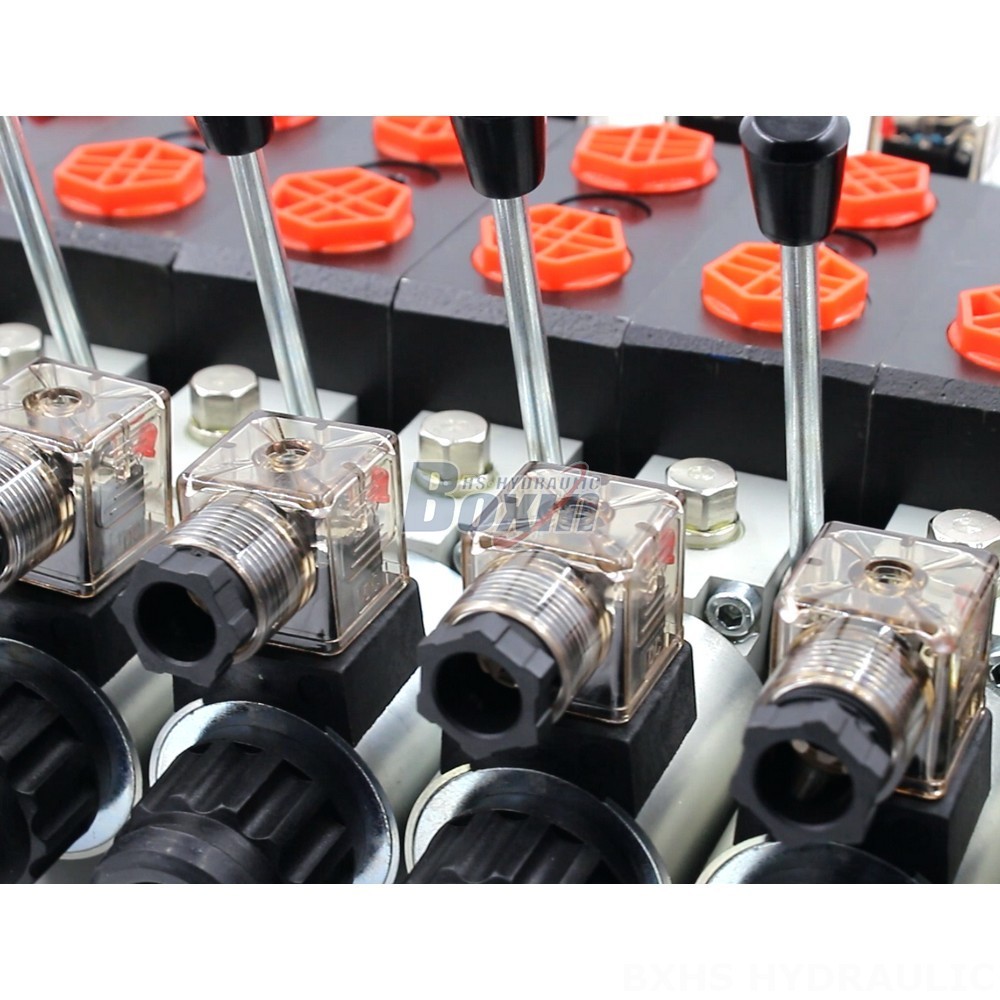

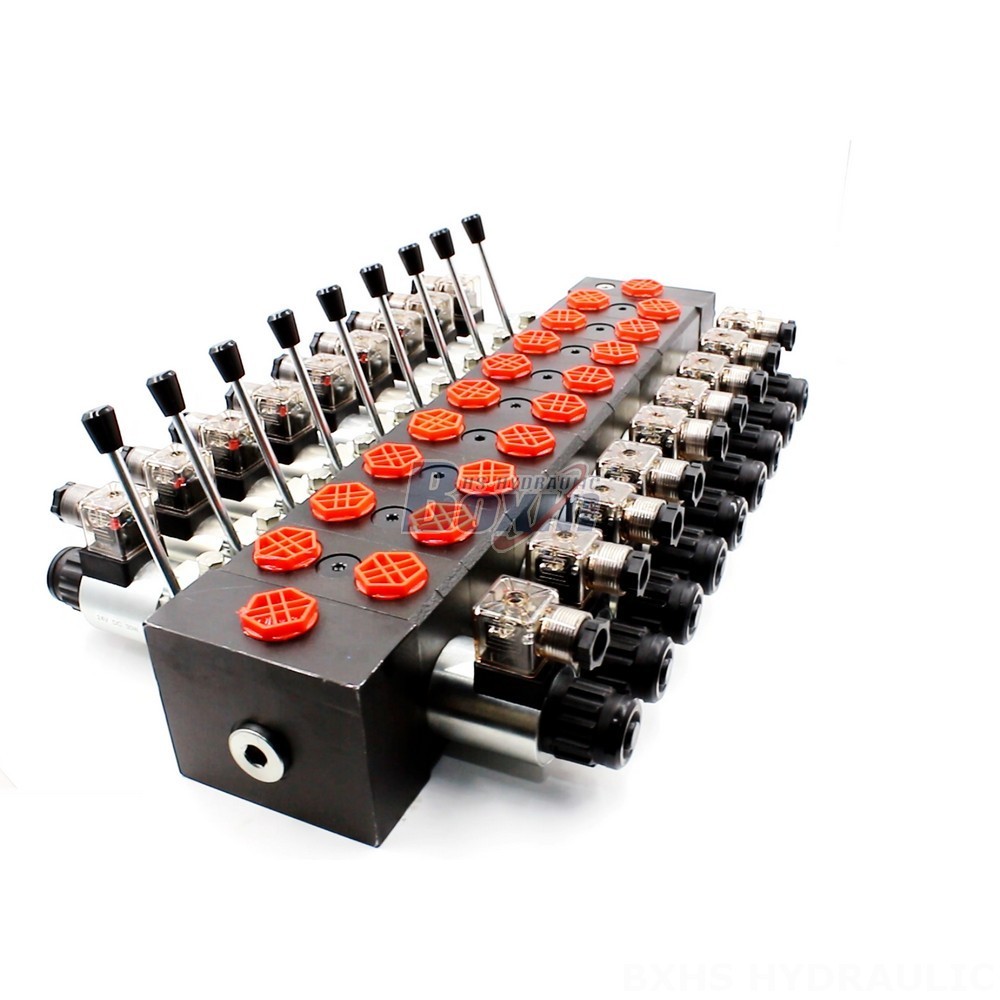

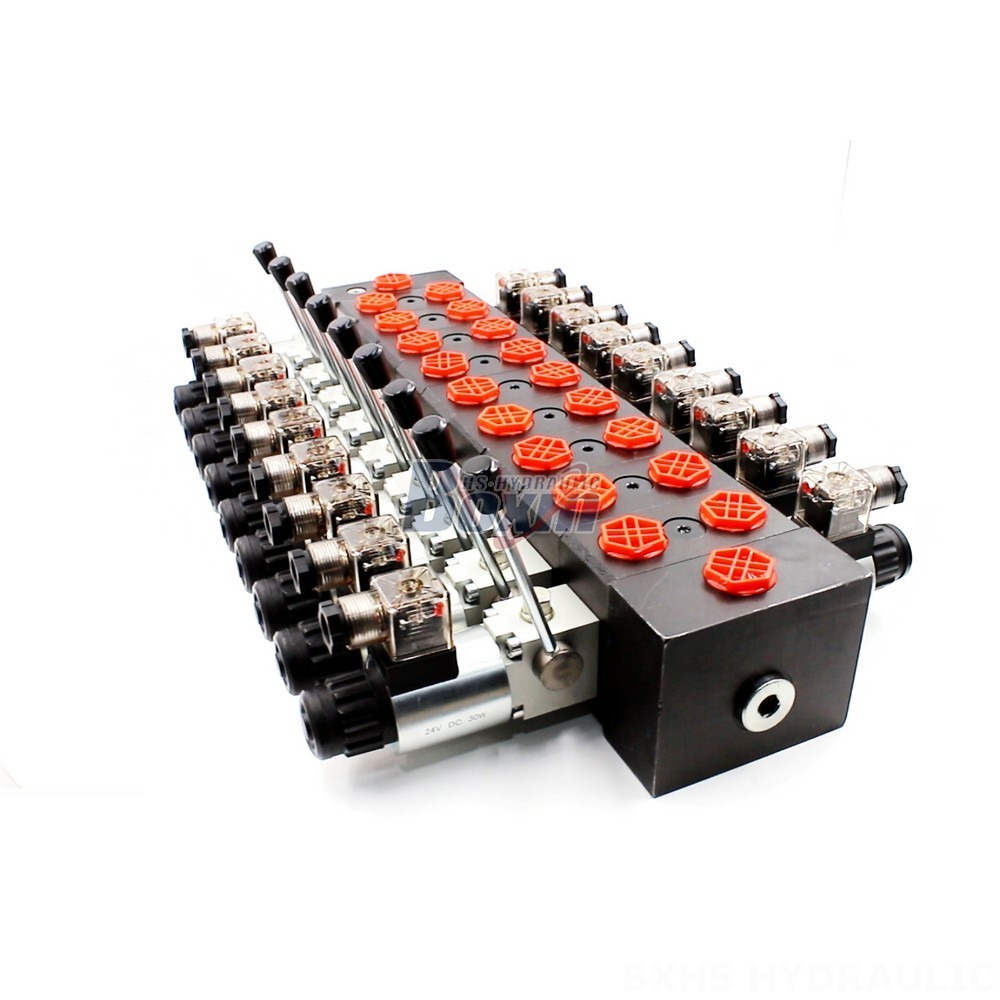

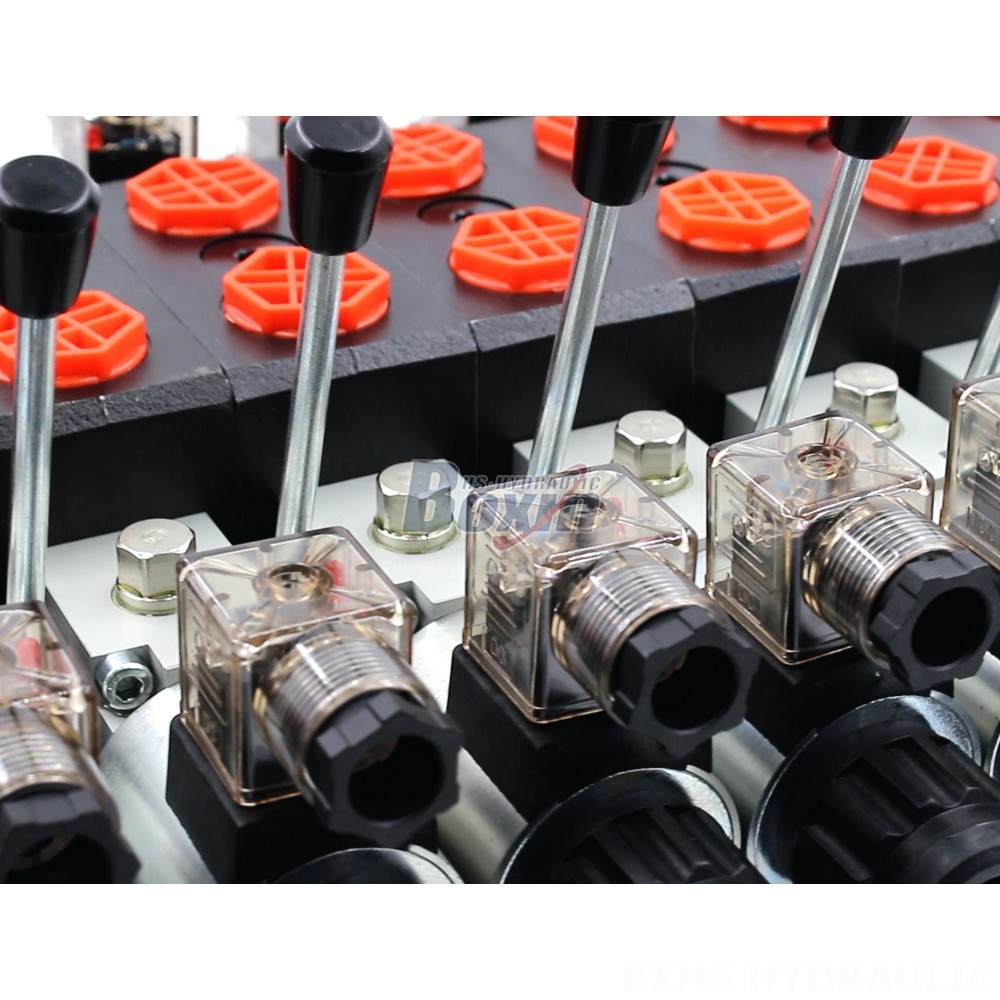

Customizable DCV58 Solenoid Valve: Meet Your Exact Requirements

Metoda sterowania:Elektromagnes

Szpula:9-sekcyjny

Przepływ znamionowy:60 l/min (15,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria DCV58 Zawór kierunkowy sekcyjny

Rozmiar opakowania:55*28*17

Waga brutto:33.00 kg

Dostępność: W magazynie

1764 Osoby oglądają ten produkt

Customizable DCV58 Solenoid Valve: Meet Your Exact Requirements

Customizable DCV58 Solenoid Valve: Meet Your Exact Requirements

Customizable DCV58 Solenoid Valve: Meet Your Exact Requirements drawing image

The DCV58 Series Backhoe Control Valve is a customizable, high-performance solenoid valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It offers a wide range of configurations to meet your specific requirements.

Seria DCV58 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Elektromagnes, Elektromagnetyczne i ręczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny, 11-sekcyjny, 12-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji, 11 Sekcji, 12 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 350 bar (5100 psi)
Port wlotowy G1/2, M22×1.5, SAE 10, 1/2 NPT
Port wylotowy G1/2, M22×1.5, SAE 10, 1/2 NPT
Rozmiar portu G1/2, M22×1.5, SAE 10, 1/2 NPT

The DCV58 Series Backhoe Control Valve is a 9-section, customizable solenoid valve with a rated flow of 60 L/min and a maximum pressure of 350 bar. It features a sectional valve structure for easy maintenance and repair. This valve is ideal for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. We offer a variety of customization options to ensure the valve meets your exact needs, including spool configurations, flow rates, pressure ratings, and mounting options. In addition to our standard products, we also offer OEM and private label services. Our experienced engineering team can work with you to develop a custom valve solution that meets your unique requirements.
