Control Valve: Ensuring Precision & Stability in Fluid Power Systems

Metoda sterowania:Ręczna

Szpula:5-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:SAE 10

Port wylotowy:SAE 10

Rozmiar portu:SAE 8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:28*23*13

Waga brutto:9.60 kg

Dostępność: W magazynie

1072 Osoby oglądają ten produkt

Control Valve: Ensuring Precision & Stability in Fluid Power Systems

Control Valve: Ensuring Precision & Stability in Fluid Power Systems

Control Valve: Ensuring Precision & Stability in Fluid Power Systems drawing image

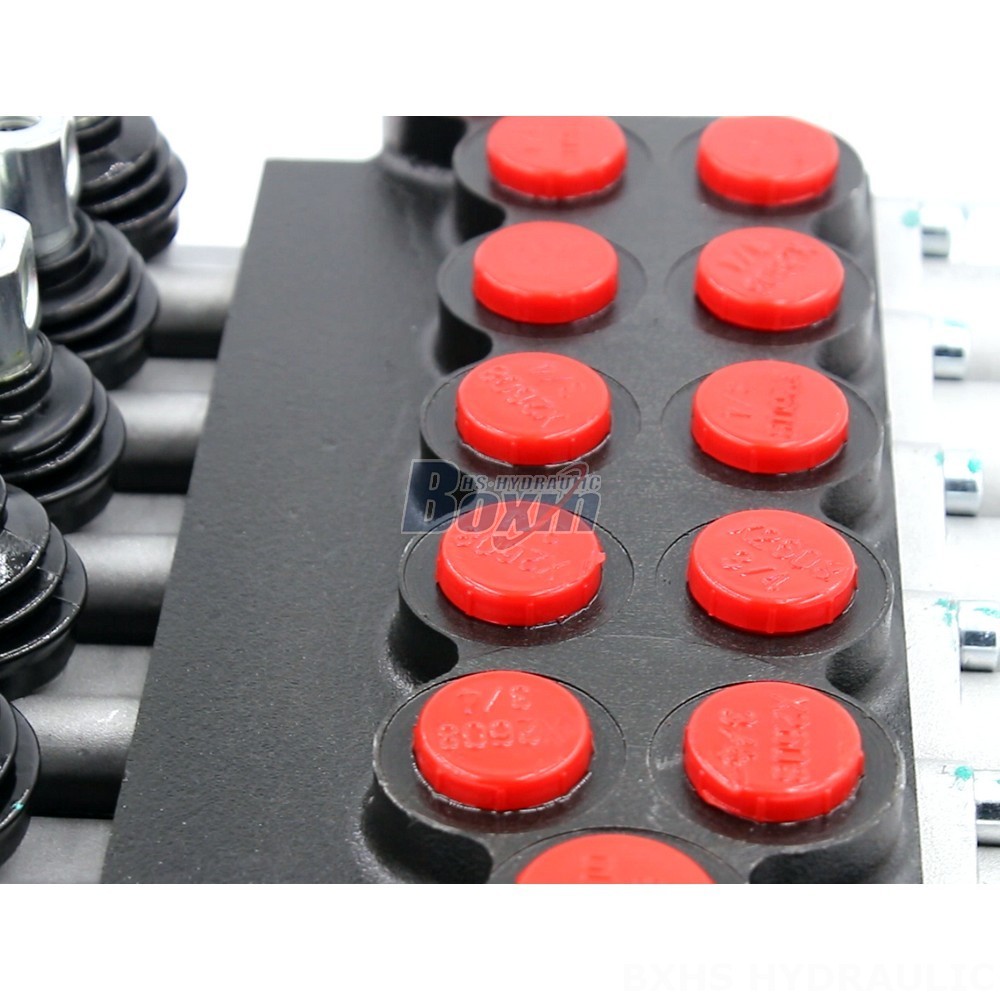

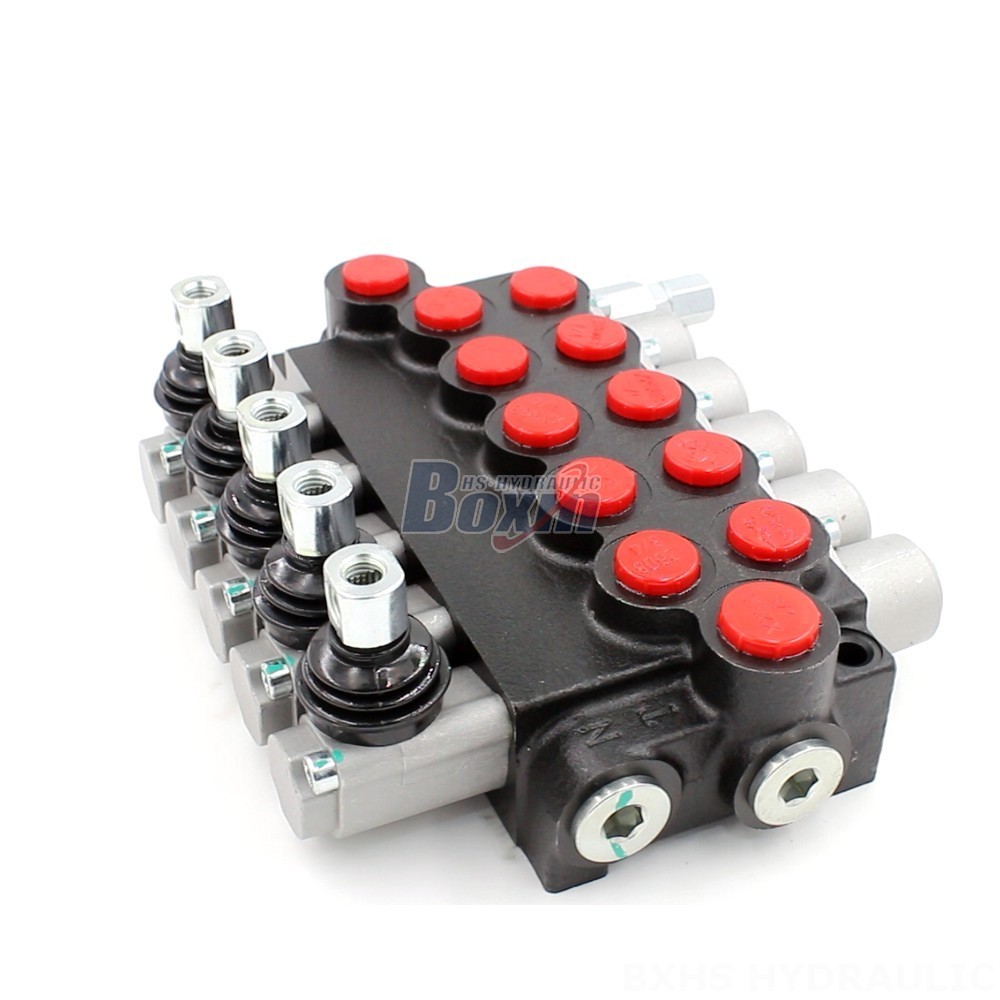

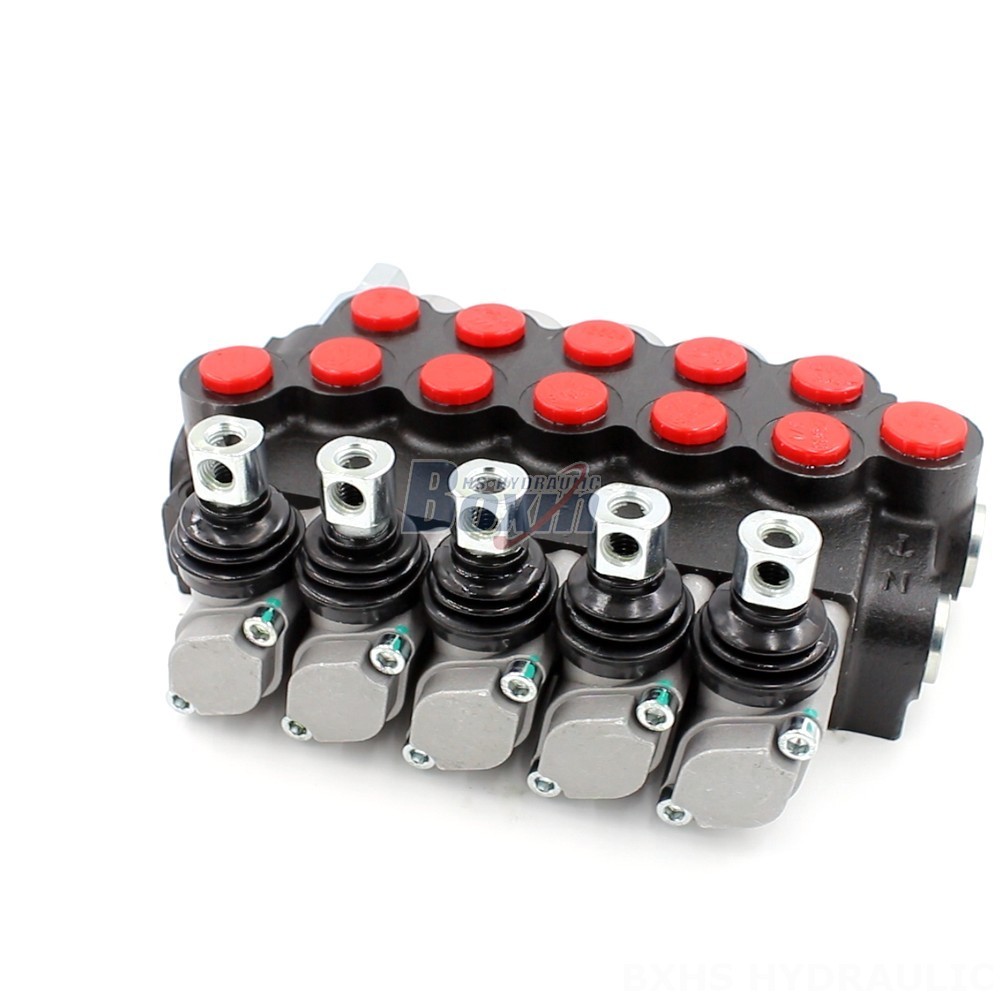

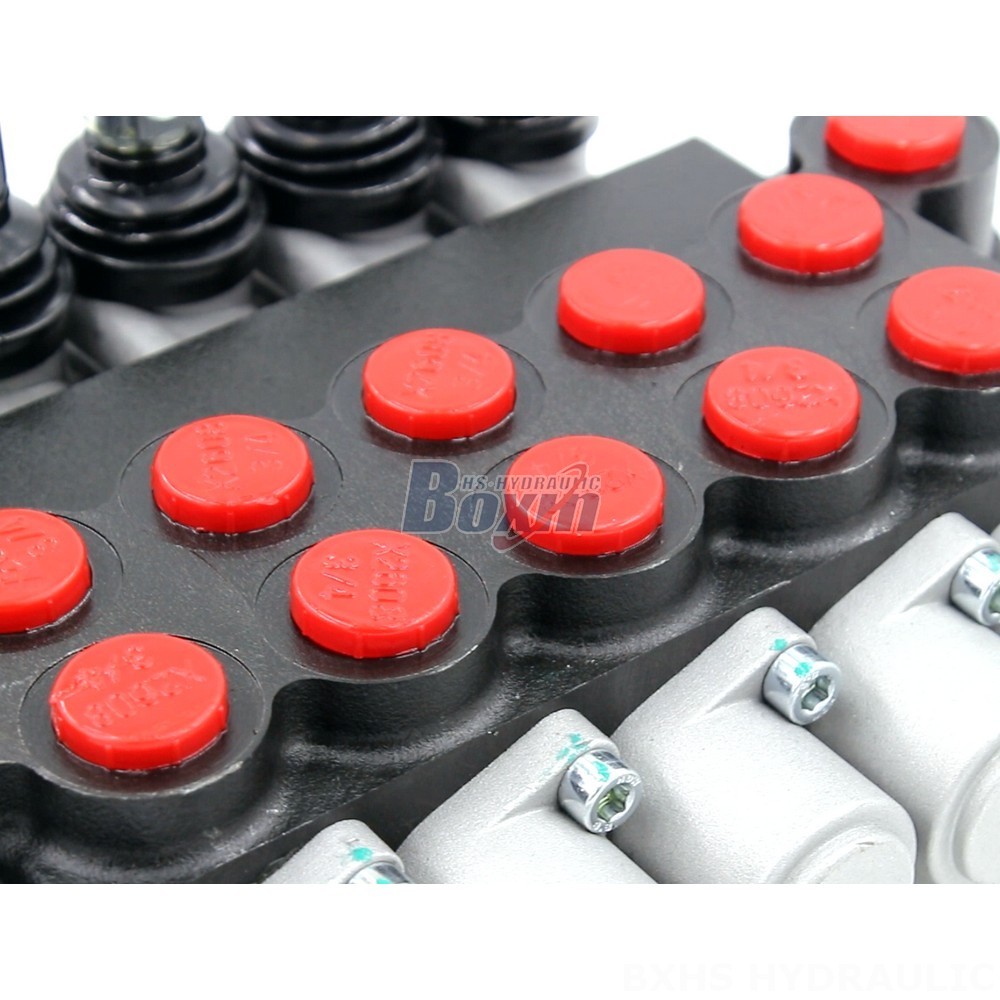

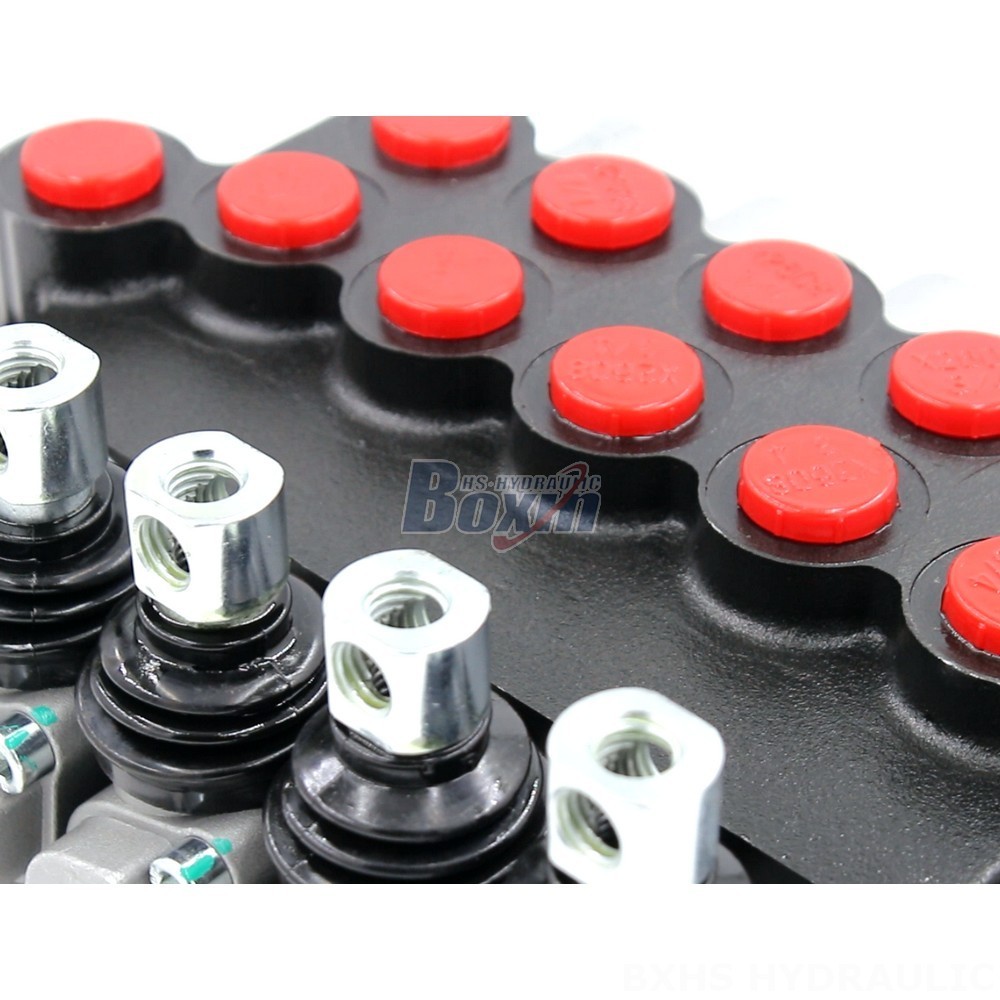

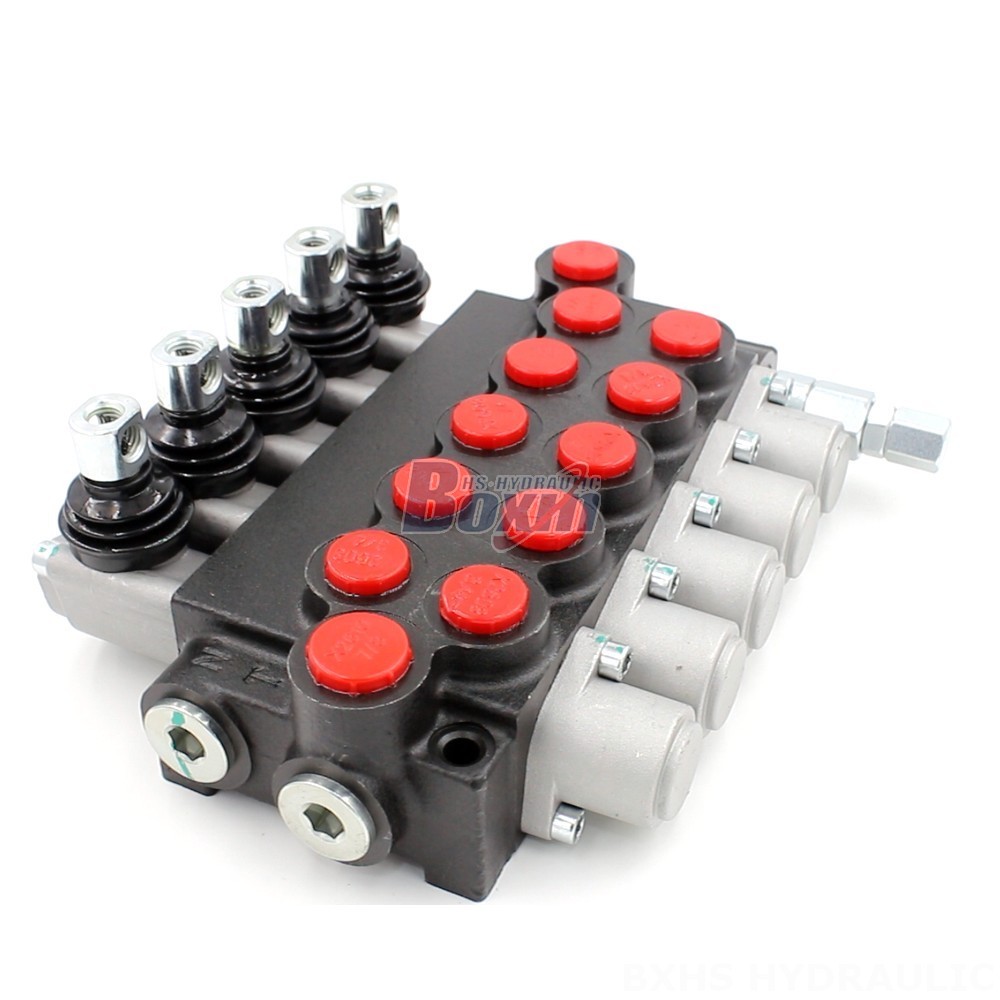

The P40 Series 5 Section Monoblock Hydraulic Valve is a high-performance electric control valve designed for demanding applications in material handling, construction, and industrial vehicles. This valve offers precise control, high flow rate, and reliable performance.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40 Series 5 Section Monoblock Hydraulic Valve is a versatile and durable solution for controlling hydraulic systems in a wide range of applications. It features a robust monoblock construction for enhanced strength and reliability. The valve's 5 section design allows for precise control of hydraulic functions with a high flow rate up to 40 L/min. With a maximum pressure rating of 250 bar, this valve is suitable for demanding applications. The P40 Series is specifically designed for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, and face drill rigs. The valve's manual control provides reliable operation and easy integration into existing hydraulic systems. It is also engineered to operate within a wide temperature range, ensuring optimal performance across various environments. The P40 Series is a highly sought-after hydraulic valve for its precision control, high flow rate, and reliable performance, making it a top choice for manufacturers and distributors of hydraulic equipment.
