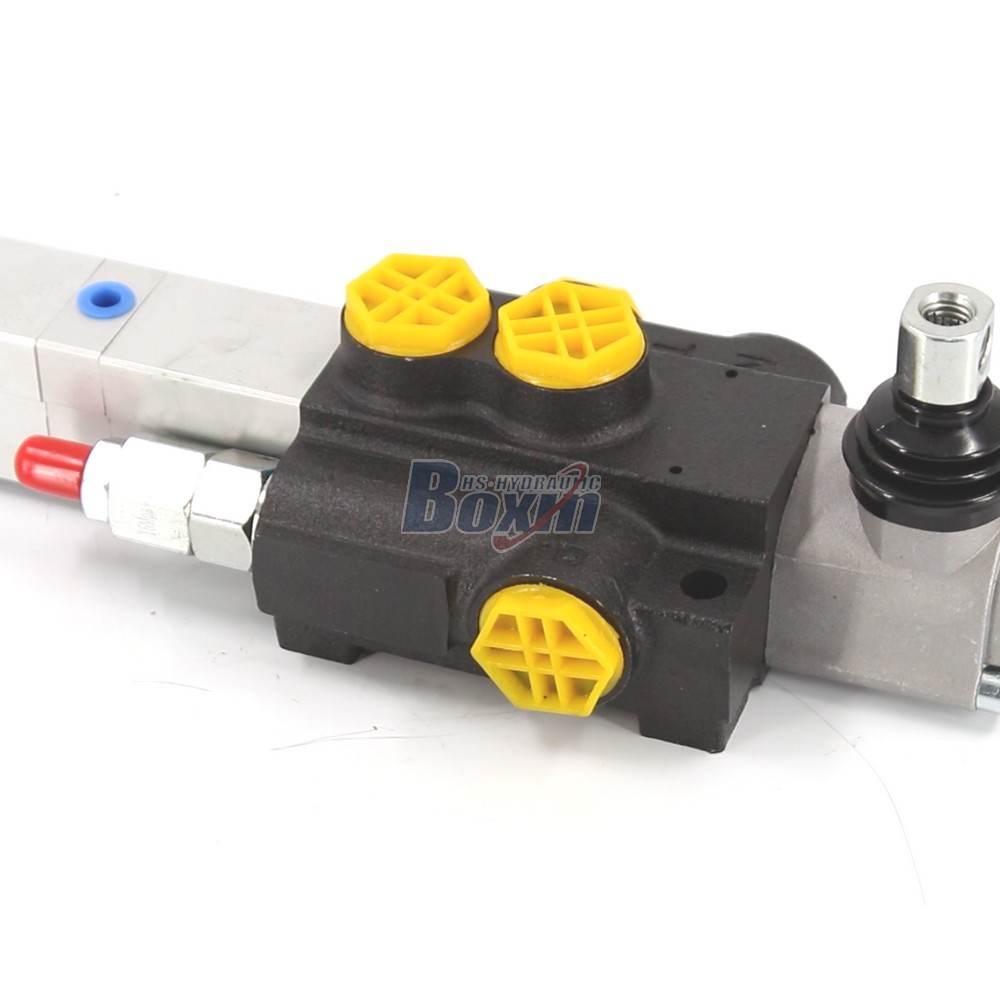

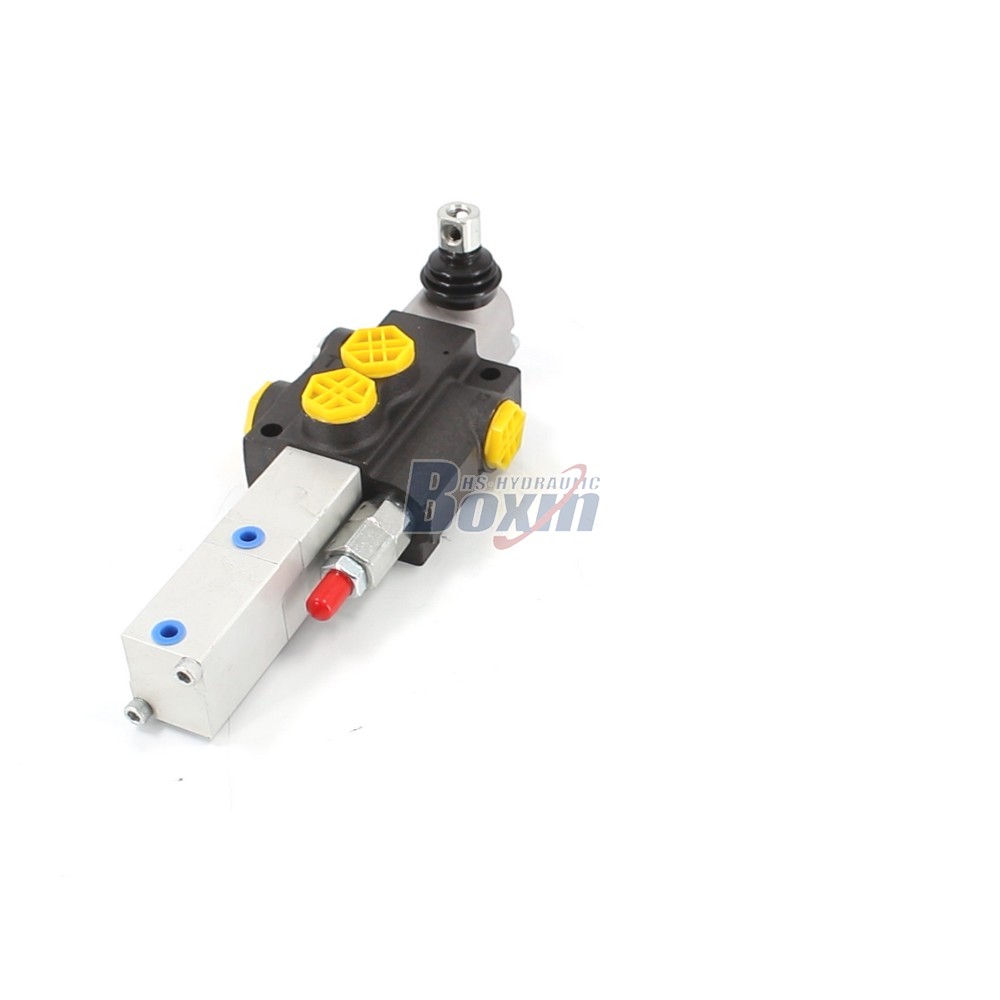

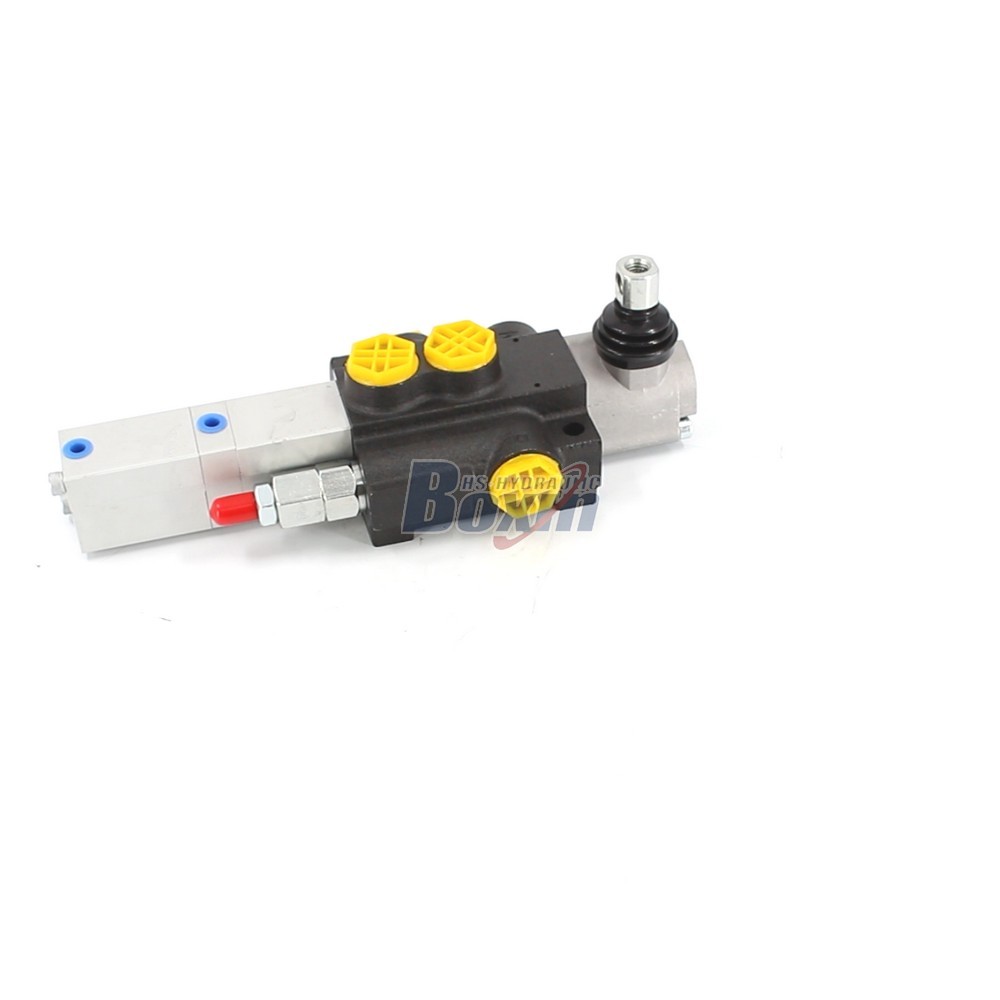

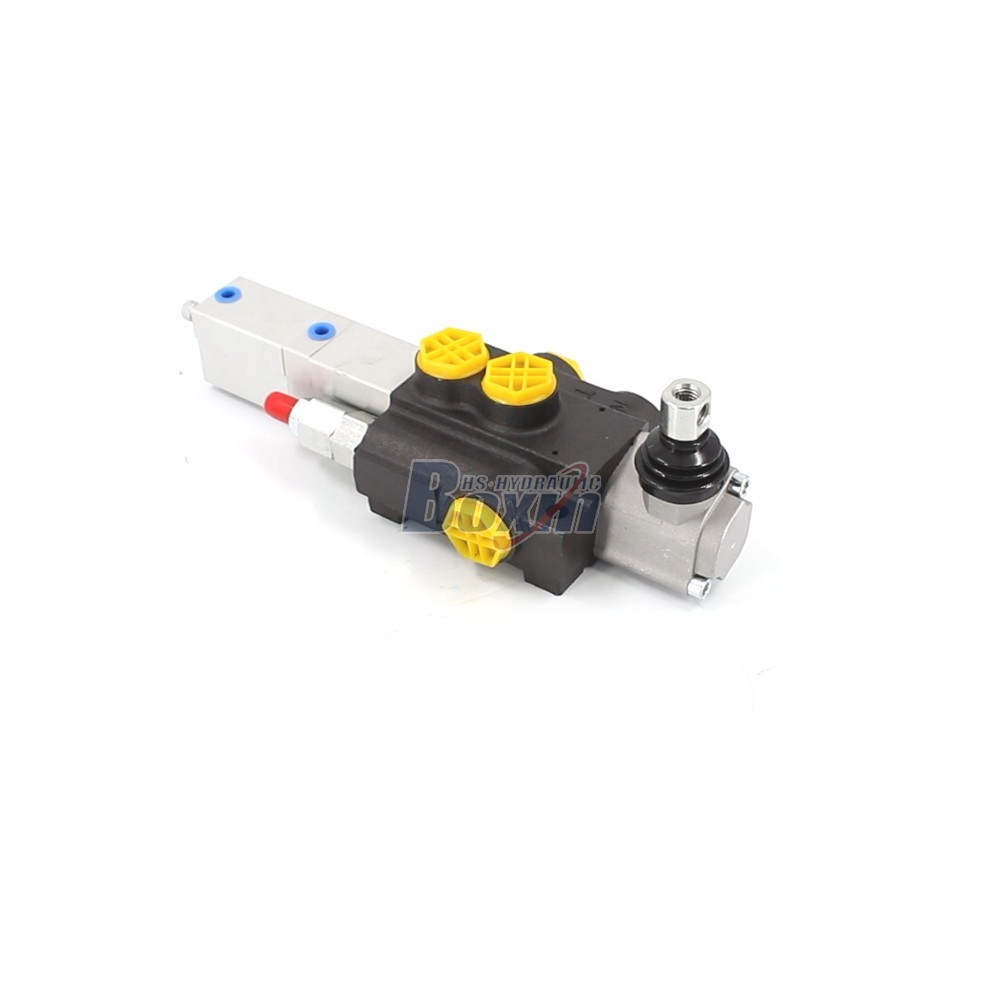

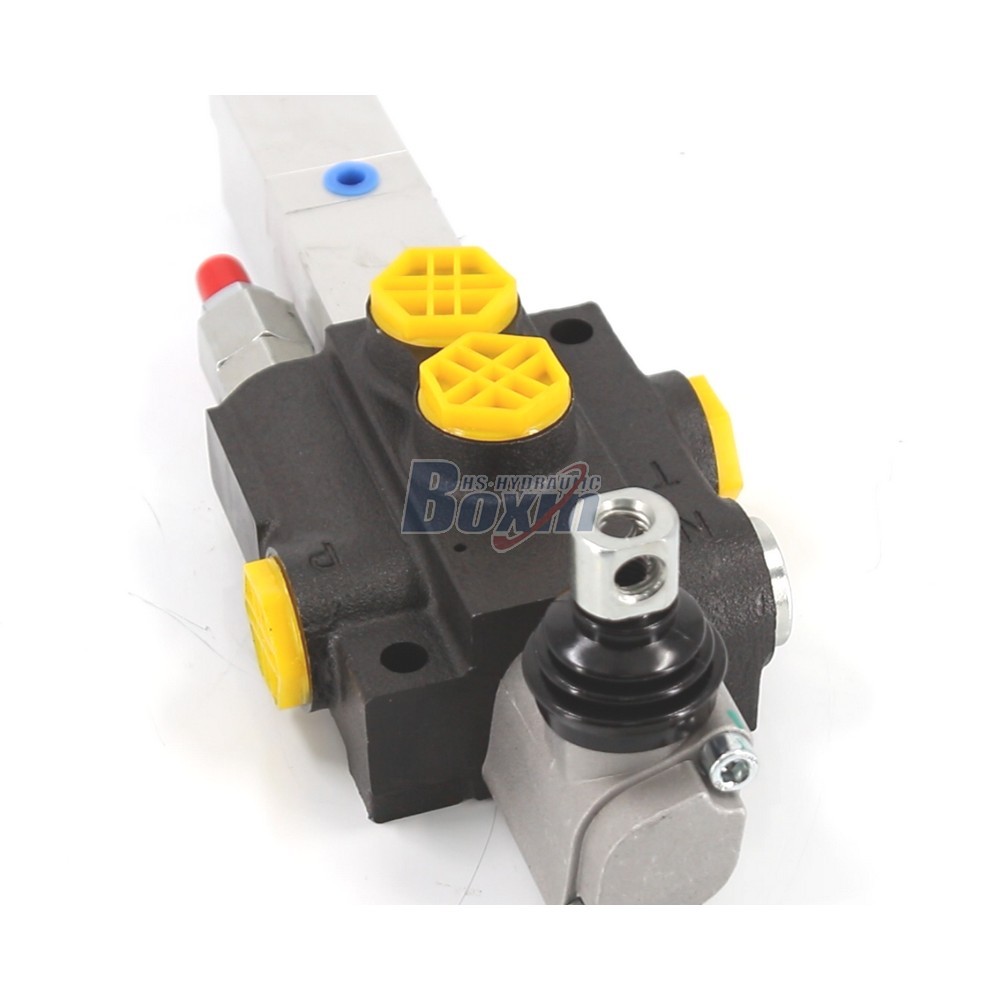

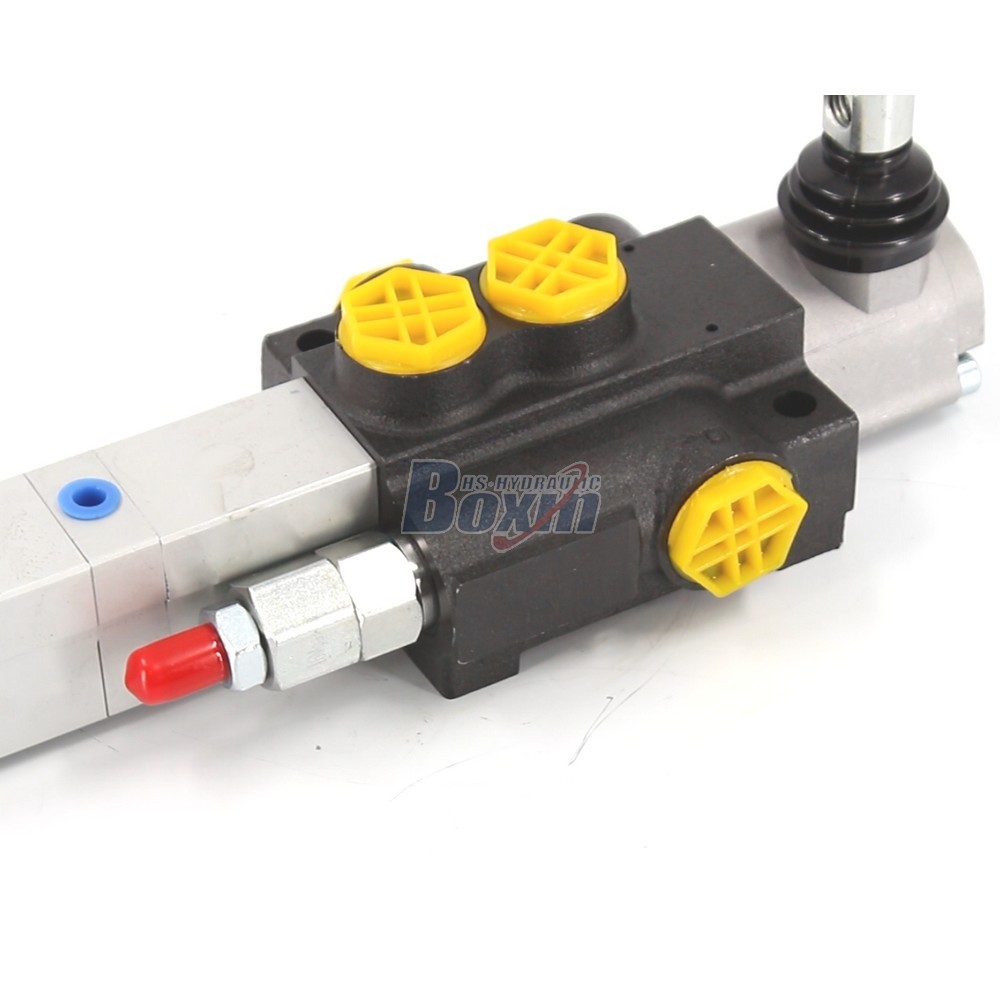

China Leading Manufacturer of P40Q-OT Pneumatic Directional Valves

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:29*16*11

Waga brutto:3.50 kg

Dostępność: W magazynie

115 Osoby oglądają ten produkt

China Leading Manufacturer of P40Q-OT Pneumatic Directional Valves

China Leading Manufacturer of P40Q-OT Pneumatic Directional Valves

China Leading Manufacturer of P40Q-OT Pneumatic Directional Valves drawing image

As a leading manufacturer, we provide the P40Q-OT pneumatic directional valve, featuring a 40 L/min flow rate and 250 bar pressure rating. This 1-spool series is designed for versatile applications in agriculture, construction, and material handling.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

We are a large-scale hydraulic manufacturer supplying the global market with high-performance P40Q-OT pneumatic directional valves. Designed for durability and precision, this 1-spool valve manages 40 L/min flow and 250 bar pressure, making it ideal for forklifts, mini-excavators, tractors, and wood splitters. Our factory offers comprehensive services including manufacturing, OEM, private labeling, and custom solutions to meet specific technical requirements. We specialize in wholesale supply and are actively seeking strategic partnerships with distributors, wholesalers, agents, and traders worldwide. By choosing our factory supply, you benefit from direct wholesale pricing and professional manufacturing expertise. Whether you need reliable components for material handling or agricultural machinery, our P40 series provides a robust solution. Join our global network to leverage our manufacturing capabilities and expand your product portfolio with high-quality pneumatic control solutions.
