Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

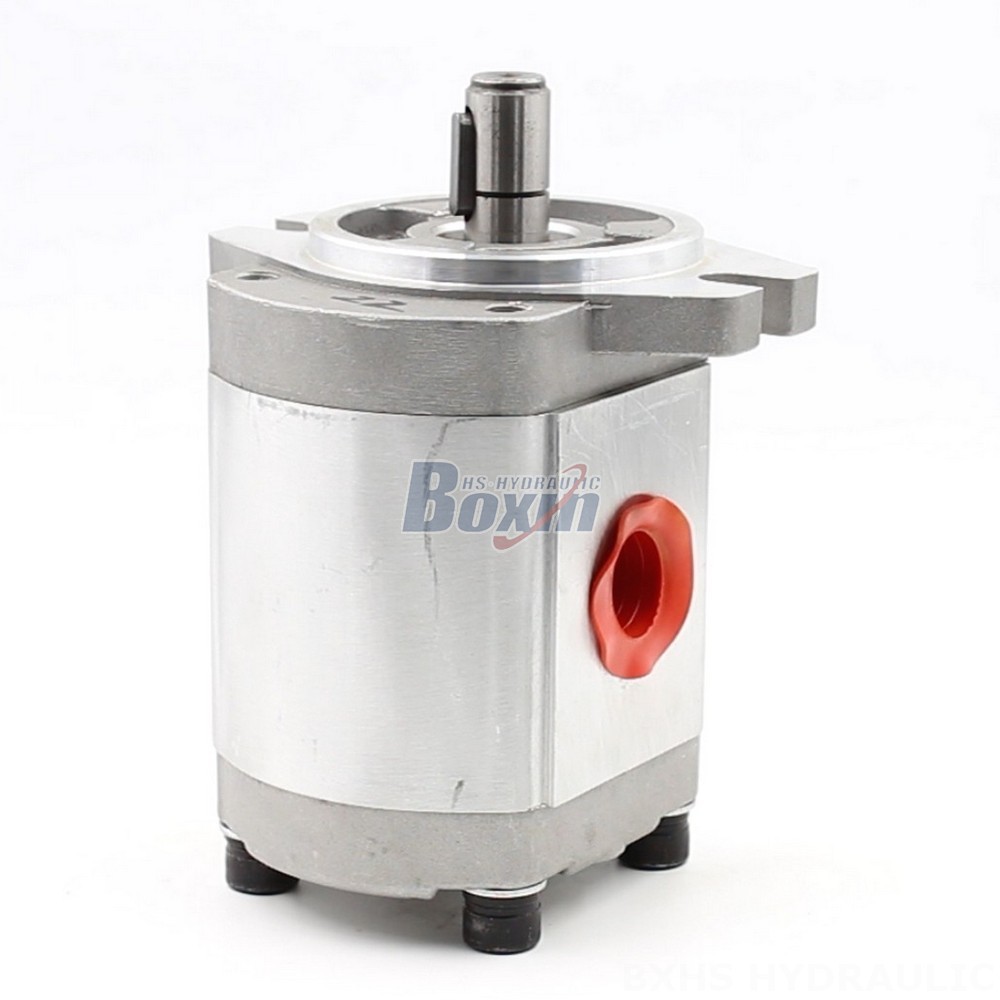

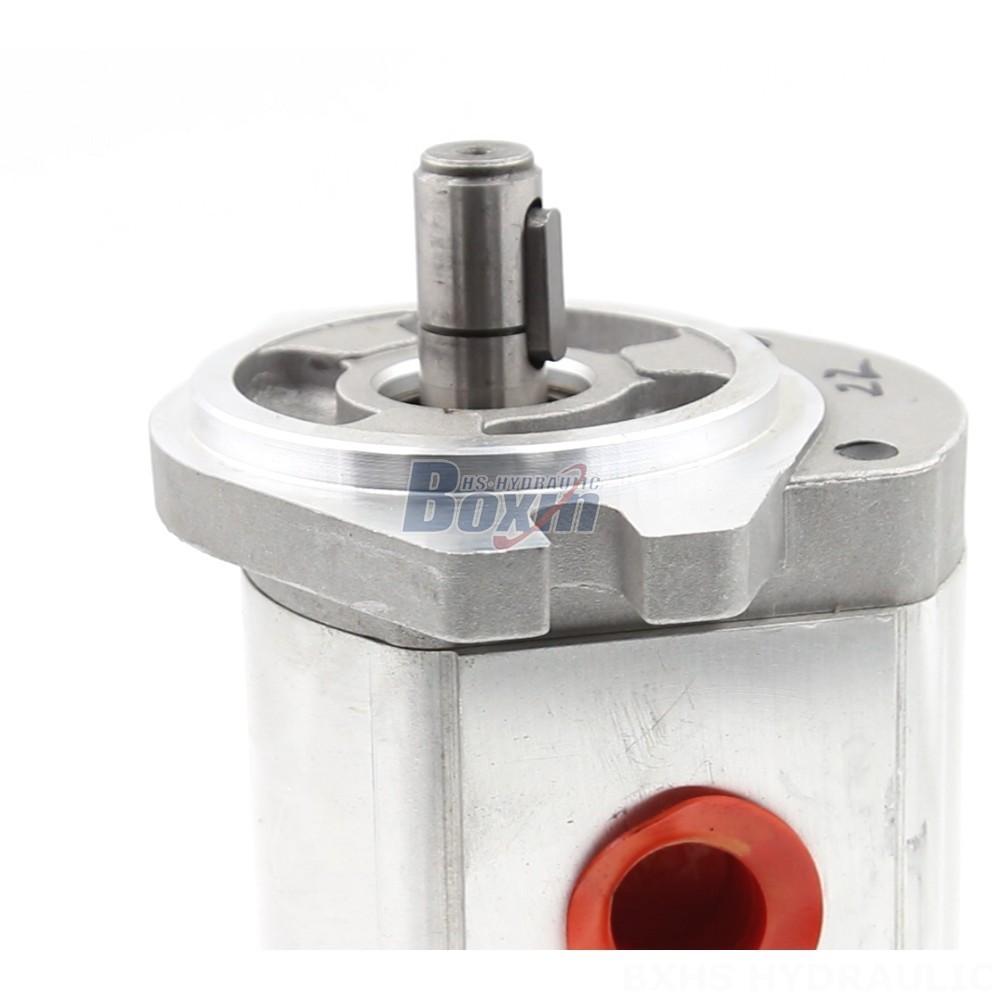

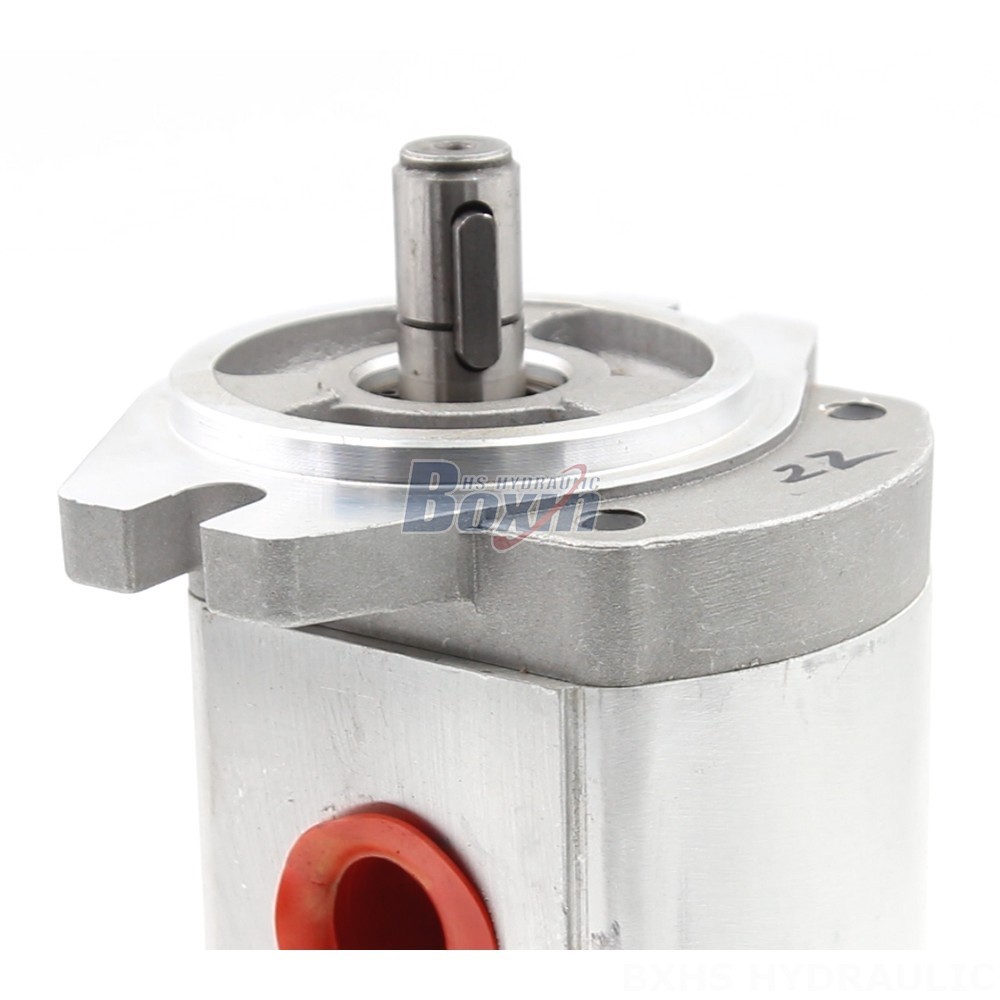

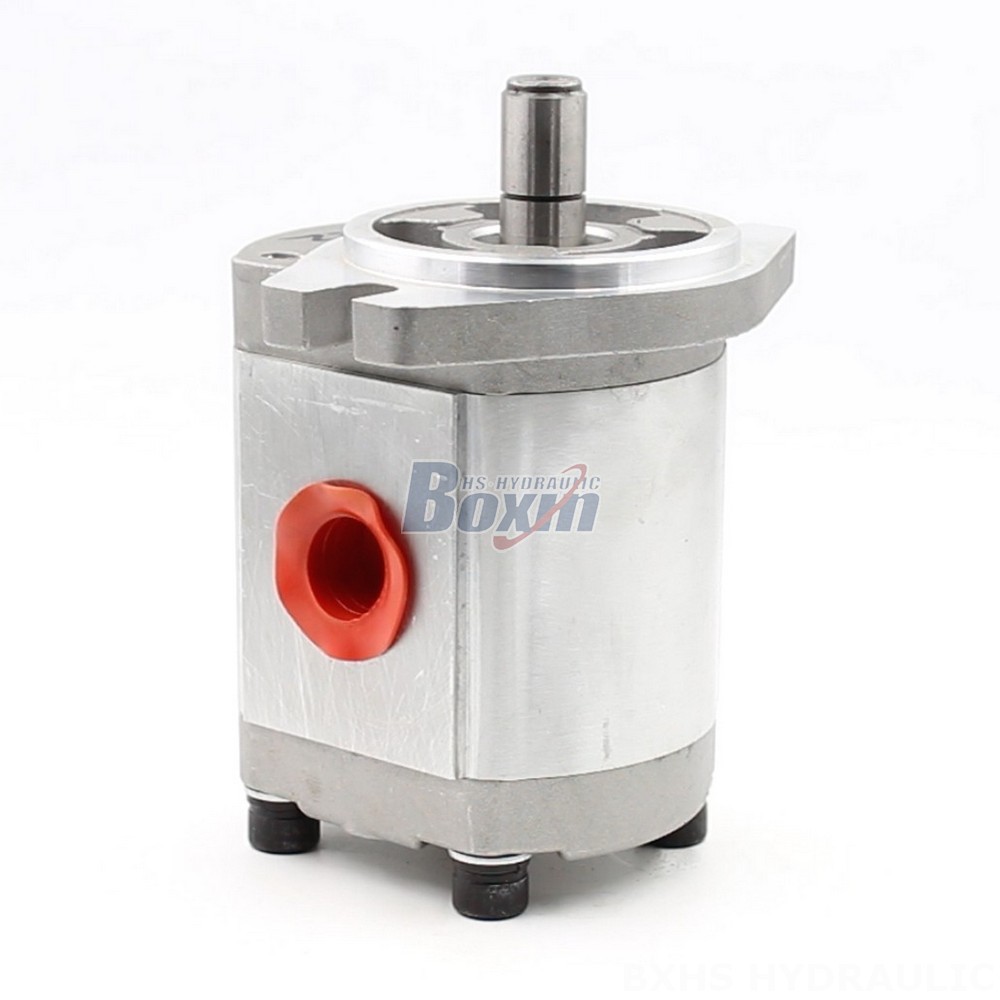

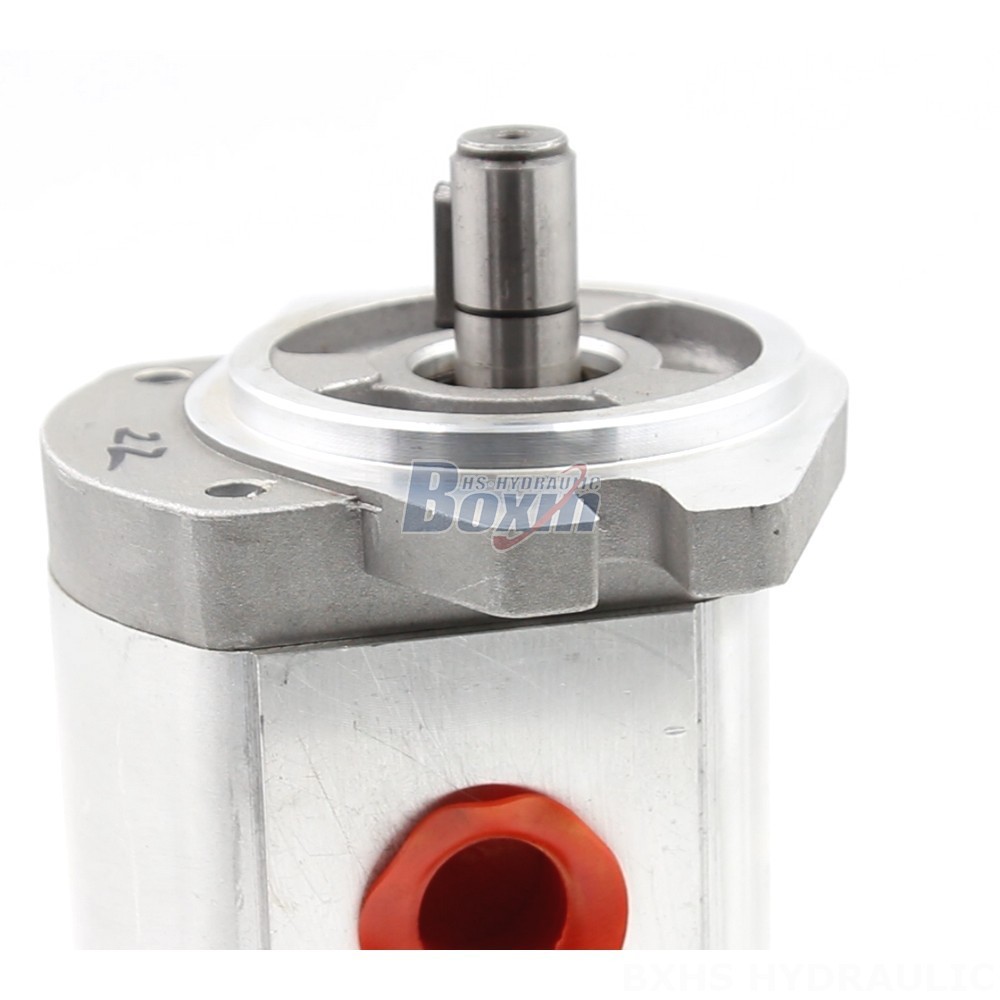

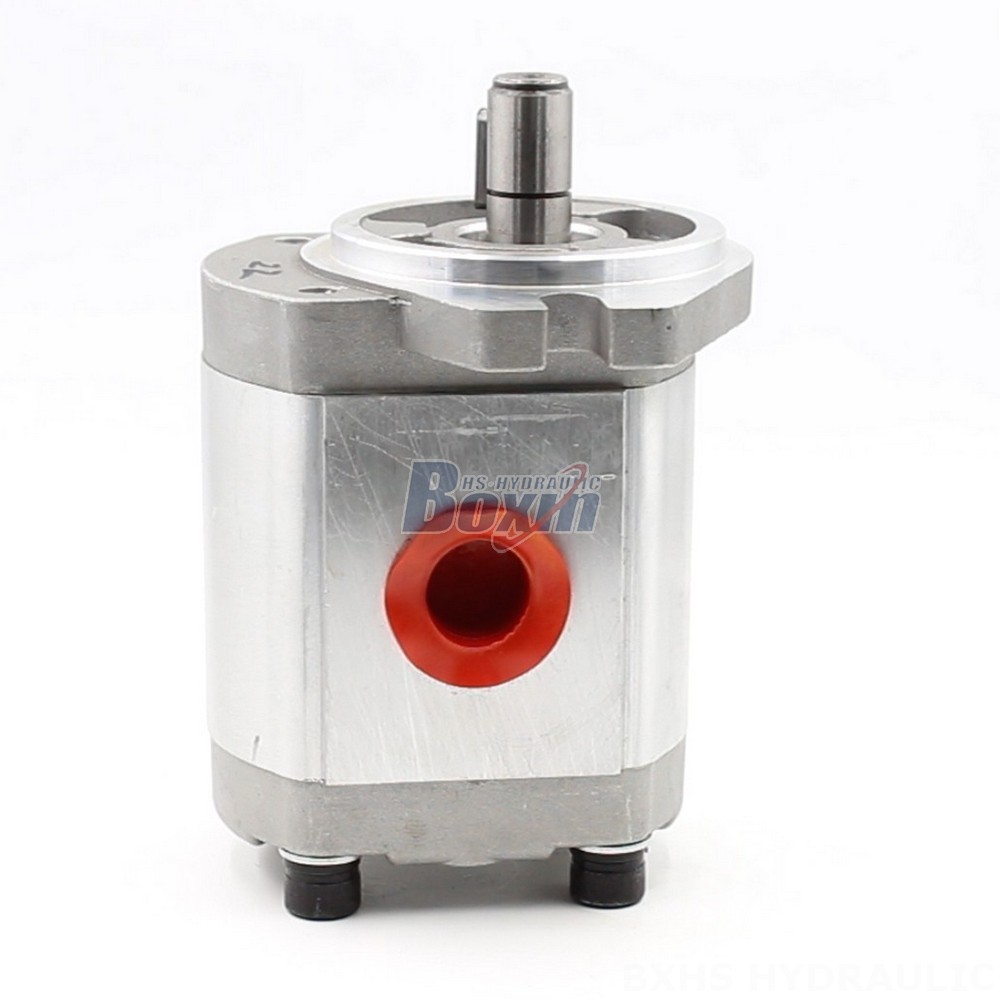

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable, and reliable pump designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed, making it ideal for demanding environments.
| Seria CBHS-FL3 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 10 cm³/obr, 4 cm³/obr, 20 cm³/obr, 16 cm³/obr, 14 cm³/obr, 6 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 3000 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Aluminium |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Flange owalny A |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and efficient internal gear pump, manufactured with high-quality aluminum material. It features an A-Oval flange design and a plain key shaft, making it compatible with various machinery. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump delivers exceptional performance in demanding applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump is also customizable to meet specific requirements. As a manufacturer, we provide manufacturing, OEM, private label, and customization services, along with global distribution network support.
