BZZ1-E100C hydraulic steering unit, 100 ml/r displacement, 16 MPa max pressure. Factory wholesale prices. Ideal for material handling, construction, and agricultural applications. OEM/ODM available.
| Seria BZZ1 Jednostka sterująca Parametry | |
|---|---|
| Pojemność skokowa | 50 ml/obr, 63 ml/obr, 100 ml/obr, 80 ml/obr, 125 ml/obr, 160 ml/obr, 200 ml/obr, 250 ml/obr, 280 ml/obr, 315 ml/obr, 400 ml/obr, 500 ml/obr, 630 ml/obr, 800 ml/obr, 1000 ml/obr |
| Zespół zaworów | Dostosowywalny |
| Materiał | Żeliwo |
| Przepływ znamionowy | 5 l/min, 6 l/min, 4 l/min, 7,5 l/min, 9,5 l/min, 12 l/min, 15 l/min, 19 l/min, 21 l/min, 24 l/min, 30 l/min, 38 l/min, 48 l/min, 60 l/min, 75 l/min |
| Maksymalne ciągłe ciśnienie zwrotne | 2,5 MPa |
| Maksymalne ciśnienie wejściowe | 16 MPa |

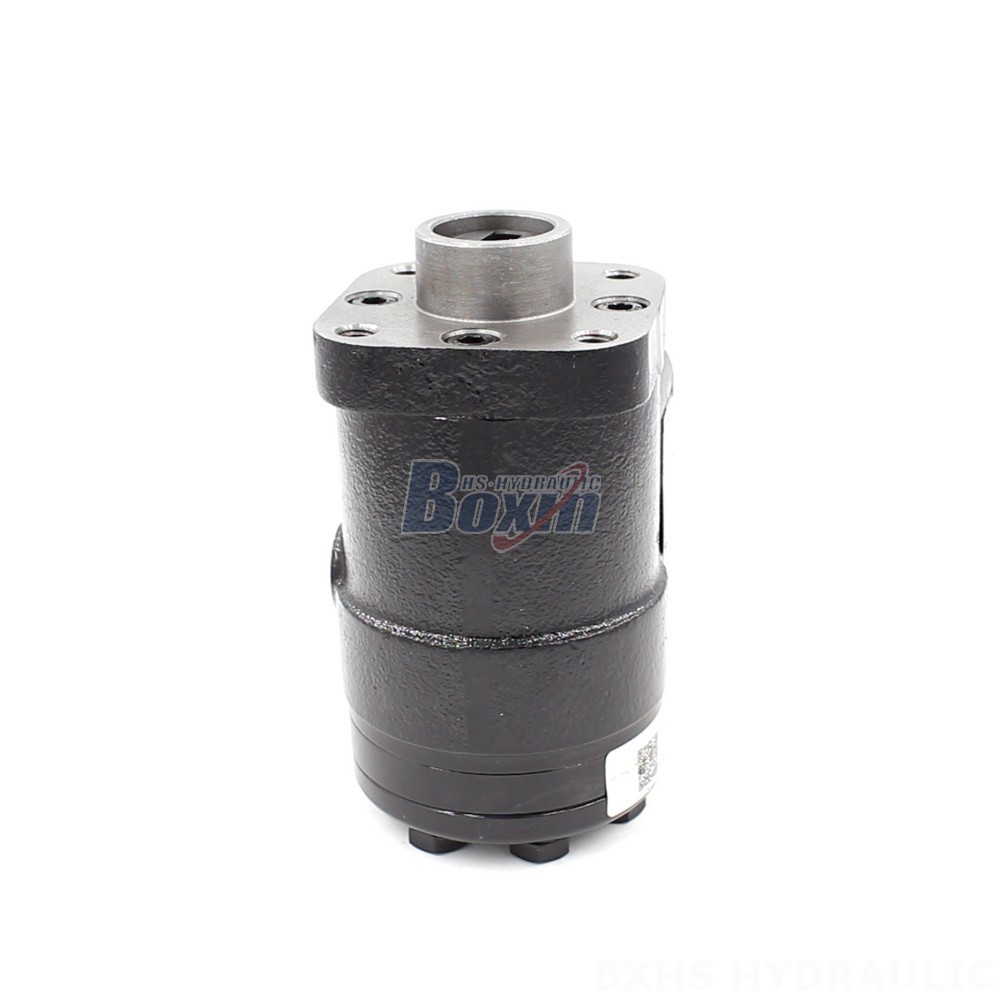

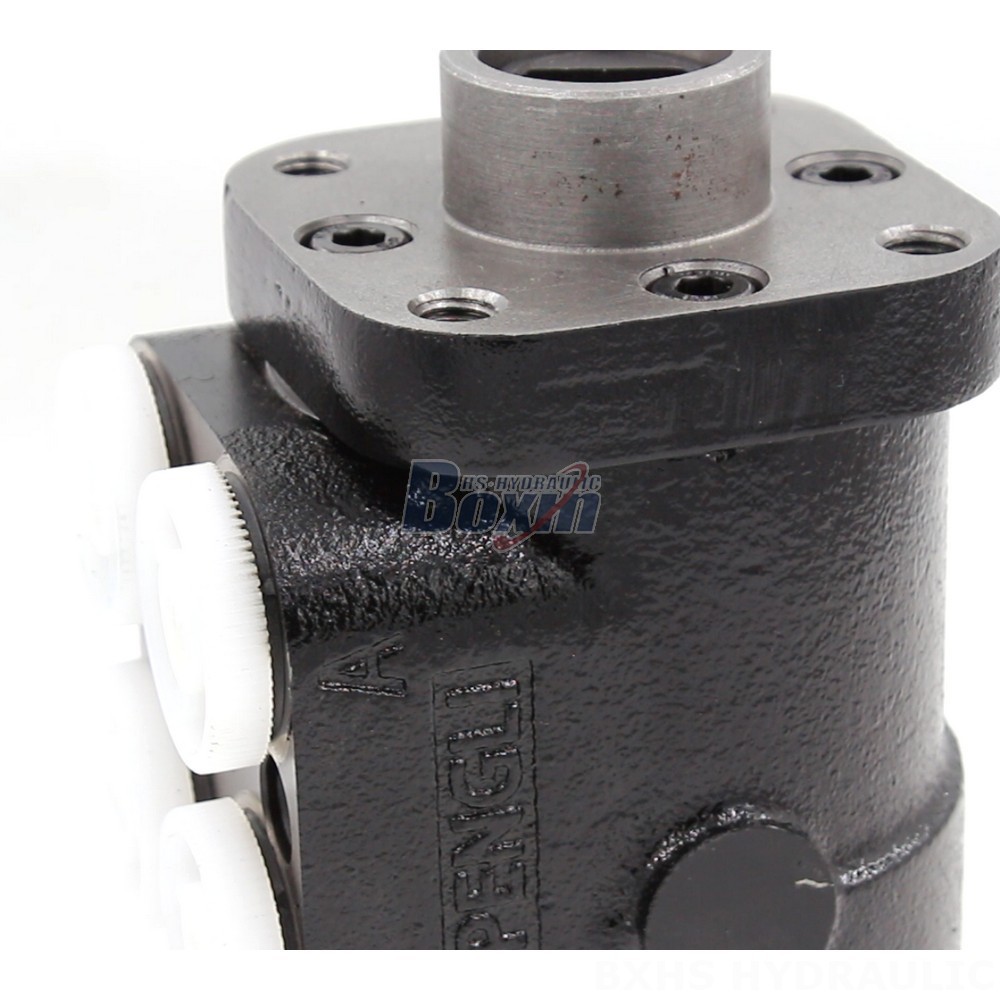

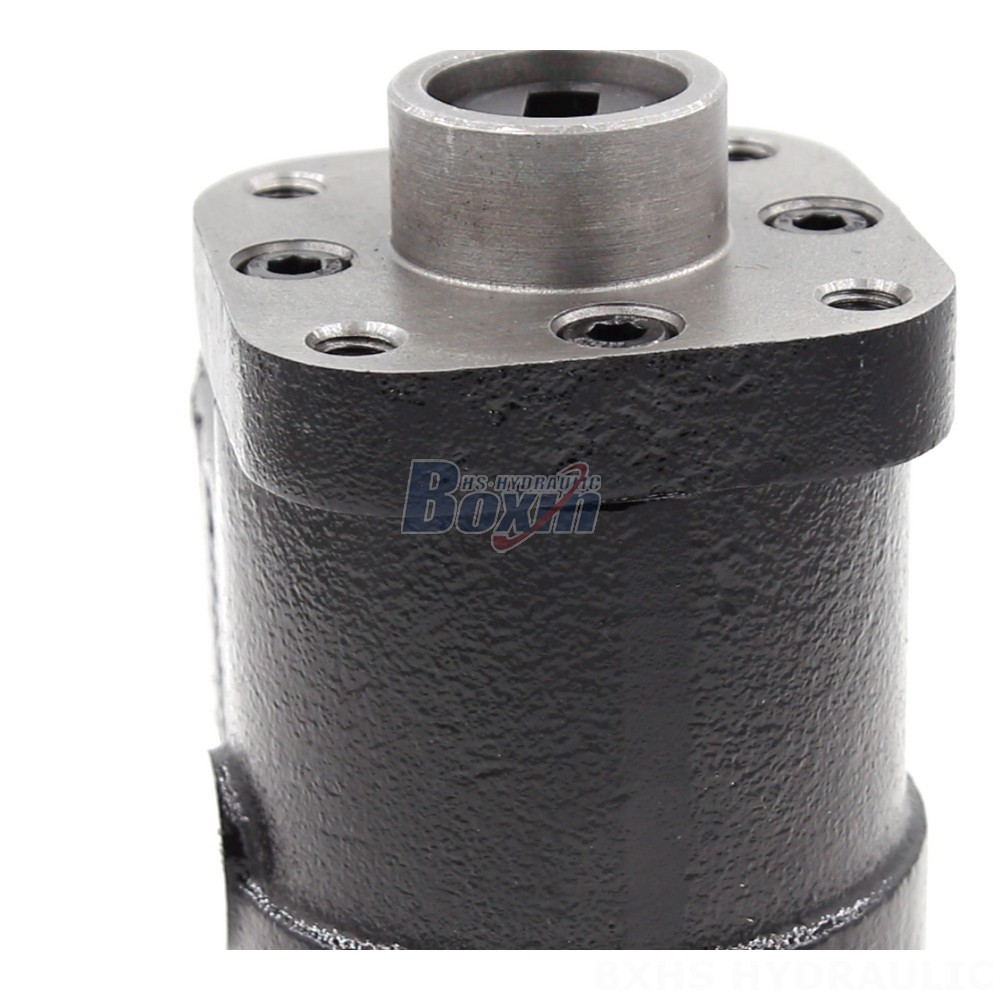

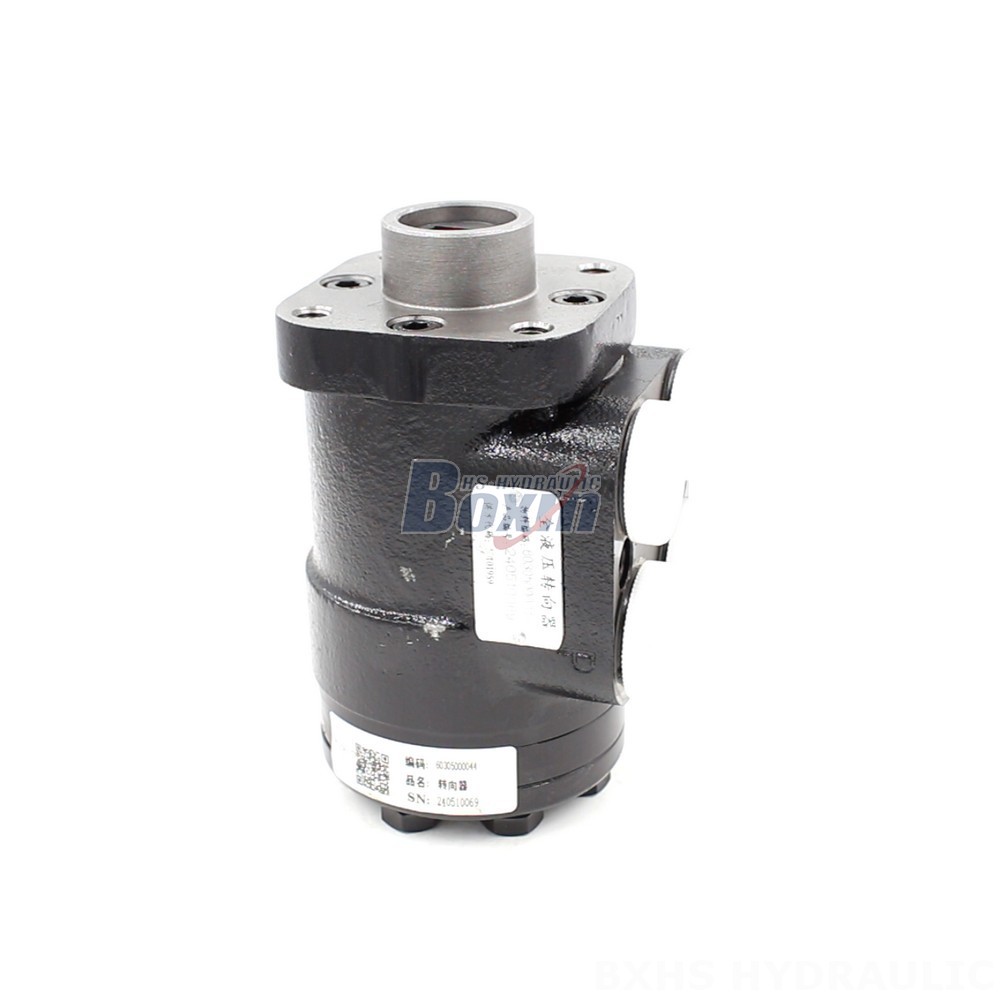

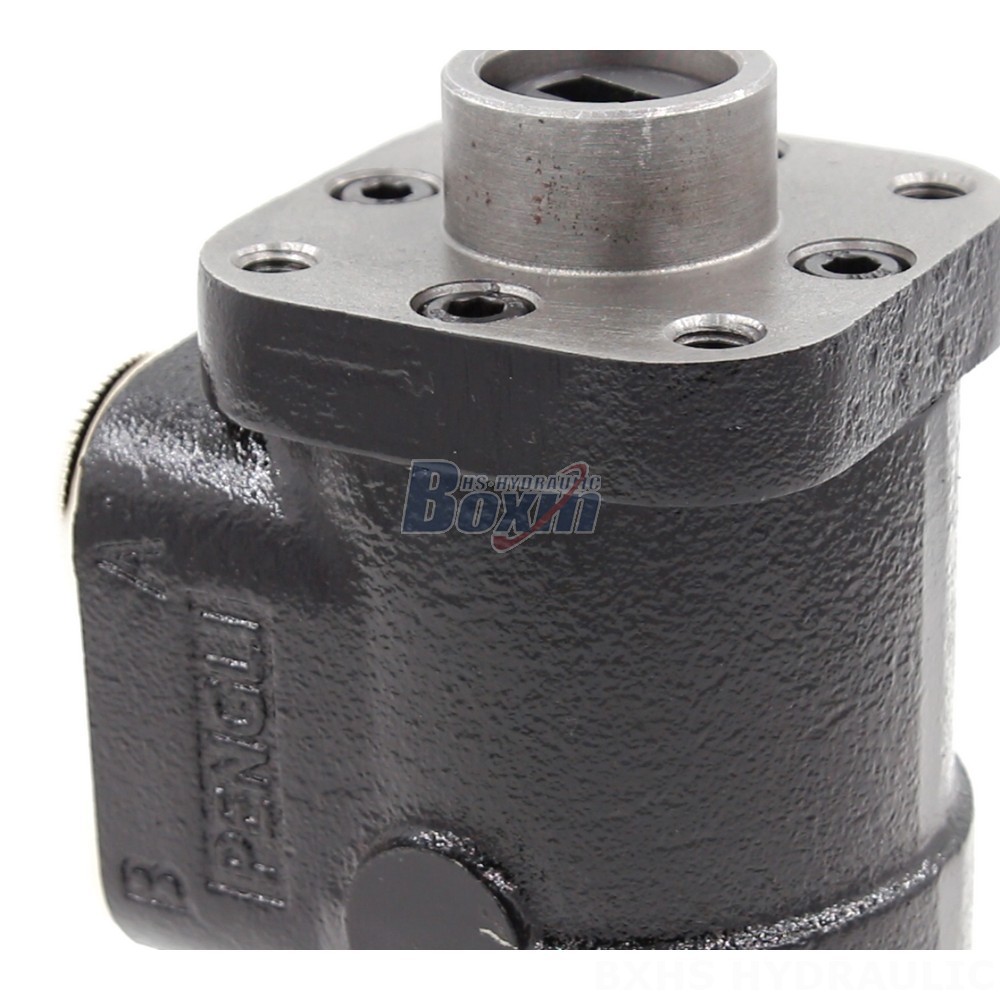

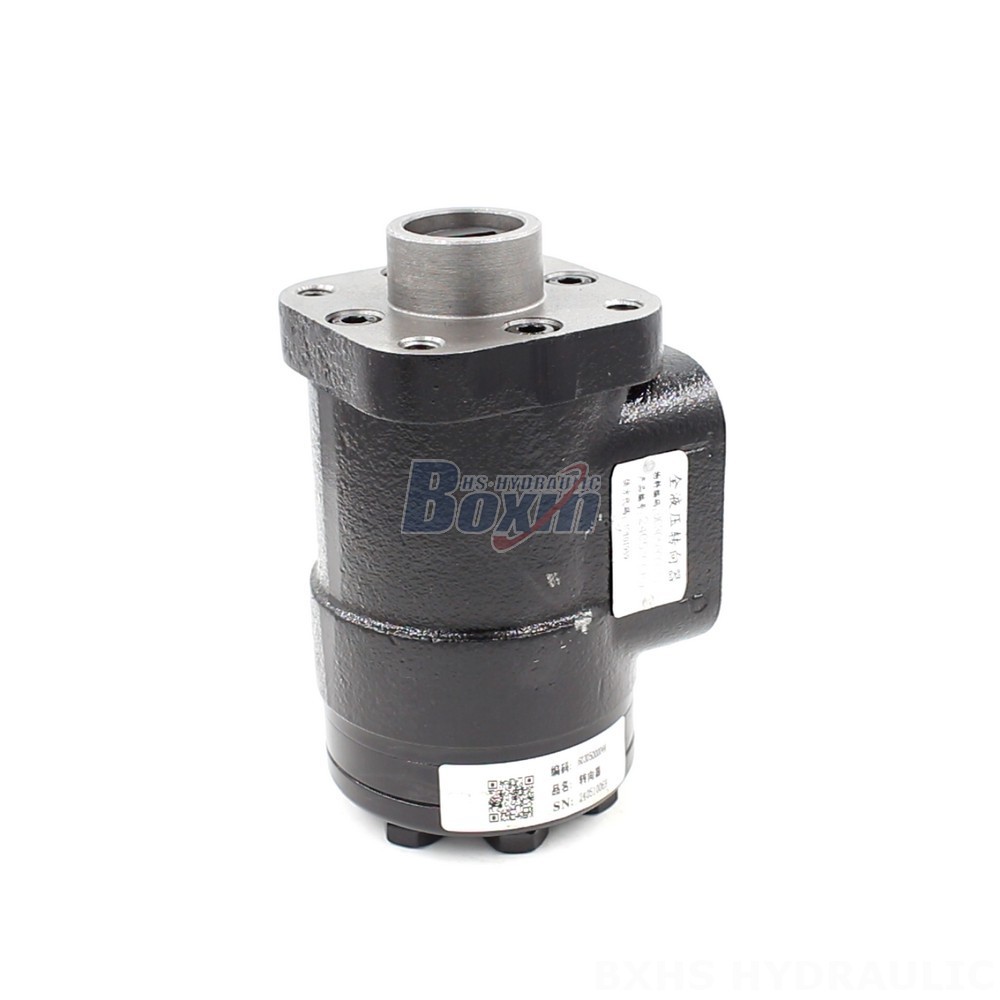

The BZZ1-E100C hydraulic steering unit is a high-performance, reliable component designed for a wide range of applications. With a displacement of 100 ml/r and a maximum input pressure of 16 MPa, it delivers a rated flow of 7.5 L/min. Constructed from durable cast iron, this unit features a customizable valve block for optimal performance in your specific application.
**Key Features:**
* Displacement: 100 ml/r
* Max Input Pressure: 16 MPa
* Max Cont Back Pressure: 2.5 MPa
* Rated Flow: 7.5 L/min
* Material: Cast Iron
* Customizable Valve Block
**Applications:**
* Material Handling
* Construction and Earth Moving
* Industrial Vehicles
* Agriculture
**Applicable Models:**
* Forklifts
* Telehandlers
* Skid Steer Loaders
* Compact Wheel Loaders
* Mini-Excavators
* Tractors and Front-End Loaders
* Harvesters
* Balers
We are a hydraulic product manufacturer offering **manufacturing, OEM, ODM, customization, and wholesale** services to global markets. We are actively seeking distributors, wholesalers, agents, and trading companies to partner with us. Benefit from our **factory wholesale prices** and high-quality products. As a **manufacturer and factory supplier**, we provide competitive pricing and reliable supply chains. Contact us today to discuss your requirements and explore the opportunities for collaboration. We offer **factory direct wholesale** pricing for bulk orders. Let's build a mutually beneficial partnership.
