Produkcja i dostawa
Czas realizacji produkcji 15-30 dni
Innowacja napędza rozwój. Technologia tworzy przyszłość.
562 Osoby oglądają ten produkt
High-quality BZZ1-E100C hydraulic steering unit (100ml/r displacement) for material handling, construction, and industrial vehicles. We offer manufacturing, OEM, ODM, customization, and wholesale options. Distributors worldwide are welcome!
| Seria BZZ1 Jednostka sterująca Parametry | |
|---|---|
| Pojemność skokowa | 50 ml/obr, 63 ml/obr, 100 ml/obr, 80 ml/obr, 125 ml/obr, 160 ml/obr, 200 ml/obr, 250 ml/obr, 280 ml/obr, 315 ml/obr, 400 ml/obr, 500 ml/obr, 630 ml/obr, 800 ml/obr, 1000 ml/obr |
| Zespół zaworów | Dostosowywalny |
| Materiał | Żeliwo |
| Przepływ znamionowy | 5 l/min, 6 l/min, 4 l/min, 7,5 l/min, 9,5 l/min, 12 l/min, 15 l/min, 19 l/min, 21 l/min, 24 l/min, 30 l/min, 38 l/min, 48 l/min, 60 l/min, 75 l/min |
| Maksymalne ciągłe ciśnienie zwrotne | 2,5 MPa |
| Maksymalne ciśnienie wejściowe | 16 MPa |

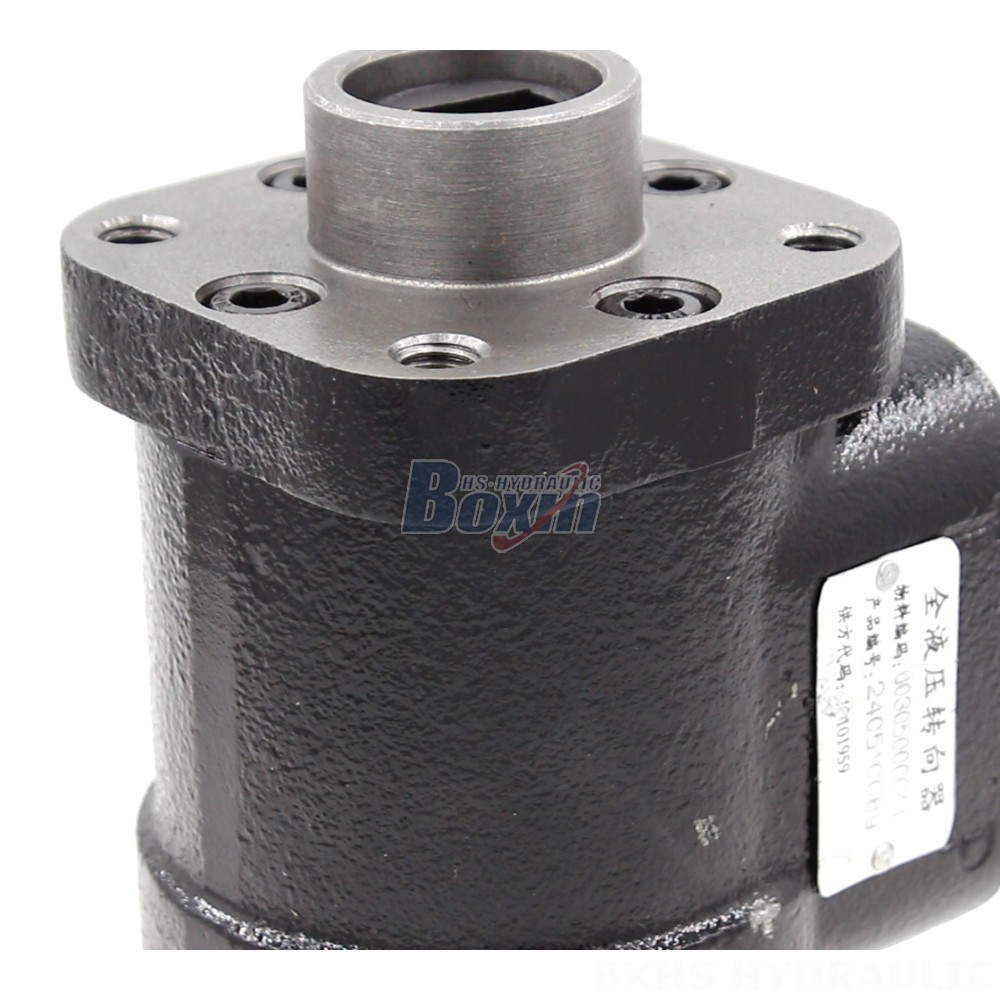

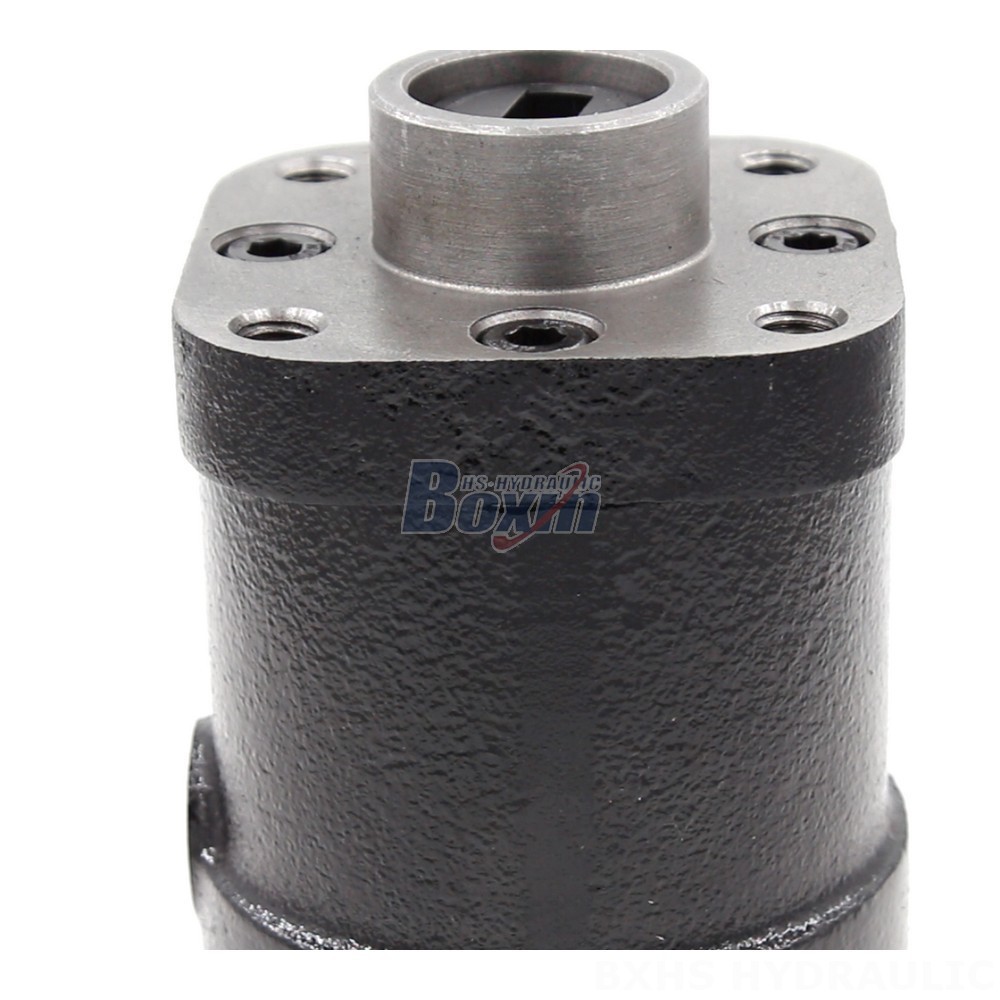

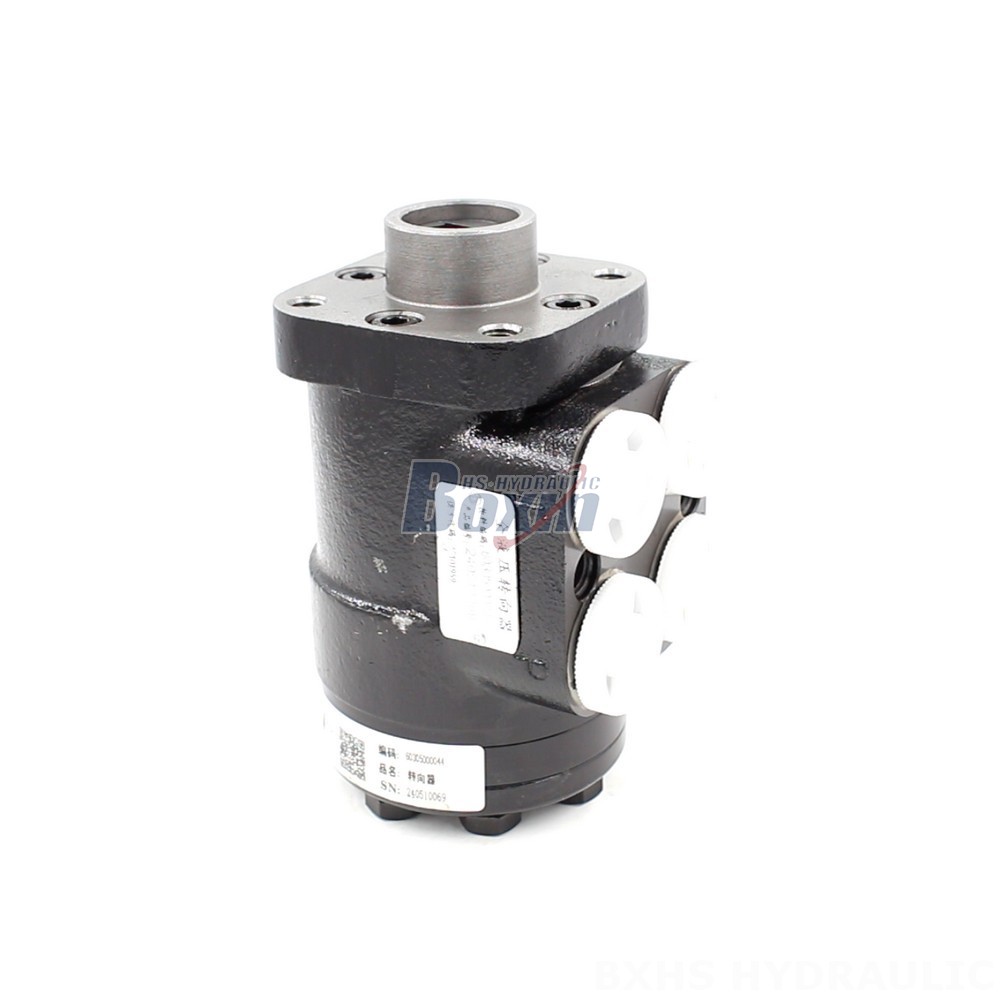

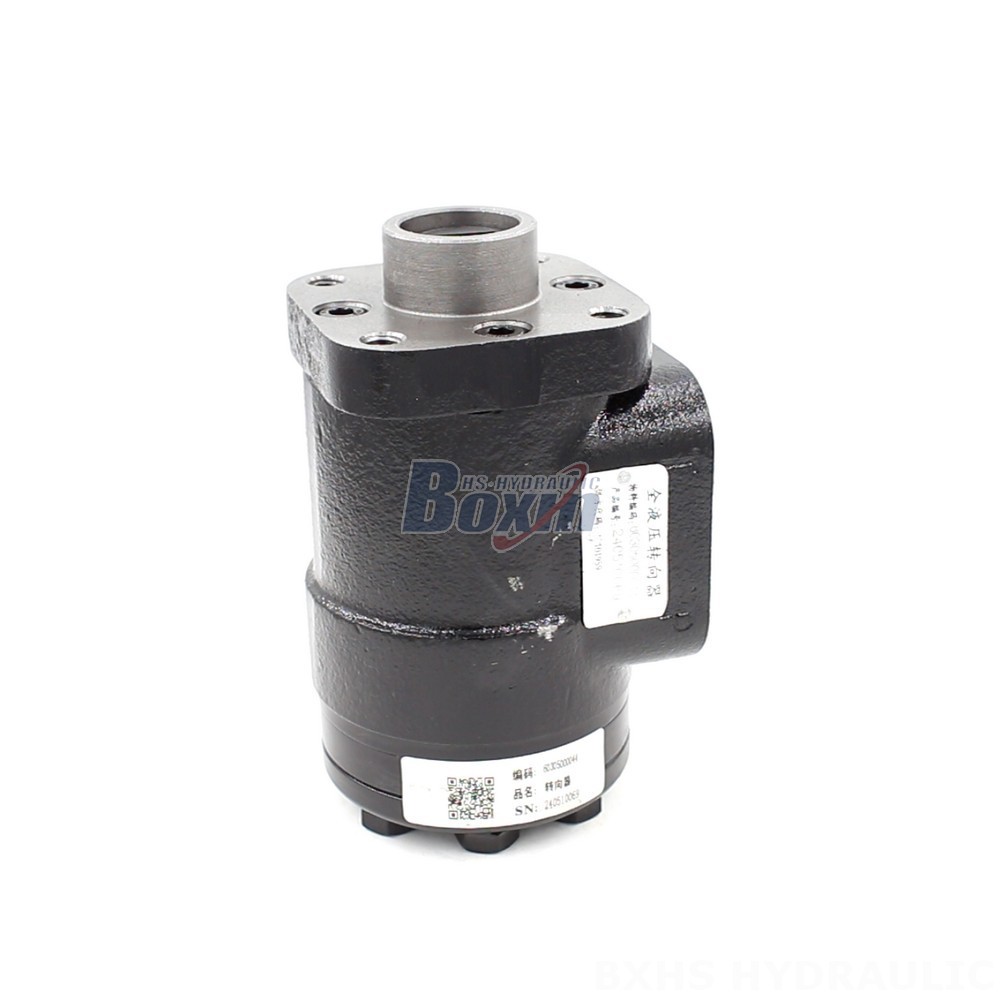

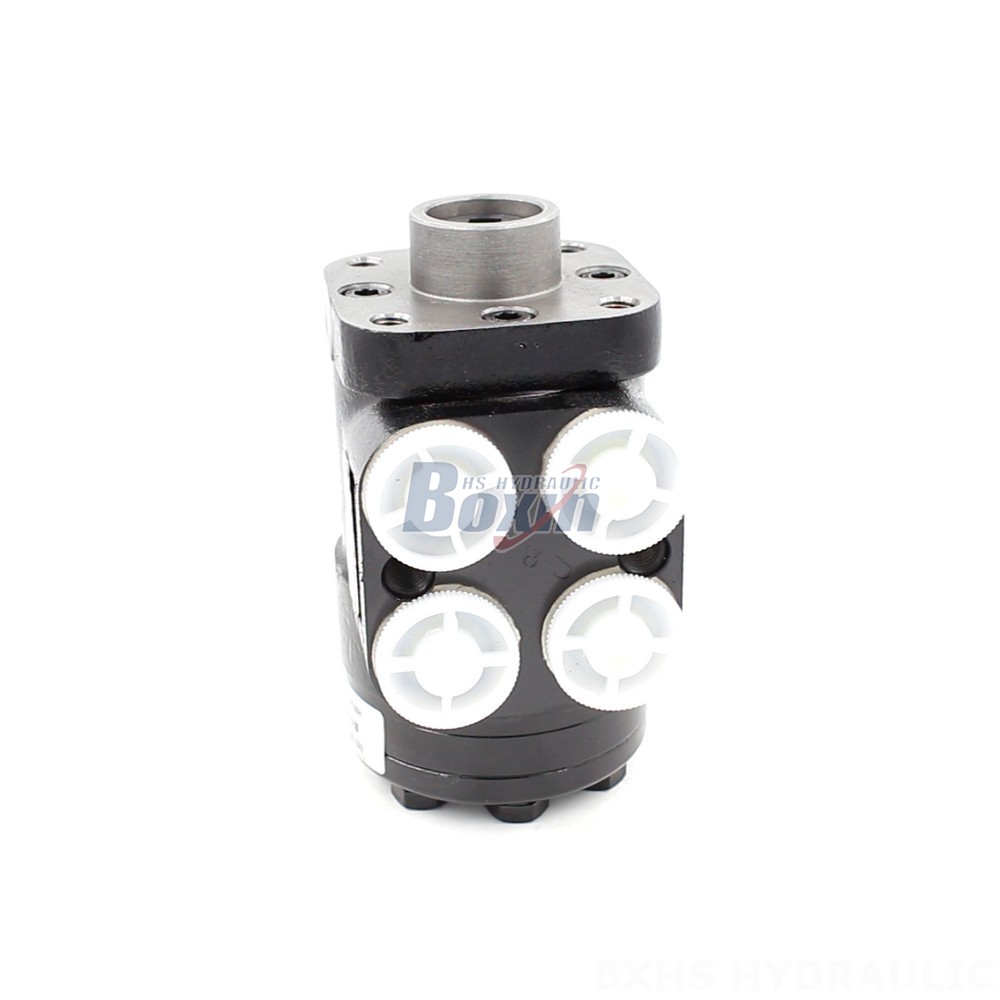

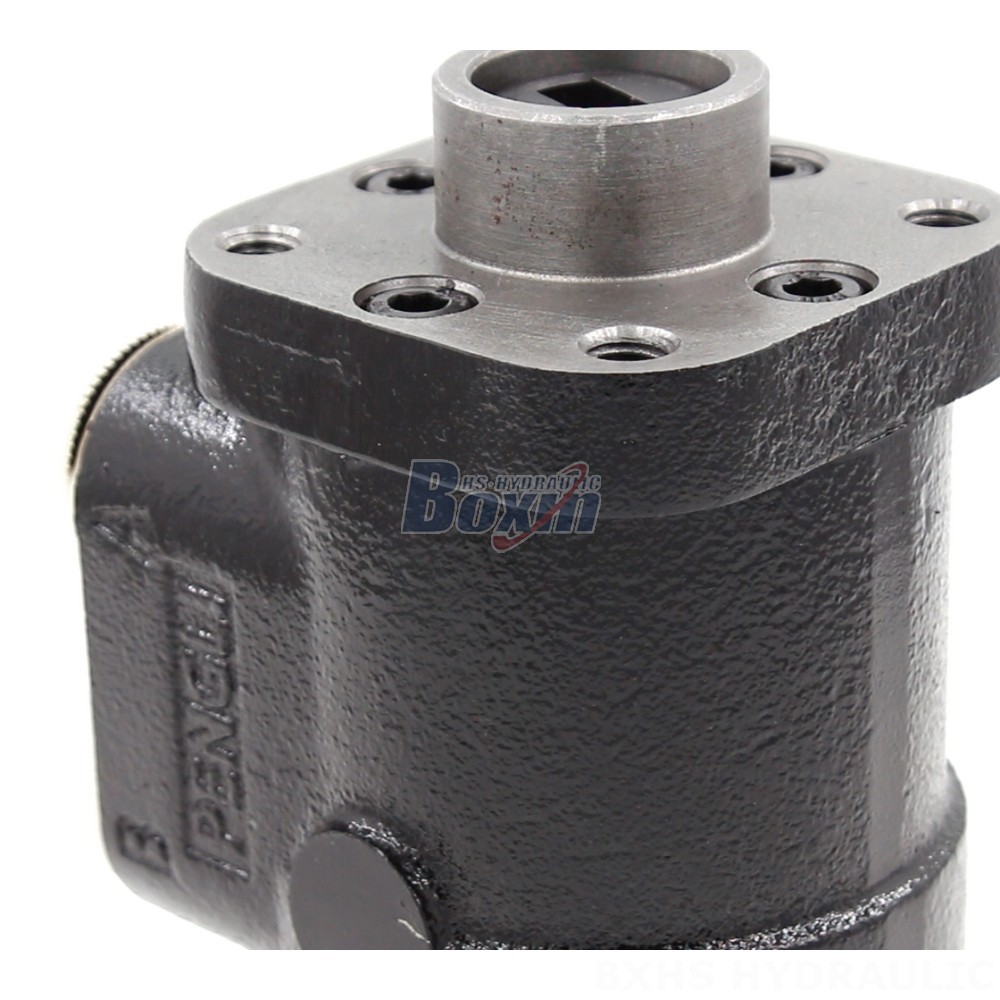

Introducing the BZZ1-E100C Hydraulic Steering Unit – a robust and reliable solution for various applications. This high-performance unit boasts a 100ml/r displacement, a maximum input pressure of 16 MPa, and a maximum continuous back pressure of 2.5 MPa. Its rated flow is 7.5 L/min, and it's constructed from durable cast iron for long-lasting performance. The valve block is customizable to meet your specific needs.
**Key Features:**
* **Displacement:** 100 ml/r
* **Max Input Pressure:** 16 MPa
* **Max Cont Back Pressure:** 2.5 MPa
* **Rated Flow:** 7.5 L/min
* **Material:** Cast Iron
* **Valve Block:** Customizable
**Applications:** Material Handling, Construction & Earth Moving, Industrial Vehicles, Agriculture. Suitable for Forklifts, Telehandlers, Skid Steer Loaders, Compact Wheel Loaders, Mini-Excavators, Tractors & Front-End Loaders, Harvesters, and Balers.
**Business Opportunities:** We are a hydraulic product manufacturer offering a comprehensive range of services including manufacturing, OEM (Original Equipment Manufacturing), ODM (Original Design Manufacturing), customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. Benefit from our factory-direct pricing and high-quality products. Contact us today to explore collaboration opportunities and take advantage of our factory wholesale pricing.
**Contact us now to discuss your requirements and become a valued partner!**
