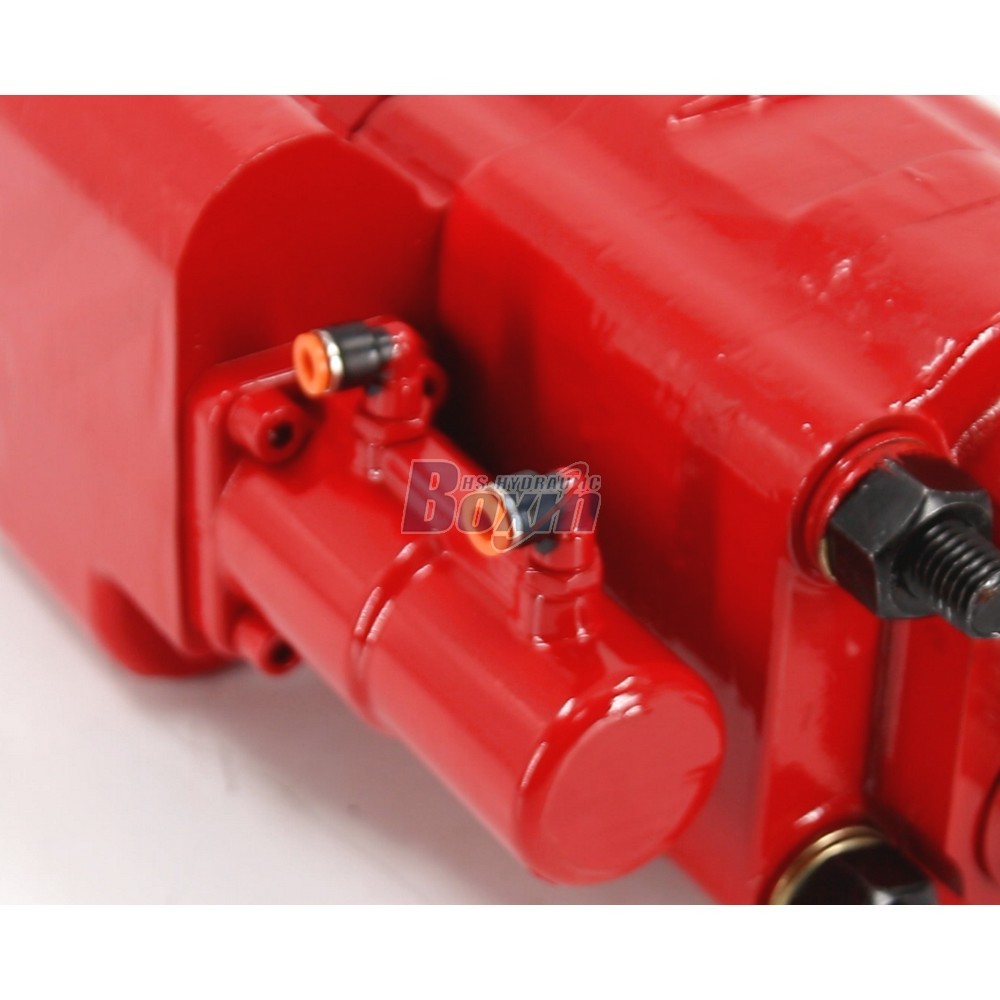

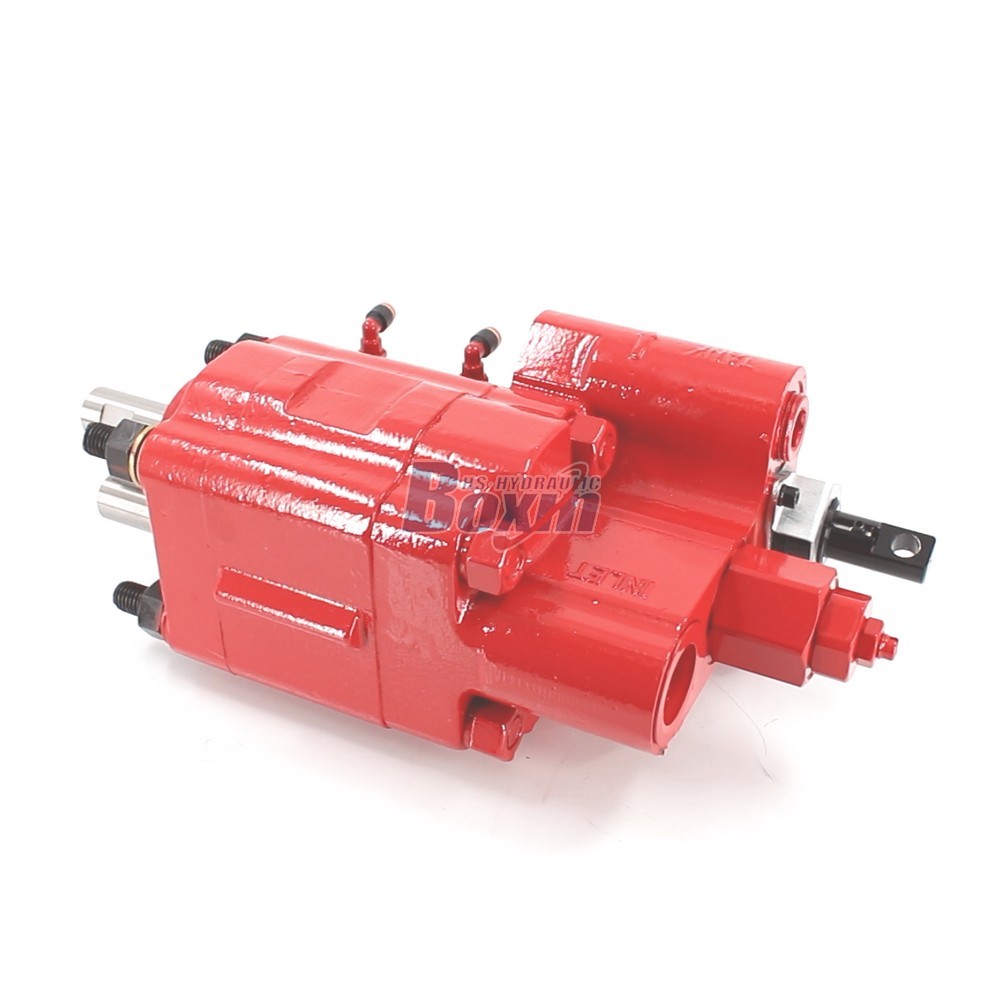

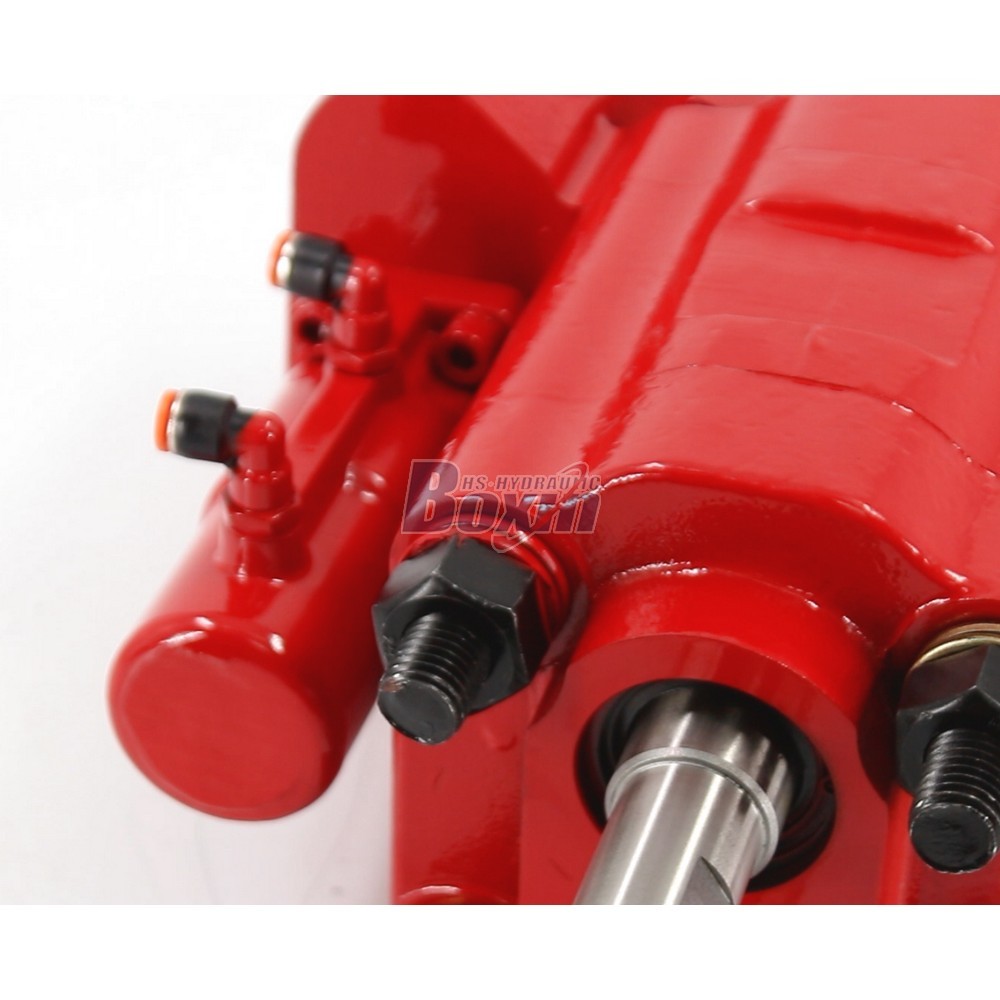

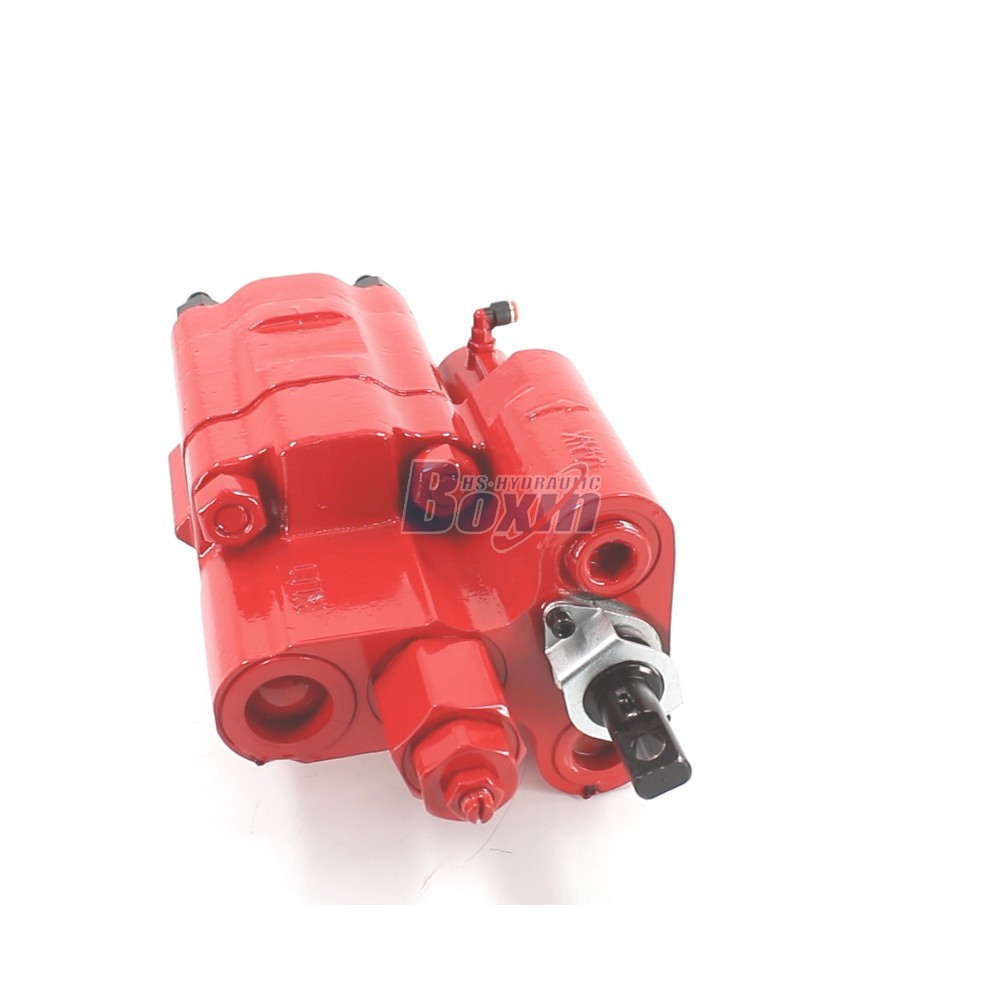

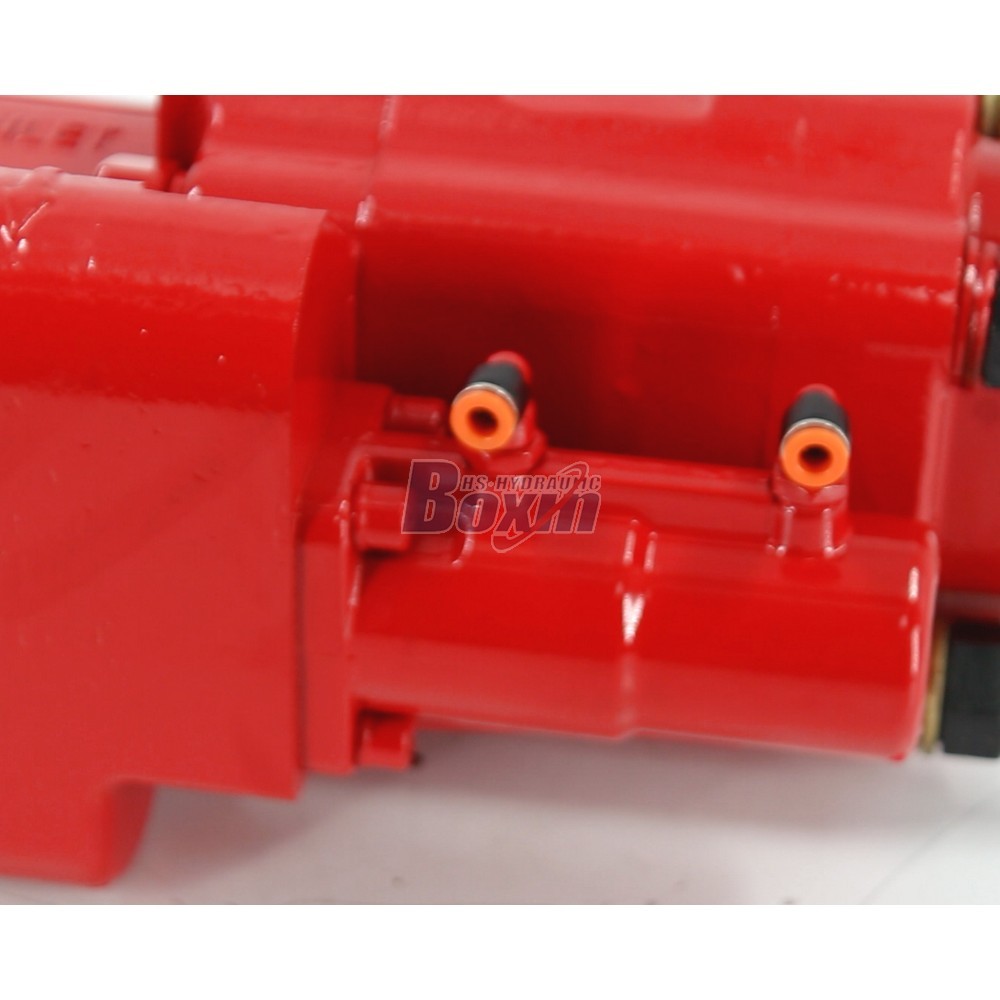

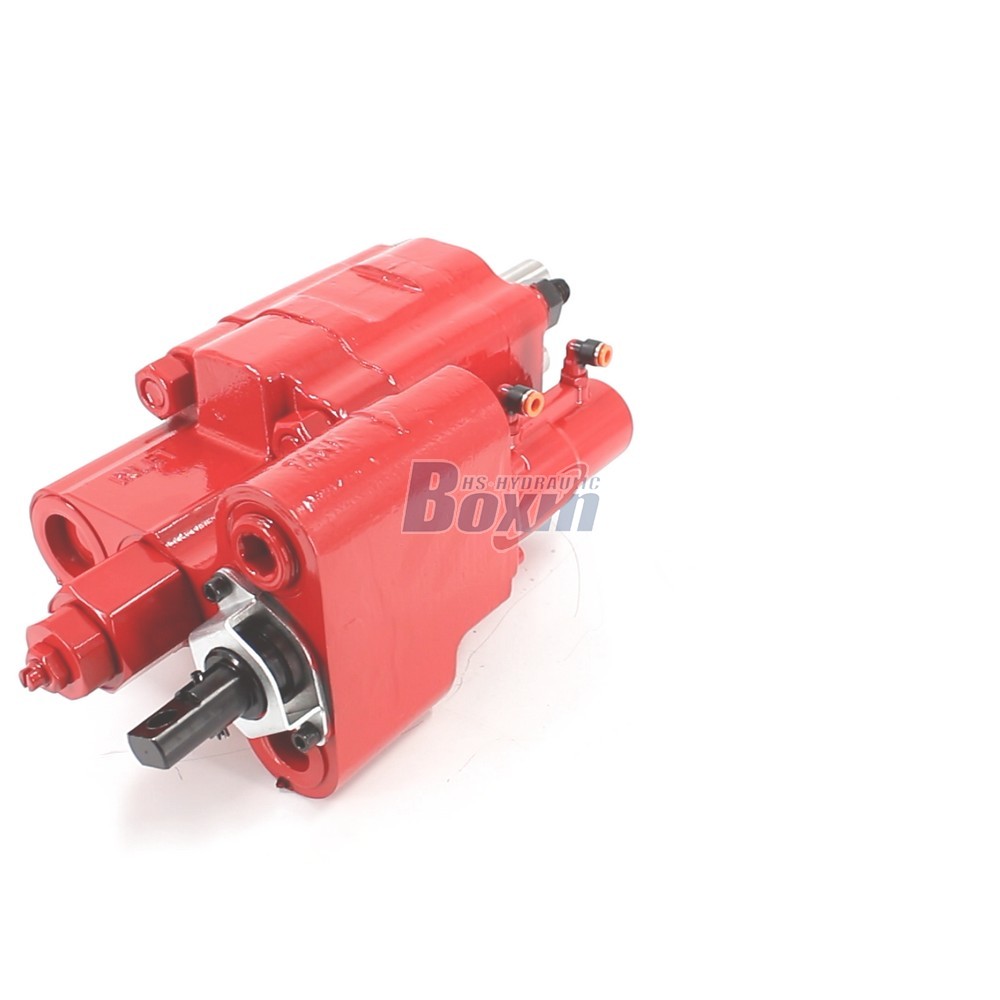

This C101-25-AS-H Hydraulic Gear Pump features 100 cc/rev displacement, 20 MPa rated pressure, and bidirectional rotation, ideal for wheel loaders and tractors. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.
| Seria C101 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 100 cm³/obr, 90 cm³/obr, 112 cm³/obr |
| Ciśnienie znamionowe | 17 MPa (2465 psi), 20 MPa (2900 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2200 obr./min |
| Maksymalna prędkość | 2500 obr./min |
| Kierunek obrotu | Dwukierunkowy |
| Materiał | Żeliwo |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Otwory montażowe ISO-4 |
| Typ wału | Nacięcie prostokątne H |
**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers consistent flow with 100 cc/rev displacement, operating at rated speed of 2200 r/min and max speed of 2500 r/min.
- Handles demanding loads with 20 MPa (2900 psi) rated pressure and peaks at 25 MPa (3625 psi), ensuring stable power transmission.
**2. Versatile C101 Series Gear Pump Applications**
- Specifically engineered for heavy-duty equipment including wheel loaders, backhoe loaders, forklifts, and telehandlers.
- Bidirectional rotation design offers flexible installation options for agricultural harvesters, skid steer loaders, and mini-excavators.
**3. Reliable OEM Hydraulic Pump Manufacturing**
- Backed by 25+ years of expertise and IATF 16949 certification, our facility spans 68,000㎡ with an annual output of 1,500,000 units.
- Equipped with 260+ vertical machining centers, we support full customization including logo laser marking and private label services.
**4. Rigorous Quality Control & Testing**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment to guarantee zero-defect delivery.
- Certified by CE and SGS, with 25+ patents, our products meet strict international standards for durability and oil cleanliness.
**5. Factory Direct Sales & Global Logistics**
- Enjoy Wholesale Direct Sales pricing from a Professional Manufacturer, eliminating middlemen costs for distributors and OEMs.
- Products are packed in rust-proof heavy-duty wooden crates for safe Exported Worldwide shipping, compatible with major international brands.
