Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

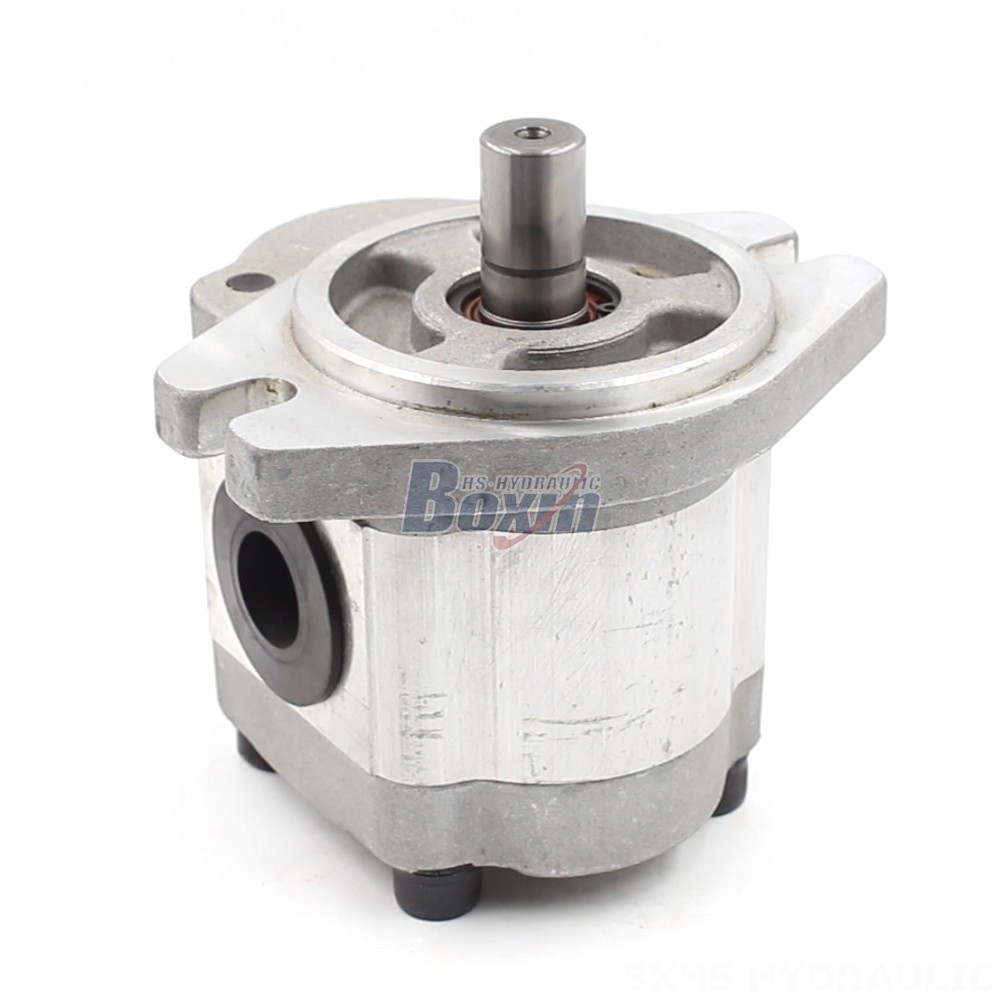

This 6 cc/rev Hydraulic Gear Pump is designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min.
| Seria CBHS-FL3 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 10 cm³/obr, 4 cm³/obr, 20 cm³/obr, 16 cm³/obr, 14 cm³/obr, 6 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 3000 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Aluminium |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Flange owalny A |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
This high-performance 6 cc/rev Hydraulic Gear Pump is engineered for demanding applications. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, capable of reaching a maximum speed of 3000 r/min. Built with an internal gear pump structure and crafted from durable aluminium, this pump features an A-Oval Flange and a Plain Key shaft. It belongs to the CBHS-FL3 Series and is specifically designed for use in various heavy-duty equipment, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers. Its reliability and performance make it an ideal choice for manufacturers and distributors seeking high-quality hydraulic gear pumps for diverse applications.
