Produkcja i dostawa
Czas realizacji produkcji 15-30 dni



This is a high-quality, durable hydraulic gear pump designed for use in a wide range of applications, including construction equipment, agricultural machinery, industrial vehicles, and material handling. Available in various displacements, pressure ratings, and configurations to meet your specific needs.
| Seria CBHS-F4 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 40 cm³/obr, 25 cm³/obr, 20 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 2500 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Żeliwo, Żeliwo aluminiowe, Aluminium |
| Struktura | Typ krzywkowy talerza |
| Wersja kołnierza | Flange owalny A, Flange kwadratowy B, Otwory montażowe ISO-4, Otwory montażowe UNI-3, Kołnierz SAE |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |

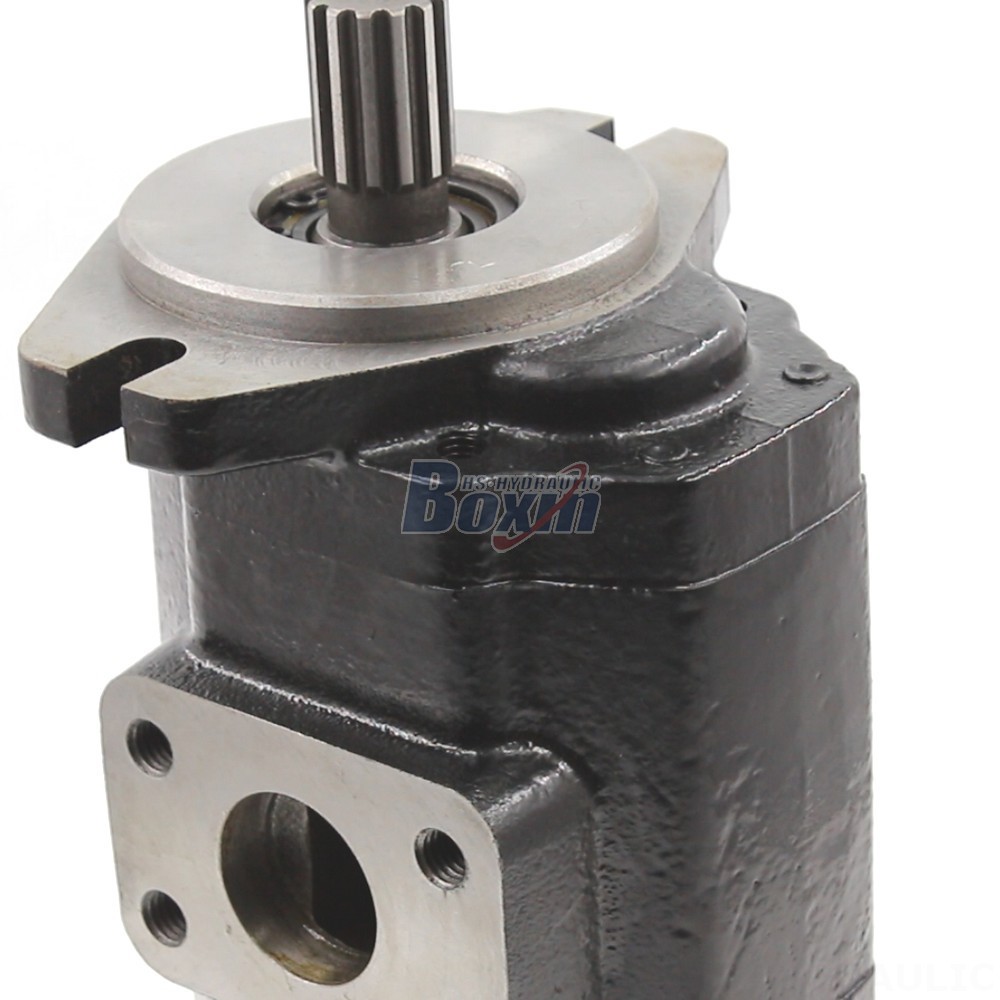

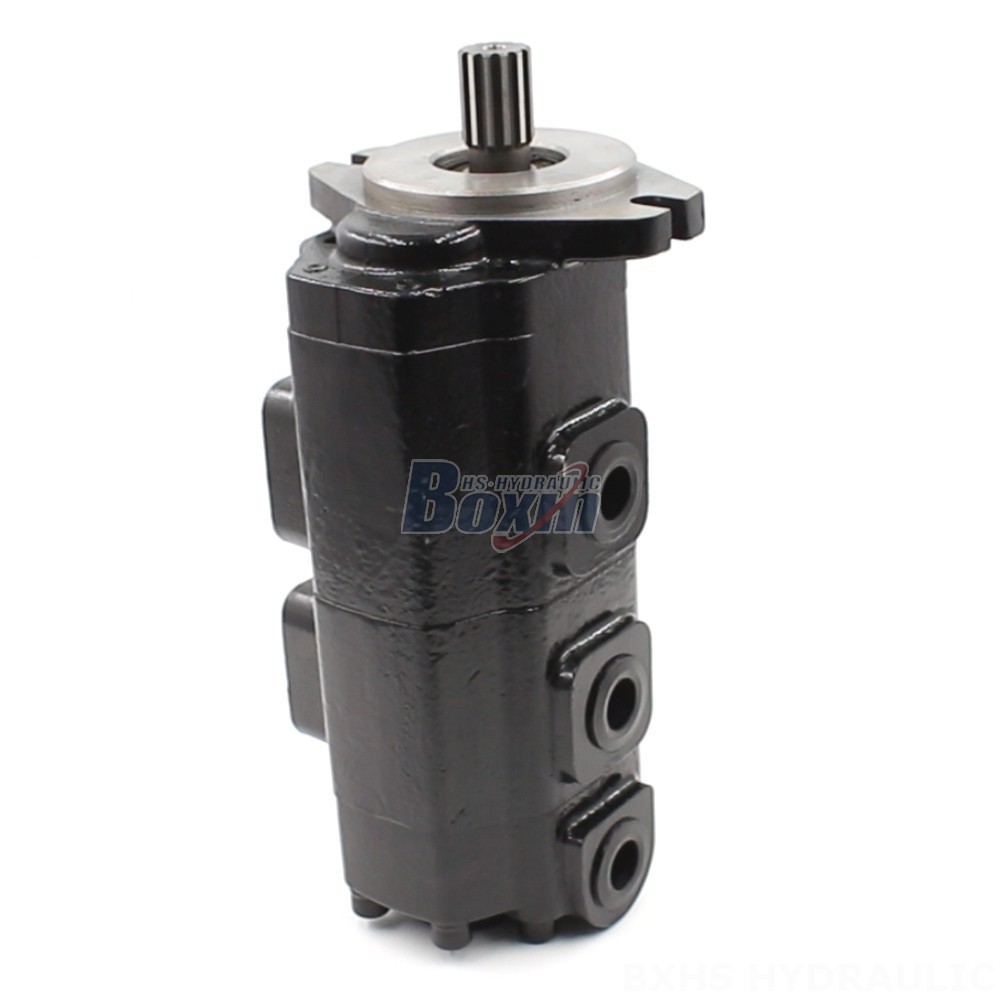

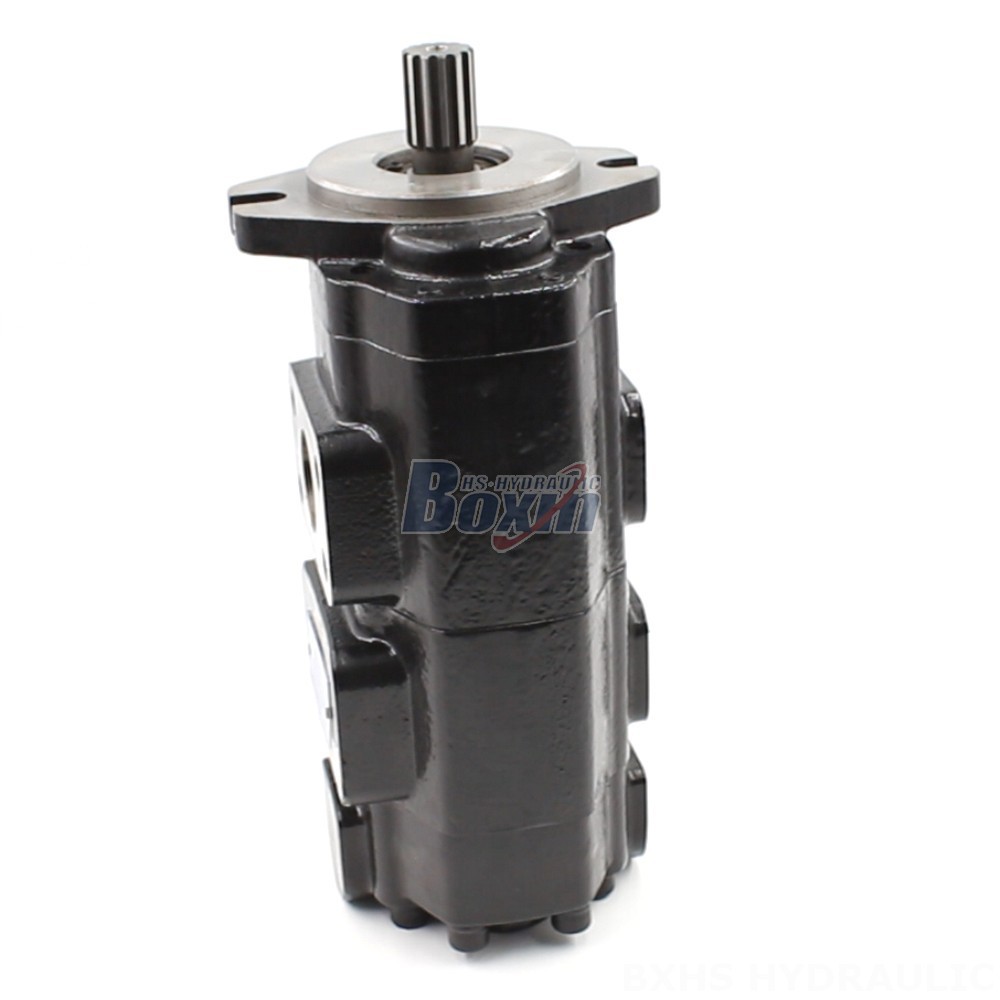

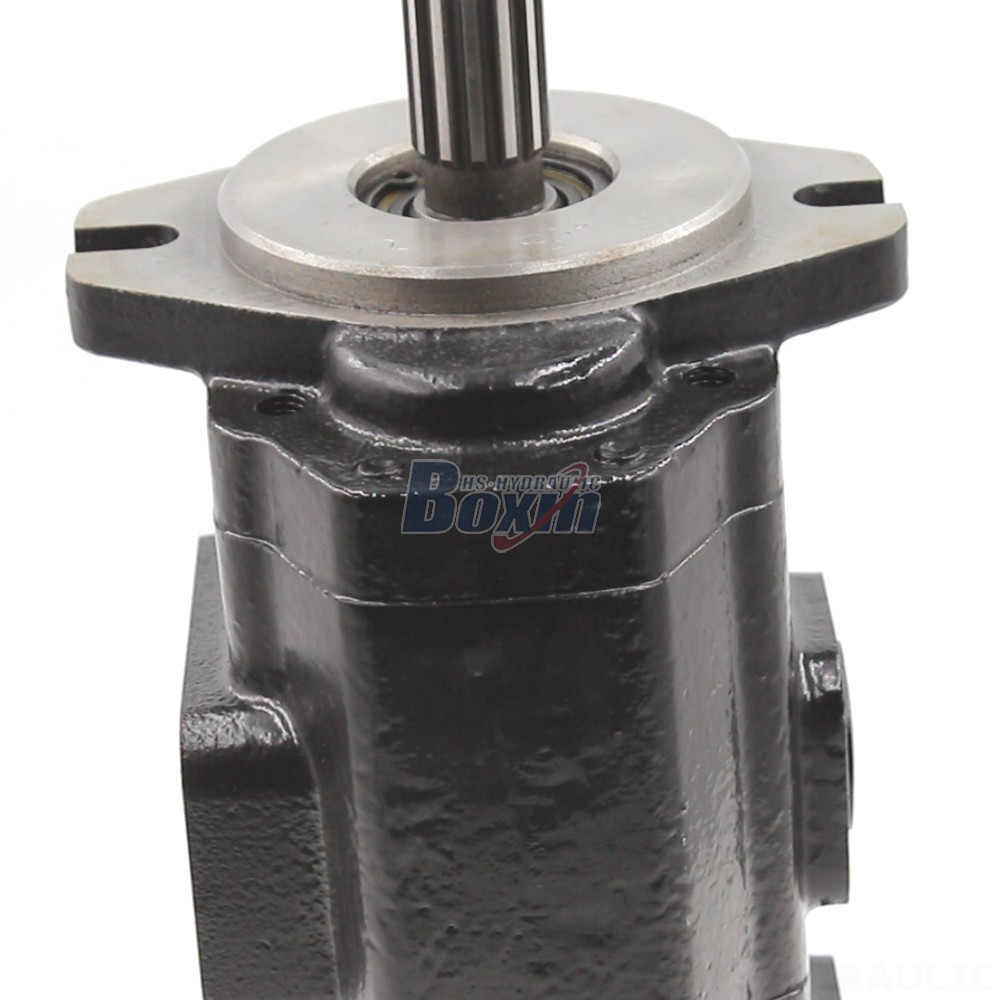

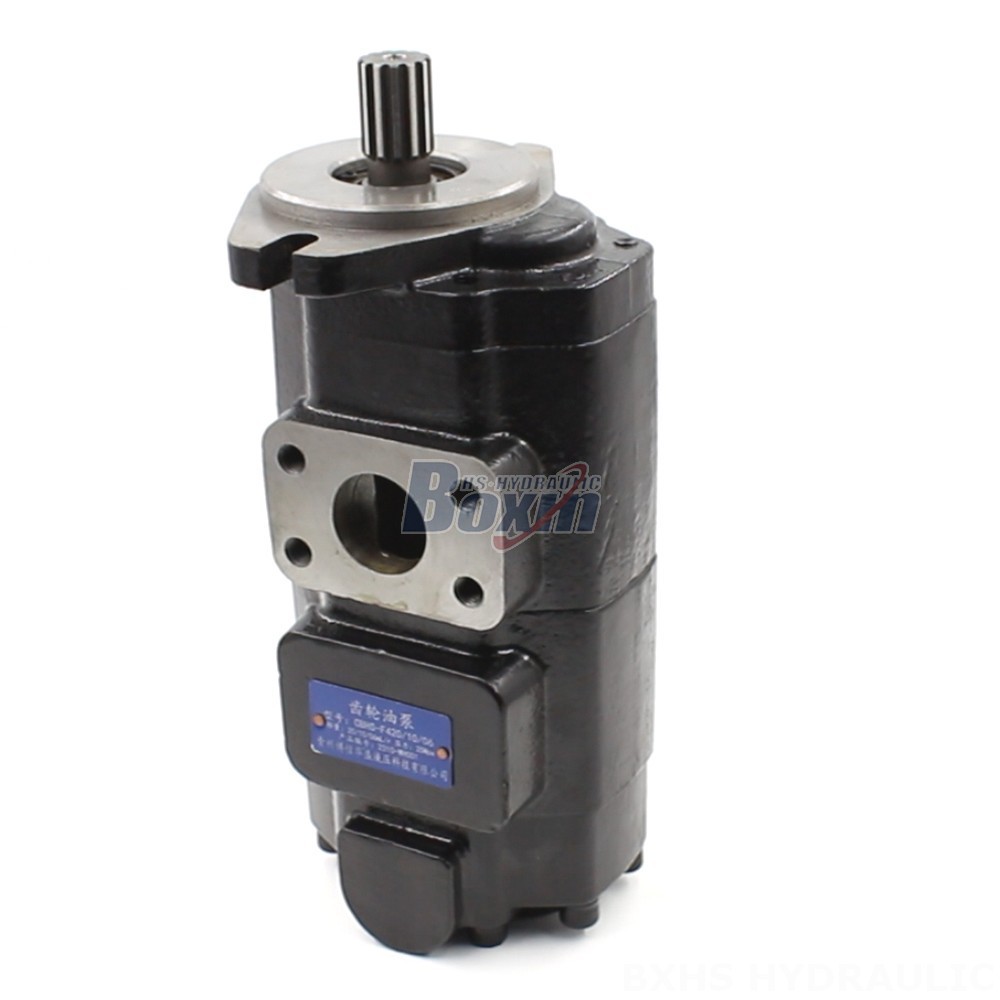

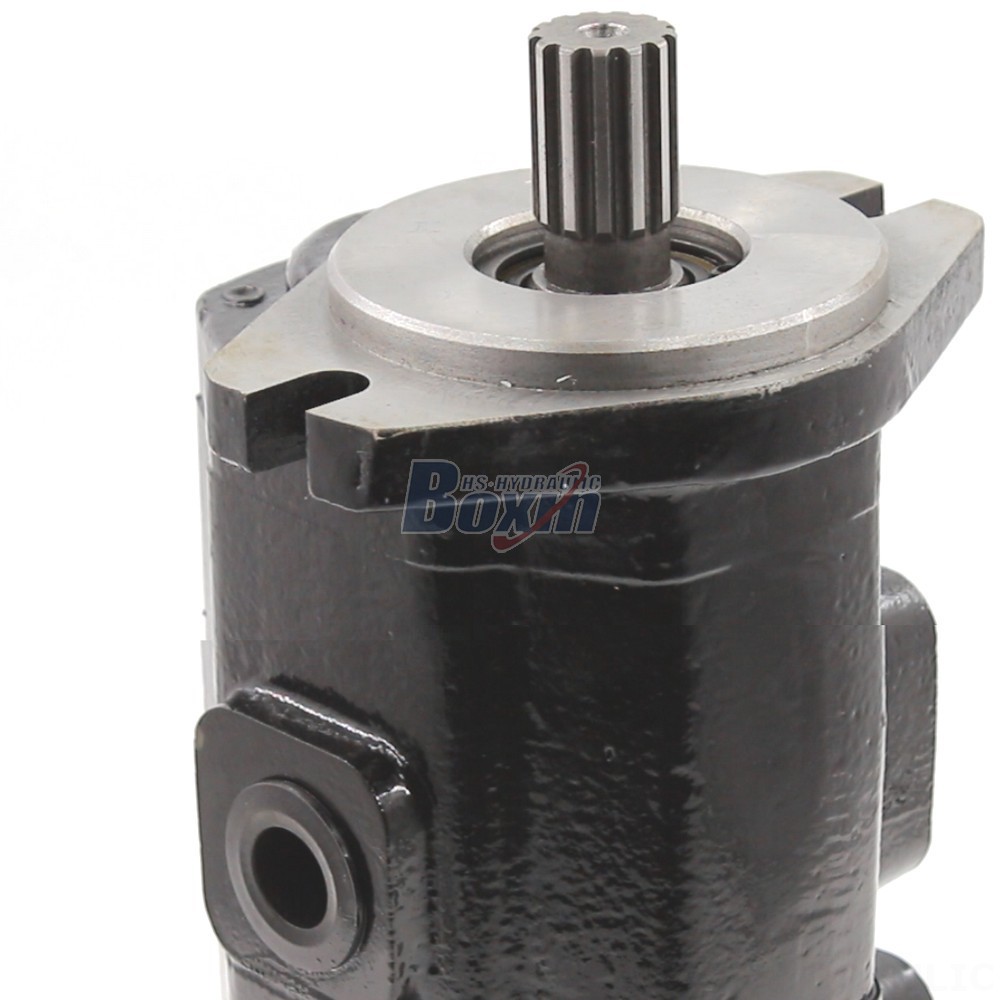

Our 40 cc/rev Hydraulic Gear Pump is available for wholesale orders and bulk purchases. The pump features a robust design with a displacement ranging from 32 cc/rev to 80 cc/rev and pressure ratings up to 25 MPa (3625 psi). It operates at speeds up to 2500 r/min and is available with right or left rotation. The pump can be configured with different flange versions (A-Oval or B-Square), shaft types (H: Rectangle Spline), and is part of the CBHS-F4 Series. Ideal for various applications like construction and earth moving, agriculture, industrial vehicles, and material handling. It is suitable for forklifts, telehandlers, mini and midi excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer OEM, ODM, private label, and customizable options to meet your specific requirements.
