Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

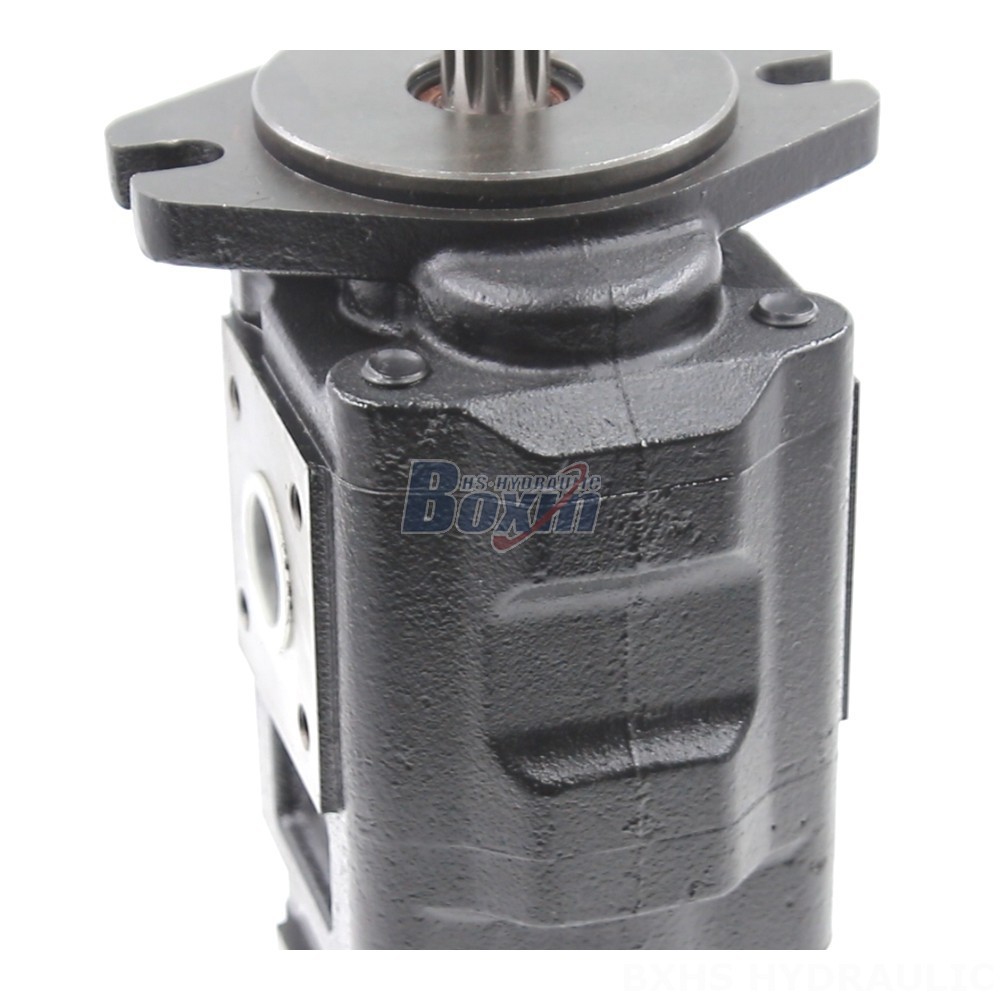

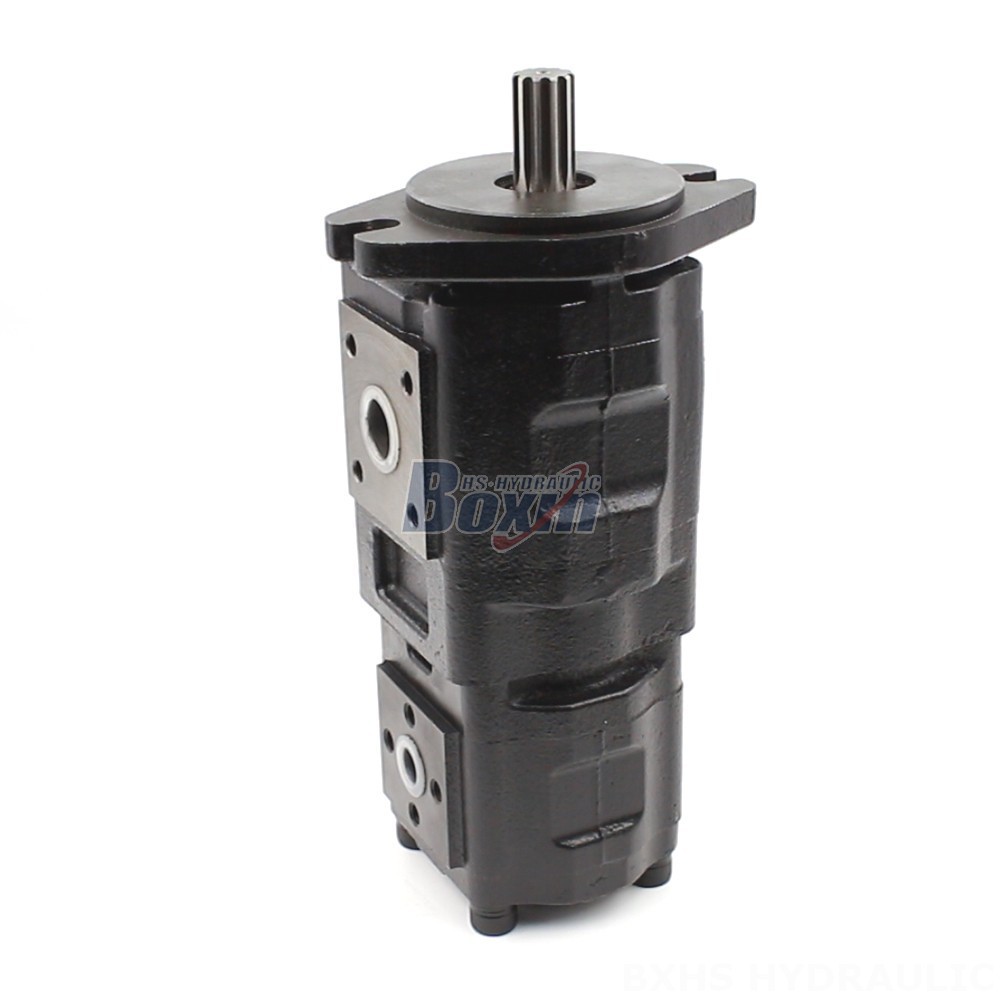

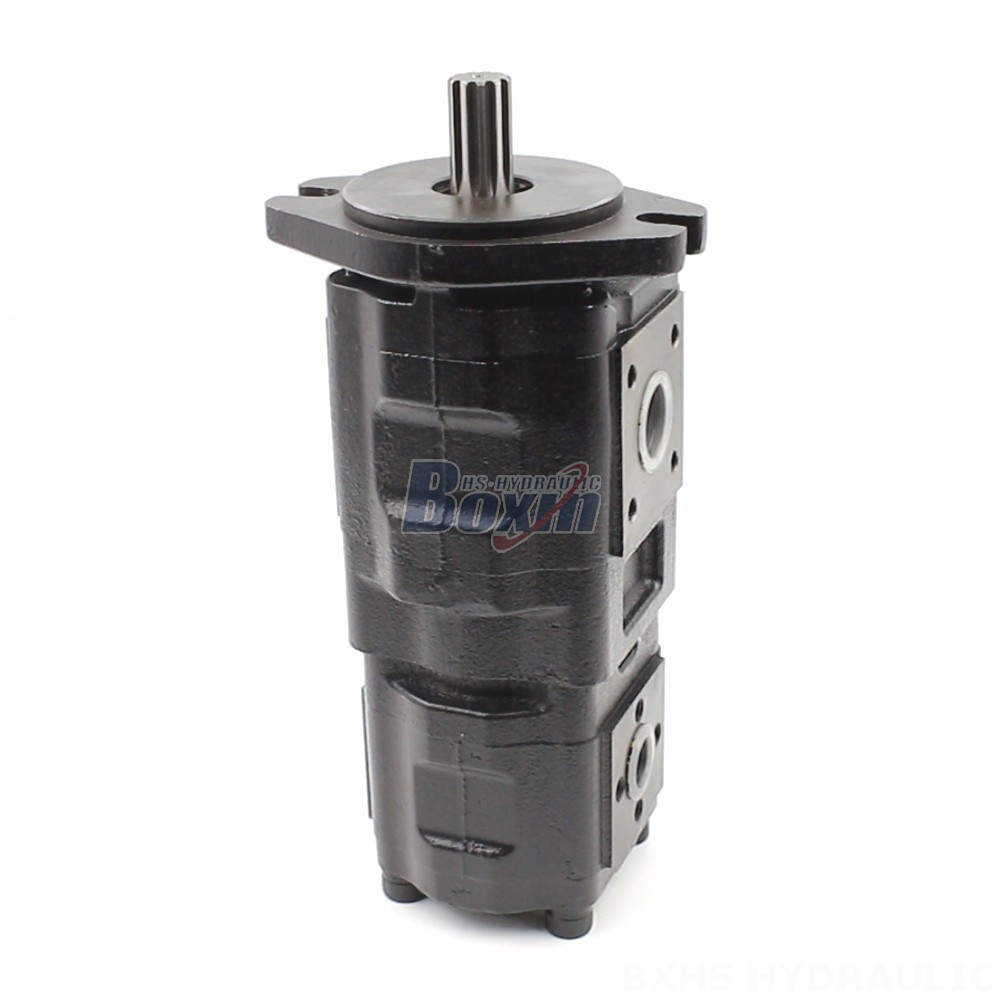

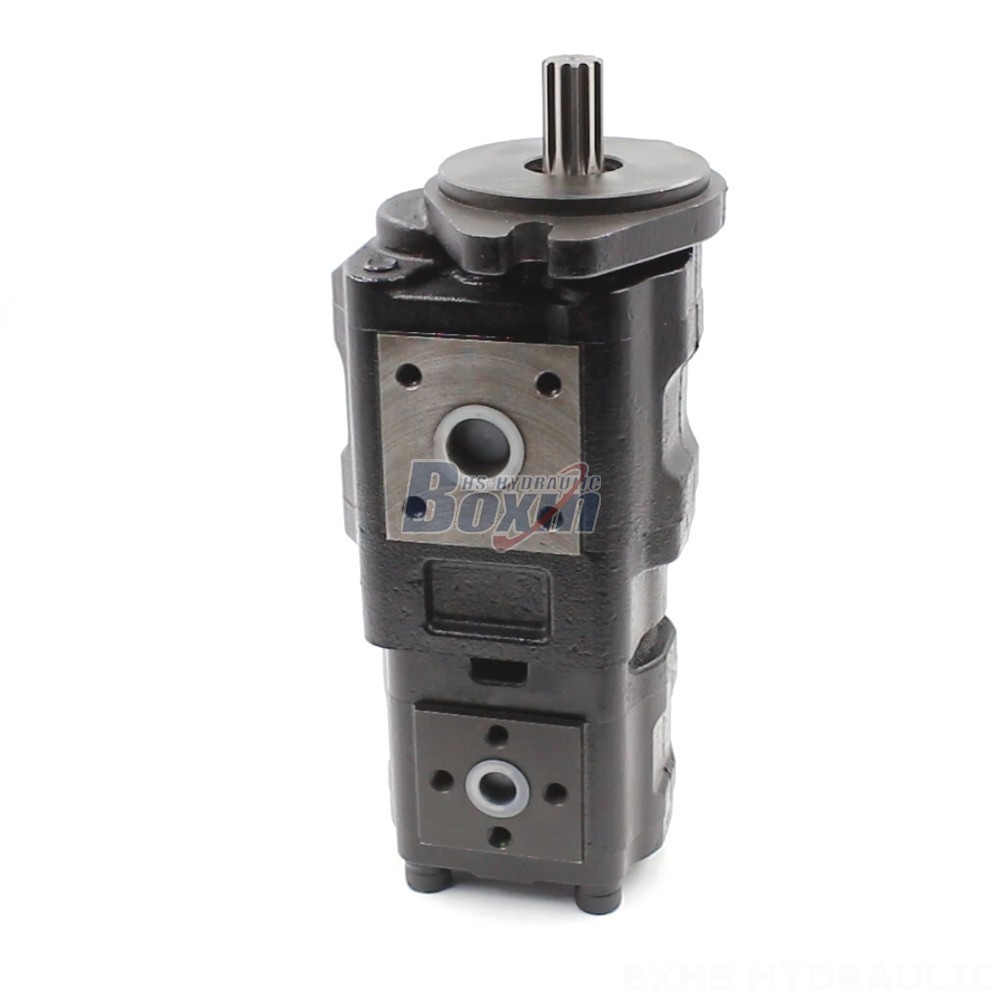

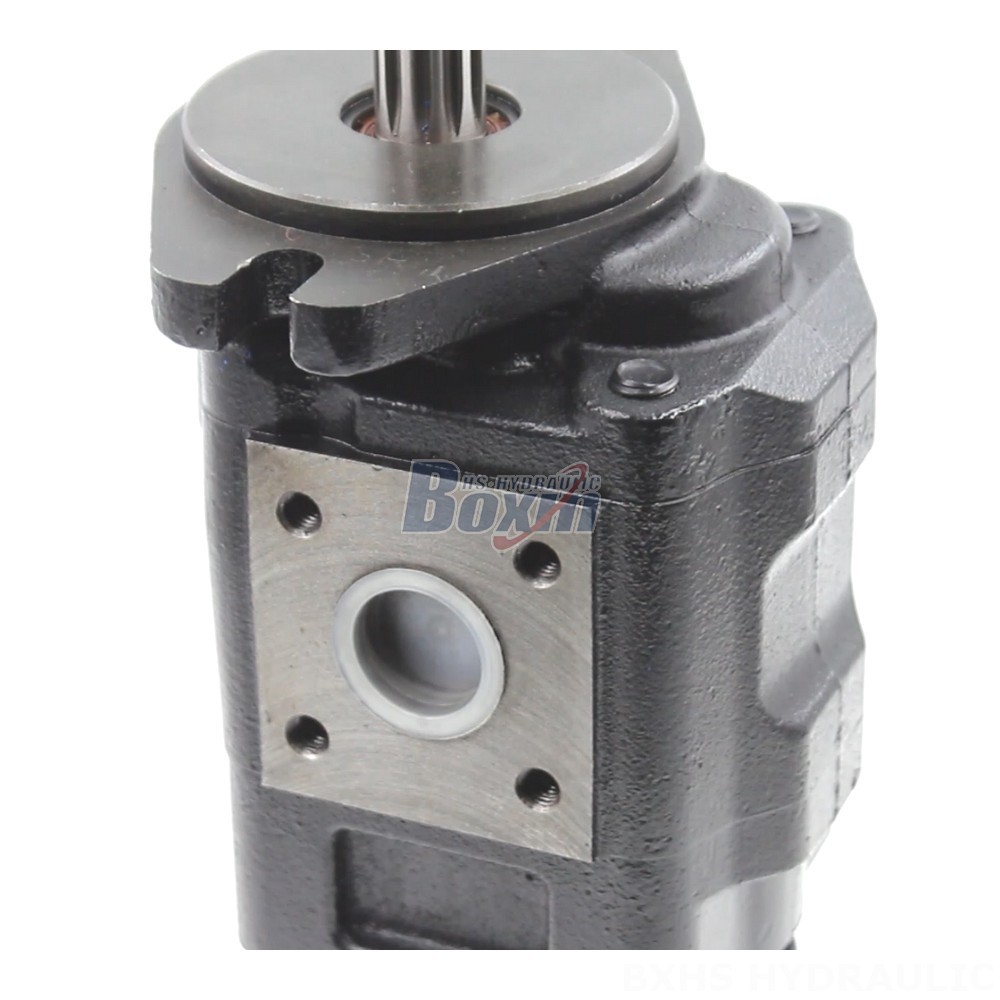

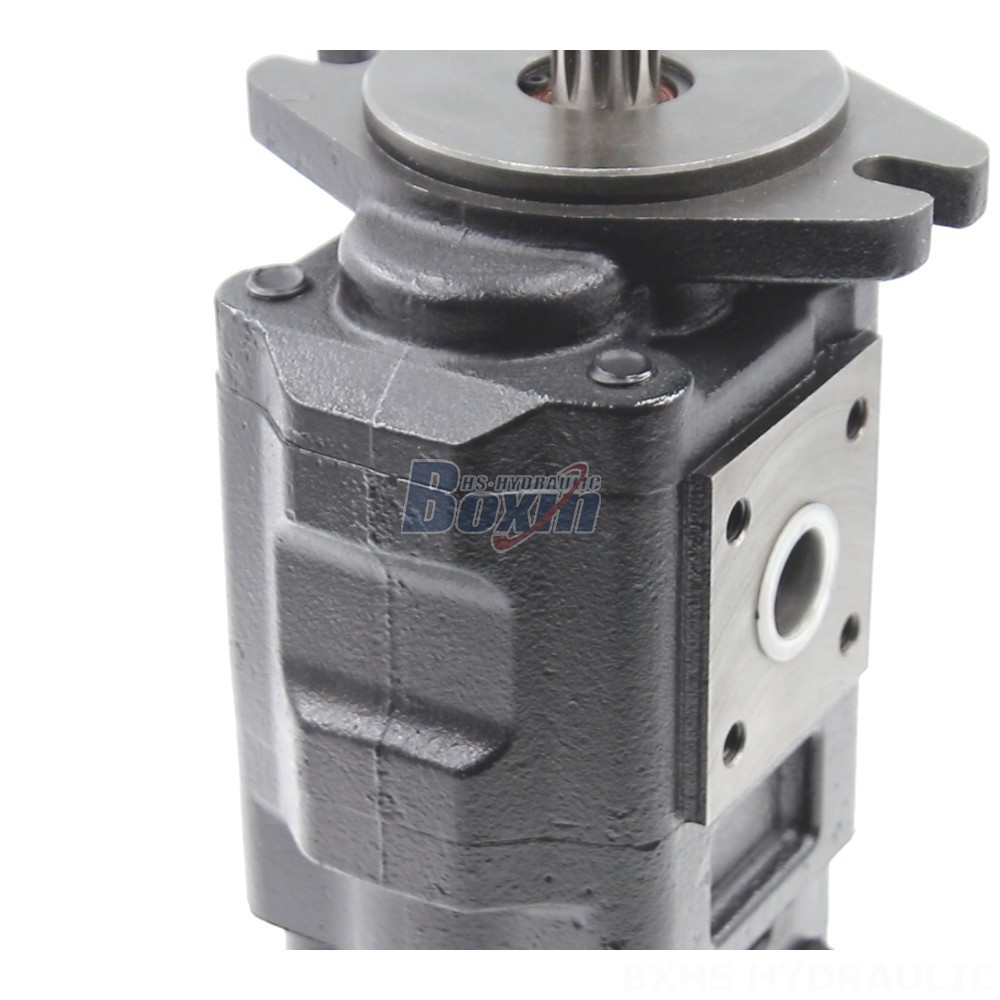

Our 40 cc/rev Hydraulic Gear Pump is a high-performance and reliable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Available in various displacements, pressure ratings, and configurations, this pump is designed for durability and efficiency.
| Seria CBHS-F4 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 40 cm³/obr, 25 cm³/obr, 20 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 2500 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Żeliwo, Żeliwo aluminiowe, Aluminium |
| Struktura | Typ krzywkowy talerza |
| Wersja kołnierza | Flange owalny A, Flange kwadratowy B, Otwory montażowe ISO-4, Otwory montażowe UNI-3, Kołnierz SAE |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
This 40 cc/rev Hydraulic Gear Pump is a robust and efficient power source for heavy-duty applications. Featuring a cam plate type design, it delivers high flow rates and pressures for reliable operation. With a range of displacements from 32 cc/rev to 80 cc/rev, rated pressures up to 25 MPa (3625 psi), and maximum speeds up to 2500 r/min, this pump offers flexibility and customization to meet specific requirements. The pump's durable construction ensures long-term performance and reliability in demanding environments. Available with A-Oval or B-Square flanges and a rectangle spline shaft, it can be easily integrated into various systems. Our 40 cc/rev Hydraulic Gear Pump is ideal for applications in telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, and harvesters.
