Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

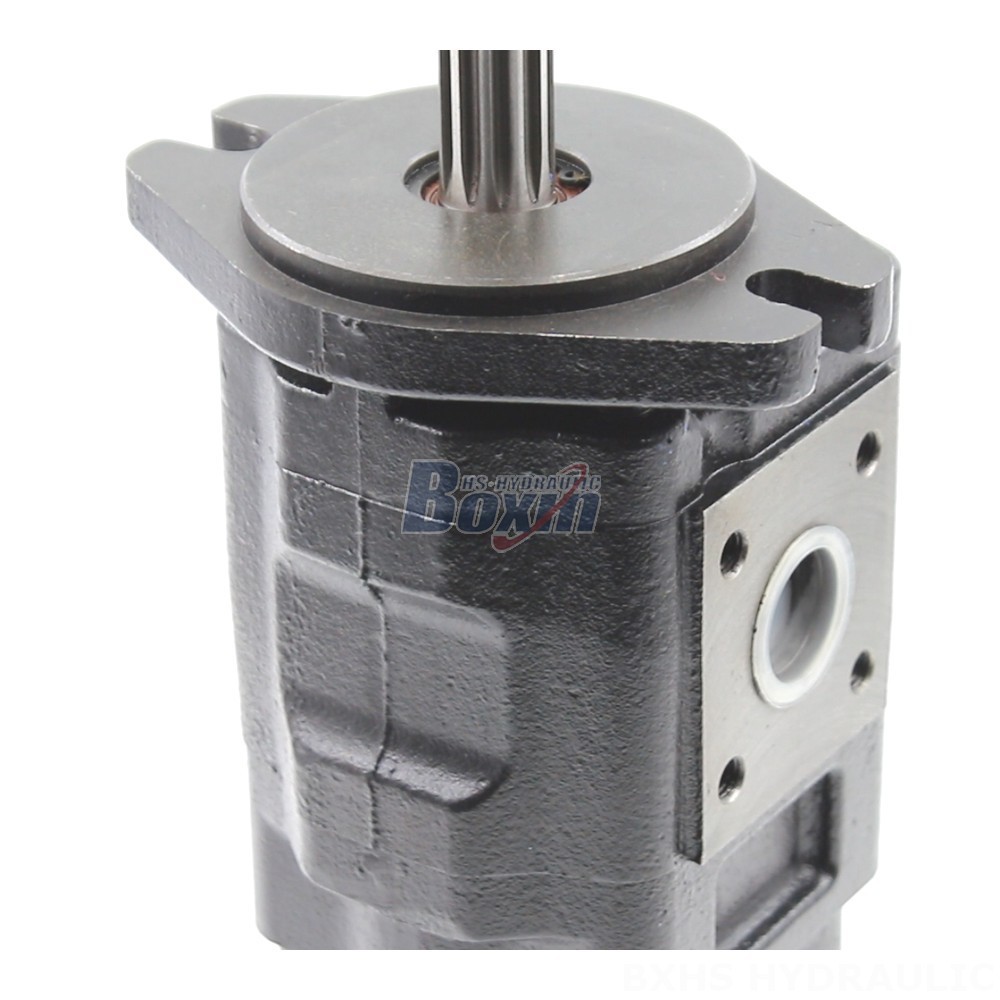

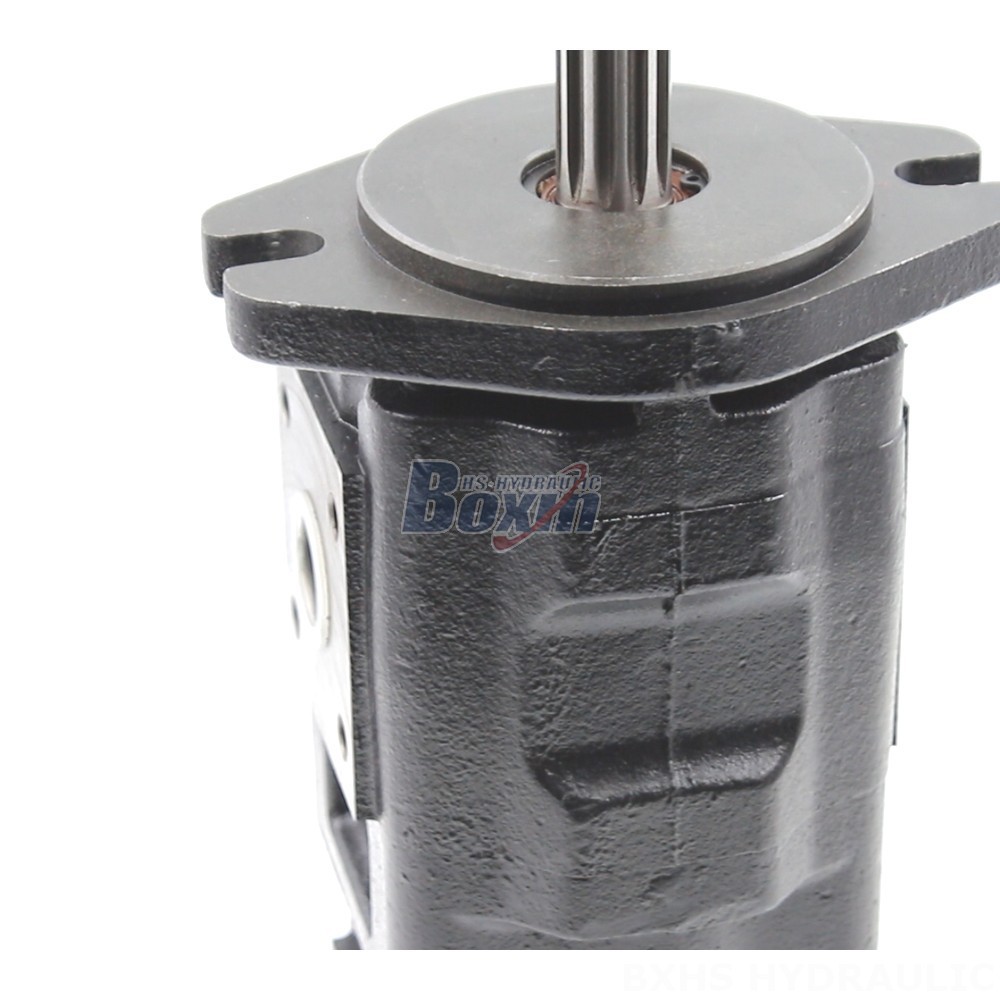

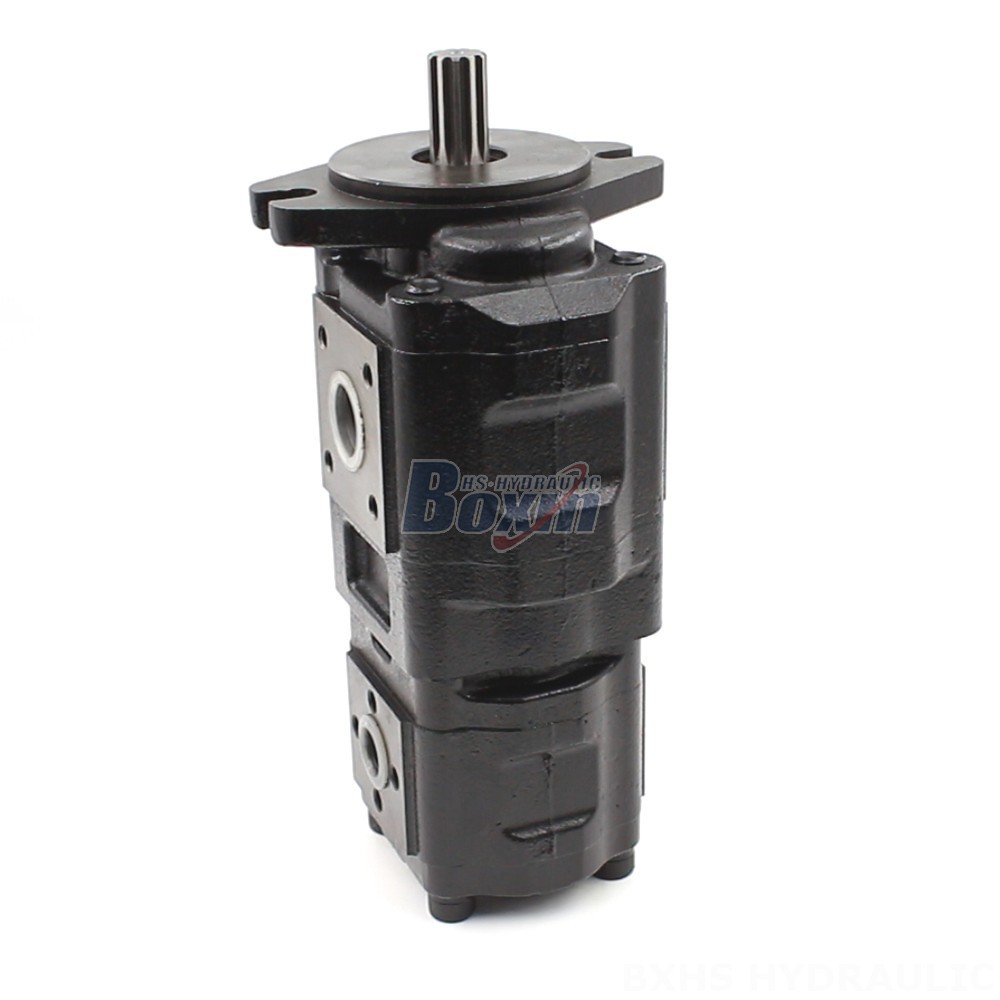

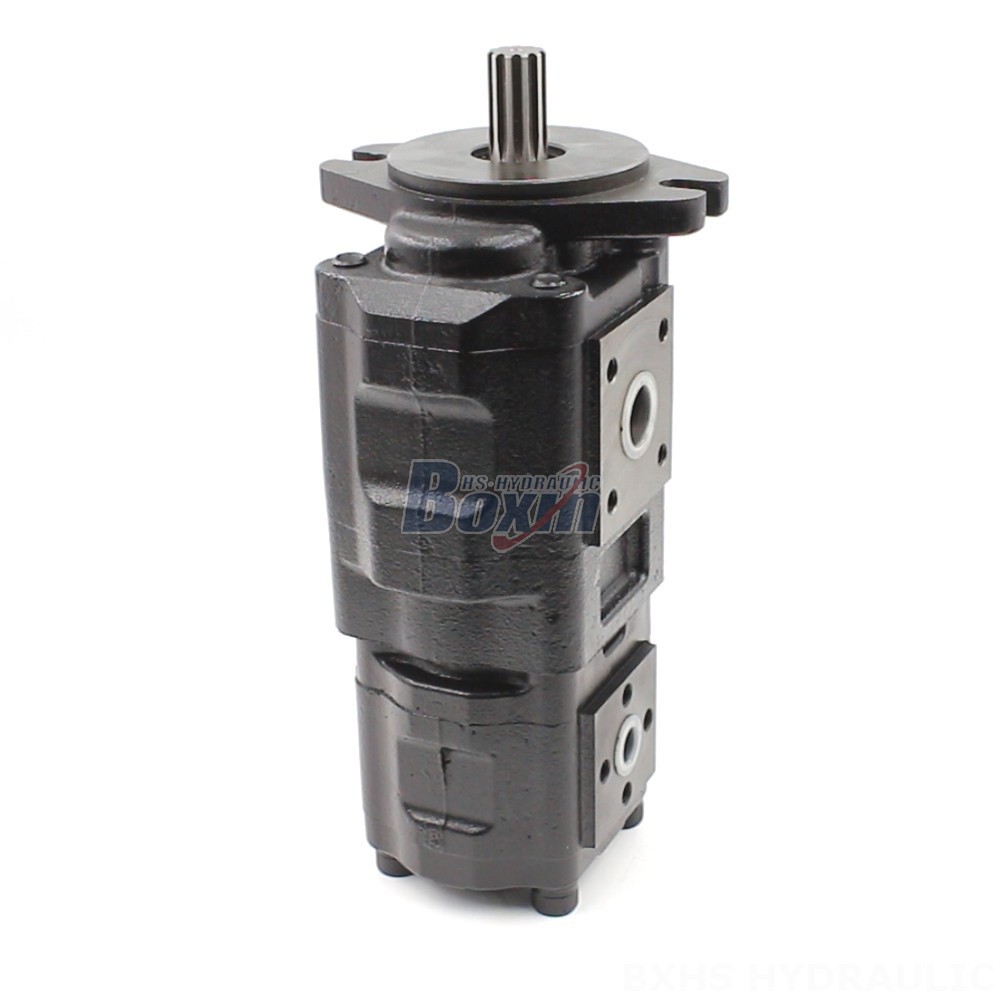

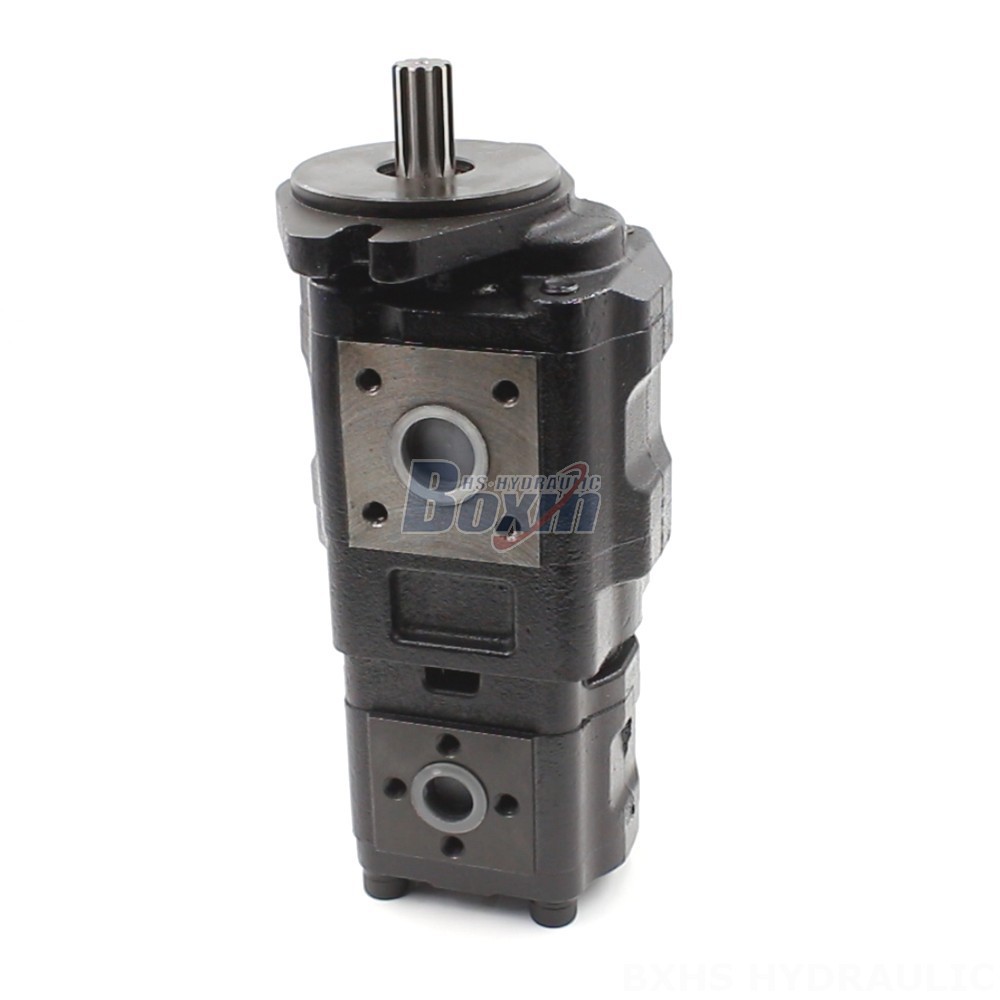

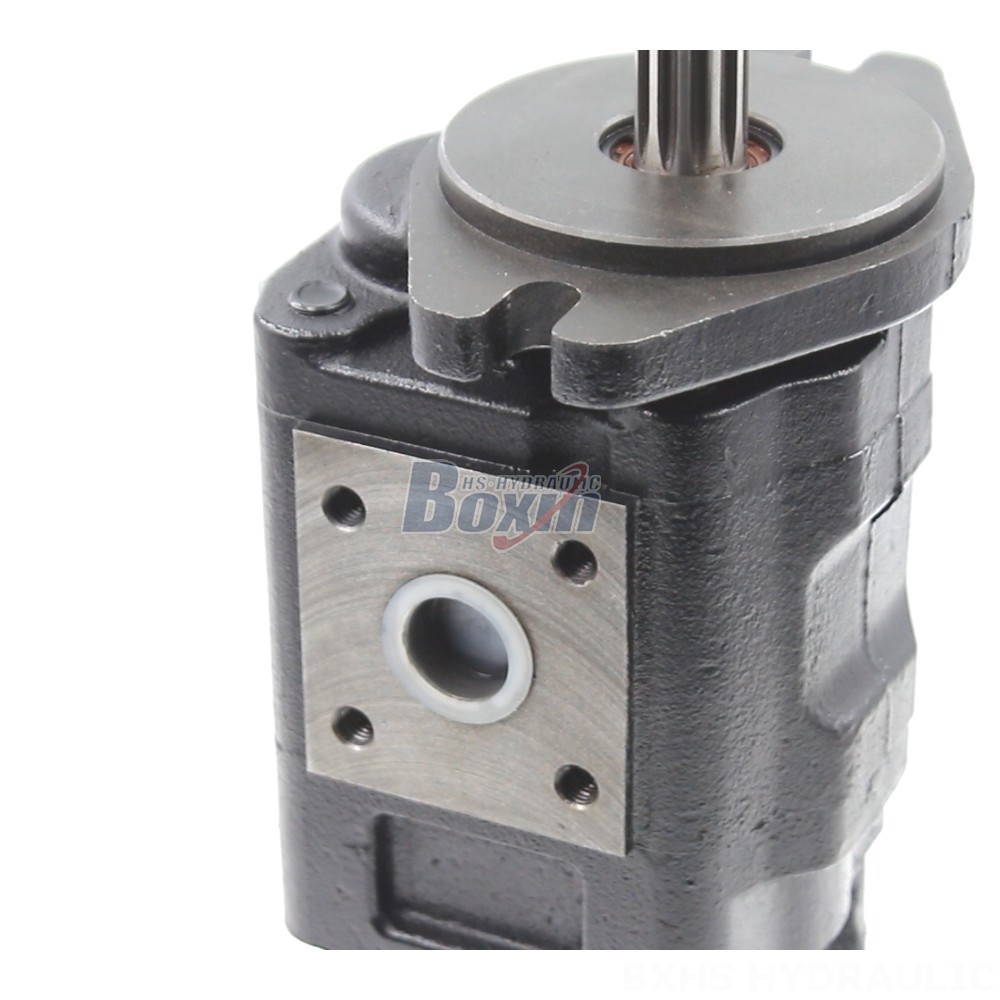

Our 40 cc/rev Hydraulic Gear Pump is a heavy-duty, reliable power source for a wide range of applications in the construction, material handling, agriculture, and industrial vehicle industries. We offer factory direct supply and global distribution, ensuring competitive pricing and timely delivery. Contact us to learn more about our OEM and ODM services.
| Seria CBHS-F4 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 40 cm³/obr, 25 cm³/obr, 20 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 2500 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Żeliwo, Żeliwo aluminiowe, Aluminium |
| Struktura | Typ krzywkowy talerza |
| Wersja kołnierza | Flange owalny A, Flange kwadratowy B, Otwory montażowe ISO-4, Otwory montażowe UNI-3, Kołnierz SAE |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
This 40 cc/rev Hydraulic Gear Pump is designed for high performance and durability in demanding applications. It features various displacement options (63 cc/rev, 80 cc/rev, 45 cc/rev, 32 cc/rev), rated pressure (17 MPa, 23 MPa, 25 MPa), and speed ratings (2200 r/min, 2400 r/min, 2500 r/min) to meet your specific needs. Available in external gear pump, cam plate type construction, with A-Oval Flange and B-Square Flange options, and H: Rectangle Spline shaft type. We are a factory direct supplier and offer global distribution for our CBHS-F4 Series hydraulic gear pumps. This means you can benefit from competitive pricing and fast delivery. We also offer OEM and ODM services to tailor the pump to your specific requirements. Contact us to learn more about our products and services and find the perfect hydraulic gear pump for your application.
