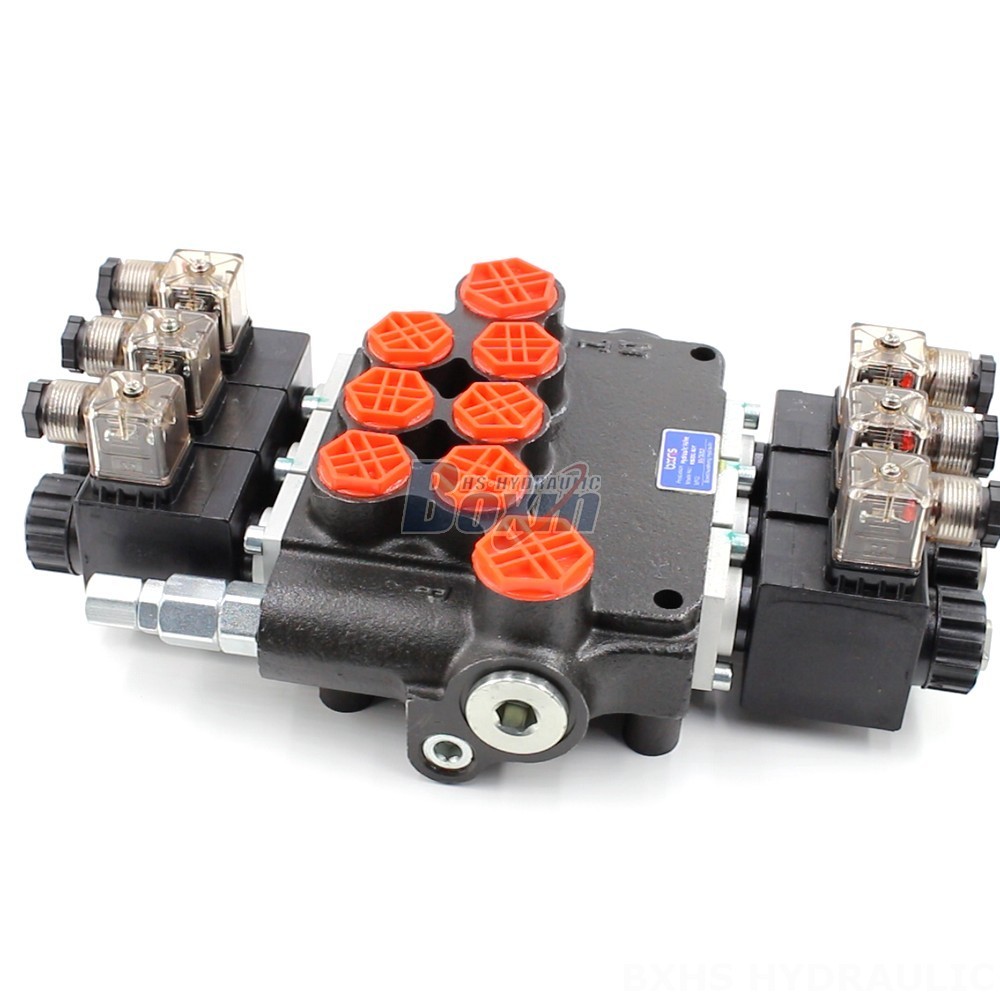

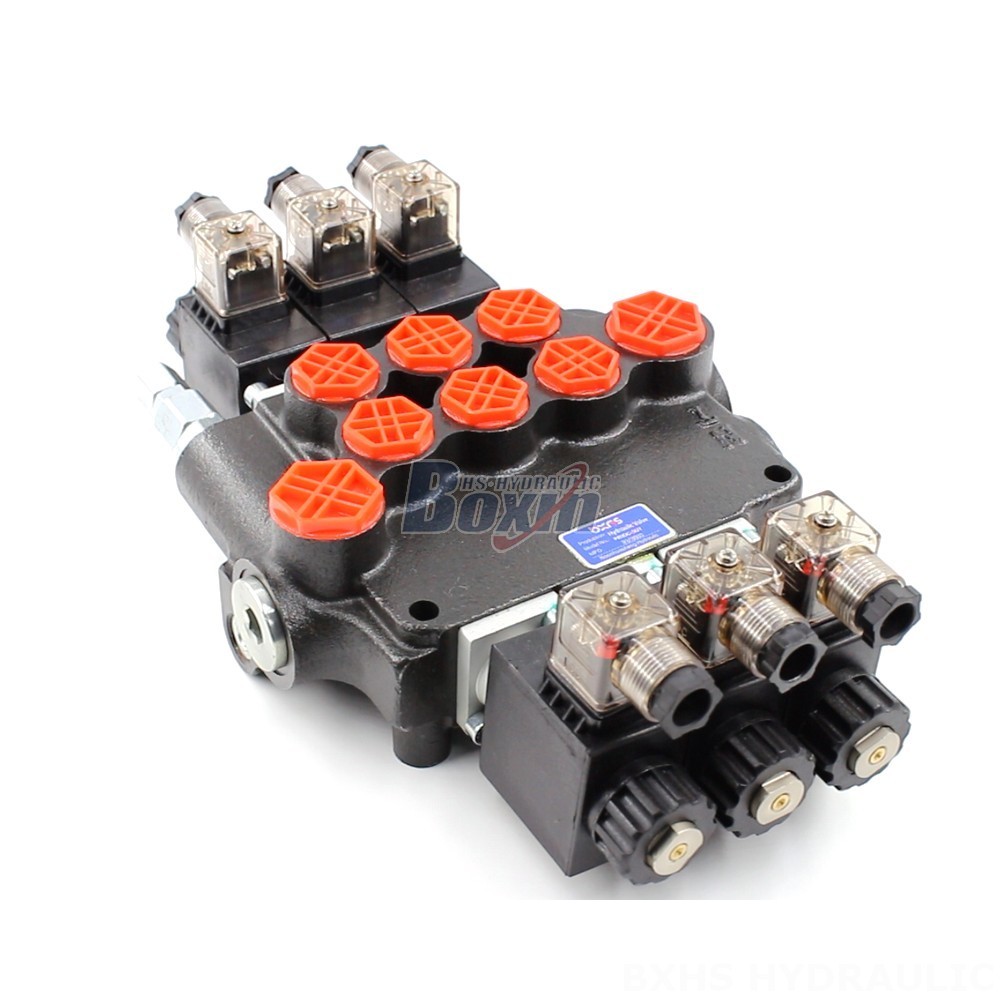

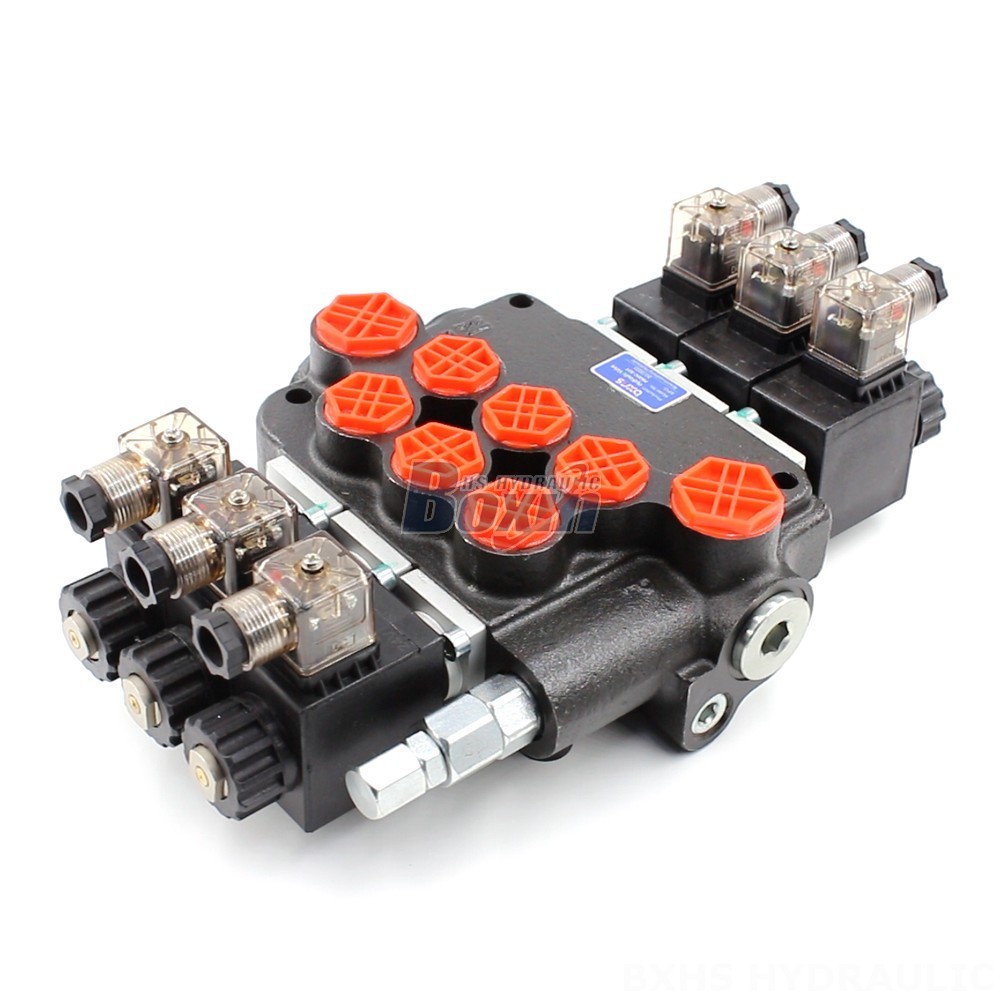

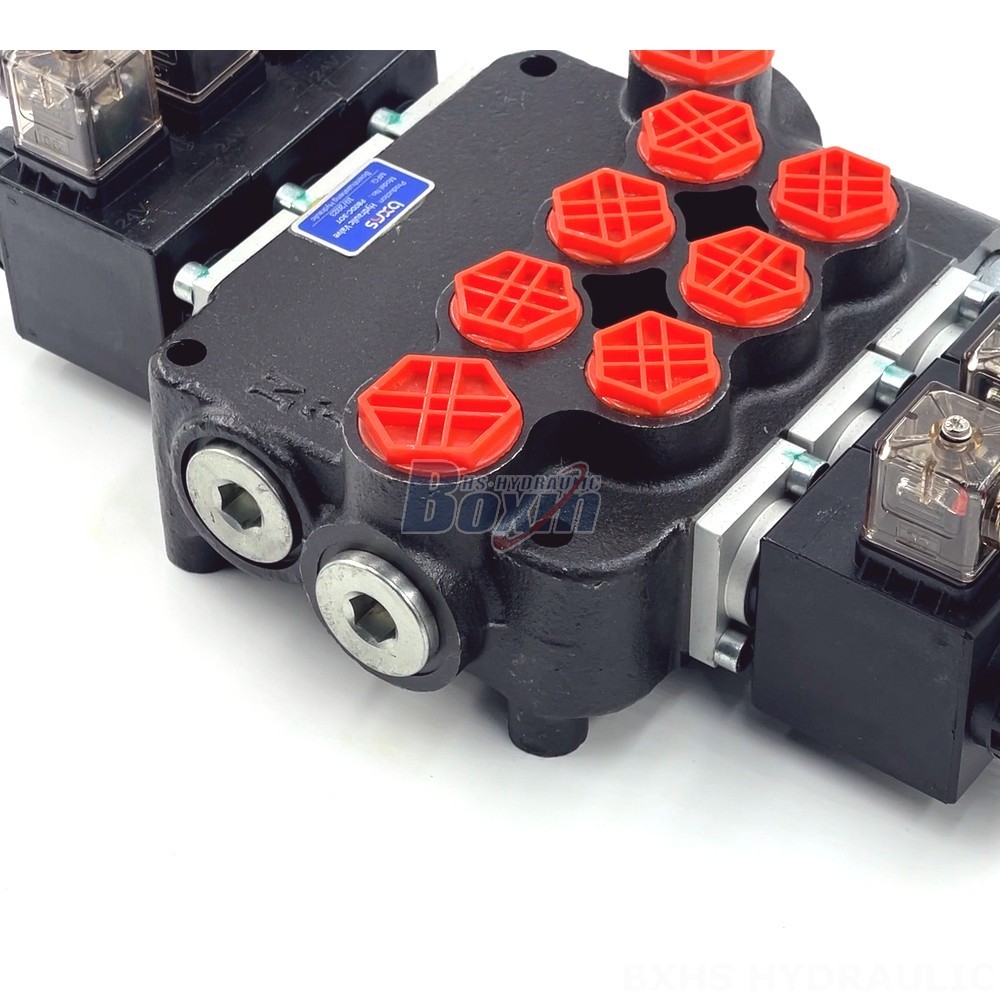

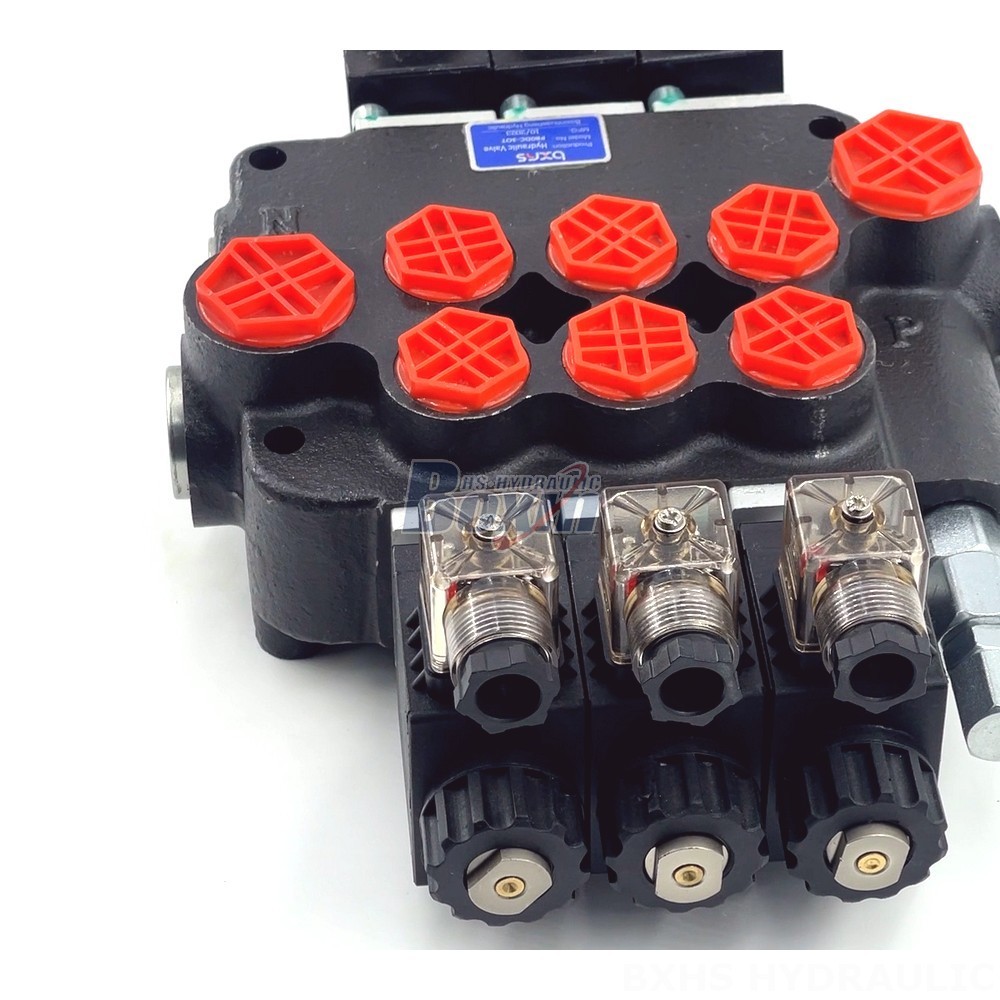

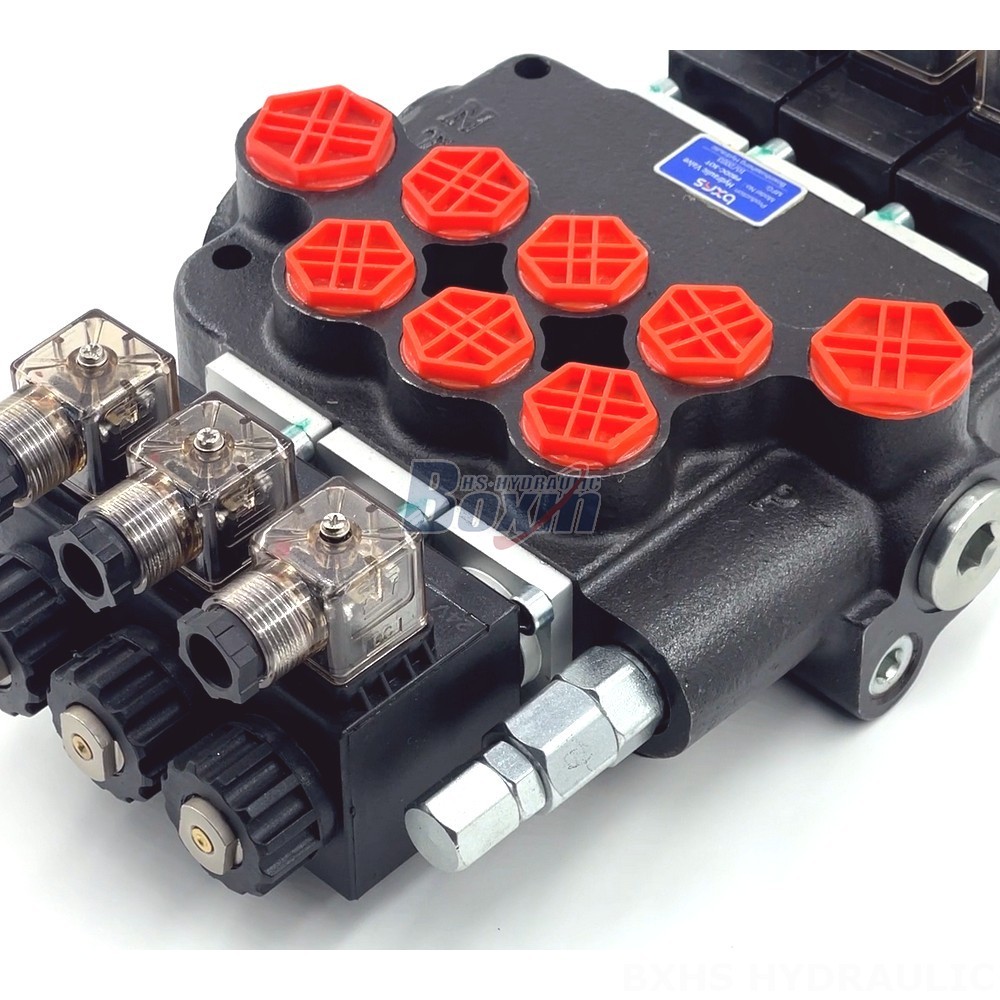

3-Spool Monoblock Valve | P80 Series | Factory Direct

Metoda sterowania:Elektromagnes

Szpula:3-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:200 bar (2900 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:33*28*13

Waga brutto:13.00 kg

Dostępność: W magazynie

1294 Osoby oglądają ten produkt

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct drawing image

The P80 Series 3-Spool Monoblock Directional Control Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This valve features a compact design, high flow rate, and durable construction, making it ideal for demanding applications.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series 3-Spool Monoblock Directional Control Valve is a powerful and versatile hydraulic component designed for demanding applications. It offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for a wide range of heavy-duty machinery. The valve's compact monoblock design ensures robust performance and durability, while its solenoid control system provides precise and responsive operation. This valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It is manufactured to meet the highest quality standards and is backed by a comprehensive warranty.
