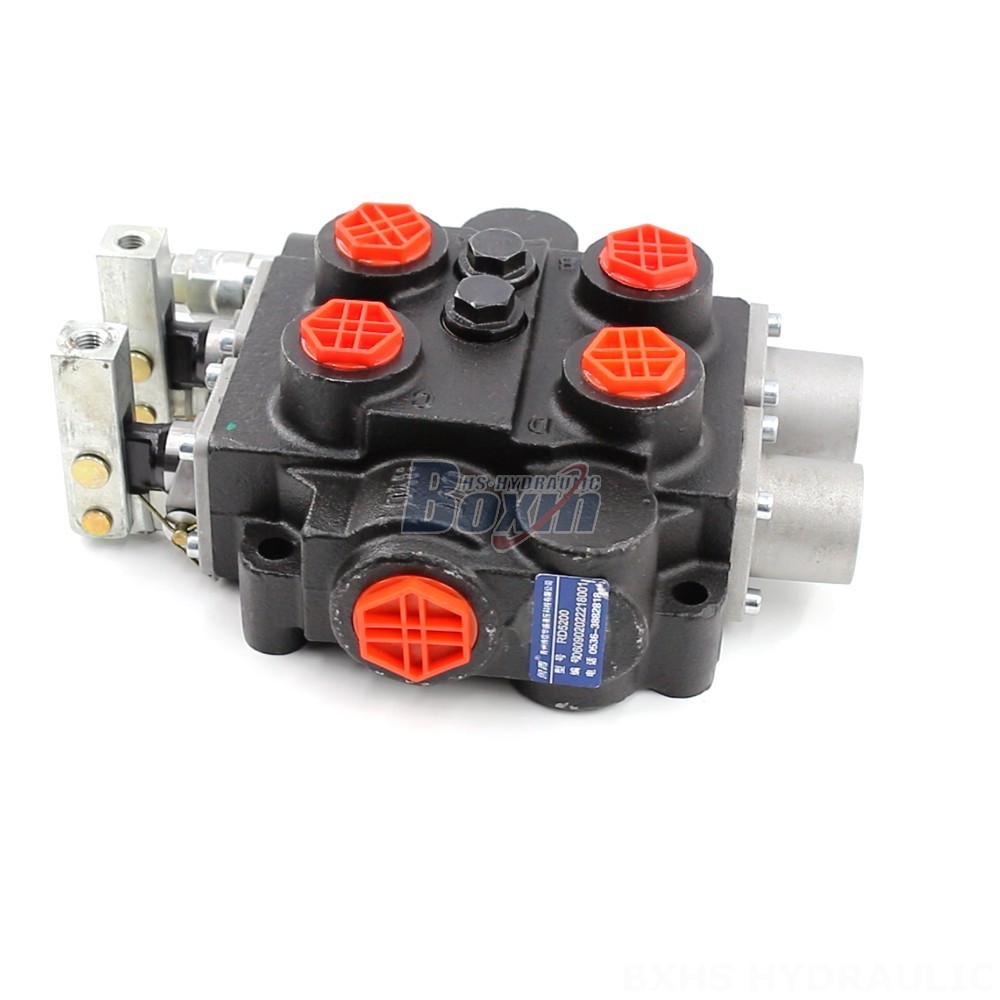

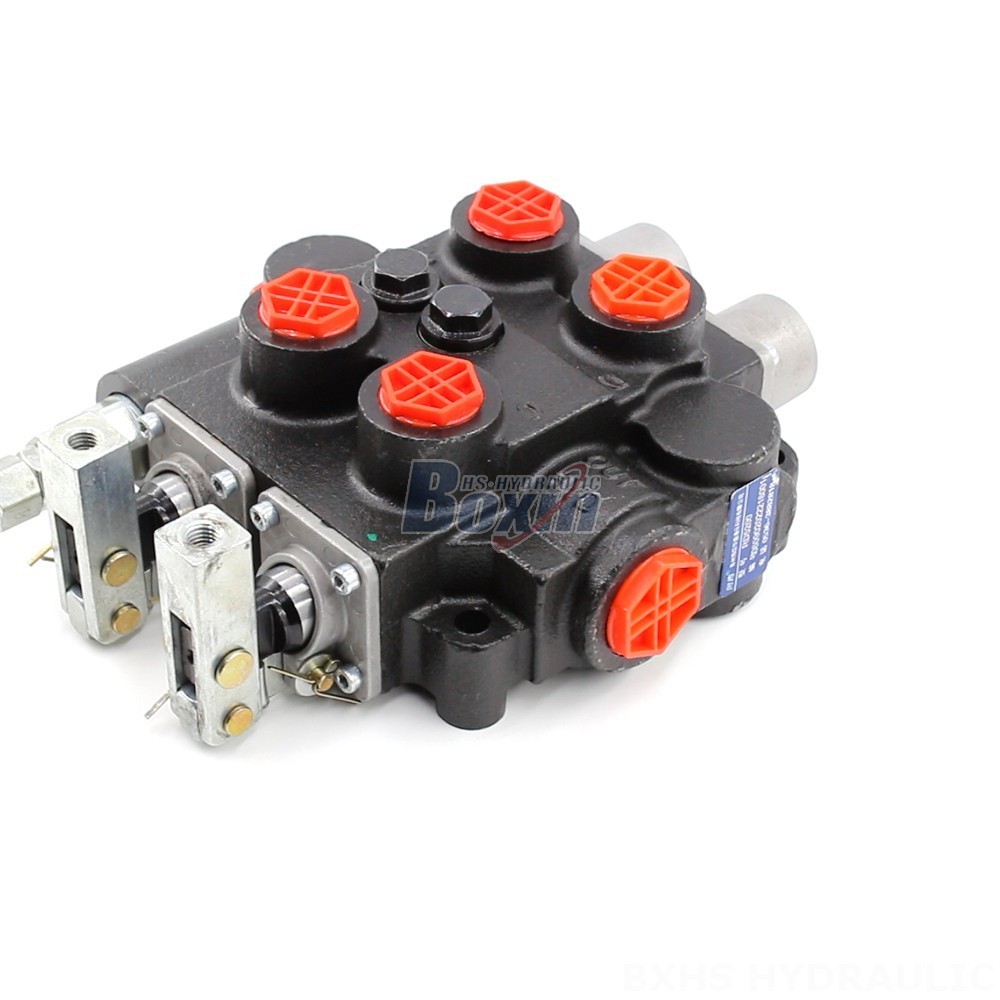

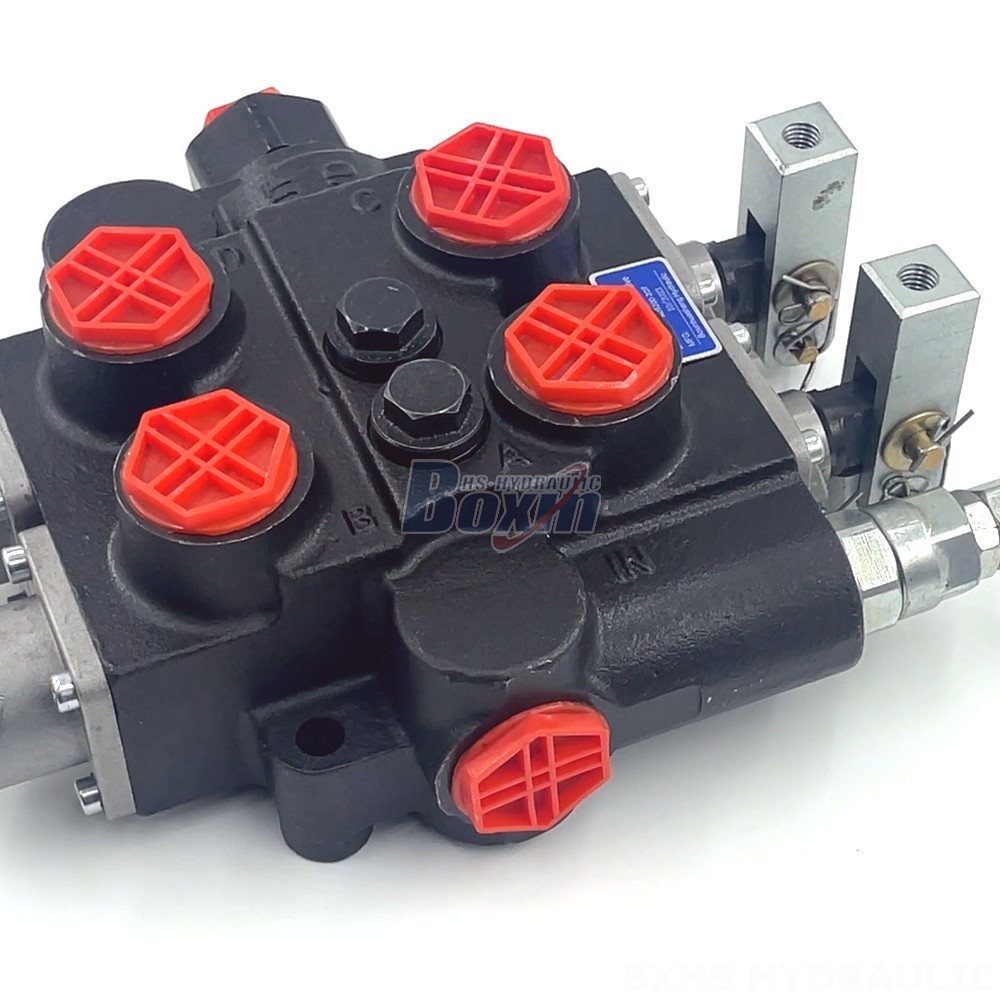

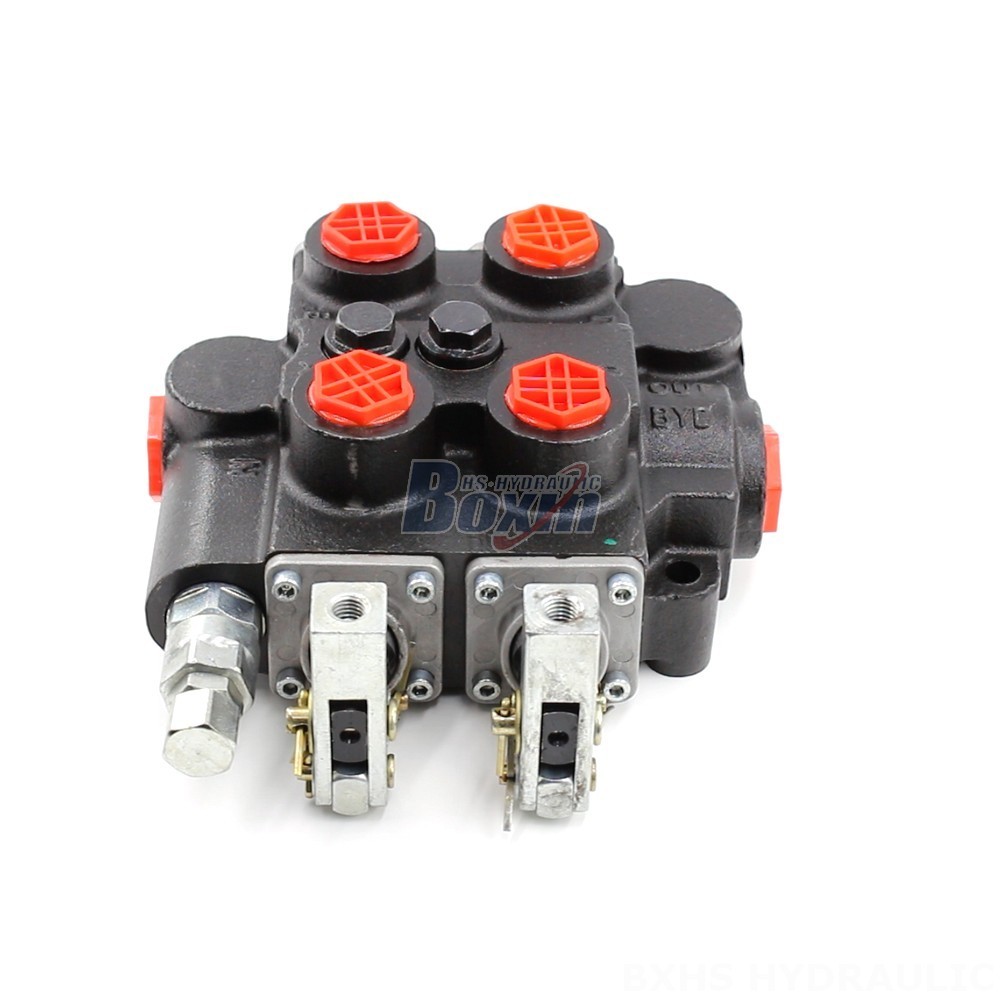

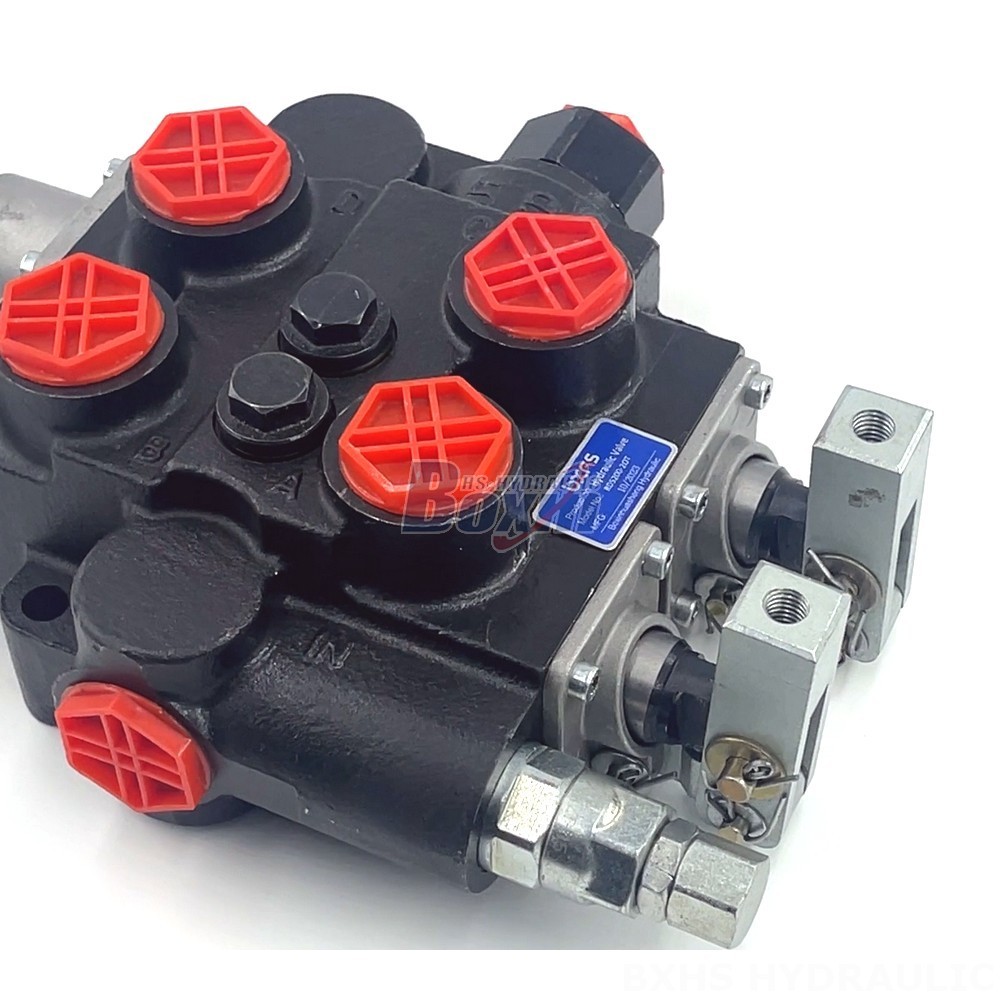

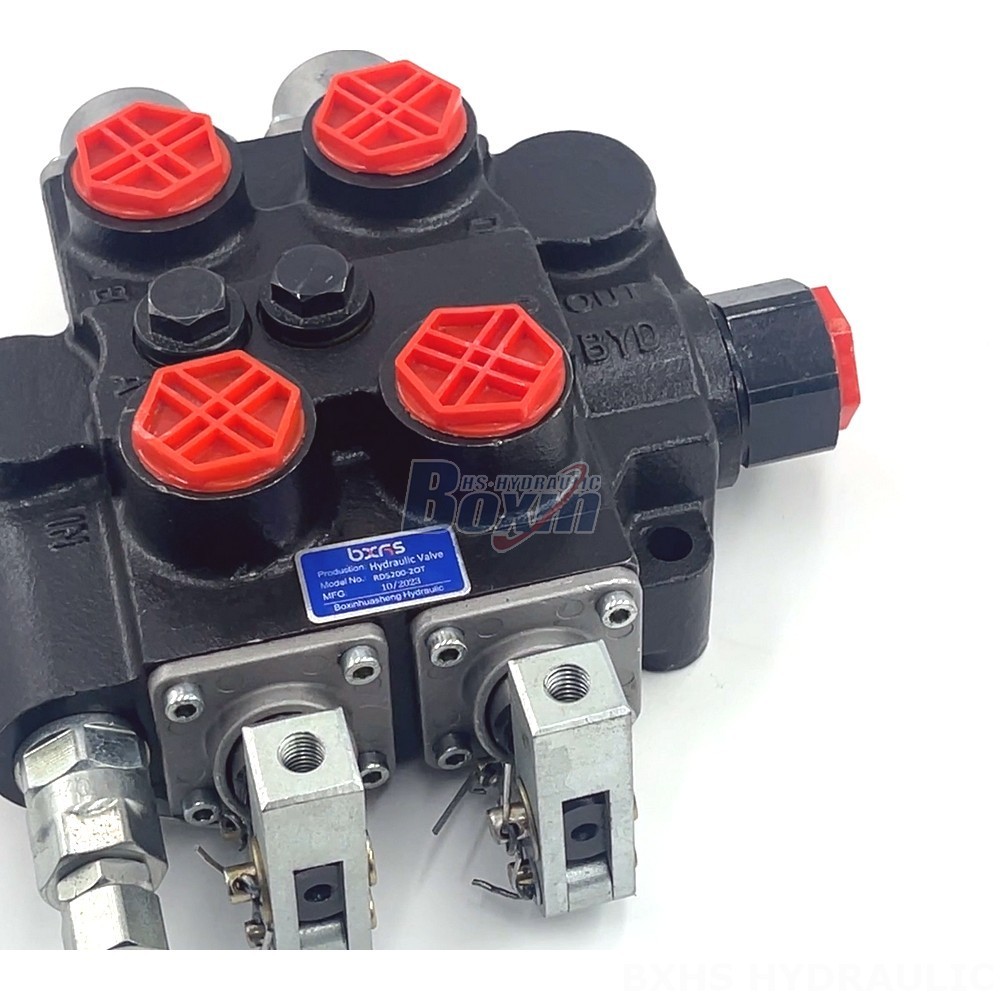

2 Spool Monoblock Valve | RD5200 Series | Factory Direct & Wholesale

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:100 l/min (26,5 USGPM)

Maksymalne ciśnienie:Ciśnienie 180 bar

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Hydraulic Control Valve

Seria produktów:Seria RD Hydraulic Control Valve

Rozmiar opakowania:25*28*11

Waga brutto:11.00 kg

Dostępność: W magazynie

1913 Osoby oglądają ten produkt

2 Spool Monoblock Valve | RD5200 Series | Factory Direct & Wholesale

2 Spool Monoblock Valve | RD5200 Series | Factory Direct & Wholesale

2 Spool Monoblock Valve | RD5200 Series | Factory Direct & Wholesale drawing image

The RD5200 Series 2 Spool Monoblock Valve is a high-performance hydraulic valve designed for use in a wide range of construction and industrial applications. This valve features a compact design, high flow rate, and robust construction for reliable performance.

Seria RD Hydraulic Control Valve Parametry
Metoda sterowania Ręczna
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny
Przepływ znamionowy 100 l/min (26,5 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G1/2, G3/4
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)

The RD5200 Series 2 Spool Monoblock Valve is a powerful and versatile hydraulic control valve designed for use in demanding applications. This valve features a compact monoblock design, a rated flow of 100 L/min (26.5 US gpm), and a maximum pressure rating of 315 bar (4600 psi). The valve is suitable for use in a wide range of operating temperatures (-40°C to +80°C). Its 2-spool configuration provides precise control of hydraulic circuits, making it ideal for use in applications such as material handling, construction, and agriculture. This valve is compatible with various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The RD5200 Series is a reliable and durable hydraulic valve that offers exceptional performance and value.
