1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:Ciśnienie 1 MPa

Port wlotowy:G1/4

Port wylotowy:G1/4

Rozmiar portu:G1/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria XQF Zawór sterujący jednoczęściowy

Rozmiar opakowania:22*15*12

Waga brutto:0.50 kg

Dostępność: W magazynie

1076 Osoby oglądają ten produkt

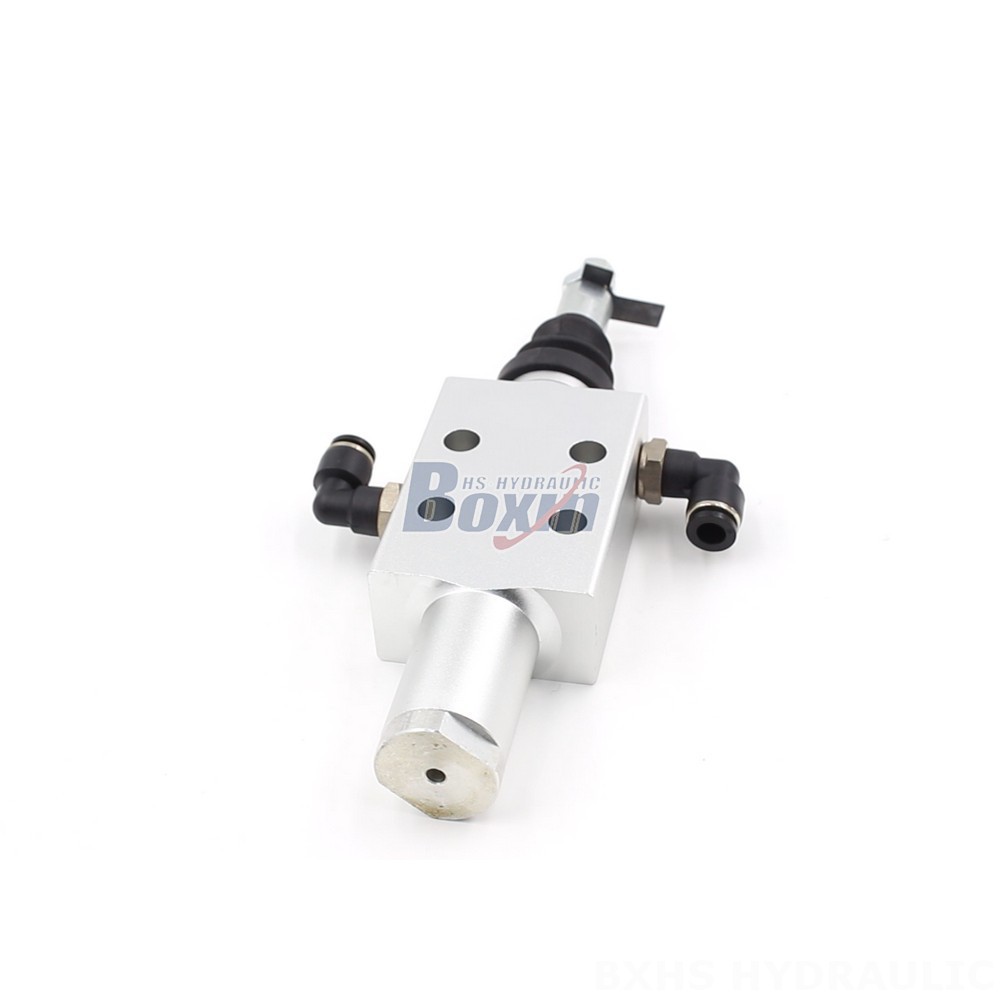

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation drawing image

The XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is a reliable and efficient solution for various applications, including construction, material handling, and agriculture. It features a monoblock design, 1 spool, and a maximum pressure of 200 bar (2900 psi).

Seria XQF Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Pneumatyczna
Szpula 1-sekcyjny
Zakres temperatury otoczenia -40°C do +60°C (-40°F do +140°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 50 l/min (13,2 USGPM)
Maksymalne ciśnienie 200 bar (2900 psi)
Port wlotowy G1/4
Port wylotowy G1/4
Rozmiar portu G1/4

This high-performance XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is designed for demanding applications in construction, material handling, and agriculture. Featuring a robust monoblock structure, it offers exceptional reliability and efficiency. Its pneumatic control provides precise and responsive operation. With a single spool configuration and a maximum pressure rating of 200 bar (2900 psi), this valve is capable of handling various hydraulic functions. Its wide operating viscosity range (12-400 mm²/s) ensures optimal performance across diverse environments. The valve is also built to withstand extreme temperatures, operating flawlessly between -40°C to +60°C (-40°F to +140°F). The XQF Series is designed for compatibility with various equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
